443
Features of your vehicle
D190600AUN
Turn signals and lane change sig- nals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or down
(A). Green arrow indicators on the instru-
ment panel indicate which turn signal is
operating. They will self-cancel after a
turn is completed. If the indicator contin-
ues to flash after a turn, manually return
the lever to the OFF position.To signal a lane change, move the turn
signal lever slightly and hold it in position
(B). The lever will return to the OFF posi-tion when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out andwill require replacement.
✽✽
NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit.
D190700ASA
Front fog light (if equipped)
Fog lights are used to provide improved
visibility when visibility is poor due to fog,
rain or snow, etc. The fog lights will turn
on when the fog light button is pressed
after the ignition switch is in the ON posi-
tion and the parklight is turned on.
To turn off the fog lights, press the button again.
OSA047080
CAUTION
When in operation, the fog lights consume large amounts of vehicleelectrical power. Only use the fog lights when visibility is poor.
OSA047095

Maintenance
58
7
LIGHT BULBS
G220000AUN
Use only the bulbs of the specified wattage.
✽✽ NOTICE
After heavy rain or washing, headlight
and taillight lenses could appear frosty.This condition is caused by the tempera-
ture difference between the lamp inside
and outside. This is similar to the con-
densation on your windows inside yourvehicle during rain and doesn’t indicate a
problem with your vehicle. If the water
leaks into the lamp bulb circuitry, havethe vehicle checked by an authorized
KIA dealer.
G220100ASA
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (High/Low)
(2) Front turn signal light/Position light
(3) Front fog light (if equipped)
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattage rating. Otherwise, it may cause
damage to the fuse or electric wiring system.
CAUTION
If you don’t have necessary tools, the correct bulbs and the expertise,consult an authorized KIA dealer. In
many cases, it is difficult to replace vehicle light bulbs because otherparts of the vehicle must be
removed before you can get to the bulb. This is especially true if you
have to remove the headlight assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can cause damage to the
vehicle.OSA077030

Maintenance
60
7
G220102AUN

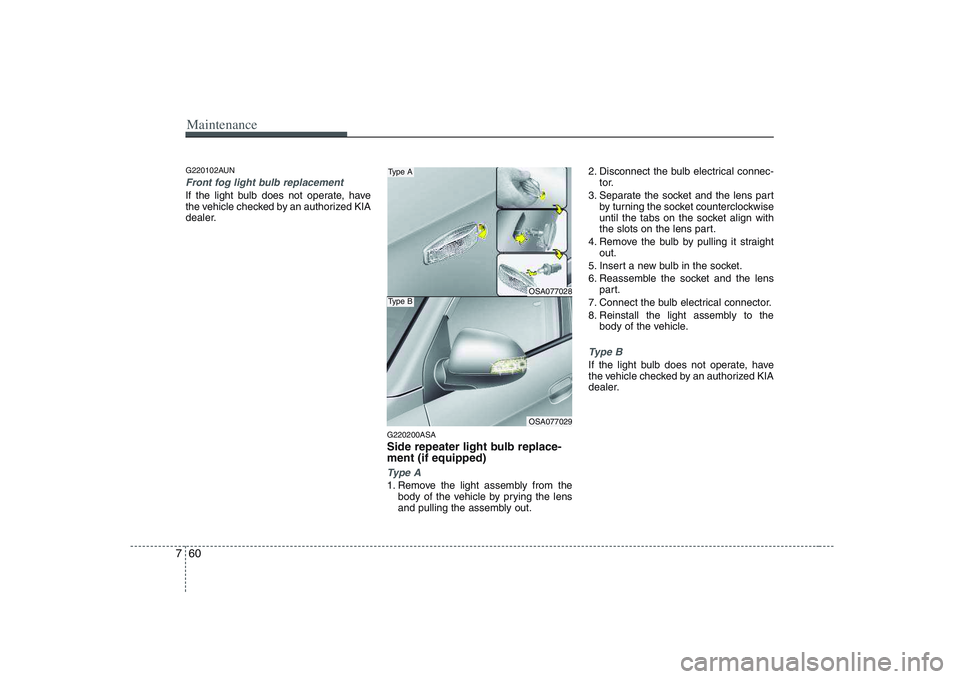

Front fog light bulb replacement
If the light bulb does not operate, have
the vehicle checked by an authorized KIA
dealer.
G220200ASA
Side repeater light bulb replace- ment (if equipped)
Type A
1. Remove the light assembly from thebody of the vehicle by prying the lens
and pulling the assembly out. 2. Disconnect the bulb electrical connec-
tor.
3. Separate the socket and the lens part by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical connector.
8. Reinstall the light assembly to the body of the vehicle.
Type B
If the light bulb does not operate, have
the vehicle checked by an authorized KIA
dealer.
OSA077028
OSA077029
Type A
Type B

761
Maintenance
G220300ASA
Rear combination light bulb replacement (1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light / Rear fog light (if equipped)
1. Open the tailgate.
2. Remove the rear combination lightassembly by turning the screw coun-
terclockwise and removing the assem-
bly.
3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly. 4. Remove the bulb from the socket by
pressing it in and rotating it until the
tabs on the bulb align with the slots in
the socket. Pull the bulb out of the
socket.
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
OSA077033
OSA077034
OSA077035
OSA077038
OSA077032

Specifications
2
9
Item mm (in)
Overall length 3,535 (139.17)
Overall width 1,595 (62.80)
Overall height 1,480 (58.27)
Front tread 1,400 (55.11)
Rear tread 1,385 (54.53)
Wheelbase 2,370 (93.31)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 60
Front turn signal lights For Europe 21
Except Europe 28
Position lights For Europe 5
Except Europe 8
Side repeater lights* 5
Front fog lights* 27
Rear fog light* 21
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 21
High mounted stop light* 16
License plate lights 5Dome lights 10
Luggage lamp 5
BULB WATTAGE
* : If equipped
