fuse box KIA QUORIS 2013 User Guide

Maintenance
68
7

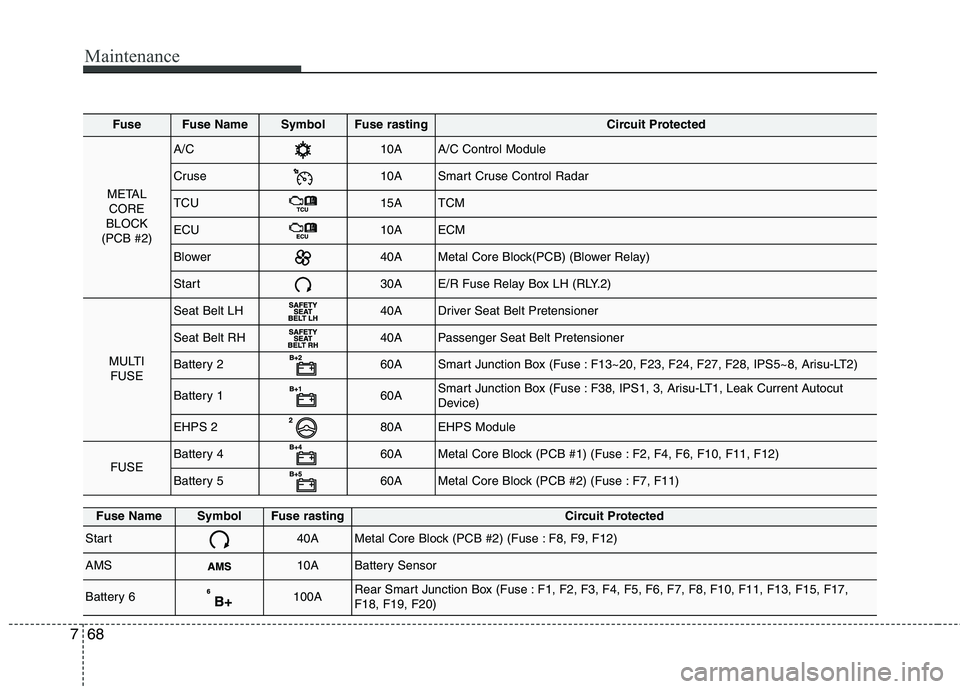

FuseFuse NameSymbolFuse rastingCircuit Protected
METAL
CORE
BLOCK
(PCB #2)
A/C10AA/C Control Module
Cruse10ASmart Cruse Control Radar
TCU15ATCM
ECU10AECM
Blower40AMetal Core Block(PCB) (Blower Relay)
Start30AE/R Fuse Relay Box LH (RLY.2)
MULTI FUSE
Seat Belt LH40ADriver Seat Belt Pretensioner
Seat Belt RH40APassenger Seat Belt Pretensioner
Battery 260ASmart Junction Box (Fuse : F13~20, F23, F24, F27, F28, IPS5~8, Arisu-LT2)
Battery 160ASmart Junction Box (Fuse : F38, IPS1, 3, Arisu-LT1, Leak Current Autocut
Device)
EHPS 280AEHPS Module
FUSEBattery 460AMetal Core Block (PCB #1) (Fuse : F2, F4, F6, F10, F11, F12)
Battery 560AMetal Core Block (PCB #2) (Fuse : F7, F11)
Fuse NameSymbolFuse rastingCircuit Protected
Start40AMetal Core Block (PCB #2) (Fuse : F8, F9, F12)
AMS10ABattery Sensor
Battery 6100ARear Smart Junction Box (Fuse : F1, F2, F3, F4, F5, F6, F7, F8, F10, F11, F13, F15, F17, F18, F19, F20)

769
Maintenance
Trunk fuse panel
OKH072043LE
 Battery box fuse panelOKH072042LE
OKH072041

Maintenance
70
7

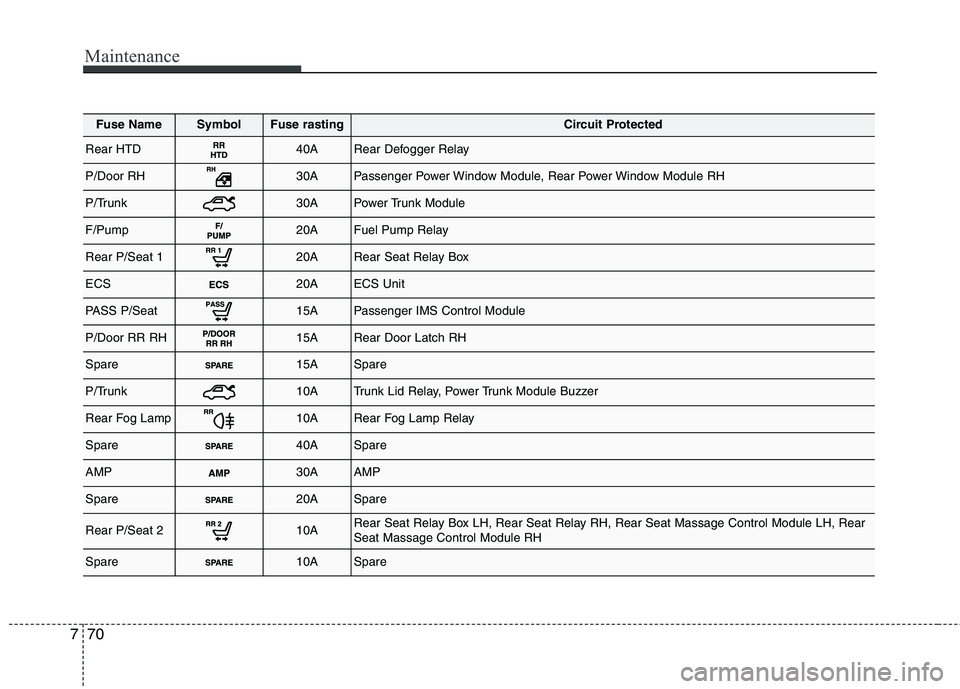

Fuse NameSymbolFuse rastingCircuit Protected
Rear HTD40ARear Defogger Relay
P/Door RH30APassenger Power Window Module, Rear Power Window Module RH
P/Trunk30APower Trunk Module
F/Pump20AFuel Pump Relay
Rear P/Seat 120ARear Seat Relay Box
ECS20AECS Unit
PASS P/Seat15APassenger IMS Control Module
P/Door RR RH15ARear Door Latch RH
Spare15ASpare
P/Trunk10ATrunk Lid Relay, Power Trunk Module Buzzer
Rear Fog Lamp10ARear Fog Lamp Relay
Spare40ASpare
AMP30AAMP
Spare20ASpare
Rear P/Seat 210ARear Seat Relay Box LH, Rear Seat Relay RH, Rear Seat Massage Control Module LH, Rear Seat Massage Control Module RH
Spare10ASpare

Maintenance
72
7

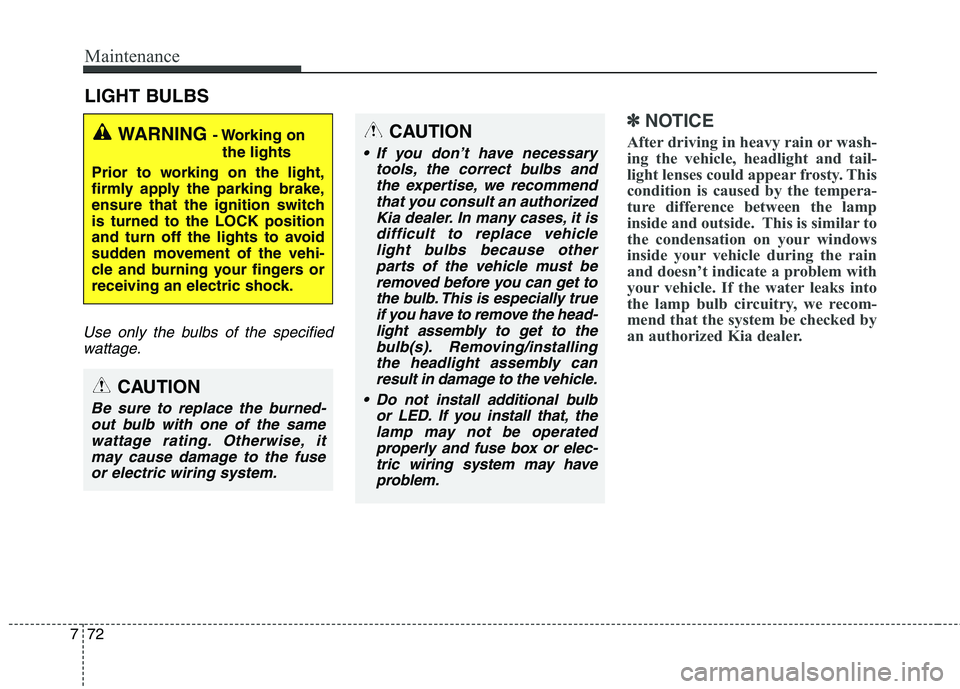

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽✽ NOTICE
After driving in heavy rain or wash-
ing the vehicle, headlight and tail-
light lenses could appear frosty. This
condition is caused by the tempera-
ture difference between the lamp
inside and outside. This is similar to
the condensation on your windows
inside your vehicle during the rain
and doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, we recom-
mend that the system be checked by
an authorized Kia dealer.WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switchis turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, it may cause damage to the fuseor electric wiring system.
CAUTION
If you don’t have necessary tools, the correct bulbs andthe expertise, we recommend that you consult an authorizedKia dealer. In many cases, it isdifficult to replace vehicle light bulbs because otherparts of the vehicle must beremoved before you can get to the bulb. This is especially trueif you have to remove the head-light assembly to get to the bulb(s). Removing/installingthe headlight assembly canresult in damage to the vehicle.
Do not install additional bulb or LED. If you install that, thelamp may not be operatedproperly and fuse box or elec-tric wiring system may have problem.

I5
Index
Feeling (Haptic switch feeling) (Type B) . . . . . . . . . . . 4-67
Flat tire (with spare tire) . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Changing tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Removing and storing the spare tire . . . . . . . . . . . . . 6-16
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Fluid Brakes/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Fog light (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Fog light (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Front blind spot monitoring system . . . . . . . . . . . . . . 4-108
Front lamp switch (Type A) . . . . . . . . . . . . . . . . . . . . 4-121
Front lamp switch (Type B) . . . . . . . . . . . . . . . . . . . . 4-123
Front seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Fuse/relay panel description . . . . . . . . . . . . . . . . . . . . 7-57
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . . 7-54 Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Multi fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Gross vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Hazard warning flasher. . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . . 5-96
Head up display (HUD) . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-110
Headlight bulb replacement . . . . . . . . . . . . . . . . . . . . . 7-74
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-117
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Headlight washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Headlight(Headlamp) welcome . . . . . . . . . . . . . . . . . 4-126
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Heater Automatic climate control system . . . . . . . . . . . . . . 4-128
Height adjustment(front seat) . . . . . . . . . . . . . . . . . . . . 3-22
F
G
H

Index
6
I

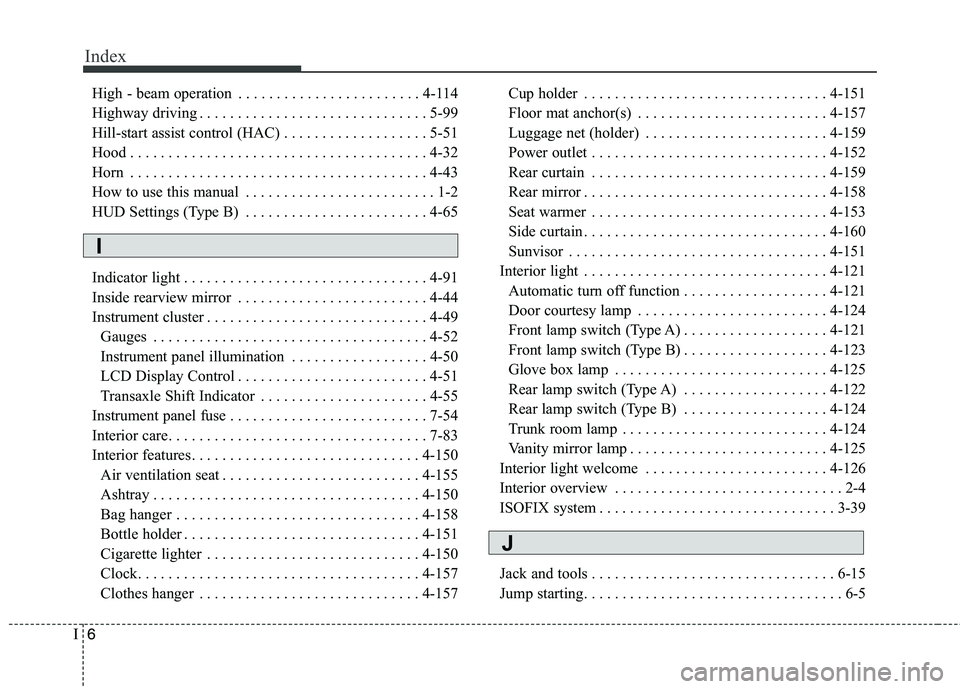

High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-99
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . . 5-51
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
HUD Settings (Type B) . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Instrument panel illumination . . . . . . . . . . . . . . . . . . 4-50
LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . 4-55
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54
Interior care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-83
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150 Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Bag hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Rear curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Rear mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-160
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121
Automatic turn off function . . . . . . . . . . . . . . . . . . . 4-121
Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Front lamp switch (Type A) . . . . . . . . . . . . . . . . . . . 4-121
Front lamp switch (Type B) . . . . . . . . . . . . . . . . . . . 4-123
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Rear lamp switch (Type A) . . . . . . . . . . . . . . . . . . . 4-122
Rear lamp switch (Type B) . . . . . . . . . . . . . . . . . . . 4-124
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Interior light welcome . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Jump starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
J
