Your vehicle at a glance
9. Door.......................................................4-15
10. Fuel filler lid .........................................4-34
11. Rear combination lamp .......................7-76
12. Trunk lid ...............................................4-20
13. High mounted stop lamp .....................7-76
14. Rear window defroster ......................4-125
15. Rear parking assist system .................4-97
16. Antenna .............................................4-161
17. Rearview camera ..............................4-102OKH013002

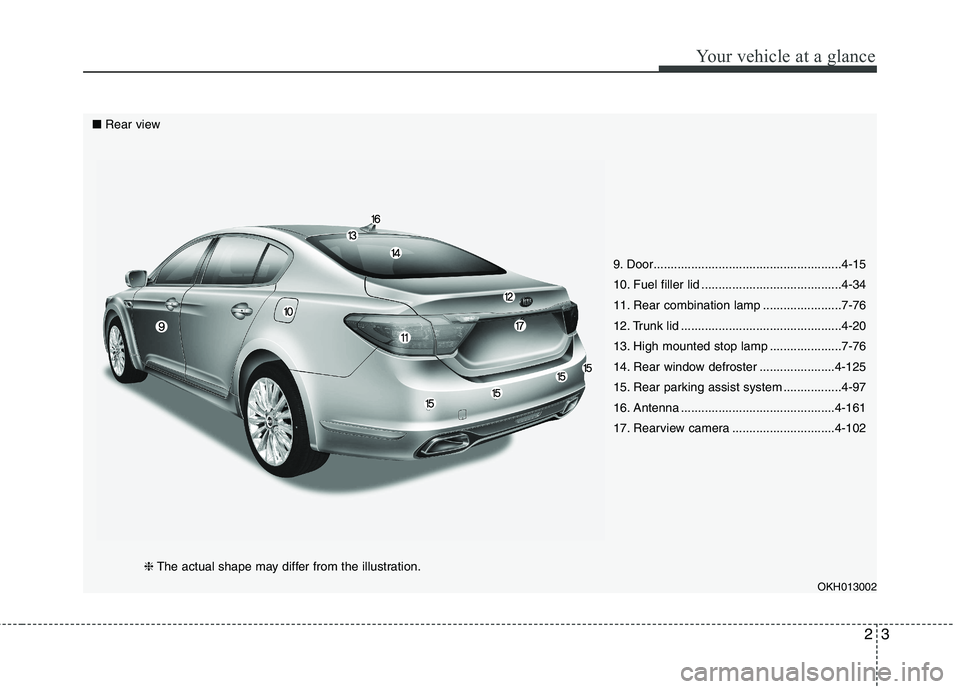

■Rear view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
4
2

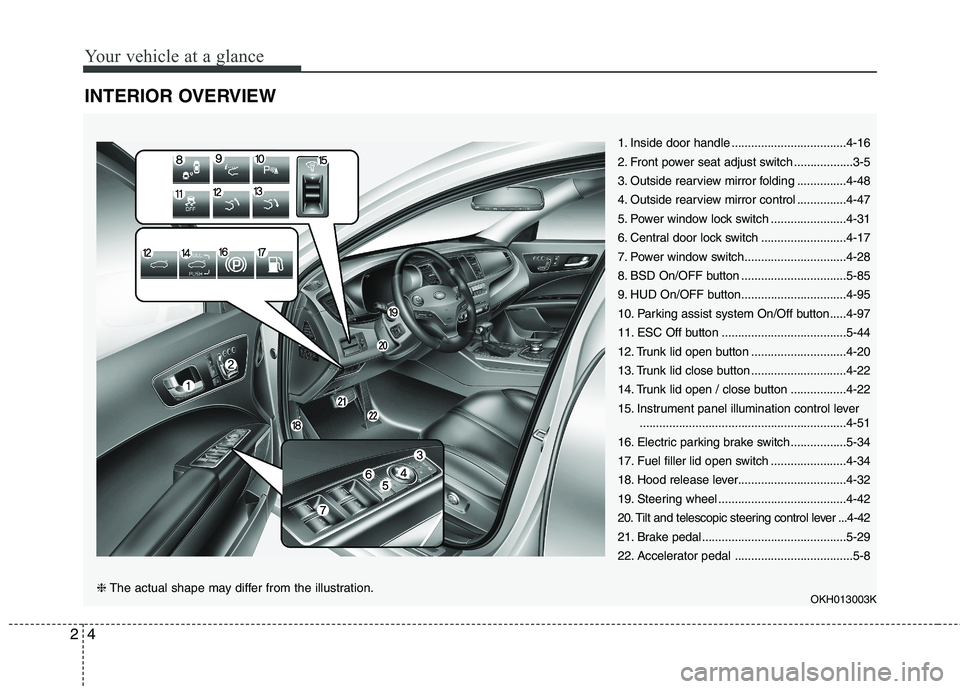

INTERIOR OVERVIEW
1. Inside door handle ...................................4-16
2. Front power seat adjust switch ..................3-5
3. Outside rearview mirror folding ...............4-48
4. Outside rearview mirror control ...............4-47
5. Power window lock switch .......................4-31
6. Central door lock switch ..........................4-17
7. Power window switch...............................4-28
8. BSD On/OFF button ................................5-85
9. HUD On/OFF button................................4-95
10. Parking assist system On/Off button.....4-97
11. ESC Off button ......................................5-44
12. Trunk lid open button .............................4-20
13. Trunk lid close button .............................4-22
14. Trunk lid open / close button .................4-22
15. Instrument panel illumination control lever
...............................................................4-51
16. Electric parking brake switch .................5-34
17. Fuel filler lid open switch .......................4-34
18. Hood release lever.................................4-32
19. Steering wheel .......................................4-42
20. Tilt and telescopic steering control lever ...4-42
21. Brake pedal............................................5-29
22. Accelerator pedal ....................................5-8
OKH013003K
❈The actual shape may differ from the illustration.

25
Your vehicle at a glance
1. Instrument cluster ..............................4-50
2. Horn...................................................4-44
3. Driver's front air bag ..........................3-50
4. Engine start/stop button ......................5-5
5. Audio / Video / Navigation ...............4-160
6. Climate control system ....................4-126
7. Clock................................................4-155
8. Hazard warning flasher .......................6-2
9. Passenger's front air bag...................3-52
10. Knee air bag ....................................3-52
11. Glove box.......................................4-145
12. SBC(Shift by cable) control lever.....5-10
13. SBW(Shift by wire) control lever......5-17
14. Drive mode button ...........................5-54
15. Auto hold button ..............................5-40
16. Electric parking brake switch ...........5-34
17. DIS central key ..............................4-160
18. Front blind spot monitoring systemOn/Off button .................................4-106
19. Rear curtain folding button ............4-157
20. Around view monitoring system On/Off button .................................4-107
21. Vehicle height control button ...........5-57
22. Snow mode button ..........................5-54
23. Center console storage box ..........4-144 OKH013004
❈The actual shape may differ from the illustration.

Your vehicle at a glance
6
2

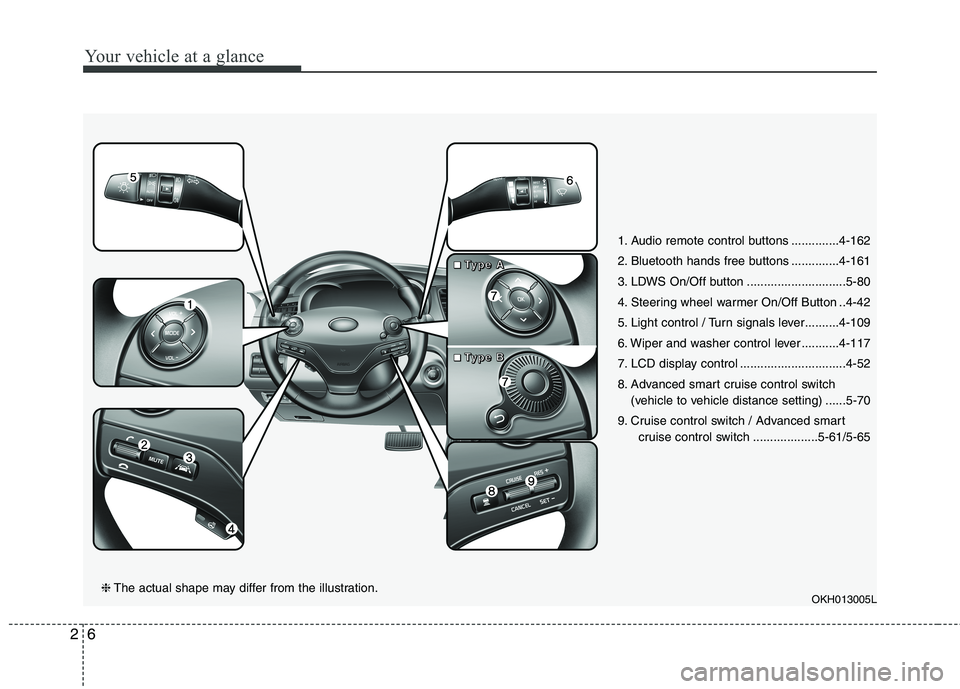

1. Audio remote control buttons ..............4-162
2. Bluetooth hands free buttons ..............4-161
3. LDWS On/Off button .............................5-80
4. Steering wheel warmer On/Off Button ..4-42
5. Light control / Turn signals lever..........4-109
6. Wiper and washer control lever ...........4-117
7. LCD display control ...............................4-52
8. Advanced smart cruise control switch
(vehicle to vehicle distance setting) ......5-70
9. Cruise control switch / Advanced smart cruise control switch ...................5-61/5-65
OKH013005L
❈The actual shape may differ from the illustration.
■■■■TTTTyyyyppppeeee AAAA
■■■■TTTTyyyyppppeeee BBBB

27
Your vehicle at a glance
ENGINE COMPARTMENT
1. Engine oil dipstick ............................7-24
2. Engine oil filler cap ..........................7-24
3. Engine coolant reservoir ..................7-26
4. Radiator cap ....................................7-26
5. Brake fluid reservoir.........................7-29
6. Power steering fluid reservoir ..........7-30
7. Windshield washer fluid reservoir ....7-31
8. Air cleaner .......................................7-32
9. Fuse box ..........................................7-54
10. Jumper terminal ...............................6-5
OKH012007
❈
The actual engine compartment in the vehicle may differ from the illustration.
❈ The battery is in the trunk.

Safety features of your vehicle

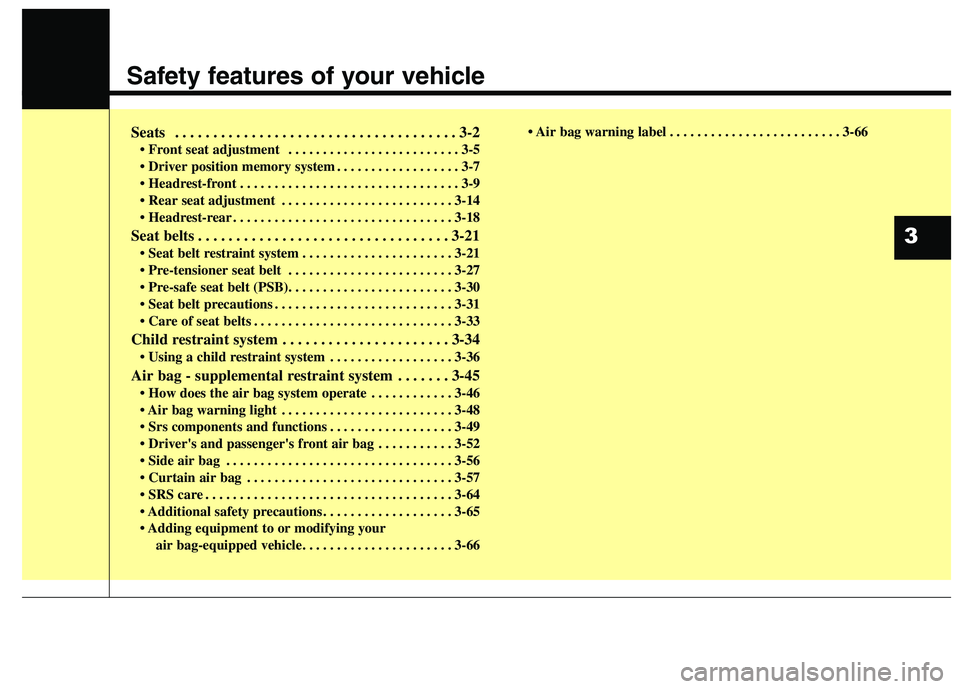

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2• Front seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
. . . . . . . . . . . . . . . . . . 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . 3-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21 . . . . . . . . . . . . . . . . . . . . . . 3-21
. . . . . . . . . . . . . . . . . . . . . . . . 3-27

. . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-34 . . . . . . . . . . . . . . . . . . 3-36
Air bag - supplemental restraint system . . . . . . . 3-45 . . . . . . . . . . . . 3-46
. . . . . . . . . . . . . . . . . . . . . . . . . 3-48
. . . . . . . . . . . . . . . . . . 3-49
. . . . . . . . . . . 3-52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
. . . . . . . . . . . . . . . . . . . 3-65
air bag-equipped vehicle. . . . . . . . . . . . . . . . . . . . . . 3-66 . . . . . . . . . . . . . . . . . . . . . . . . . 3-66
3

Safety features of your vehicle
2
3
Driver’s seat
(1) Forward and rearward (2) Seat cushion length
(3) Seatback angle(4) Headrest height
(5) Driver position memory system
(6) Lumbar support
Front passenger’s seat
(7) Forward and rearward
(8) Seatback angle(9) Headrest height Rear seat
(10) Forward and rearward
(11) Easy access button
(12) Front passenger’s seat forward
and rearward*
(13) F ront passenger’s seat back
angle*
(14) Lumbar support
(15) Rear control lock button
(16) Front passenger’s seat walk in button*
SEATS
OKH033001L

33
Safety features of your vehicle

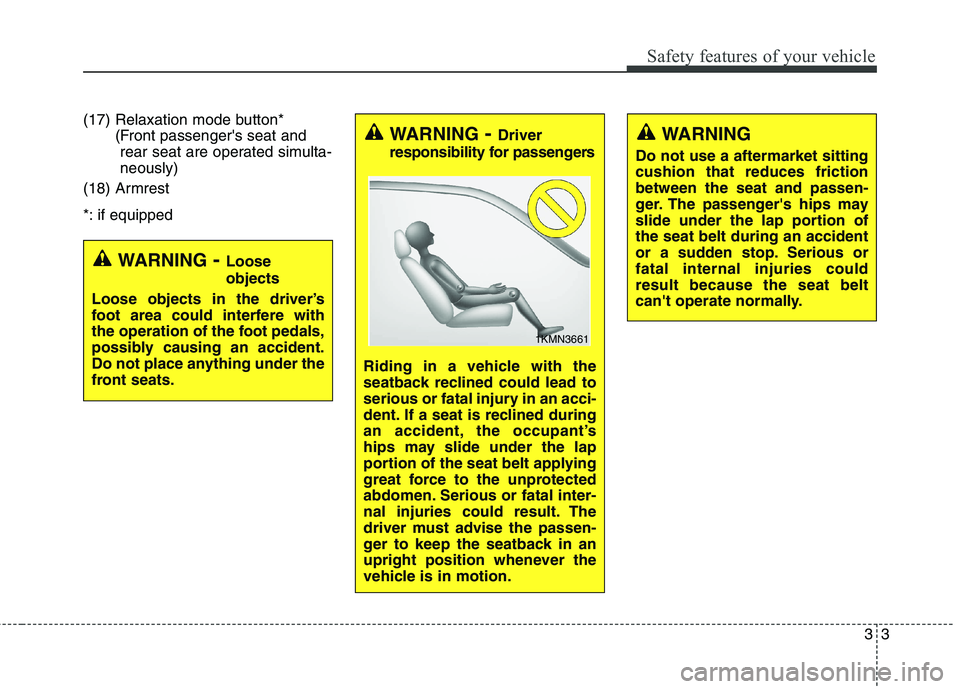

(17) Relaxation mode button*(Front passenger's seat andrear seat are operated simulta- neously)
(18) Armrest
*: if equipped
WARNING - Loose objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.
WARNING - Driver
responsibility for passengers
Riding in a vehicle with the
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a seat is reclined during
an accident, the occupant’s
hips may slide under the lap
portion of the seat belt applying
great force to the unprotected
abdomen. Serious or fatal inter-
nal injuries could result. The
driver must advise the passen-
ger to keep the seatback in an
upright position whenever the
vehicle is in motion.WARNING
Do not use a aftermarket sitting cushion that reduces frictionbetween the seat and passen-
ger. The passenger's hips may
slide under the lap portion ofthe seat belt during an accident
or a sudden stop. Serious orfatal internal injuries couldresult because the seat belt
can't operate normally.
1KMN3661

Safety features of your vehicle
4
3

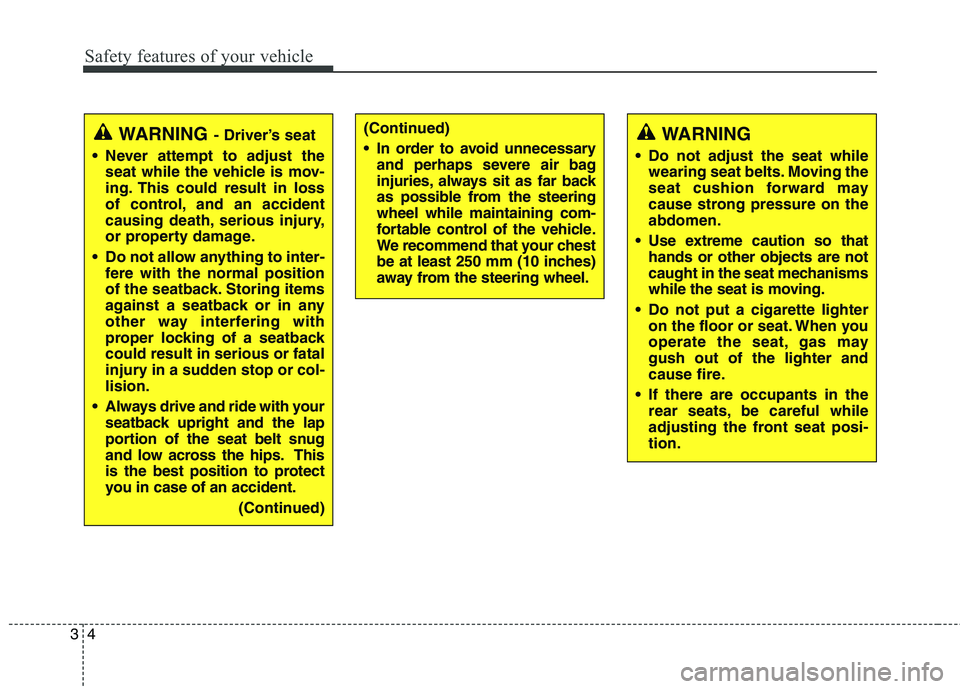

WARNING
Do not adjust the seat while wearing seat belts. Moving the
seat cushion forward may
cause strong pressure on theabdomen.
Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
while the seat is moving.
Do not put a cigarette lighter on the floor or seat. When you
operate the seat, gas maygush out of the lighter and
cause fire.
If there are occupants in the rear seats, be careful while
adjusting the front seat posi-tion.(Continued)
In order to avoid unnecessaryand perhaps severe air bag
injuries, always sit as far back
as possible from the steeringwheel while maintaining com-
fortable control of the vehicle.
We recommend that your chest
be at least 250 mm (10 inches)
away from the steering wheel.WARNING - Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control, and an accident
causing death, serious injury,
or property damage.
Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatbackcould result in serious or fatal
injury in a sudden stop or col-lision.
Always drive and ride with your seatback upright and the lap
portion of the seat belt snug
and low across the hips. This
is the best position to protect
you in case of an accident.
(Continued)

35
Safety features of your vehicle
Front seat adjustment
The front seat can be adjusted by
using the control switch located on
the doors. Before driving, adjust theseat to the proper position so as to
easily control the steering wheel,
pedals and switches on the instru-ment panel.Forward and backward
Push the control switch forward or
rearward to move the seat to the
desired position. Release the switchonce the seat reaches the desiredposition. When adjusting the seat position, the
headrest will be adjusted simultane-
ously to the proper position. (ifequipped)
CAUTION
The power seat is driven by anelectric motor. Stop operatingonce the adjustment is com- pleted. Excessive operationmay damage the electricalequipment.
When in operation, the power seat consumes a largeamount of electrical power. Toprevent unnecessary chargingsystem drain, don’t adjust the power seat longer than neces-sary while the engine is notrunning.
Do not operate two or more power seat control knobs atthe same time. Doing so mayresult in power seat motor orelectrical component malfunc- tion.
WARNING
The power seat is operable with
the engine start/stop button in
OFF.
Therefore, children should
never be left unattended in the
vehicle.
OKH032002
