Features of your vehicle
158
4

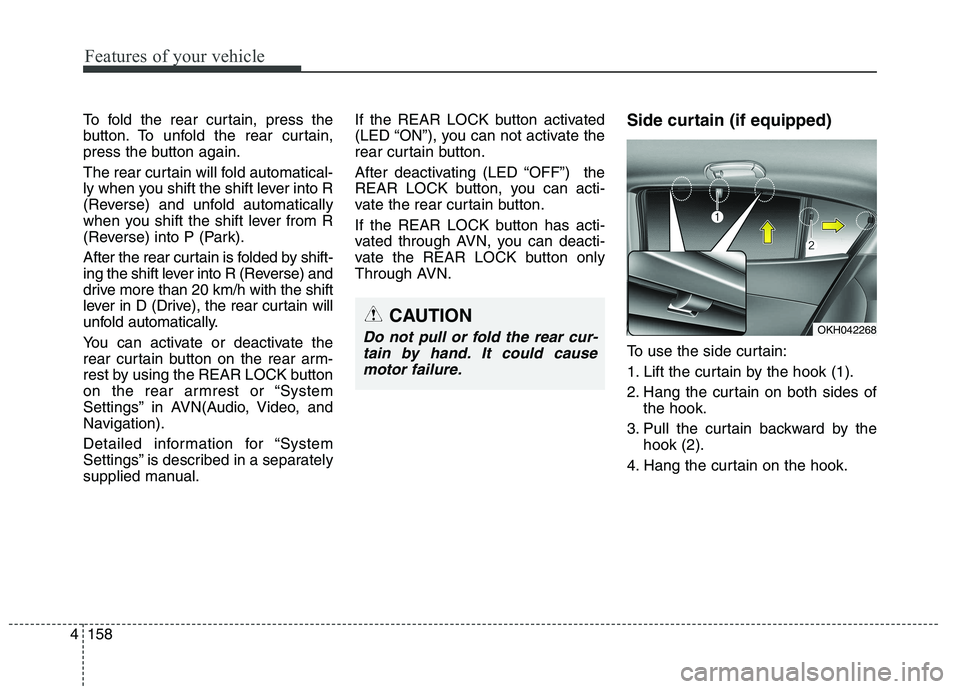

To fold the rear curtain, press the
button. To unfold the rear curtain,
press the button again.
The rear curtain will fold automatical-
ly when you shift the shift lever into R
(Reverse) and unfold automatically
when you shift the shift lever from R
(Reverse) into P (Park).
After the rear curtain is folded by shift-
ing the shift lever into R (Reverse) and
drive more than 20 km/h with the shift
lever in D (Drive), the rear curtain will
unfold automatically.
You can activate or deactivate the
rear curtain button on the rear arm-
rest by using the REAR LOCK button
on the rear armrest or “System
Settings” in AVN(Audio, Video, and
Navigation).
Detailed information for “System
Settings” is described in a separately
supplied manual. If the REAR LOCK button activated
(LED “ON”), you can not activate the
rear curtain button.
After deactivating (LED “OFF”) the
REAR LOCK button, you can acti-
vate the rear curtain button.
If the REAR LOCK button has acti-
vated through AVN, you can deacti-
vate the REAR LOCK button only
Through AVN.
Side curtain (if equipped)
To use the side curtain:
1. Lift the curtain by the hook (1).
2. Hang the curtain on both sides of
the hook.
3. Pull the curtain backward by the hook (2).
4. Hang the curtain on the hook.
OKH042268CAUTION
Do not pull or fold the rear cur- tain by hand. It could causemotor failure.

Features of your vehicle
160
4

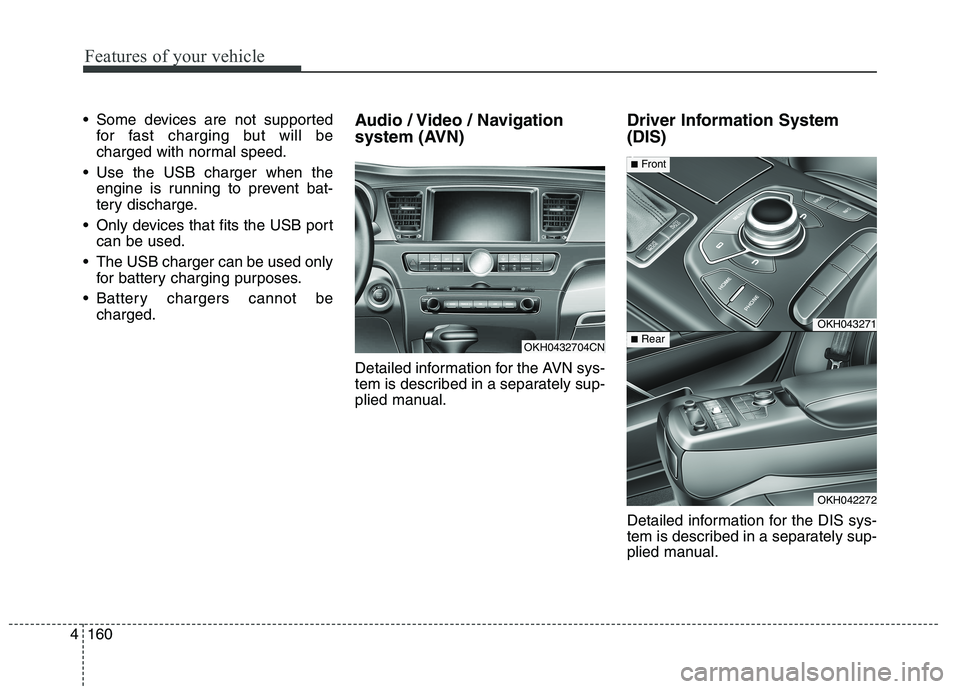

Some devices are not supported
for fast charging but will be
charged with normal speed.
Use the USB charger when the engine is running to prevent bat-
tery discharge.
Only devices that fits the USB port can be used.
The USB charger can be used only for battery charging purposes.
Battery chargers cannot be charged. Audio / Video / Navigation
system (AVN)
Detailed information for the AVN sys-
tem is described in a separately sup-
plied manual. Driver Information System (DIS)
Detailed information for the DIS sys-
tem is described in a separately sup-
plied manual.
OKH0432704CN
OKH043271
OKH042272
■
Front
■Rear
