Features of your vehicle
64
4

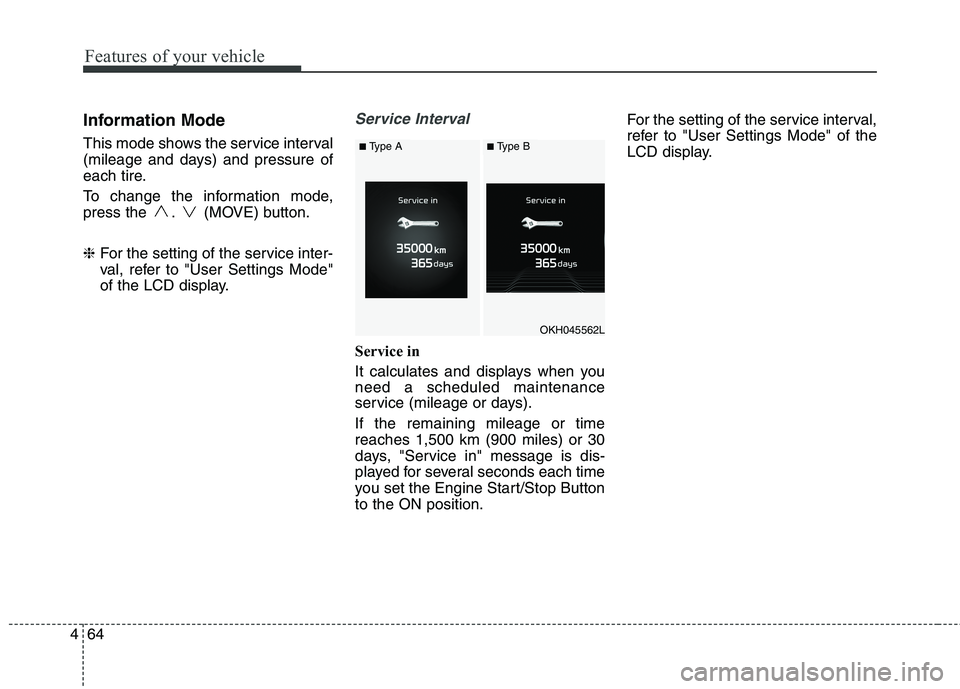

Information Mode
This mode shows the service interval
(mileage and days) and pressure of
each tire.
To change the information mode,
press the . (MOVE) button. ❈ For the setting of the service inter-
val, refer to "User Settings Mode"
of the LCD display.Service Interval
Service in
It calculates and displays when you need a scheduled maintenance
service (mileage or days). If the remaining mileage or time reaches 1,500 km (900 miles) or 30
days, "Service in" message is dis-
played for several seconds each time
you set the Engine Start/Stop Buttonto the ON position. For the setting of the service interval,
refer to "User Settings Mode" of the
LCD display.
OKH045562L
■
Type A■Type B

465
Features of your vehicle
Service required
If you do not have your vehicle serv- iced according to the already inputted
service interval, "Service required"
message is displayed for several sec-
onds each time you set the Engine
Start/Stop Button to the ON position.
To reset the service interval to the
mileage and days you inputted before:
- Press the OK button for more than1 second. Service interval OFF
If the service interval is not set,
"Service interval OFF" message is
displayed on the LCD display.
✽✽
NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
OKH043413LOKH043405L
■ Type A■Type B■Type A■Type B

Features of your vehicle
66
4
Tire Pressure information
This mode displays the pressure sta-
tus of each tire.
You can change the tire pressure unit
in "User settings" mode. ❈ For more details, refer to "User
Settings mode" in this chapter.
Warning Message
If one of followings occurs, warning
messages will be displayed on the
information mode for several seconds.
- Malfunction of below systems
Blind Spot Detection (BSD)
Preactive Seat Belt (PSB)
Electronic Control Suspension
(ECS)
Tire Pressure Monitoring System
Advanced Smart Cruise Control
Low washer fluid
LED Headlamp (LED) User Settings Mode
On this mode, you can change set-
ting of the doors, lights, and so on.
OKH045525LOKH043415L
■
Type A■Type B■ Type A■Type B
WARNING
Do not adjust the User Setting
while driving. You may lose your
steering control and cause
severe personal injury or acci-dents.

467
Features of your vehicle
ItemsExplanation
Display HeightAdjust the height of the HUD image on the windshield glass.
RotationAdjust the degree of the HUD rotation.
BrightnessAdjust the intensity of the HUD brightness
Contents Select
Activate or deactivate each contents of the HUD.
Tu r n b y Tu r n *



* : if equipped
Speedometer SizeChoose the size of the HUD speedometer (Small, Medium, Large).
Speedometer ColorChoose the color of the HUD speedometer (White, Orange, Green).
✽✽NOTICE
If you select the Turn By Turn (TBT) navigation information as HUD contents, the Turn By Turn (TBT) navi gation
information will not be displayed on the LCD.
Head-Up Display (HUD) (if equipped)

Features of your vehicle
68
4
Driving Assist
ItemsExplanation
AEB (Autonomous
Emergency Braking) (if equipped)To activate or deactivate the AEB system.
For more details, refer to "Autonomous Emergency Braking (AEB)" in chapter 5.
RCTA
(Rear Cross Traffic Alert)
(if equipped)To activate or deactivate the RCTA system.
For more details, refer to "Rear Cross Traffic Alert (RCTA)" in chapter 5.

469
Features of your vehicle
Door
ItemsExplanation
Automatically Lock
The auto door lock operation will be deactivated.
All doors will be automatically locked when the vehicle speed exceeds 15km/h(9.3mph)
All doors will be automatically locked if the automatic transmission shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Automatically Unlock
The auto door unlock operation will be canceled.
All doors will be automatically unlocked when the Engine Star/Stop Button is set tothe OFF position.
All doors will be automatically unlocked if the driver's door is unlocked
All doors will be automatically unlocked if the automatic transmission shift lever is shifted to the P (Park) position.
Door lock SoundActivate or deactivate door lock confirm sound.
Smart Trunk
(if equipped)To activate or deactivate the Smart Trunk system.
For more details, refer to "Smart Trunk" in this chapter.

Features of your vehicle
70
4
ItemsExplanation
One Touch Turn Signal
The one touch turn lamp function will be deactivated.
The lane change signals will blink 3, 5, or 7 times when the turn signal lever is
moved slightly.
❈ For more details, refer to “Lighting” in this chapter.
Head Lamp DelayActivate or deactivate the head lamp delay function. ❈ For more details, refer to “Lighting” in this chapter.
Welcome LightActivate or deactivate the welcome light function. ❈ For more details, refer to “Welcome system” in this chapter.
Travel mode
To use when entering countries with different road systems.
This label is displayed when the ignition is turned on with the headlamp traffic change function in
on state. (For Europe)
Lights
Sound
ItemsExplanation
BSD (Blind Spot Detection)Sound The BSD sound function will be deactivated.
The BSD sound function will be activated.
Welcome Sound The welcome sound function will be deactivated.
The welcome sound function will be activated.

471
Features of your vehicle
ItemsExplanation
ThemeChoose the instrument cluster theme. (Default or Retro)
Auto Theme change The instrument cluster theme is automatically changed.
The automatic change function of the instrument cluster theme will be deactivated
Traffic Alerts
(if equipped) The LCD display will show traffic information.
The LCD display will not show traffic information.
Speedometer SizeChoose the size of the number in the speedometer (Small, Medium, Large).
Speedometer unitChoose the main unit of the speedometer (km/h or MPH).
Fuel Economy UnitChoose the main unit of the Fuel economy (km/h or L/100).
Display (for Type Display B Cluster)

Features of your vehicle
72
4
Seat/Steering
ItemsExplanation
Seat Easy Access
The seat easy access function will be deactivated.

- When you turn off the engine, the driver’s seat will automatically move rearward by 5 cm (Normal)or 7.6 cm (Enhanced) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop Button from OFF position to the ACC, ON, or START posi- tion, the driver’s seat will return to the original position.
❈ For more details, refer to “Driver Position Memory System” in chapter 3.
Steering Easy Access
The steering wheel will automatically move forward or rearward for the driver to
enter or exit the vehicle comfortably.
The steering easy access function will be deactivated. ❈ For more details, refer to “Driver Position Memory System” in chapter 3.

473
Features of your vehicle
Other Features
ItemsExplanation
Fuel Economy Auto Reset
The average fuel economy will not reset automatically whenever refueling.
The average fuel economy will reset automatically when refueling.
For more details, refer to “Trip Computer” in this chapter.
Wiper/Light DisplayChoose the Wiper or Light Display.
Tire Pressure UnitChoose the tire pressure unit. (psi, kPa, Bar)
Haptic Steering SystemSwitch (if equipped)Adjust the rotating effort of the haptic switch on the steering wheel for LCD display control
(Strong, Normal, Soft).
For the haptic switch, refer to "LCD Display Control" in this chapter.
ItemsExplanation
Service Interval
(Except Europe)
On this mode, you can activate the service interval function with mileage (km or mi.) and period (months).
The service interval function will be deactivated.

Service interval
