Interior LightsDome LightThe dome light switch, located in the light assembly,
has three positions:
OFF – The light stays OFF even when a door is open.
– The light turns ON or OFF when a door is
opened or closed.
ON – The light turns ON and stays ON even when
the doors are all closed.
1RS104014
Day/Night Rearview MirrorAdjust the rearview mirror to center on the view
through the rear window. Make this adjustment before
you start driving and while the day/night lever is in the
day position.
Pull the day/night lever toward you to reduce glare
from the headlights of vehicles behind you during
night driving.
Remember that you lose some rearview clarity in the
night position.
AS2B03050
Day/night lever
CAUTION
Do not allow objects in the rear seat to interfere
with your line of vision through the rear window.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 65

4-27 Instrument Panel Illumination (If equipped)
When the vehicle’s parking lights or headlights are
ON, rotate the illumination control knob to adjust the
instrument panel illumination intensity.
Warnings and IndicatorsWarning Lights/Audible IndicatorsChecking Operation
All the warning lights are checked by turning the igni-
tion switch ON (you do not need to start the engine).
Any light that does not come ON should be checked
by an Authorized Kia Dealer.
After starting the engine, check to make sure that all
warning lights are OFF. If any are still ON, this indi-
cates a situation that needs attention. When releasing
the parking brake, the brake system warning light
should go OFF.Parking Brake and Brake Fluid
Warning Parking Brake Warning
This light comes ON when the parking brake is applied
with the ignition switch in the START or ON position.
The warning light should go OFF when the parking
brake is released.
2FDA407
BRAKE
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 27

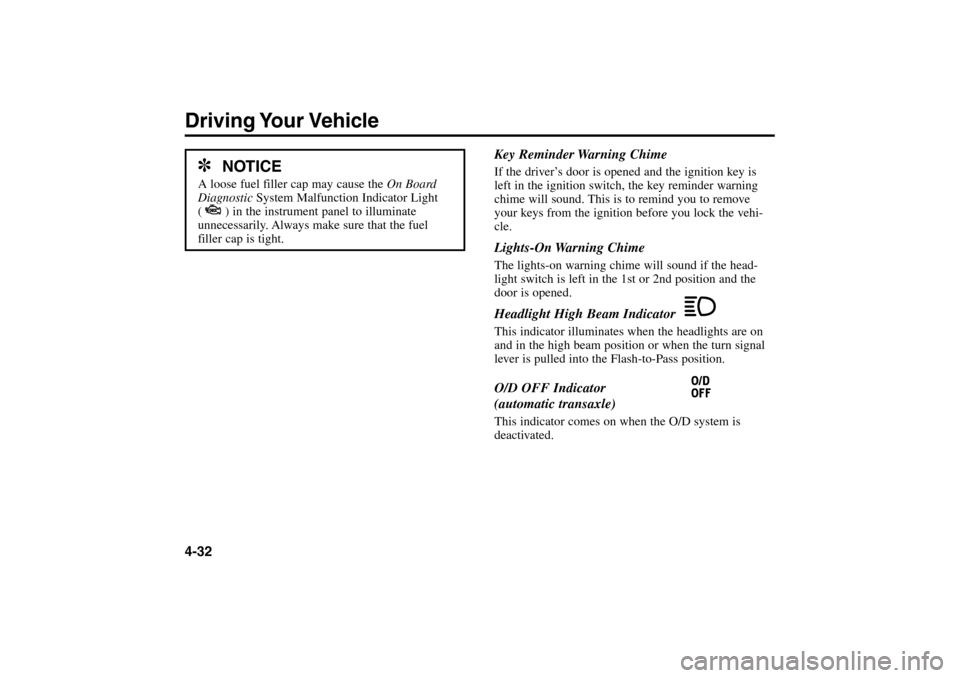

Driving Your Vehicle4-32Key Reminder Warning Chime
If the driver’s door is opened and the ignition key is
left in the ignition switch, the key reminder warning
chime will sound. This is to remind you to remove
your keys from the ignition before you lock the vehi-
cle.Lights-On Warning ChimeThe lights-on warning chime will sound if the head-
light switch is left in the 1st or 2nd position and the
door is opened.Headlight High Beam Indicator This indicator illuminates when the headlights are on
and in the high beam position or when the turn signal
lever is pulled into the Flash-to-Pass position.O/D OFF Indicator
(automatic transaxle)This indicator comes on when the O/D system is
deactivated.
✽
NOTICE
A loose fuel filler cap may cause the On Board
DiagnosticSystem Malfunction Indicator Light
( ) in the instrument panel to illuminate
unnecessarily. Always make sure that the fuel
filler cap is tight.
CHECK
CHECK
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 32

Driving Your Vehicle4-34 High-Beam OperationFor high beam headlights, push the lever away from
you. Pull it back for low beams.
The high-beam indicator will illuminate when the
headlight high beams are switched ON.
To prevent the battery from being discharged, do not
leave the lights ON for a prolonged time while the
engine is not running.
Flashing HeadlightsTo flash the headlights, pull the lever toward you. It
will return to the normal position when released. The
headlight switch does not need to be ON to use this
flashing feature.
AS2B04021
AS2B04022
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 34

4-35 Turn Signals
The same lever that controls the headlights also con-
trols the turn signals.
The ignition switch must be ON for the turn signals
to function. Move the lever up or down to activate the
turn signals. The turn signals will self-cancel after a
turn is completed. If the indicator continues to flash
after a turn, manually return the lever to the OFF (mid-
dle) position.
Lane Change Signals
To signal a lane change, move the turn signal lever
slightly and hold it in position. The lever will return to
the OFF (middle) position when released.
Green arrow indicators on the instrument panel indi-
cate which turn signal is operating. If an indicator
stays ON and does not flash or if it flashes abnormally,
one or more of the turn signal bulbs may be burned out
and will require replacement.Daytime Running Lights (DRL)Daytime Running Lights (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving condi-
tions, but they can be especially helpful in the short
periods after dawn and before sunset. The DRL system
will make your low-beam headlights turn OFF when:
 The headlight switch is ON.
 The parking brake is engaged.
 The engine stops.
AS2B04023
RIO ENG CNA 4.qxd 7/29/05 5:06 PM Page 35

5-9 Driving at Night
Because night driving presents many more hazards
than driving in the daylight, here are some important
tips to remember:
 Slow down and keep more distance between you
and other vehicles as it may be more difficult to see
at night, especially in rural areas where there may
not be any street lights.
 Adjust your mirrors to reduce the glare from other
driver’s headlights.
 Keep your headlights clean and properly aimed.
Dirty or misaimed headlights will make it much
more difficult to see at night.
 Avoid staring directly at the headlights of oncoming
vehicles. You could be temporarily blinded and it
will take several seconds for your eyes to readjust to
the darkness.
Driving in the RainRain and wet roads can make driving dangerous,
especially if you’re not prepared for the slick
pavement. Here are a few things to consider when
driving in the rain:
 Be sure your windshield wipers are in good
condition.
 A heavy rainfall will make it harder to see and will
increase the distance needed to stop your vehicle, so
slow down.
 If your tires aren’t in good condition, making a
quick stop on wet pavement can cause a skid and
possibly lead to an accident. Be sure your tires and
windshield wipers are in good shape.
 Turn on your headlights to make it easier for others
to see you.
 Driving too fast through large puddles can affect
your brakes. If you must go through puddles, try to
drive through them slowly.
 If you believe you may have gotten your brakes wet,
apply them lightly while driving until normal
braking operation returns.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 9

If the headlights or other electrical components do not
work and the fuses are OK, check the fuse box in the
engine compartment. If a fuse is blown, it must be
replaced.
1. Turn the ignition switch and all other switches off.
2. Remove the fuse box cover by unhooking the tab on
one end, and tilting the cover back toward the other
end.
3. Check the fuses. If one is blown, replace it with a
new one of the same rating.
6-9
CAUTION
After checking the fuse box in the engine
compartment, make sure the cover is properly
reinstalled. An improperly installed cover could
allow water ingress and lead to electrical failures.
2FDA602
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 9

6-13 Memory Fuse (If Equipped)
Your vehicle is equipped with a “Memory Fuse” to
prevent battery discharge if the vehicle is parked for
prolonged periods without being operated. Use the
following procedures before parking the vehicle for a
prolonged period.
1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the main fuse box cover in the engine compartment
and pull up the “ROOM FUSE 15A” using the fuse
puller; push the fuse to the side. This will change the
MEMORY FUSE mode to prevent battery discharge.
FUEL
PUMPFRONT
FOGA/CON
HEAD
LAMPCOOL.FANHORN
TNS MAIN
COND.F( ) ( )
( )
( )
COND.FAN
ROOM 15A
IG COIL
(ABS)(F/FOG)
HEAD 15A
15A15A
25A
20A
* REFER TO OWNER'S MANUAL FOR FUSE AND RELAY SERVICE.
* ( ) : OPTION
RIOMEMORY
CAUTION
•If the memory fuse is pulled up from the fuse
box housing, the radio and dome light will not
operate. After reinstalling the “Memory Fuse”,
the radio “anti-theft”code (Optional) must be
entered again and the preset radio stations
must be reselected.
Even though the memory fuse is pulled up, the
battery can still be discharged by operation of
the headlights or other electrical devices.
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 13

Battery MaintenanceFor best battery service:
 Keep the battery securely mounted.
 Keep the battery top clean and dry.
 Keep the terminals and connections clean, tight, and
coated with petroleum jelly or terminal grease.
 Immediately rinse any spilled electrolyte from the
battery with a solution of water and baking soda.
 If the vehicle is not going to be used for an extended
period of time, disconnect the battery cables.Maintenance7-32Battery Recharging
Your vehicle has a maintenance-free, calcium-based
battery.
 If the battery becomes discharged in a short time
(headlights or interior lights were left on while the
vehicle was not in use), recharge it by slow (trickle)
charging for 10 hours.
 If the battery gradually discharges because of high
electric load while the vehicle is being used,
recharge it at 20-30A for two hours.
AS2B07020
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 32

Tire Size Designation
A tire’s sidewall is marked with a tire size designation.
You will need this information when selecting
replacement tires for your car. The following explains
what the letters and numbers in the tire size
designation mean.
Example tire size designation: P175/70R13 82T
P– Applicable vehicle type (tires marked with the
prefix “P’’ are intended for use on passenger cars;
however, not all tires have this marking).
175– Tire width in millimeters.
65– Aspect Ratio. The tire’s section height as a
percentage of tire width.
7-39
R– Tire construction code (radial).
14– Rim diameter in inches.
81– Load Index; A numerical code associated with the
maximum load the tire can carry.
T– Speed Rating Symbol. See the speed rating chart
in this section for additional information.
Wheel Size Designation
Wheels are also marked with important information
that you need if you ever need to replace one. The
following explains what the letters and numbers in the
wheel size designation mean.
Example wheel size designation: 14 x 5.5J
14– Rim diameter in inches.
5.5– Rim width in inches.
J– Rim contour designation.
CAUTION
A wheel that is not the correct size may adversely
affect wheel and bearing life, braking and
stopping abilities, handling characteristics,
ground clearance, body-to-tire clearance, snow
chain clearance, speedometer calibration,
headlight aim and bumper height.
RIO ENG CNA 7-2.qxd 7/29/05 5:18 PM Page 39
