Page 15 of 397
33
Safety features of your vehicle
WARNING- Driver’s seat Never attempt to adjust the seatwhile the vehicle is moving. This
could result in loss of control of
your vehicle.
Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback.
Sit as far back as possible from the steering wheel while still
maintaining comfortable control
of your vehicle. A distance of at
least 10" from your chest to the
steering wheel is recommended.
Failure to do so can result in
airbag inflation injuries to the
driver.
WARNING - Uprighting
seat
Do not press the release lever on a
manual seatback without holding
and controlling the seatback. The
seatback will spring upright possi-
bly impacting you or other passen-
gers.
WARNING- Loose objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the driver's
foot area could interfere with the
operation of the foot pedals.
WARNING- Driver respon-
sibility for passengers
The driver must advise the passen-
ger to keep the seatback in an
upright position whenever the vehi-
cle is in motion. If a seat is reclined
during an accident, the occupant's
hips may slide under the lap por-
tion of the seat belt, applying great
force to the unprotected abdomen.
WARNING- Seat cushion
Occupants should never sit on seat
cushions. The passenger's hips
may slide under the lap portion of
the seat belt during an accident or
a sudden stop.
WARNING- Seat adjustment
Do not adjust the seat while wear-
ing seat belts. Moving the seat
forward will cause strong pres-
sure on the abdomen.
Do not place your hand near the seat bottom or seat track while
adjusting the seat. Your hand
could get caught in the seat
mechanism.
Page 101 of 397
Features of your vehicle
36
4

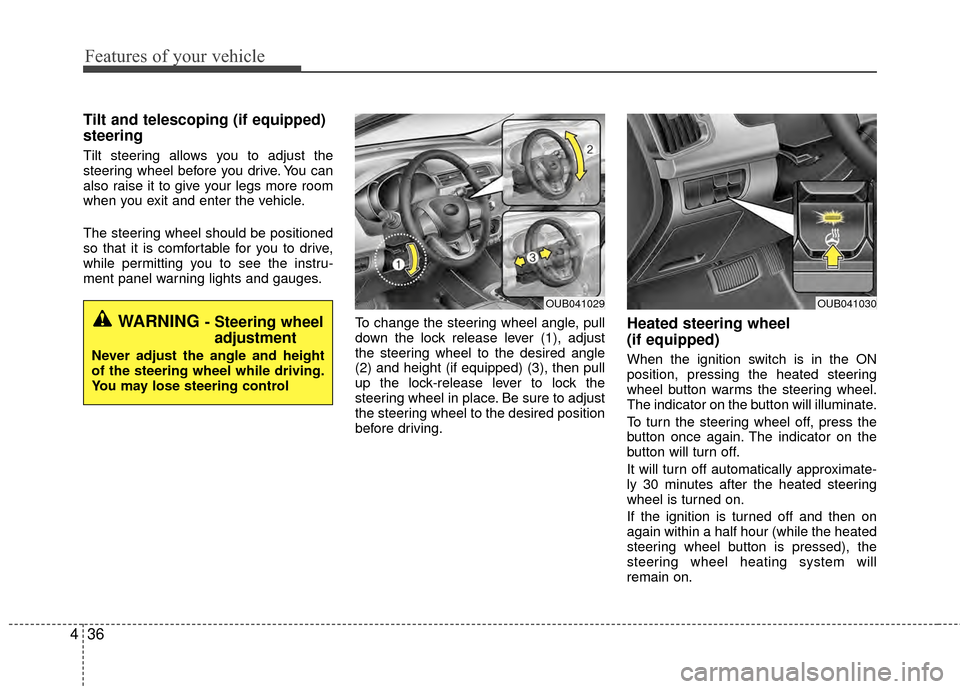

Tilt and telescoping (if equipped)
steering
Tilt steering allows you to adjust the
steering wheel before you drive. You can
also raise it to give your legs more room
when you exit and enter the vehicle.
The steering wheel should be positioned
so that it is comfortable for you to drive,
while permitting you to see the instru-
ment panel warning lights and gauges.
To change the steering wheel angle, pull
down the lock release lever (1), adjust
the steering wheel to the desired angle
(2) and height (if equipped) (3), then pull
up the lock-release lever to lock the
steering wheel in place. Be sure to adjust
the steering wheel to the desired position
before driving.
Heated steering wheel
(if equipped)
When the ignition switch is in the ON
position, pressing the heated steering
wheel button warms the steering wheel.
The indicator on the button will illuminate.
To turn the steering wheel off, press the
button once again. The indicator on the
button will turn off.
It will turn off automatically approximate-
ly 30 minutes after the heated steering
wheel is turned on.
If the ignition is turned off and then on
again within a half hour (while the heated
steering wheel button is pressed), the
steering wheel heating system will
remain on.
WARNING - Steering wheeladjustment
Never adjust the angle and height
of the steering wheel while driving.
You may lose steering control
OUB041029OUB041030
Page 395 of 397
Index
8I
Scheduled maintenance service ··················\
··················\
···7-7Maintenance under severe usage conditions ···············7-20
Normal maintenance schedule··················\
··················\
···7-8
Seat belt warning ··················\
··················\
··················\
·····3-13
Seat belts ··················\
··················\
··················\
··················\
3-12 3 Point rear center belt ··················\
··················\
············3-16
Hight adjustment ··················\
··················\
··················\
···3-15
Pre-tensioner seat belt ··················\
··················\
·············3-17
Seat belt - Driver's 3-point system ··················\
············3-14
Seat belt warning ··················\
··················\
··················\
···3-13
Seat belts - Front passenger and rear seat ··················\
·3-16
Seat Warmer ··················\
··················\
··················\
···············3-7
Seatback pocket ··················\
··················\
··················\
·········3-8
Seating capacity ··················\
··················\
··················\
·······5-52
Seats ··················\
··················\
··················\
··················\
·········3-2 Folding the rear seat ··················\
··················\
················3-10
Front seat adjustment·············\
··················\
··················\
····3-4
Headrest(front) ··················\
··················\
··················\
········3-5
Headrest(rear) ··················\
··················\
··················\
··········3-9
Rear seat ··················\
··················\
··················\
··················\
3-9
Seatback pocket ··················\
··················\
··················\
·······3-8
Warmer ··················\
··················\
··················\
··················\
··3-7
Shift Lock ··················\
··················\
··················\
················5-19
Shopping bag holder ··················\
··················\
··················\
4-99
Side impact air bag ··················\
··················\
··················\
··3-44
Smart key ··················\
··················\
··················\
··················\
·4-4 Smooth cornering··················\
··················\
··················\
·····5-45
Snow tires ··················\
··················\
··················\
················5-48
Spare tire
Compact spare tire ··················\
··················\
··················\
·6-19
Compact spare tire replacement ··················\
················7-41
Removing and storing the spare tire···········\
·················6-14\
Special driving conditions ··················\
··················\
·········5-44 Driving at night ··················\
··················\
··················\
·····5-45
Driving in flooded areas ··················\
··················\
··········5-46
Driving in the rain ··················\
··················\
··················\
·5-46
Hazardous driving conditions ··················\
··················\
··5-44
Highway driving ··················\
··················\
··················\
····5-47
Rocking the vehicle ··················\
··················\
·················5-44\
Smooth cornering ··················\
··················\
··················\
··5-45
Speedometer··················\
··················\
··················\
·············4-42
Sports mode ··················\
··················\
··················\
·············5-17
SRS components and functions ··················\
··················\
·3-33
Starting difficulties, see engine will not start ··················\
6-3
Steering wheel ··················\
··················\
··················\
·········4-35 Electric power steering ··················\
··················\
············4-35
Horn ··················\
··················\
··················\
··················\
·····4-37
Tilt & Telescoping steering ··················\
··················\
·····4-36
Steering wheel audio control ··················\
··················\
···4-103
Steps For Determining Correct Load Limit ··················\
5-52
Storage compartment ··················\
··················\
·················4-92\
Center console storage·············\
··················\
··················\
4-92
Cool box ··················\
··················\
··················\
················4-93
Glove box ··················\
··················\
··················\
··············4-92
