Page 361 of 398

KIA Rio 2015 3.G Owners Manual Maintenance
50
7

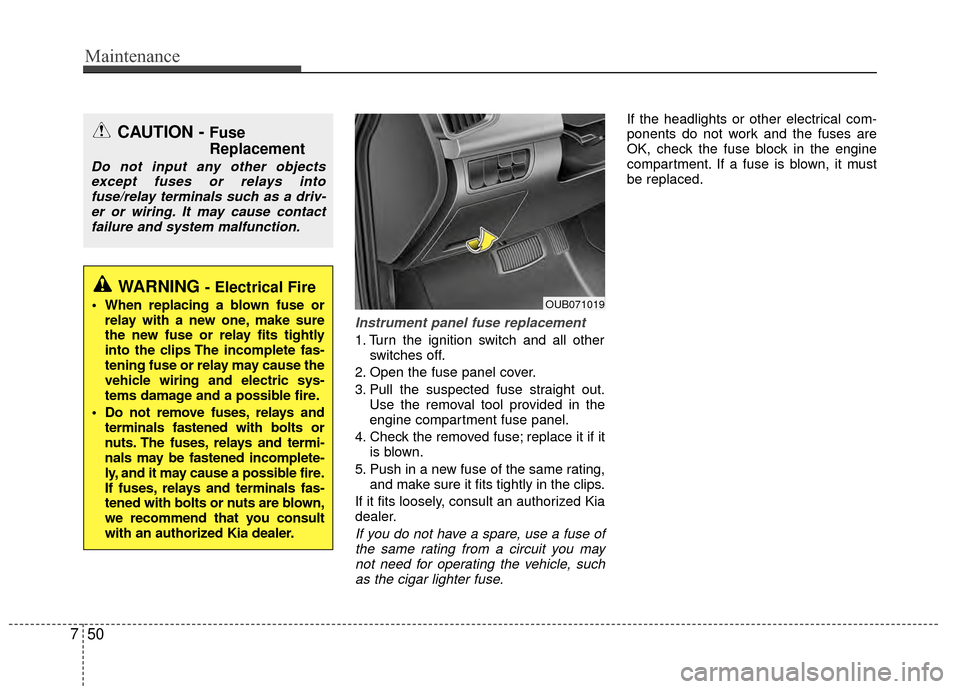

Instrument panel fuse replacement
1. Turn the ignition switch and all other
switches off.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out. Use the removal tool p

Page 362 of 398

KIA Rio 2015 3.G Owners Manual 751
Maintenance

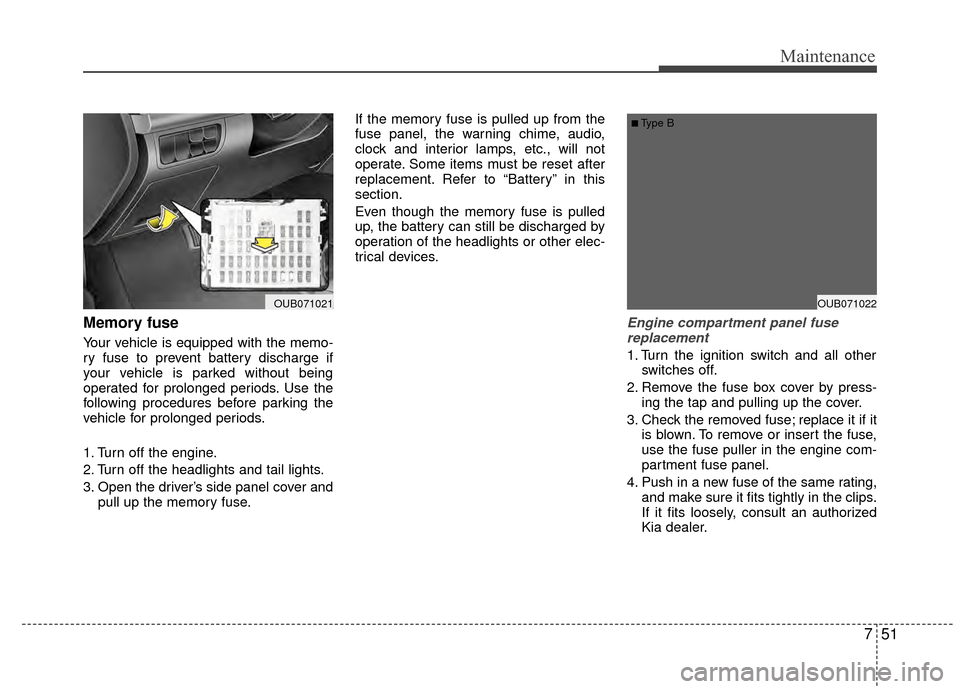

Memory fuse
Your vehicle is equipped with the memo-
ry fuse to prevent battery discharge if
your vehicle is parked without being
operated for prolonged periods. Use the
following proce

Page 363 of 398

KIA Rio 2015 3.G Owners Manual Maintenance
52
7
Multi fuse
If the multi fuse is blown, consult an
authorized Kia dealer.
Fuse/relay panel description
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing

Page 364 of 398

KIA Rio 2015 3.G Owners Manual 753
Maintenance
Instrument panel fuse panel
✽
✽NOTICE
The actual fuse/relay panel label may
differ from equipped items.
OUB071064N
OUB071025

Page 365 of 398

KIA Rio 2015 3.G Owners Manual Maintenance
54
7

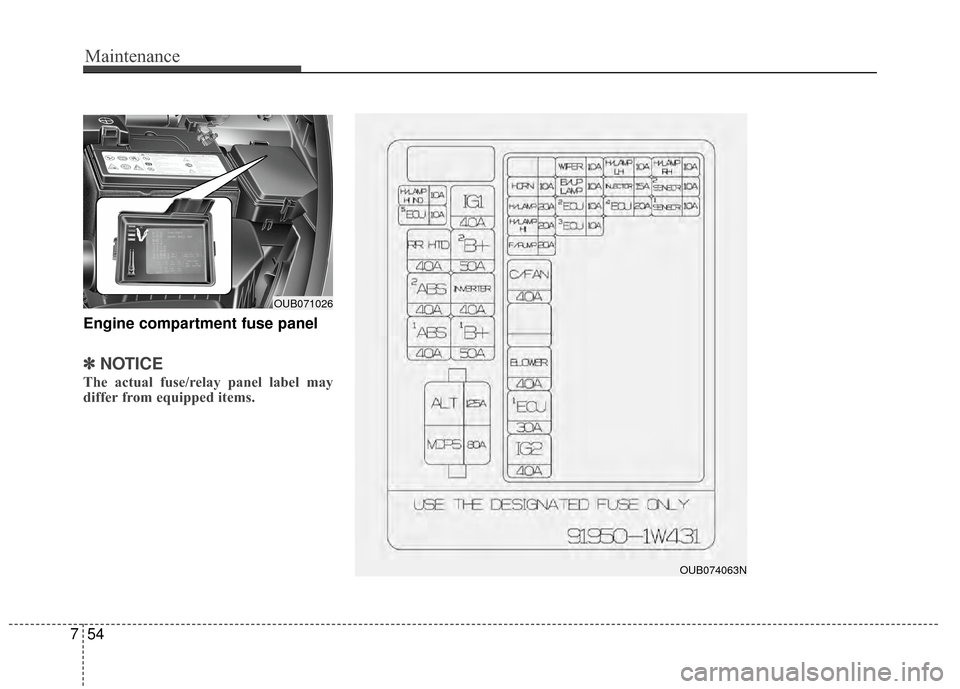

Engine compartment fuse panel
✽
✽
NOTICE
The actual fuse/relay panel label may
differ from equipped items.
OUB071026
OUB074063N

Page 366 of 398

KIA Rio 2015 3.G Owners Manual 755
Maintenance
Instrument panel fuse panel
Fuse Name Fuse ratingCircuit Protected
POWER OUTLET 15A Power Outlet
C/LIGHTER 20A Cigarette Lighter
ACC 10AFront Map Lamp, Power Outside Mirror Switch, BCM

Page 367 of 398

KIA Rio 2015 3.G Owners Manual Maintenance
56
7
Fuse Name Fuse rating Circuit Protected
IG1 2 10AVehicle Speed Sensor, Stop Lamp Switch, Inverter
A/C Control Module
HAZARD 15A Hazard Switch, BCM
PDM 1 25A Smart Key Control Module
S

Page 368 of 398

KIA Rio 2015 3.G Owners Manual 757
Maintenance

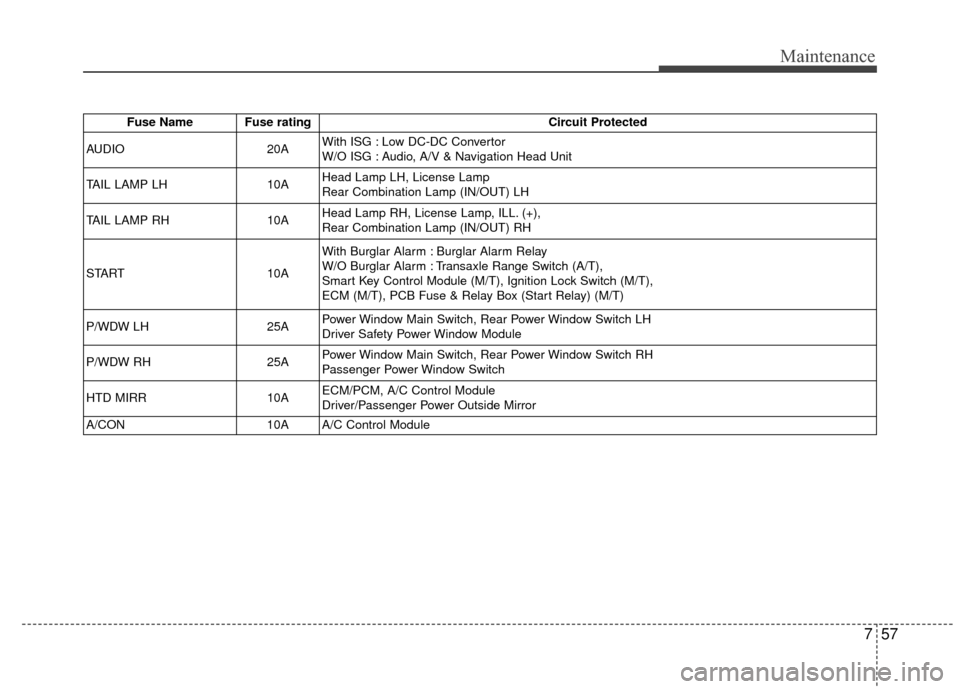

Fuse Name Fuse ratingCircuit Protected
AUDIO 20AWith ISG : Low DC-DC Convertor
W/O ISG : Audio, A/V & Navigation Head Unit
TAIL LAMP LH 10AHead Lamp LH, License Lamp
Rear Combination L

Page 369 of 398

KIA Rio 2015 3.G Owners Manual Maintenance
58
7

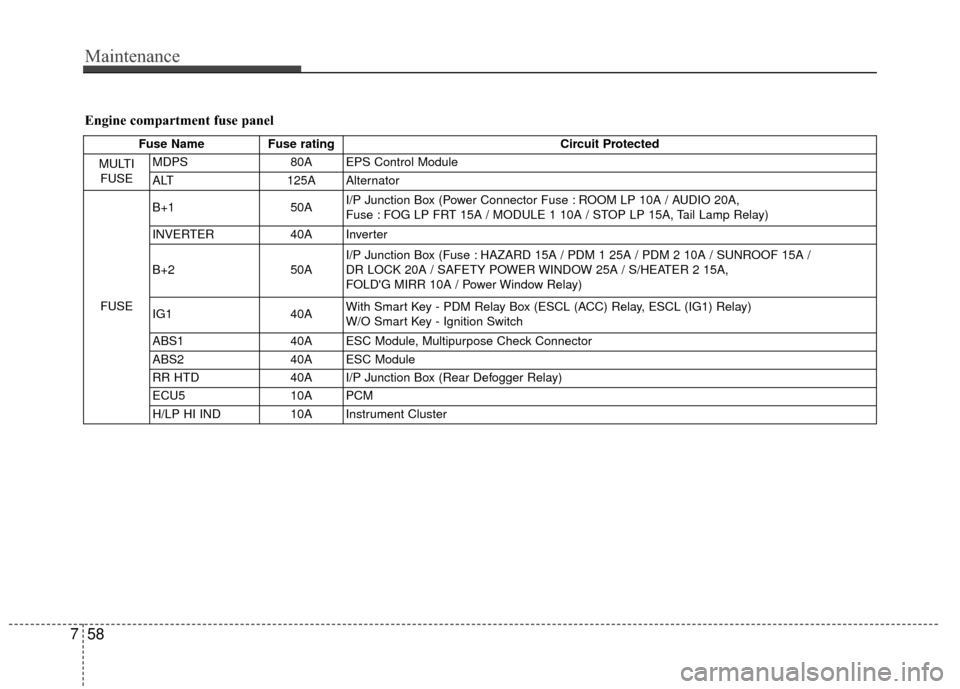

Engine compartment fuse panel
Fuse Name Fuse rating Circuit Protected
MULTI FUSE MDPS
80A EPS Control Module
ALT 125A Alternator
FUSE B+1
50AI/P Junction Box (Power Connector Fuse : R

Page 370 of 398

KIA Rio 2015 3.G Owners Manual 759
Maintenance
Engine compartment main fuse panel
Fuse Name Fuse ratingCircuit Protected
IG2 40APCB Fuse & Relay Box (Start Relay), W/O Smart Key - Ignition Switch,
With Smart Key - PDM Relay Box (E
