Your vehicle at a glance
22

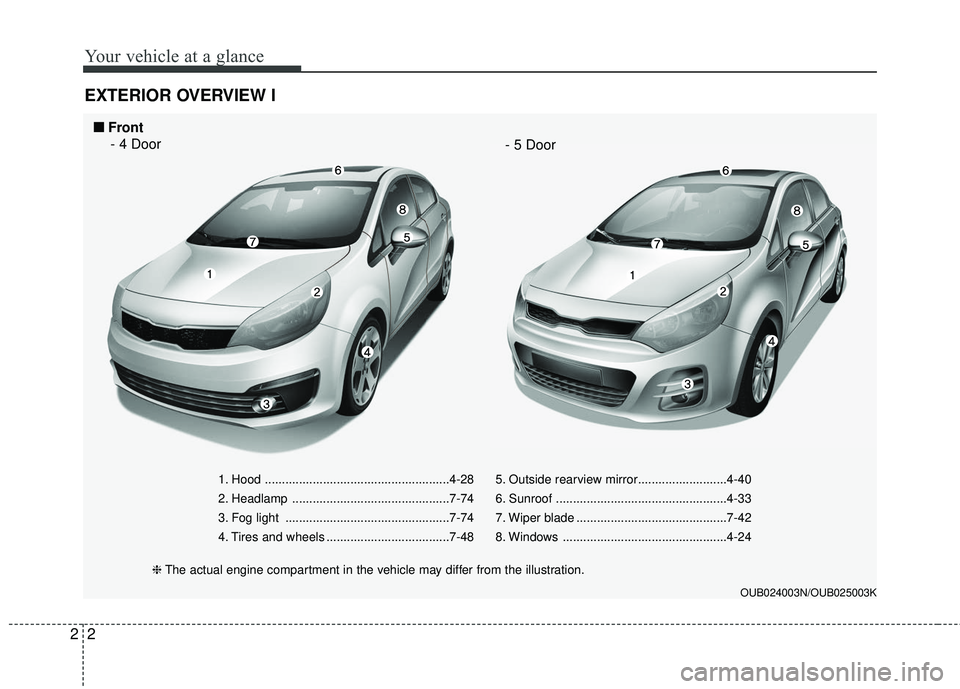

EXTERIOR OVERVIEW I
1. Hood ......................................................4-28
2. Headlamp ..............................................7-74
3. Fog light ................................................7-74
4. Tires and wheels ....................................7-485. Outside rearview mirror..........................4-40
6. Sunroof ..................................................4-33
7. Wiper blade ............................................7-42
8. Windows ................................................4-24
OUB024003N/OUB025003K
■ ■
Front
- 4 Door
❈ The actual engine compartment in the vehicle may differ from the illustration.
- 5 Door
Page 12 of 449
23
Your vehicle at a glance

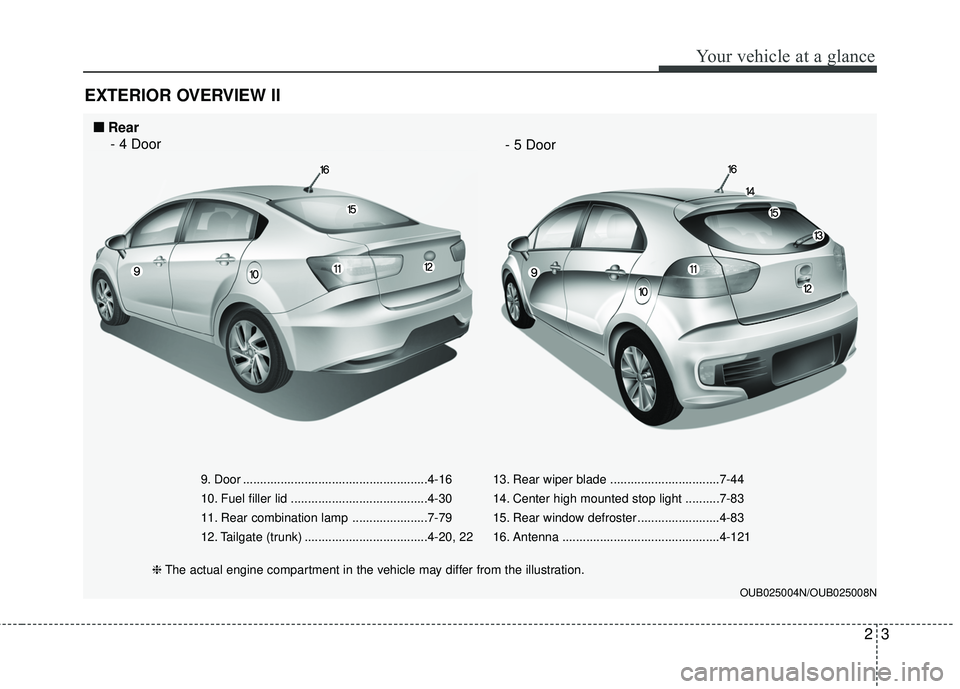

EXTERIOR OVERVIEW II
9. Door ......................................................4-16
10. Fuel filler lid ........................................4-30
11. Rear combination lamp ......................7-79
12. Tailgate (trunk) ....................................4-20, 2213. Rear wiper blade ................................7-44
14. Center high mounted stop light ..........7-83
15. Rear window defroster ........................4-83
16. Antenna ..............................................4-121
OUB025004N/OUB025008N
■ ■
Rear
- 4 Door
❈ The actual engine compartment in the vehicle may differ from the illustration.
- 5 Door
Page 13 of 449
Your vehicle at a glance
42

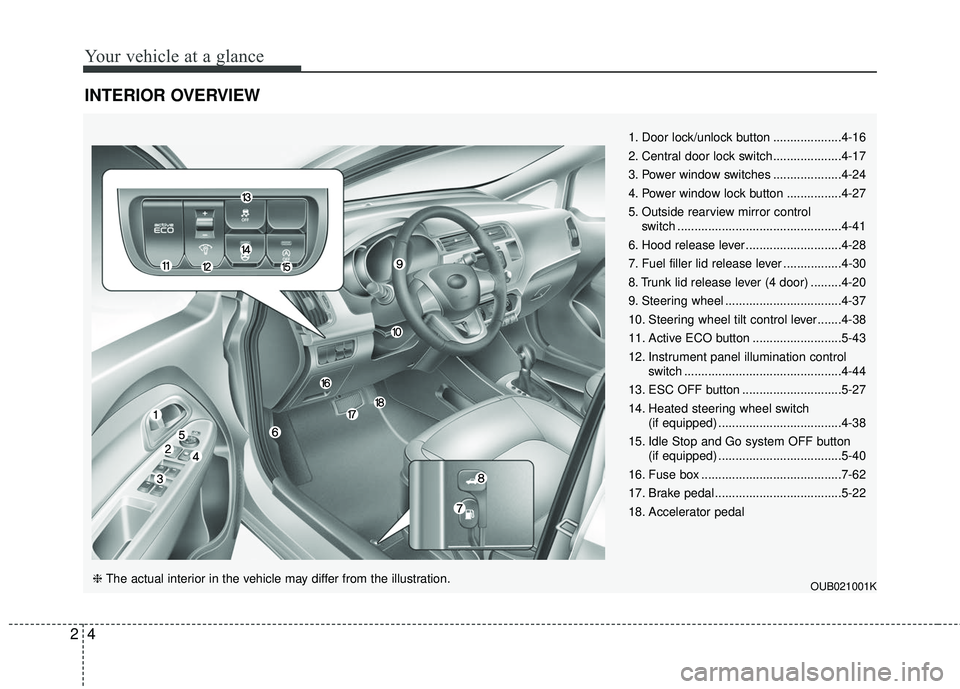

INTERIOR OVERVIEW
OUB021001K
1. Door lock/unlock button ....................4-16
2. Central door lock switch....................4-17
3. Power window switches ....................4-24
4. Power window lock button ................4-27
5. Outside rearview mirror control switch ................................................4-41
6. Hood release lever ............................4-28
7. Fuel filler lid release lever .................4-30
8. Trunk lid release lever (4 door) .........4-20
9. Steering wheel ..................................4-37
10. Steering wheel tilt control lever.......4-38
11. Active ECO button ..........................5-43
12. Instrument panel illumination control switch ..............................................4-44
13. ESC OFF button .............................5-27
14. Heated steering wheel switch (if equipped) ....................................4-38
15. Idle Stop and Go system OFF button (if equipped) ....................................5-40
16. Fuse box .........................................7-62
17. Brake pedal .....................................5-22
18. Accelerator pedal
❈ The actual interior in the vehicle may differ from the illustration.
Page 14 of 449
25
Your vehicle at a glance

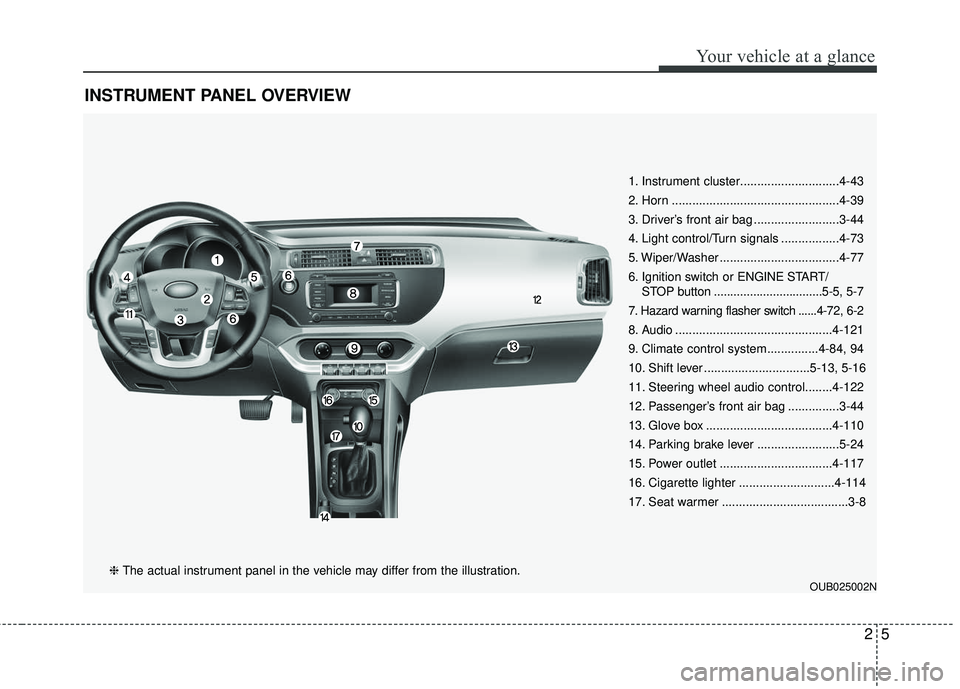

INSTRUMENT PANEL OVERVIEW
OUB025002N
1. Instrument cluster.............................4-43
2. Horn .................................................4-39
3. Driver’s front air bag .........................3-44
4. Light control/Turn signals .................4-73
5. Wiper/Washer ...................................4-77
6. Ignition switch or ENGINE START/STOP button .................................5-5, 5-7
7. Hazard warning flasher switch ......4-72, 6-2
8. Audio ..............................................4-121
9. Climate control system...............4-84, 94
10. Shift lever ...............................5-13, 5-16
11. Steering wheel audio control........4-122
12. Passenger’s front air bag ...............3-44
13. Glove box .....................................4-110
14. Parking brake lever ........................5-24
15. Power outlet .................................4-117
16. Cigarette lighter ............................4-114
17. Seat warmer .....................................3-8
❈ The actual instrument panel in the vehicle may differ from the illustration.
Page 15 of 449
Your vehicle at a glance
62

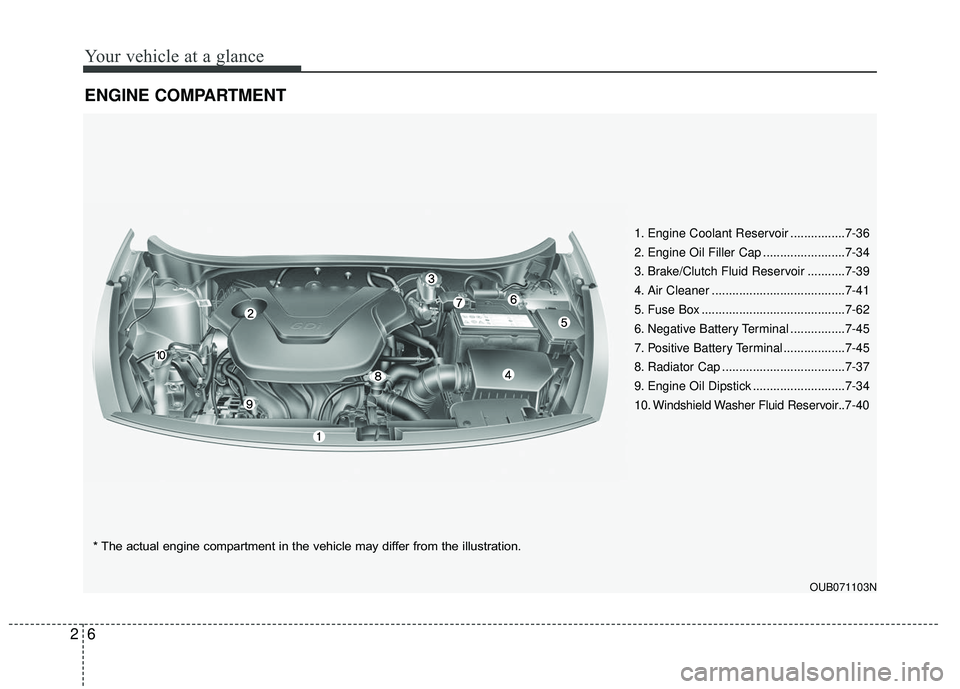

ENGINE COMPARTMENT
OUB071103N
* The actual engine compartment in the vehicle may differ from the illustration.1. Engine Coolant Reservoir ................7-36
2. Engine Oil Filler Cap ........................7-34
3. Brake/Clutch Fluid Reservoir ...........7-39
4. Air Cleaner .......................................7-41
5. Fuse Box ..........................................7-62
6. Negative Battery Terminal ................7-45
7. Positive Battery Terminal ..................7-45
8. Radiator Cap ....................................7-37
9. Engine Oil Dipstick ...........................7-34
10. Windshield Washer Fluid Reservoir..
7-40
Page 16 of 449
3
Seat / 3-2
Seat belts / 3-14
Child restraint system / 3-25
Airbag-advanced supplemental restraint system / 3-33
Safety features of your vehicle
Page 17 of 449
Safety features of your vehicle
23

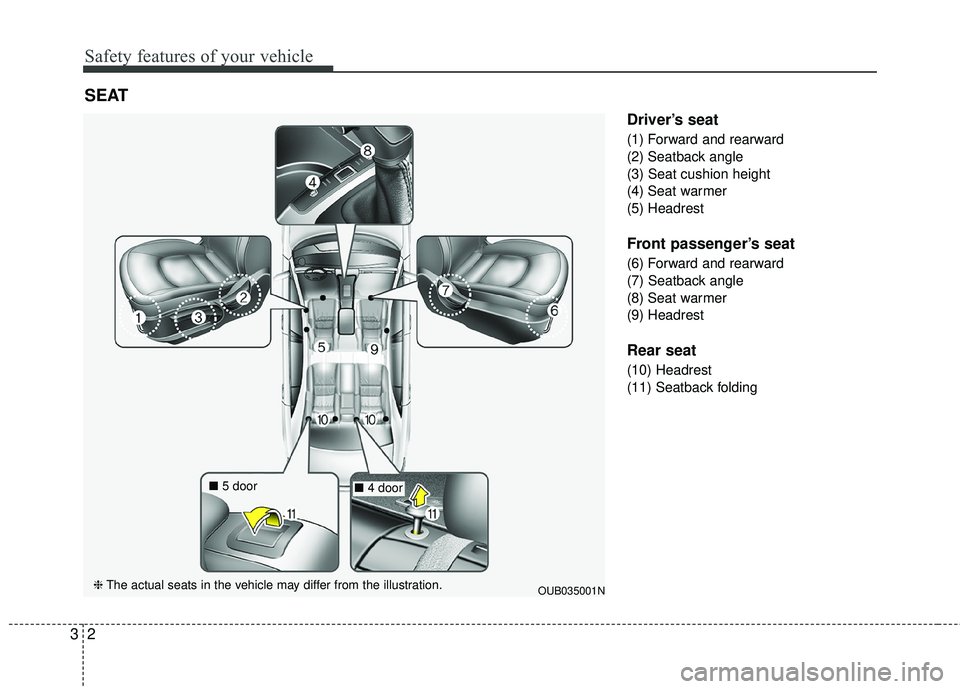

Driver’s seat
(1) Forward and rearward
(2) Seatback angle
(3) Seat cushion height
(4) Seat warmer
(5) Headrest
Front passenger’s seat
(6) Forward and rearward
(7) Seatback angle
(8) Seat warmer
(9) Headrest
Rear seat
(10) Headrest
(11) Seatback folding
SEAT
OUB035001N
■5 door■4 door
❈ The actual seats in the vehicle may differ from the illustration.
Page 18 of 449
33
Safety features of your vehicle
WARNING - Uprighting seat
Do not press the release lever on a
manual seatback without holding
and controlling the seatback. The
seatback will spring upright possibly
impacting you or other passengers.
WARNING- Loose objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the driver's
foot area could interfere with the
operation of the foot pedals.
WARNING- Driver respon-
sibility for passengers
The driver must advise the passen-
ger to keep the seatback in an
upright position whenever the vehi-
cle is in motion. If a seat is reclined
during an accident, the occupant's
hips may slide under the lap por-
tion of the seat belt, applying great
force to the unprotected abdomen.
1KMN3661
WARNING- Seat cushion
Occupants should never sit on
aftermarket seat cushions or sitting
cushions. The passenger's hips
may slide under the lap portion of
the seat belt during an accident or
a sudden stop.
WARNING- Driver’s seat
Never attempt to adjust the seat
while the vehicle is moving. This
could result in loss of control of
your vehicle.
Do not allow anything to interfere with the normal position of the
seatback and seatback adjust-
ment.
Sit as far back as possible from the steering wheel while still
maintaining comfortable control
of your vehicle. A distance of at
least 10" from your chest to the
steering wheel is recommended.
Failure to do so can result in
airbag inflation injuries to the
driver.
Page 19 of 449
Safety features of your vehicle
43

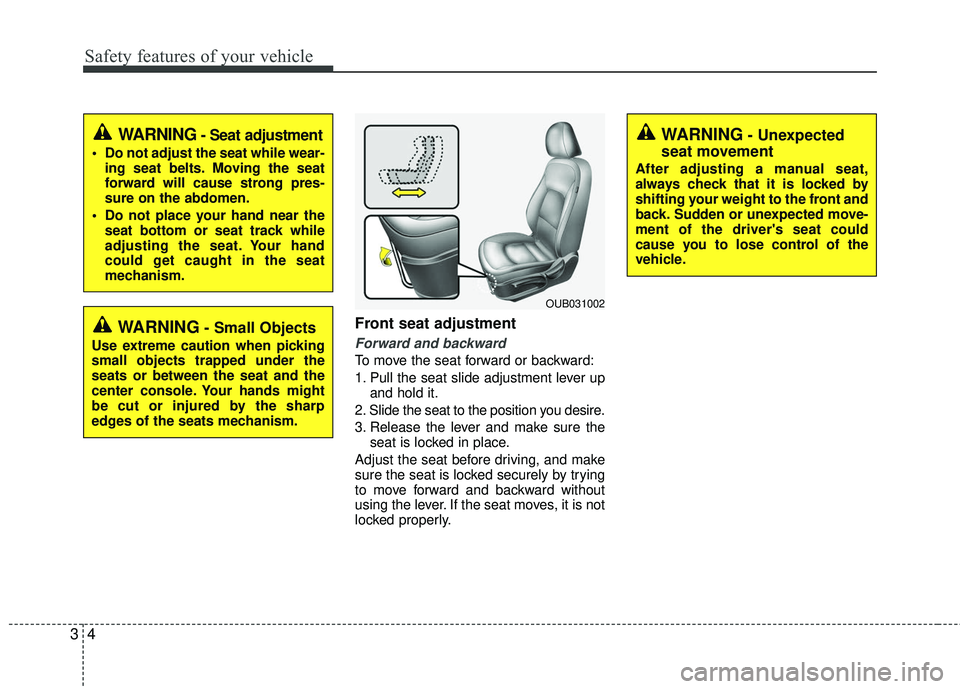

Front seat adjustment
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment lever upand hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
OUB031002
WARNING- Seat adjustment
Do not adjust the seat while wear- ing seat belts. Moving the seat
forward will cause strong pres-
sure on the abdomen.
Do not place your hand near the seat bottom or seat track while
adjusting the seat. Your hand
could get caught in the seat
mechanism.
WARNING- Small Objects
Use extreme caution when picking
small objects trapped under the
seats or between the seat and the
center console. Your hands might
be cut or injured by the sharp
edges of the seats mechanism.
WARNING- Unexpected
seat movement
After adjusting a manual seat,
always check that it is locked by
shifting your weight to the front and
back. Sudden or unexpected move-
ment of the driver's seat could
cause you to lose control of the
vehicle.
Page 20 of 449
35
Safety features of your vehicle

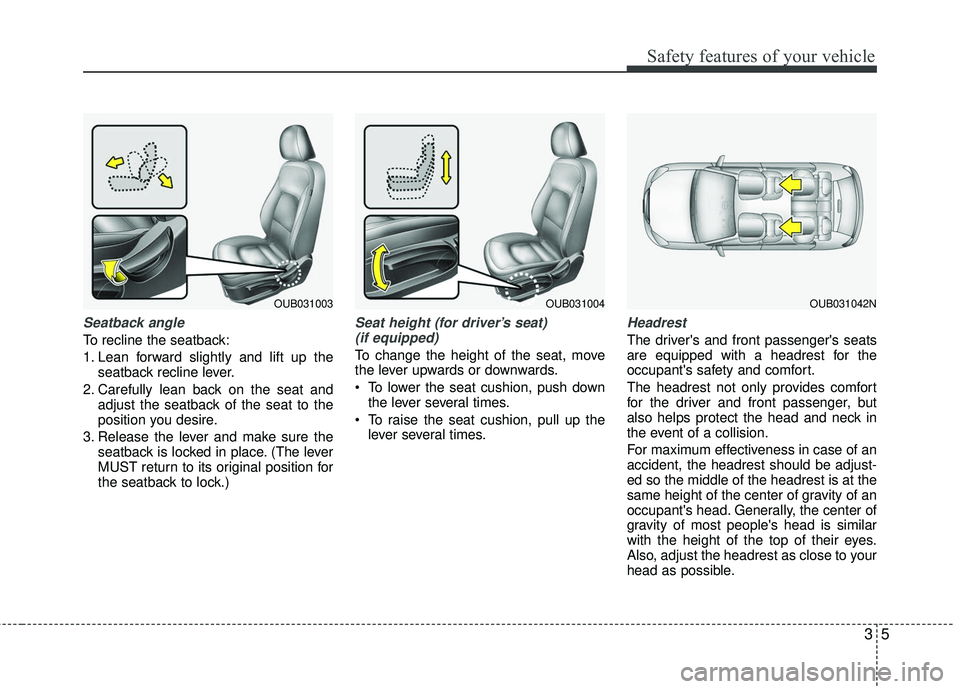

Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up theseatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Seat height (for driver’s seat) (if equipped)
To change the height of the seat, move
the lever upwards or downwards.
• To lower the seat cushion, push down the lever several times.
To raise the seat cushion, pull up the lever several times.
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps protect the head and neck in
the event of a collision.
For maximum effectiveness in case of an
accident, the headrest should be adjust-
ed so the middle of the headrest is at the
same height of the center of gravity of an
occupant's head. Generally, the center of
gravity of most people's head is similar
with the height of the top of their eyes.
Also, adjust the headrest as close to your
head as possible.
OUB031003OUB031004OUB031042N
