KIA RIO 2019 Owners Manual

879
Maintenance

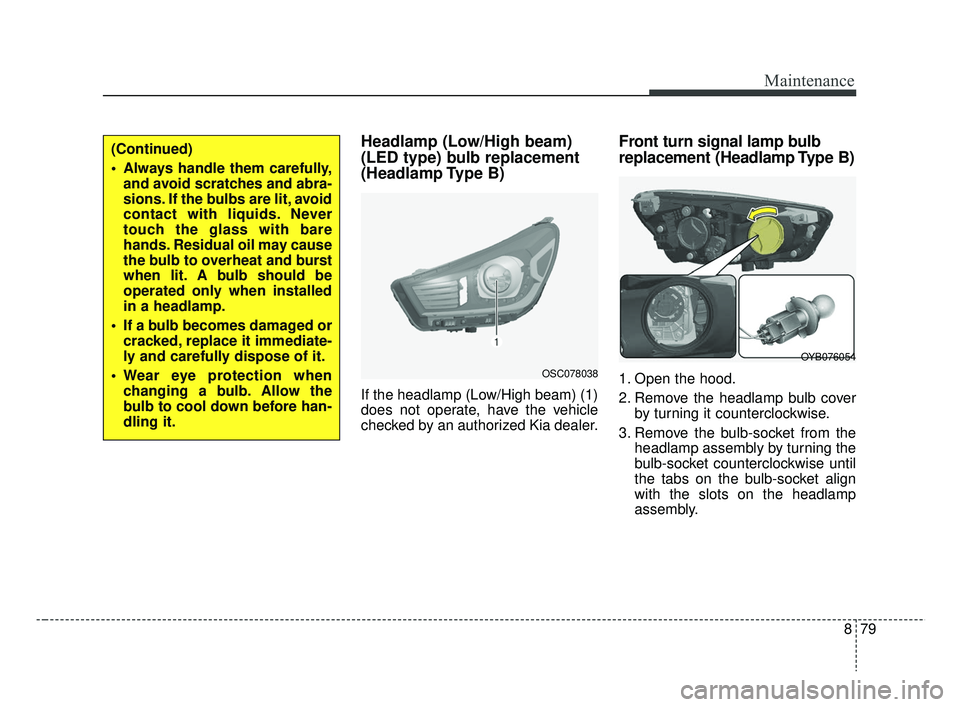

Headlamp (Low/High beam)
(LED type) bulb replacement
(Headlamp Type B)
If the headlamp (Low/High beam) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
Front turn signal lamp bulb
replacement (Headlamp Type B)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlamp.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
OSC078038
OYB076054
SC CAN (ENG) 8.qxp 7/18/2018 5:35 PM Page 79

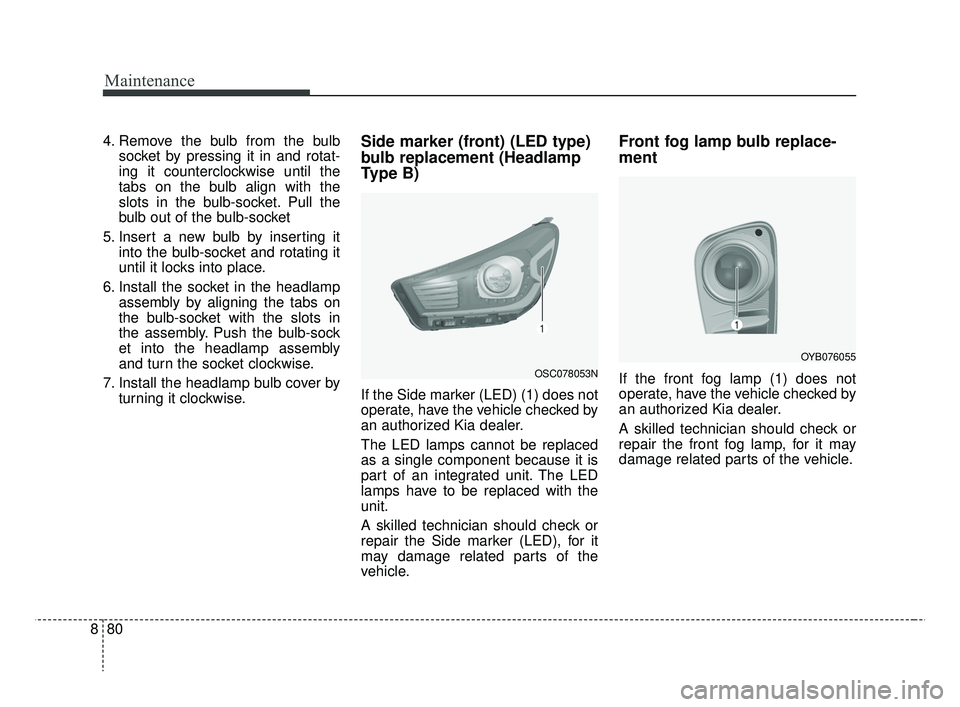

Maintenance
80
8
4. Remove the bulb from the bulb
socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket
5. Insert a new bulb by inserting it into the bulb-socket and rotating it
until it locks into place.
6. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock
et into the headlamp assembly
and turn the socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.Side marker (front) (LED type)
bulb replacement (Headlamp
Type B)
If the Side marker (LED) (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the Side marker (LED), for it
may damage related parts of the
vehicle.
Front fog lamp bulb replace-
ment
If the front fog lamp (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
A skilled technician should check or
repair the front fog lamp, for it may
damage related parts of the vehicle.
OYB076055
OSC078053N
SC CAN (ENG) 8.qxp 7/18/2018 5:35 PM Page 80

881
Maintenance

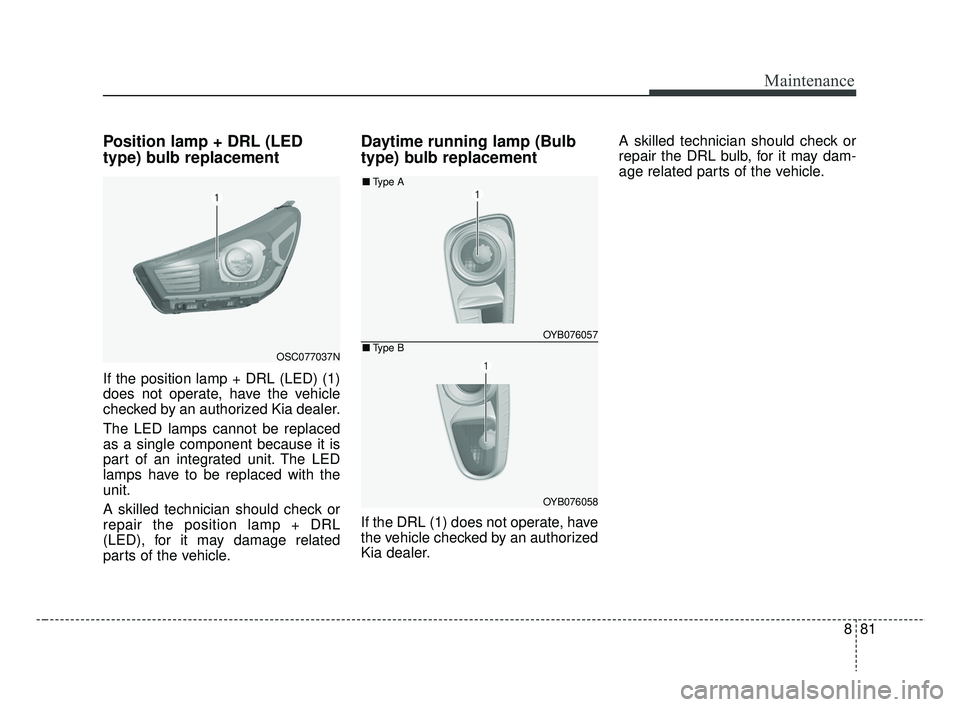

Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the position lamp + DRL
(LED), for it may damage related
parts of the vehicle.
Daytime running lamp (Bulb
type) bulb replacement
If the DRL (1) does not operate, have
the vehicle checked by an authorized
Kia dealer.A skilled technician should check or
repair the DRL bulb, for it may dam-
age related parts of the vehicle.
OYB076057
OYB076058
■
Type A
■Type BOSC077037N
SC CAN (ENG) 8.qxp 7/18/2018 5:35 PM Page 81

Maintenance
82
8

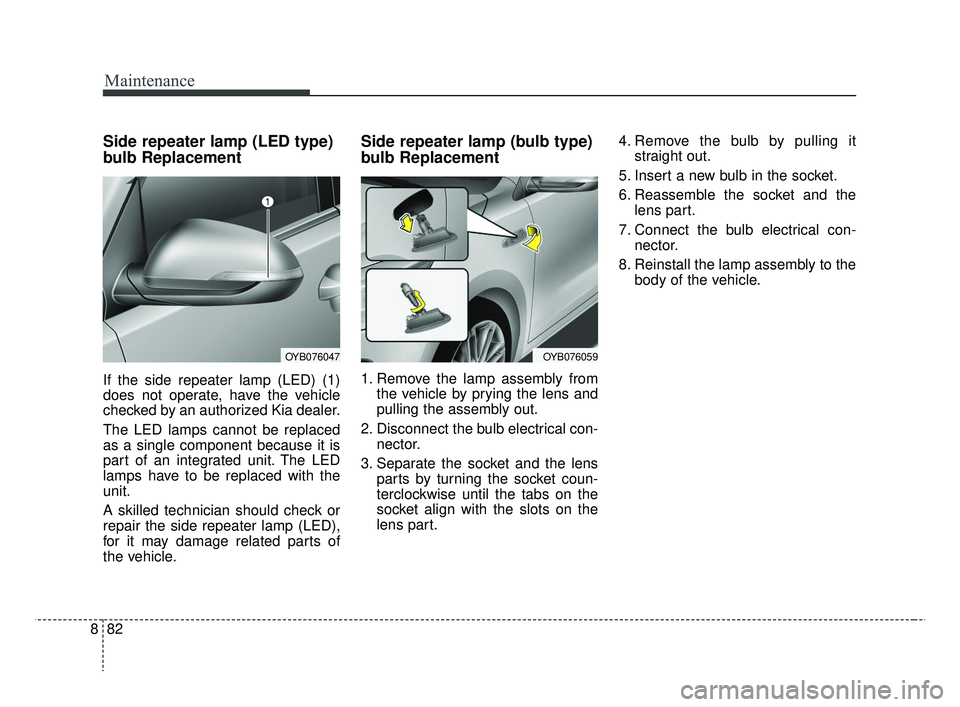

Side repeater lamp (LED type)
bulb Replacement
If the side repeater lamp (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the side repeater lamp (LED),
for it may damage related parts of
the vehicle.
Side repeater lamp (bulb type)
bulb Replacement
1. Remove the lamp assembly from
the vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical con- nector.
3. Separate the socket and the lens parts by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots on the
lens part. 4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical con- nector.
8. Reinstall the lamp assembly to the body of the vehicle.
OYB076059OYB076047
SC CAN (ENG) 8.qxp 7/18/2018 5:35 PM Page 82

883
Maintenance

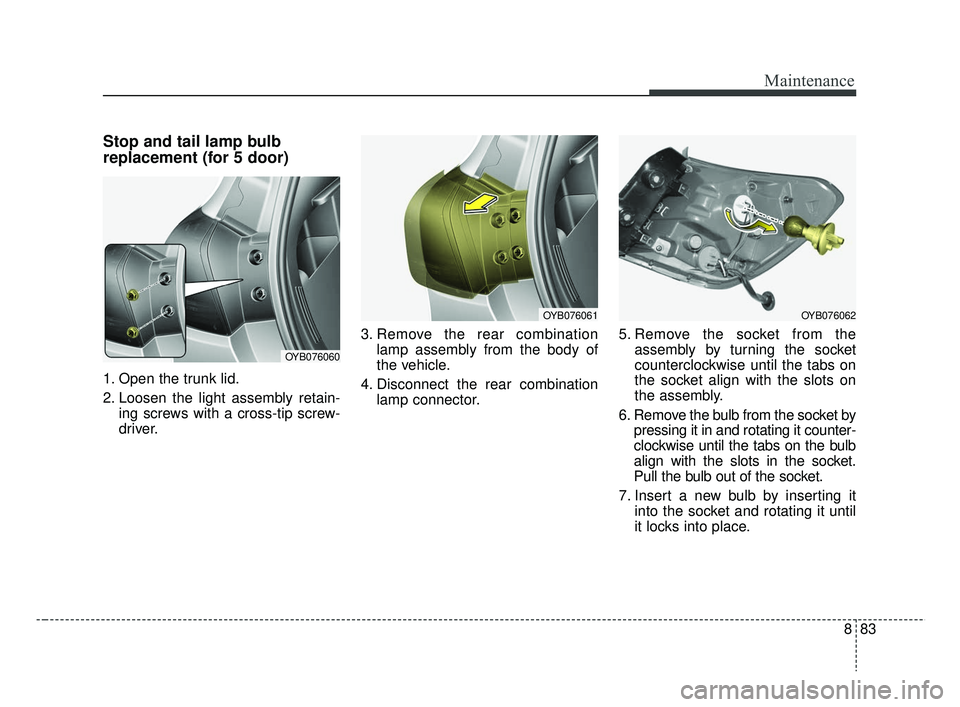

Stop and tail lamp bulb
replacement (for 5 door)
1. Open the trunk lid.
2. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver. 3. Remove the rear combination
lamp assembly from the body of
the vehicle.
4. Disconnect the rear combination lamp connector. 5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
OYB076061
OYB076060
OYB076062
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 83

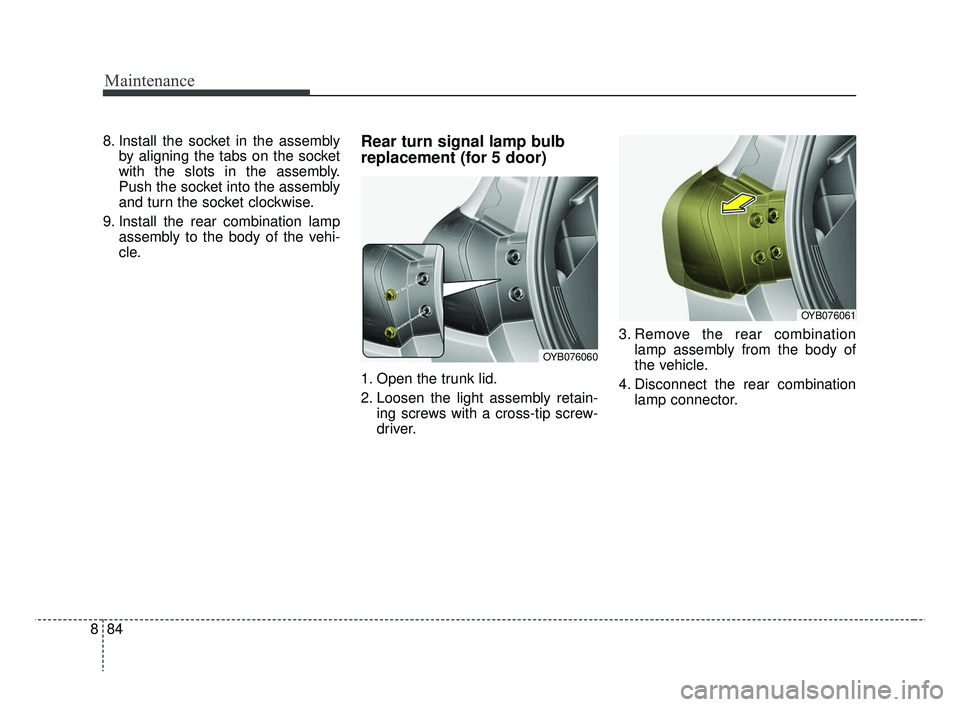

Maintenance
84
8
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi-
cle.Rear turn signal lamp bulb
replacement (for 5 door)
1. Open the trunk lid.
2. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver. 3. Remove the rear combination
lamp assembly from the body of
the vehicle.
4. Disconnect the rear combination lamp connector.
OYB076060
OYB076061
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 84

885
Maintenance

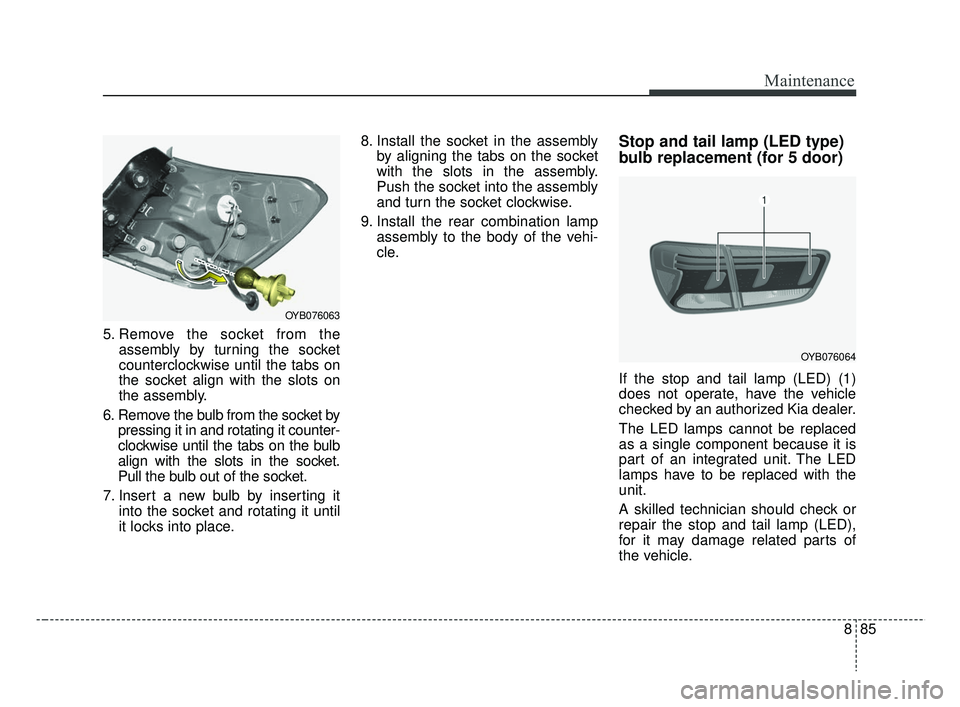

5. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place. 8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi-
cle.
Stop and tail lamp (LED type)
bulb replacement (for 5 door)
If the stop and tail lamp (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the stop and tail lamp (LED),
for it may damage related parts of
the vehicle.
OYB076064
OYB076063
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 85

Maintenance
86
8

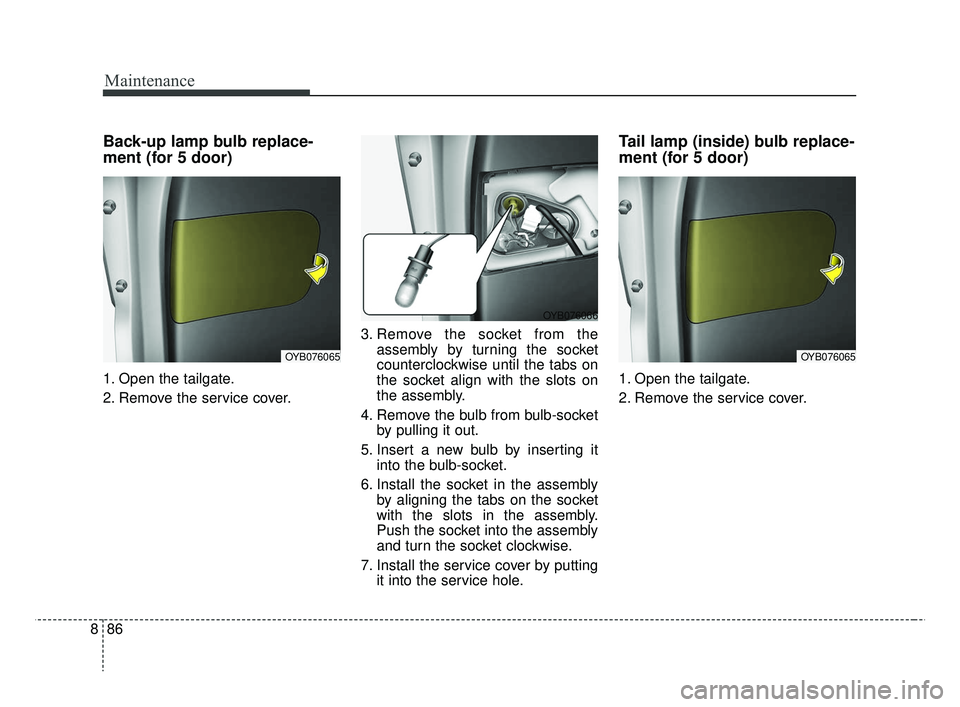

Back-up lamp bulb replace-
ment (for 5 door)
1. Open the tailgate.
2. Remove the service cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
Tail lamp (inside) bulb replace-
ment (for 5 door)
1. Open the tailgate.
2. Remove the service cover.
OYB076066
OYB076065OYB076065
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 86

887
Maintenance

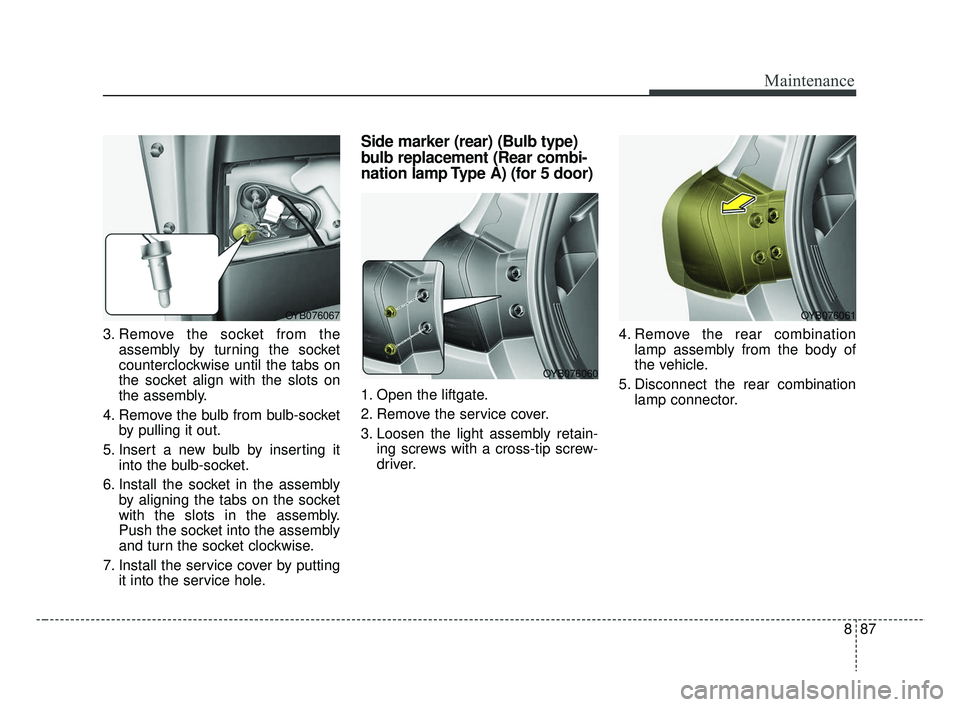

3. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
Side marker (rear) (Bulb type)
bulb replacement (Rear combi-
nation lamp Type A) (for 5 door)
1. Open the liftgate.
2. Remove the service cover.
3. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver. 4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Disconnect the rear combination lamp connector.
OYB076067
OYB076060
OYB076061
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 87

Maintenance
88
8

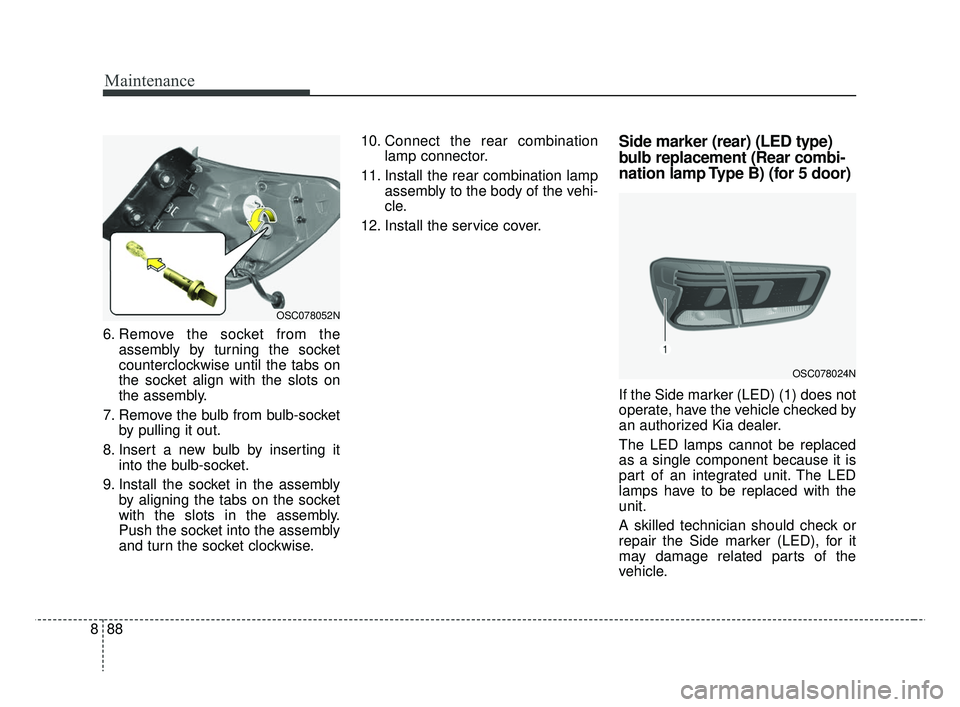

6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from bulb-socket by pulling it out.
8. Insert a new bulb by inserting it into the bulb-socket.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise. 10. Connect the rear combination
lamp connector.
11. Install the rear combination lamp assembly to the body of the vehi-
cle.
12. Install the service cover.
Side marker (rear) (LED type)
bulb replacement (Rear combi-
nation lamp Type B) (for 5 door)
If the Side marker (LED) (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the Side marker (LED), for it
may damage related parts of the
vehicle.
OSC078024N
OSC078052N
SC CAN (ENG) 8.qxp 7/18/2018 5:36 PM Page 88
