Maintenance

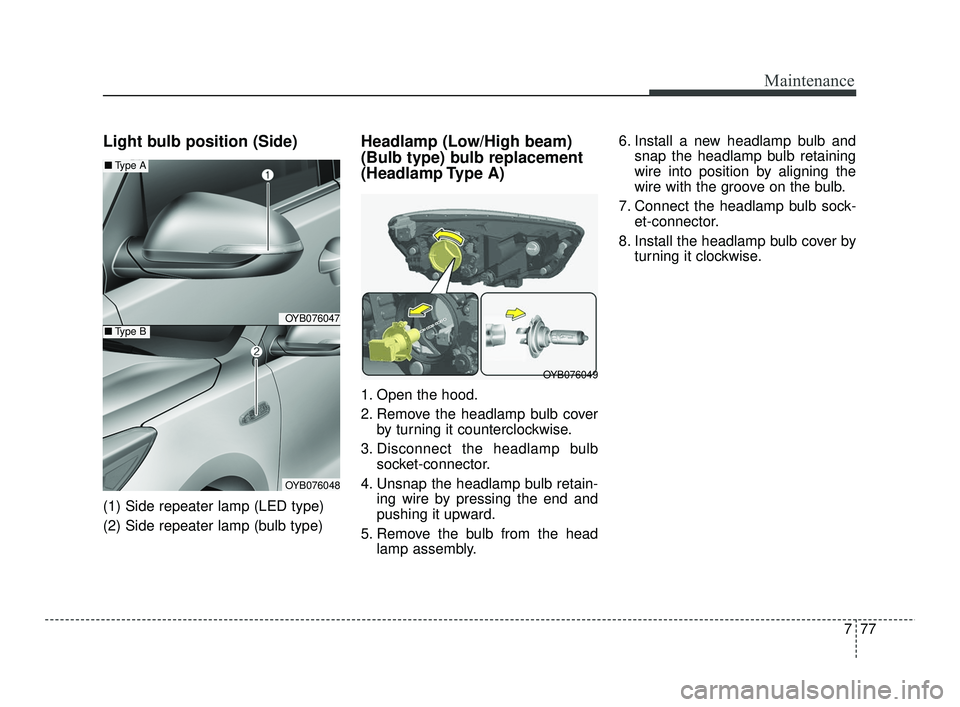

Light bulb position (Side)
(1) Side repeater lamp (LED type)
(2) Side repeater lamp (bulb type)
Headlamp (Low/High beam)
(Bulb type) bulb replacement
(Headlamp Type A)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Unsnap the headlamp bulb retain- ing wire by pressing the end and
pushing it upward.
5. Remove the bulb from the head lamp assembly. 6. Install a new headlamp bulb and
snap the headlamp bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
7. Connect the headlamp bulb sock- et-connector.
8. Install the headlamp bulb cover by turning it clockwise.
OYB076047
OYB076048
■Type A
■Type B
OYB076049
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 77

Maintenance
78
7

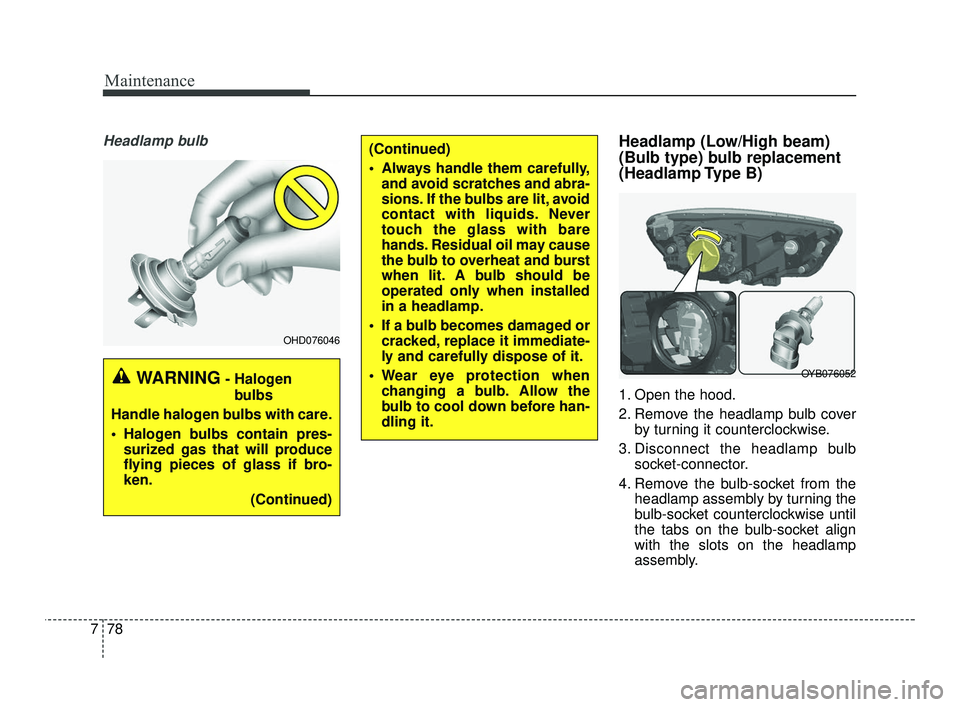

Headlamp bulbHeadlamp (Low/High beam)
(Bulb type) bulb replacement
(Headlamp Type B)
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
(Continued)
OHD076046
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlamp.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
OYB076052
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 78

779
Maintenance

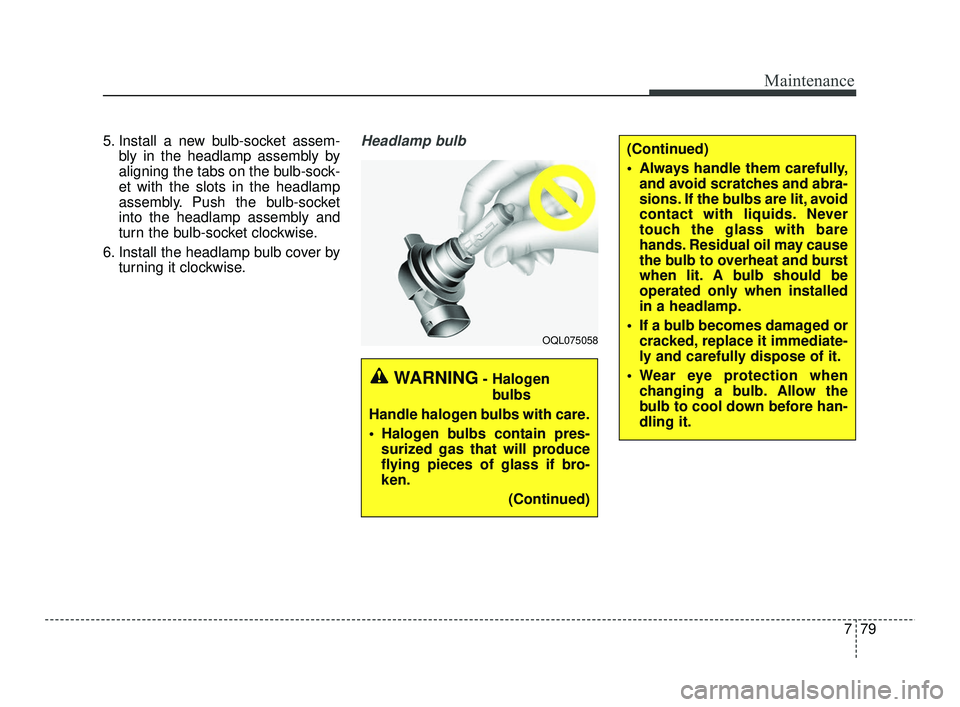

5. Install a new bulb-socket assem-bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.Headlamp bulb
OQL075058
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
(Continued)
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlamp.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 79

Maintenance
80
7

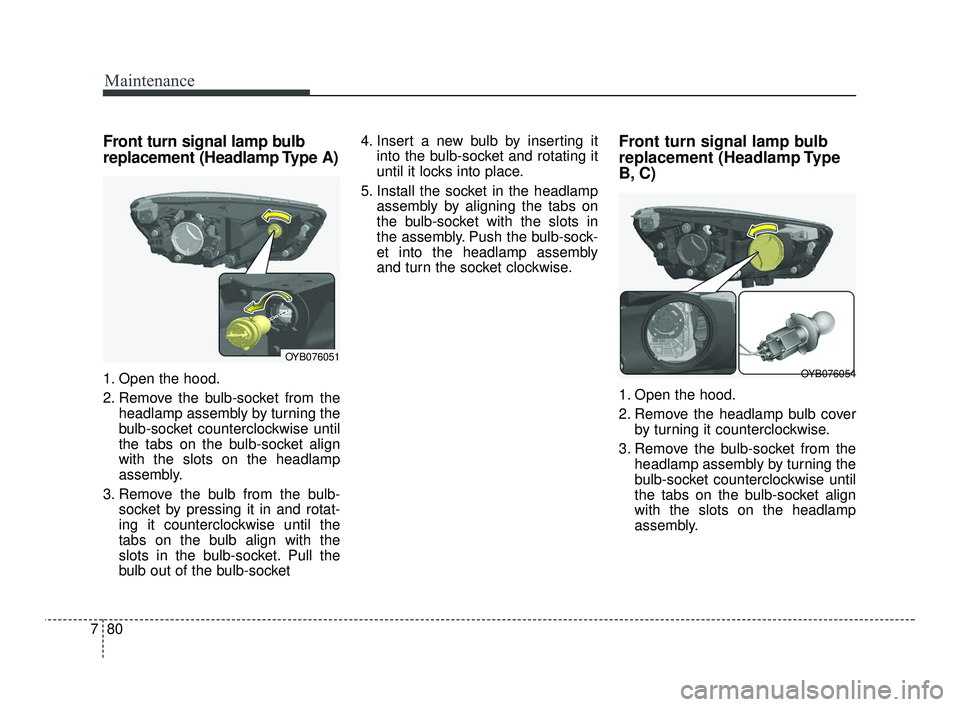

Front turn signal lamp bulb
replacement (Headlamp Type A)
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Front turn signal lamp bulb
replacement (Headlamp Type
B, C)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
OYB076051
OYB076054
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 80

781
Maintenance
4. Remove the bulb from the bulbsocket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket
5. Insert a new bulb by inserting it into the bulb-socket and rotating it
until it locks into place.
6. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock
et into the headlamp assembly
and turn the socket clockwise.

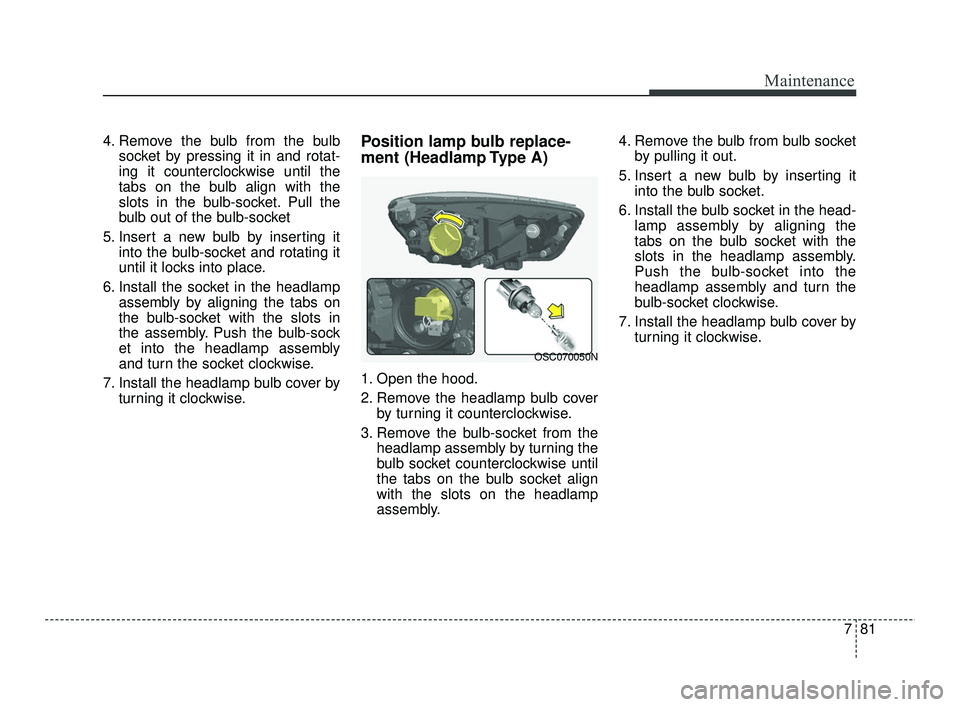

7. Install the headlamp bulb cover by turning it clockwise.Position lamp bulb replace-
ment (Headlamp Type A)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Remove the bulb-socket from the headlamp assembly by turning the
bulb socket counterclockwise until
the tabs on the bulb socket align
with the slots on the headlamp
assembly. 4. Remove the bulb from bulb socket
by pulling it out.
5. Insert a new bulb by inserting it into the bulb socket.
6. Install the bulb socket in the head- lamp assembly by aligning the
tabs on the bulb socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.
OSC070050N
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 81

Maintenance
82
7

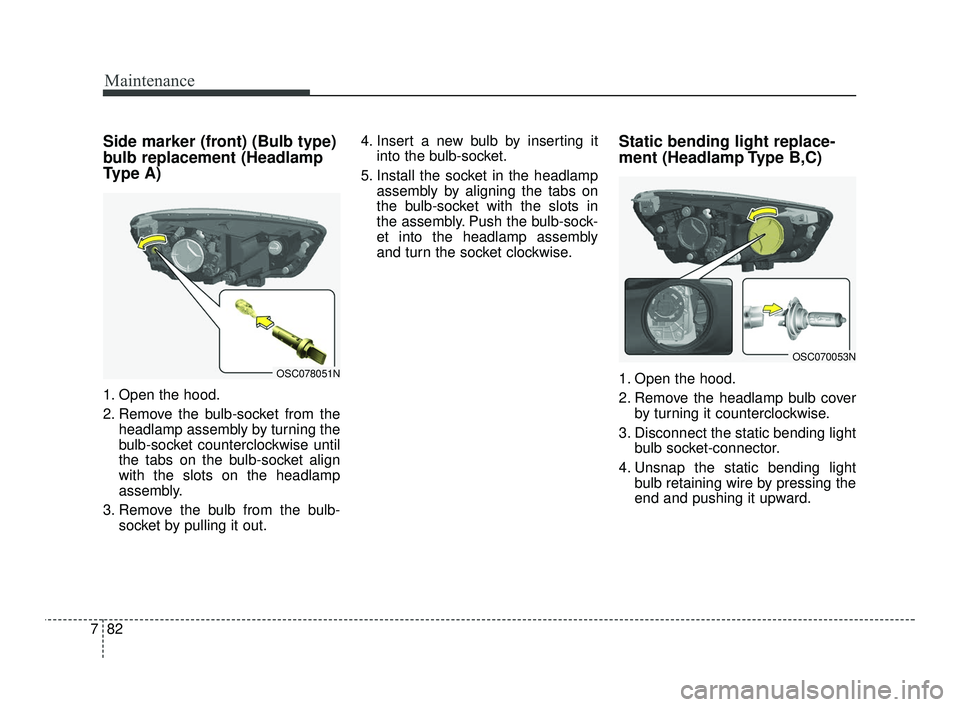

Side marker (front) (Bulb type)
bulb replacement (Headlamp
Type A)
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pulling it out. 4. Insert a new bulb by inserting it
into the bulb-socket.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Static bending light replace-
ment (Headlamp Type B,C)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the static bending light bulb socket-connector.
4. Unsnap the static bending light bulb retaining wire by pressing the
end and pushing it upward.OSC078051N
OSC070053N
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 82

783
Maintenance
5. Remove the bulb from the headlamp assembly.
6. Install a new static bending light bulb and snap the static bending
light bulb retaining wire into posi-
tion by aligning the wire with the
groove on the bulb.
7. Connect the static bending light bulb socket-connector.

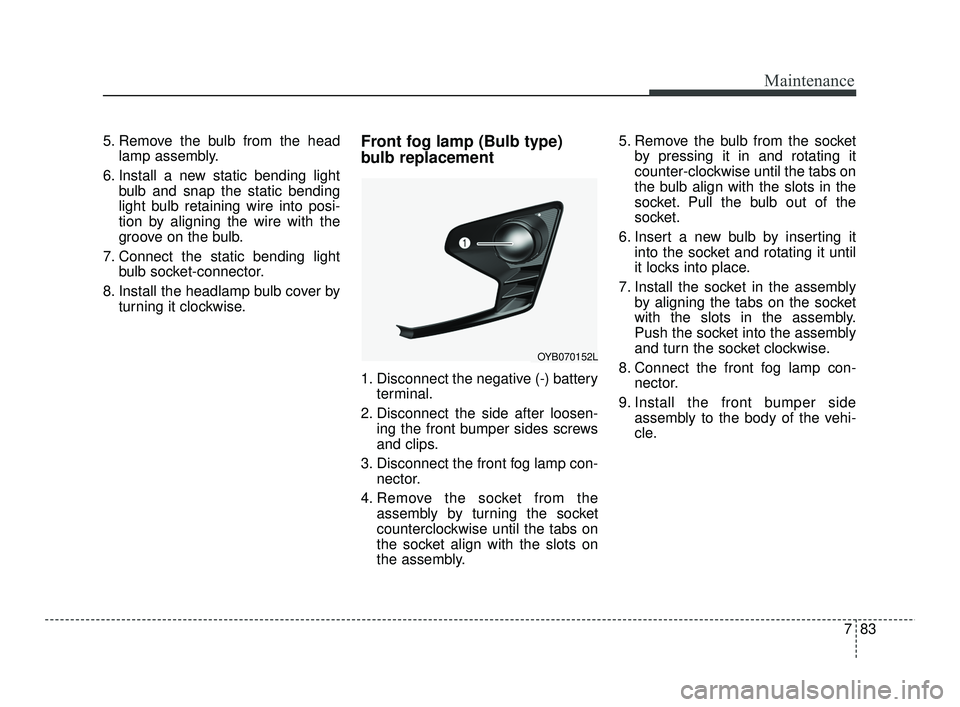

8. Install the headlamp bulb cover by turning it clockwise.Front fog lamp (Bulb type)
bulb replacement
1. Disconnect the negative (-) batteryterminal.
2. Disconnect the side after loosen- ing the front bumper sides screws
and clips.
3. Disconnect the front fog lamp con- nector.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 5. Remove the bulb from the socket
by pressing it in and rotating it
counter-clockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
7. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8. Connect the front fog lamp con- nector.
9. Install the front bumper side assembly to the body of the vehi-
cle.
OYB070152L
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 83

Maintenance
84
7

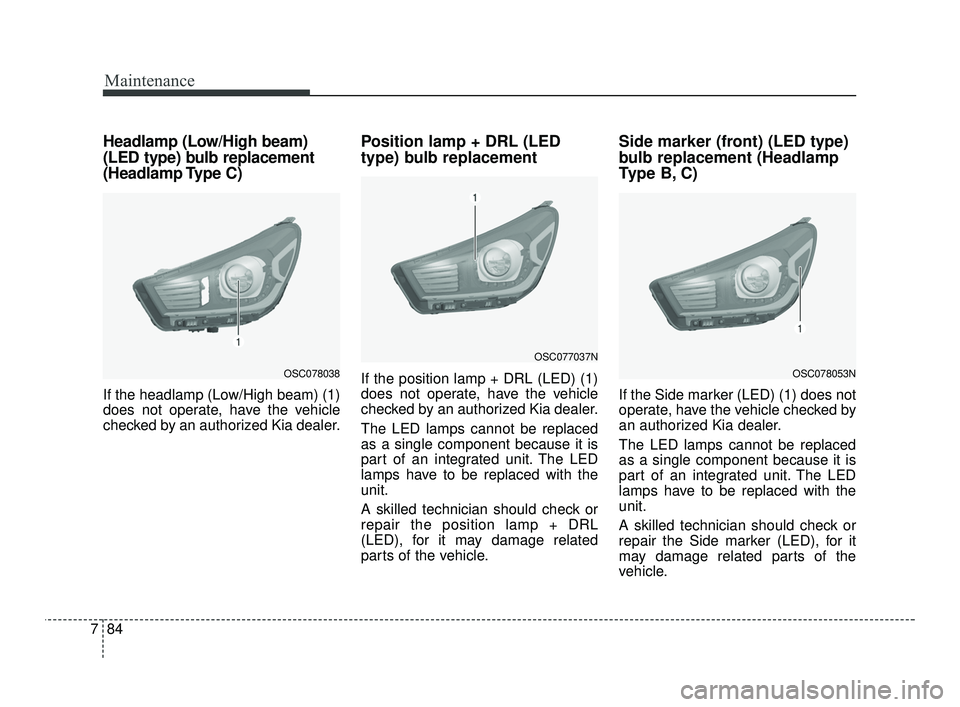

Headlamp (Low/High beam)
(LED type) bulb replacement
(Headlamp Type C)
If the headlamp (Low/High beam) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the position lamp + DRL
(LED), for it may damage related
parts of the vehicle.
Side marker (front) (LED type)
bulb replacement (Headlamp
Ty p e B , C )
If the Side marker (LED) (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the Side marker (LED), for it
may damage related parts of the
vehicle.
OSC078038OSC078053N
OSC077037N
SC PE USA 7.qxp 10/23/2020 6:08 PM Page 84

Index
6I
Room lamp ................................................................4-106
Trunk/Liftgate room lamp ........................................4-108
Vanity mirror lamp ....................................................4-109
Interior overview ............................................................2-5
Key positions ..................................................................5-7 Ignition switch position ................................................5-7
Starting the engine ........................................................5-9
Keys ........................................................................\
........4-4 Battery replacement ......................................................4-8
Immobilizer system ......................................................4-9
Key operations ..............................................................4-4
Record your key number ..............................................4-4
Remote keyless entry system operations ......................4-5
Transmitter precautions ................................................4-7
Lane Following Assist (LFA) ........................................5-91 Detecting sensor ..........................................................5-91
Function malfunction and limitations ........................5-95
Function operation ......................................................5-92
Function settings ........................................................5-92
Lane Keeping Assist (LKA) ..........................................5-61 Detecting sensor ..........................................................5-61
Function malfunction and limitations ........................5-66 Function operation ......................................................5-63
Function settings ........................................................5-62
LCD display (for type B cluster) ..................................4-65 Driving Assist mode ..................................................4-66
LCD Display Mode ....................................................4-65
User Settings Mode (for type B cluster) ....................4-67
Warning messages (for type B cluster) ......................4-75
Liftgate (for 5 door) ......................................................4-30 Opening the liftgate ....................................................4-30
Closing the liftgate ......................................................4-30
Emergency liftgate safety release ..............................4-31
Light bulbs ....................................................................7-72\
Back-up lamp bulb replacement (for 4 door) ............7-94
Back-up lamp bulb replacement (for 5 door) ............7-87
Bulb replacement precaution ....................................7-72
Front fog lamp (Bulb type) bulb replacement ..........7-83
Front turn signal lamp bulb replacement (Headlamp Type A) ..................................................7-80
Front turn signal lamp bulb replacement (Headlamp Type B, C) ..............................................7-80
Glove box lamp bulb replacement ..........................7-100
Headlamp (Low/High beam) (Bulb type) bulb replacement (Headlamp Type A) ..............................7-77
Headlamp (Low/High beam) (Bulb type) bulb replacement (Headlamp Type B) ..............................7-78
Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type C) ..............................7-84
L
K
SC PE USA Index.qxp 10/23/2020 6:23 PM Page 6

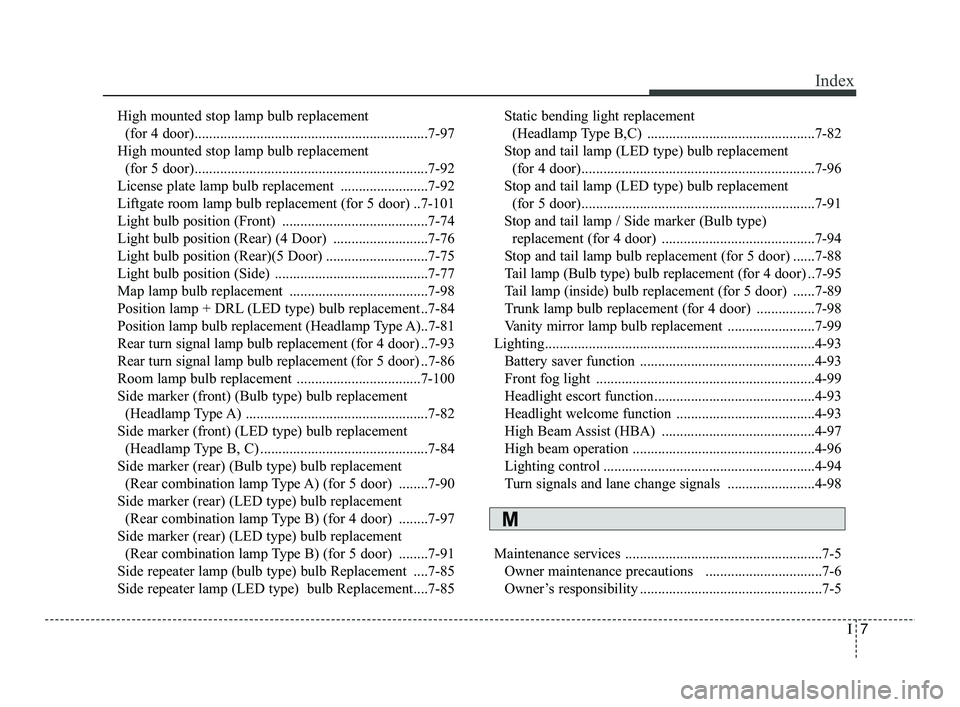

I7
Index
High mounted stop lamp bulb replacement(for 4 door)................................................................7-97
High mounted stop lamp bulb replacement (for 5 door)................................................................7-92
License plate lamp bulb replacement ........................7-92
Liftgate room lamp bulb replacement (for 5 door) ..7-101
Light bulb position (Front) ........................................7-74
Light bulb position (Rear) (4 Door) ..........................7-76
Light bulb position (Rear)(5 Door) ............................7-75
Light bulb position (Side) ..........................................7-77
Map lamp bulb replacement ......................................7-98
Position lamp + DRL (LED type) bulb replacement..7-84
Position lamp bulb replacement (Headlamp Type A)..7-81
Rear turn signal lamp bulb replacement (for 4 door) ..7-93
Rear turn signal lamp bulb replacement (for 5 door) ..7-86
Room lamp bulb replacement ..................................7-100
Side marker (front) (Bulb type) bulb replacement (Headlamp Type A) ..................................................7-82
Side marker (front) (LED type) bulb replacement (Headlamp Type B, C) ..............................................7-84
Side marker (rear) (Bulb type) bulb replacement (Rear combination lamp Type A) (for 5 door) ........7-90
Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 4 door) ........7-97
Side marker (rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 5 door) ........7-91
Side repeater lamp (bulb type) bulb Replacement ....7-85
Side repeater lamp (LED type) bulb Replacement....7-85 Static bending light replacement
(Headlamp Type B,C) ..............................................7-82
Stop and tail lamp (LED type) bulb replacement (for 4 door)................................................................7-96
Stop and tail lamp (LED type) bulb replacement (for 5 door)................................................................7-91
Stop and tail lamp / Side marker (Bulb type) replacement (for 4 door) ..........................................7-94
Stop and tail lamp bulb replacement (for 5 door) ......7-88
Tail lamp (Bulb type) bulb replacement (for 4 door) ..7-95
Tail lamp (inside) bulb replacement (for 5 door) ......7-89
Trunk lamp bulb replacement (for 4 door) ................7-98
Vanity mirror lamp bulb replacement ........................7-99
Lighting........................................................................\
..4-93 Battery saver function ................................................4-93
Front fog light ............................................................4-99
Headlight escort function ............................................4-93
Headlight welcome function ......................................4-93
High Beam Assist (HBA) ..........................................4-97
High beam operation ..................................................4-96
Lighting control ..........................................................4-94
Turn signals and lane change signals ........................4-98
Maintenance services ......................................................7-5 Owner maintenance precautions ................................7-6
Owner’s responsibility ..................................................7-5
M
SC PE USA Index.qxp 10/23/2020 6:23 PM Page 7
