735
Maintenance
Aluminum wheel maintenance
The aluminum wheels are coated with a
clear protective finish.
• Do not use any abrasive cleaner, pol-
ishing compound, solvent, or wire
brushes on aluminum wheels. They
may scratch or damage the finish.
• Use only a mild soap or neutral deter-
gent, and rinse thoroughly with water.
Also, be sure to clean the wheels after
driving on salted roads. This helps pre-
vent corrosion.
• Avoid washing the wheels with high-
speed car wash brushes.
• Do not use any acid detergent. It may
damage and corrode the aluminum
wheels coated with a clear protective
finish.
INTERIOR CARE
Interior general precautions
Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration. If they do con-
tact the dashboard, wipe them off imme-
diately. See the instructions that follow for
the proper way to clean vinyl.
✽
NOTICE
Never allow water or other liquids to
come in contact with electrical/electron-
ic components inside the vehicle as this
may damage them.
Cleaning the upholstery and inte-
rior trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl surfaces with a vinyl cleaner.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean with a mild soap solution recom-
mended for upholstery or carpets.
Remove fresh spots immediately with a
fabric spot cleaner. If fresh spots do not
receive immediate attention, the fabric
can be stained and its color can be
affected. Also, its fire-resistant properties
can be reduced if the material is not
properly maintained.
✽
NOTICE
Using anything but recommended
cleaners and procedures may affect the
fabric’s appearance and fire-resistant
properties.

Maintenance
36 7
Cleaning the lap/shoulder belt
webbing
Clean the belt webbing with any mild
soap solution recommended for cleaning
upholstery or carpet. Follow the instruc-
tions provided with the soap. Do not
bleach or re-dye the webbing because
this may weaken it.
Cleaning the interior window
glass
If the interior glass surfaces of the vehi-
cle become fogged (that is, covered with
an oily, greasy or waxy film), they should
be cleaned with glass cleaner. Follow the
directions on the glass cleaner container.
✽
NOTICE
Do not scrape or scratch the inside of
the rear window. This may result in
damage to the rear window defroster
grid.

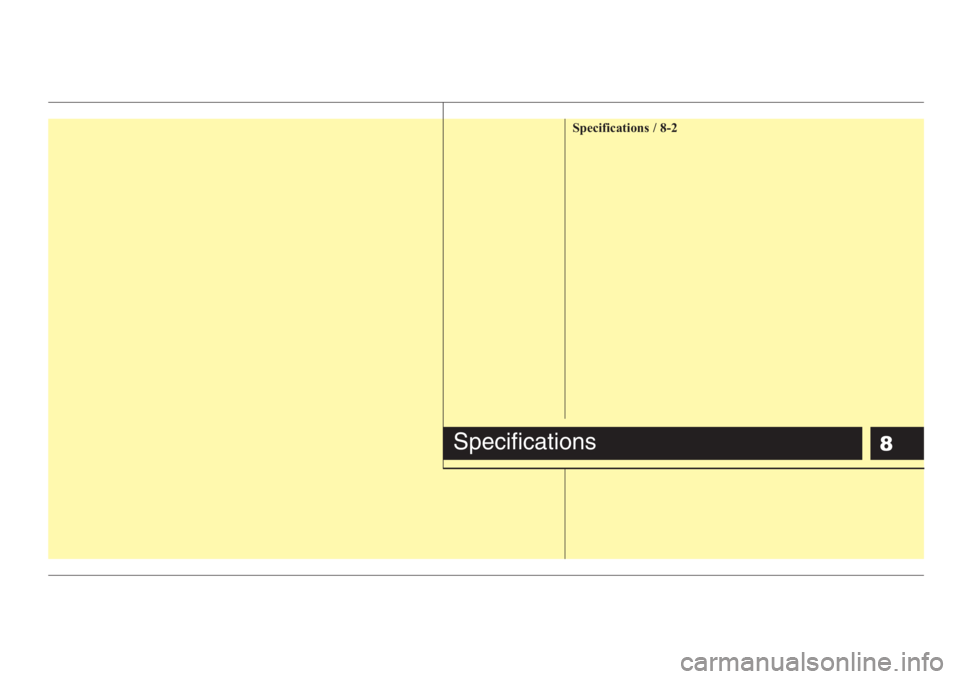

8

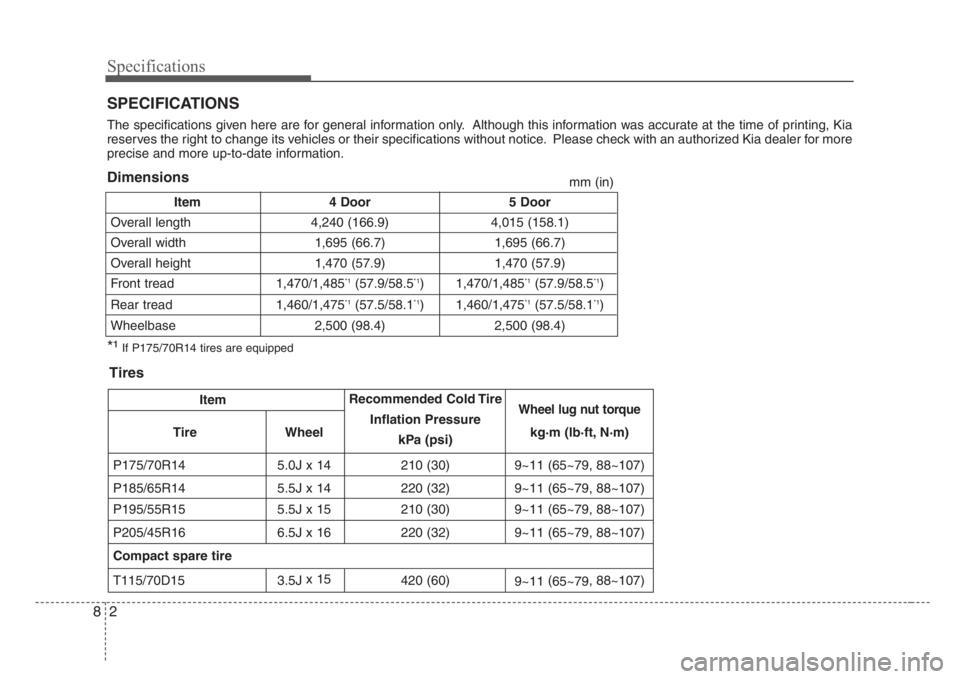

Specifications / 8-2
Specifications

Specifications
2 8
Item 4 Door 5 Door
Overall length 4,240 (166.9) 4,015 (158.1)
Overall width 1,695 (66.7) 1,695 (66.7)
Overall height 1,470 (57.9) 1,470 (57.9)
Front tread 1,470/1,485
*1(57.9/58.5*1) 1,470/1,485*1(57.9/58.5*1)
Rear tread 1,460/1,475
*1(57.5/58.1*1) 1,460/1,475*1(57.5/58.1*1)
Wheelbase 2,500 (98.4) 2,500 (98.4)
*¹If P175/70R14 tires are equipped
mm (in)
SPECIFICATIONS
The specifications given here are for general information only. Although this information was accurate at the time of printing, Kia
reserves the right to change its vehicles or their specifications without notice. Please check with an authorized Kia dealer for more
precise and more up-to-date information.
ItemRecommended Cold TireWheel lug nut torque
Tire WheelInflation Pressure
kPa (psi)kg·m (lb·ft, N·m)
P175/70R14 5.0J x 14 210 (30) 9~11 (65~79, 88~107)
P185/65R14 5.5J x 14 220 (32) 9~11 (65~79, 88~107)
P195/55R15 5.5J x 15 210 (30) 9~11 (65~79, 88~107)
P205/45R16 6.5J x 16 220 (32) 9~11 (65~79, 88~107)
Compact spare tire
T115/70D15 3.5Jx 15
420 (60)
9~11(
65~79, 88~107)
Tires Dimensions

83
Specifications
Weights
Refer to the label describing GVWR & GAWR weights
attached to your vehicle.
(see page 5-10, Label information)
Size Gasoline Engine
Battery 12V / 55AH (20HR)
Generator 13.5V / 90A
Starter 12V-0.9kW
Gap 1.0 mm ~ 1.1 mm
Spec. BKR5ES-11, RC10YC4
Spark Plug
Engine
Electrical system
Item Gasoline Engine
BoreXStroke 76.5 mm X 87 mm (3.01 in X 3.43 in)
Displacement 1599 cc (97.6 cu.in)
Compression Ratio 10.0 ± 0.2

Specifications
4 8
Light BulbsCapacities
Light Bulb 4 Door 5 Door
Headlights (Low/High) 55/60 55/60
Front turn signal lights 27 27
Position lights 5 5
Front fog lights (if equipped) 27 27
Front side mark light 5 5
Stop and tail lights 27/8 28/8
Rear turn signal lights 27 27
Back-up lights 18 18
High mounted stop light 18 18
License plate lights 5 5
Front map lamp 10 10
Center dome lamp 10 10
Trunk room (cargo area) lamp 5 5
Wattage
Lubricant Volume Classification
Engine oil
*13.3lAPI service SJ, SL or above
(with filter change) (3.5 US qt.) ILSAC GF-3 or above
Manual transaxle fluid1.9lAPIserviceGL-4
(2.0 US qt.) SAE 75W-85 (fill-for-life)
Automatic transaxle 6.1 l
fluid (6.5 US qt.)
Power steering0.8l
PSF-III
(0.8 US qt.)
Coolant5.5~5.8lEthylene glycol base for
(5.8~6.1 US qt.)aluminum radiator
Brake fluid0.7~0.8lFMVSS116 DOT-3
(0.7~0.8 US qt.) o r D OT- 4
Fuel45lUnleaded gasoline with
(11.9 US gal.)AKI 87 or higher
*¹Refer to the recommended SAE viscosity numbers on the page 7-32.
DIAMOND ATF SP-III,
SK ATF SP-III

9Index

Index
2 9
Air bags-supplemental restraint system·························3-47
Air cleaner ·····································································7-17
Antenna ··········································································3-79
Audio system ·································································3-80
Automatic transaxle················································4-6, 7-15
Battery············································································7-21
Before driving ··································································5-4
Brake fluid ·····································································7-13
Brake system····································································4-9
Climate control air filter ················································7-18
Climate control system ··················································4-30
Defroster ········································································4-29
Door locks········································································3-9
Drive belts······································································7-14
Electrical circuit protection ·············································6-6
Emergency starting ··························································6-3
Emission control system ··················································5-2Engine compartment ················································2-4, 7-9
Engine cooling system ···················································7-11
Engine oil ·······································································7-10
Exterior care···································································7-33
Fuel filler lid ··································································3-65
Fuel requirements ····························································5-2
Gauges ···········································································4-17
Hazard warning flasher··················································4-29
Hood···············································································3-64
How to use this manual ···················································1-2
If you have a flat tire ·····················································6-17
Ignition switch ·································································4-2
Immobilizer system ·························································3-7
Instrument cluster ··························································4-16
Instrument panel overview ··············································2-3
Interior care····································································7-35
Interior features······························································3-73
Interior lights ·································································3-71
Interior overview ·····························································2-2
A
B
C
E
D
F
G
H
I

93
Index
Keys ·················································································3-2
Label information ··························································5-10
Lighting··········································································4-23
Lubricant specifications ·················································7-32
Lubricants and fluids ·····················································7-16
Luggage net ···································································3-78
Maintenance schedule······················································7-3
Maintenance services ·······················································7-2
Manual transaxle······························································4-4
Mirrors ···········································································3-68
Overheating······································································6-2
Overloading ·····································································5-9
Owner maintenance ·························································7-7
Power steering ·······························································7-14
Remote keyless entry ·······················································3-3
Road warning ···································································6-2Safety belts·····································································3-27
Seat·················································································3-17
Special driving conditions ···············································5-6
Specifications ···································································8-2
Starting the engine ···························································4-3
Steering wheel································································4-14
Storage compartment ·····················································3-72
Suggestions for economical operation·····························5-5
Sunroof···········································································3-76
Theft-alarm system ··························································3-5
Tires and wheels ····························································7-23
Towing ···········································································6-12
Trailer towing ··································································5-9
Trunk ··············································································3-62
Vehicle break-in process ··················································1-2
Warnings and indicators ················································4-19
Windows ········································································3-14
Windshield defrosting and defogging····························4-37
Wiper blades ··································································7-19
Wipers and washers ·······················································4-26
K
L
M
O
P
R
S
W
T
V
