Features of your vehicle

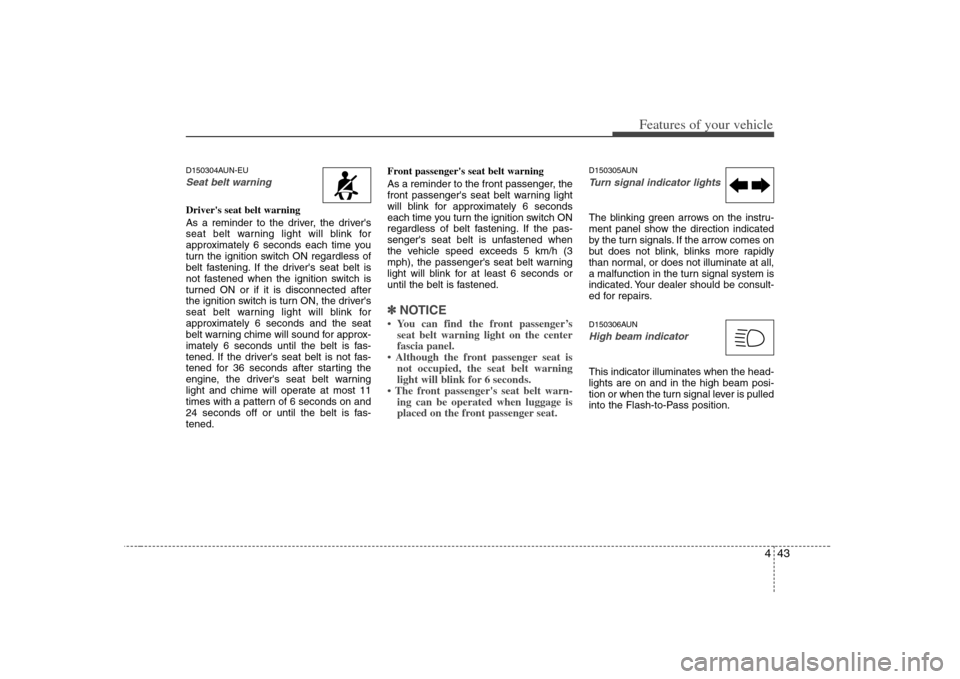

D150304AUN-EUSeat belt warningDriver's seat belt warning
As a reminder to the driver, the driver's
seat belt warning light will blink for
approximately 6 seconds each time you
turn the ignition switch ON regardless of
belt fastening. If the driver's seat belt is
not fastened when the ignition switch is
turned ON or if it is disconnected after
the ignition switch is turn ON, the driver's
seat belt warning light will blink for
approximately 6 seconds and the seat
belt warning chime will sound for approx-
imately 6 seconds until the belt is fas-
tened. If the driver's seat belt is not fas-
tened for 36 seconds after starting the
engine, the driver's seat belt warning
light and chime will operate at most 11
times with a pattern of 6 seconds on and
24 seconds off or until the belt is fas-
tened.Front passenger's seat belt warning
As a reminder to the front passenger, the
front passenger's seat belt warning light
will blink for approximately 6 seconds
each time you turn the ignition switch ON
regardless of belt fastening. If the pas-
senger's seat belt is unfastened when
the vehicle speed exceeds 5 km/h (3
mph), the passenger's seat belt warning
light will blink for at least 6 seconds or
until the belt is fastened.
✽ ✽
NOTICE• You can find the front passenger’s
seat belt warning light on the center
fascia panel.
• Although the front passenger seat is
not occupied, the seat belt warning
light will blink for 6 seconds.
• The front passenger's seat belt warn-
ing can be operated when luggage is
placed on the front passenger seat.
D150305AUNTurn signal indicator lightsThe blinking green arrows on the instru-
ment panel show the direction indicated
by the turn signals. If the arrow comes on
but does not blink, blinks more rapidly
than normal, or does not illuminate at all,
a malfunction in the turn signal system is
indicated. Your dealer should be consult-
ed for repairs.D150306AUNHigh beam indicator This indicator illuminates when the head-
lights are on and in the high beam posi-
tion or when the turn signal lever is pulled
into the Flash-to-Pass position.
