Maintenance48
7
✽
✽
NOTICENot all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
Inner fuse panel
Engine compartment fuse panel
OUN048008/OUN048009
G210300AUN-EU
Fuse/Relay panel descriptionInside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

749
Maintenance
Inner fuse panel
Description Fuse ratingProtected component
AUDIO15A Audio
MEMORY 15ABCM, Digital clock, Mirror folding relay, Instrument cluster, Room lamp, Sunvisor lamp, Door warning switch,
A/C control module
MIRR HTD 10A Outside mirror motor & Defogger, A/C control module
A/BAG 15A SRS control module
D/CLOCK 10A Power outside mirror switch, Audio, BCM, Digital clock, ATM key lock control module
W/DEICER 15A Windshield defogger relay
CLUSTER 10A Instrument cluster, Pre-excitation resistor
TELL TALE 10A Digital clock
C/LIGHTER 15A Cigarette lighter
A/BAG IND 10A Instrument cluster
MODULE-1 10AATM key lock control module, Steering angle sensor, Cluster, Back warning buzzer, ESC switch, BCM,
Auto light control module
P/OUTLET FR 20A Front power outlet
SPARE 15A Spare fuse
T/SIG 10A Hazard switch
RR WIPER 15A Rear wiper motor, Rear wiper relay, Multifunction switch
H/LP 10A Head lamp relay
SPARE 10A Spare fuse
A/CON 10A A/C control module, Blower relay
FRT WIPER 25A Wiper relay, Wiper motor, Multifunction switch
MODULE-2 10A Sunroof, Rain sensor, Seat warmer relay, BCM
SPARE 15A Spare fuse
TAIL-RH 10A Head lamp RH, Rear combination lamp RH, License lamp, DRL control module, Instrument panel illumination

Maintenance50
7

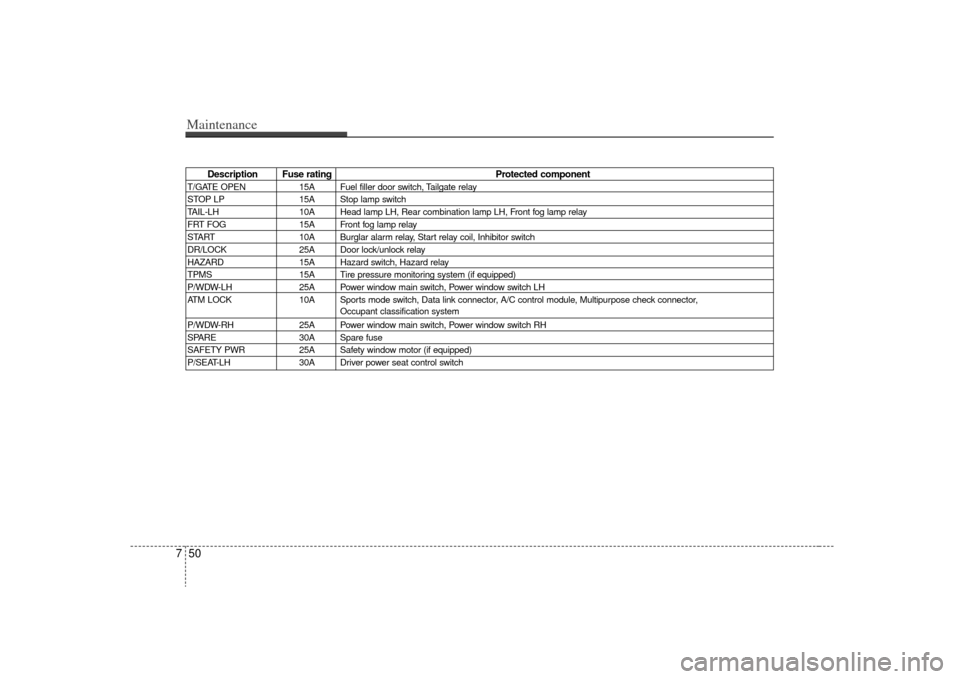

Description Fuse rating Protected component
T/GATE OPEN15A Fuel filler door switch, Tailgate relay
STOP LP 15A Stop lamp switch
TAIL-LH 10A Head lamp LH, Rear combination lamp LH, Front fog lamp relay
FRT FOG 15A Front fog lamp relay
START 10A Burglar alarm relay, Start relay coil, Inhibitor switch
DR/LOCK 25A Door lock/unlock relay
HAZARD 15A Hazard switch, Hazard relay
TPMS 15A Tire pressure monitoring system (if equipped)
P/WDW-LH 25A Power window main switch, Power window switch LH
ATM LOCK 10A Sports mode switch, Data link connector, A/C control module, Multipurpose check connector,
Occupant classification system
P/WDW-RH 25A Power window main switch, Power window switch RH
SPARE 30A Spare fuse
SAFETY PWR 25A Safety window motor (if equipped)
P/SEAT-LH 30A Driver power seat control switch

751
Maintenance

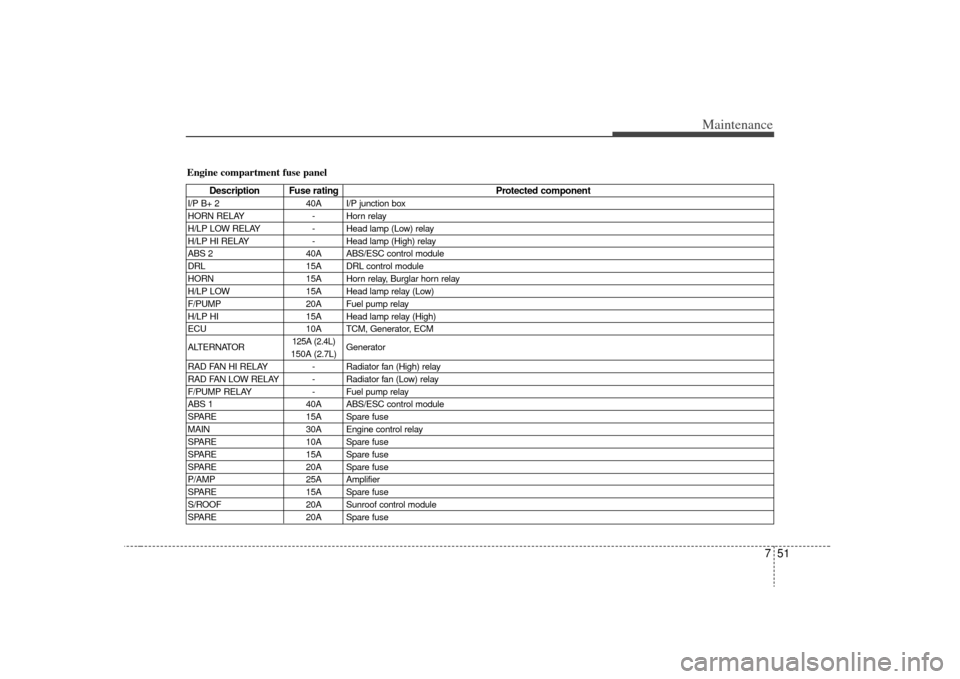

Engine compartment fuse panel
Description Fuse ratingProtected component
I/P B+ 240A I/P junction box
HORN RELAY - Horn relay
H/LP LOW RELAY - Head lamp (Low) relay
H/LP HI RELAY - Head lamp (High) relay
ABS 2 40A ABS/ESC control module
DRL 15A DRL control module
HORN 15A Horn relay, Burglar horn relay
H/LP LOW 15A Head lamp relay (Low)
F/PUMP 20A Fuel pump relay
H/LP HI 15A Head lamp relay (High)
ECU 10A TCM, Generator, ECM
ALTERNATOR
125A (2.4L)
Generator
150A (2.7L)
RAD FAN HI RELAY - Radiator fan (High) relay
RAD FAN LOW RELAY - Radiator fan (Low) relay
F/PUMP RELAY - Fuel pump relay
ABS 1 40A ABS/ESC control module
SPARE 15A Spare fuse
MAIN 30A Engine control relay
SPARE 10A Spare fuse
SPARE 15A Spare fuse
SPARE 20A Spare fuse
P/AMP 25A Amplifier
SPARE 15A Spare fuse
S/ROOF 20A Sunroof control module
SPARE 20A Spare fuse

Maintenance52
7
Description Fuse rating Protected component
RAD FAN40A Radiator fan relay
PCU 10A Pulse generator, ECM, Radiator fan relay, Stop lamp switch
ABS 10A ABS/ESC control module, Multipurpose check connector
S/WARMER 20A Seat warmer relay
ATM 20A ATM control relay
TAIL 20A Tail lamp relay
SPARE 20A Spare fuse
BACK-UP 10A Vehicle speed sensor, Back-up lamp switch, Transaxle range switch
WIPER RELAY - Wiper relay
MAIN RELAY - Main relay
RR HTD 40A Rear defogger relay
IGN 1 40A Ignition switch (ACC, IG1)
I/P B+ 1 30A I/P junction box
ACC SOCKET 20A Rear power outlet
A/CON 10A A/C relay
START RELAY - Start relay
ECU-1 20A ECM
IGN COIL 20A Ignition coil
SNSR 3 15AA/C relay, Injector, Lambda sensor, Radiator fan relay, Stop switch (Brake test line)
BLOWER 40A Blower relay
ATM CONT RELAY - ATM control relay
IGN 2 30A Ignition switch (IG2, START), Start relay
A/CON RELAY - A/C relay
SNSR 2 15A Fuel pump relay, Oxygen sensor
SNSR 1 15AImmobilizer control module, Camshaft position sensor, Mass air flow sensor, Oil control valve,
Canister purge solenoid valve
