337
Safety features of your vehicle
C030103AUN

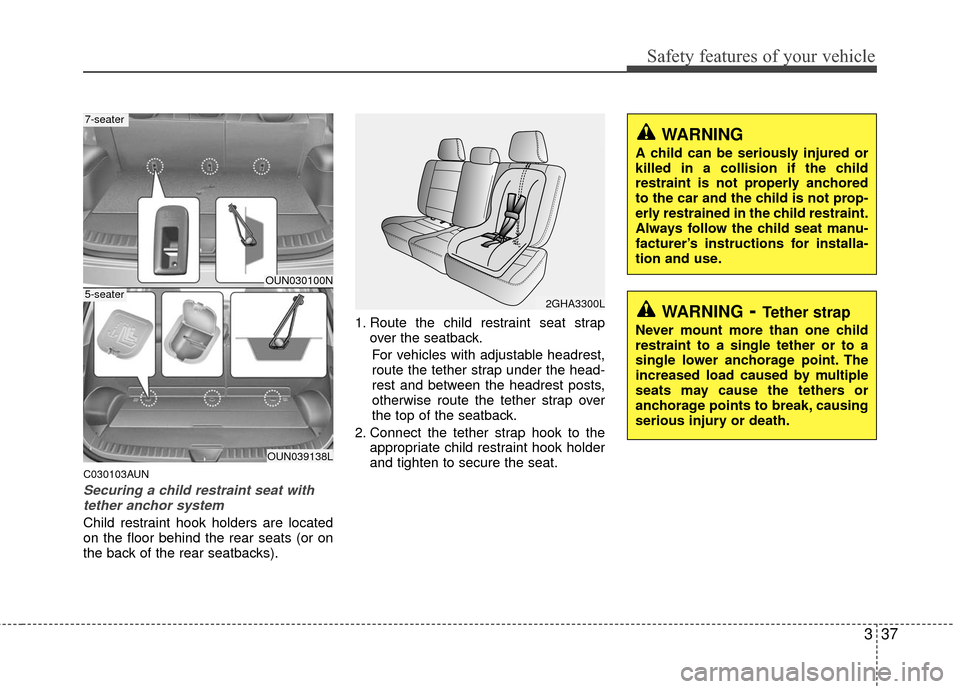

Securing a child restraint seat withtether anchor system
Child restraint hook holders are located
on the floor behind the rear seats (or on
the back of the rear seatbacks). 1. Route the child restraint seat strap
over the seatback.
For vehicles with adjustable headrest,
route the tether strap under the head-
rest and between the headrest posts,
otherwise route the tether strap over
the top of the seatback.
2. Connect the tether strap hook to the appropriate child restraint hook holder
and tighten to secure the seat.
WARNING- Tether strap
Never mount more than one child
restraint to a single tether or to a
single lower anchorage point. The
increased load caused by multiple
seats may cause the tethers or
anchorage points to break, causing
serious injury or death.
WARNING
A child can be seriously injured or
killed in a collision if the child
restraint is not properly anchored
to the car and the child is not prop-
erly restrained in the child restraint.
Always follow the child seat manu-
facturer’s instructions for installa-
tion and use.
OUN030100N
OUN039138L
7-seater
5-seater2GHA3300L

489
Features of your vehicle
If necessary, contact your authorized KIA
dealer to obtain a luggage net.
D281100AUN

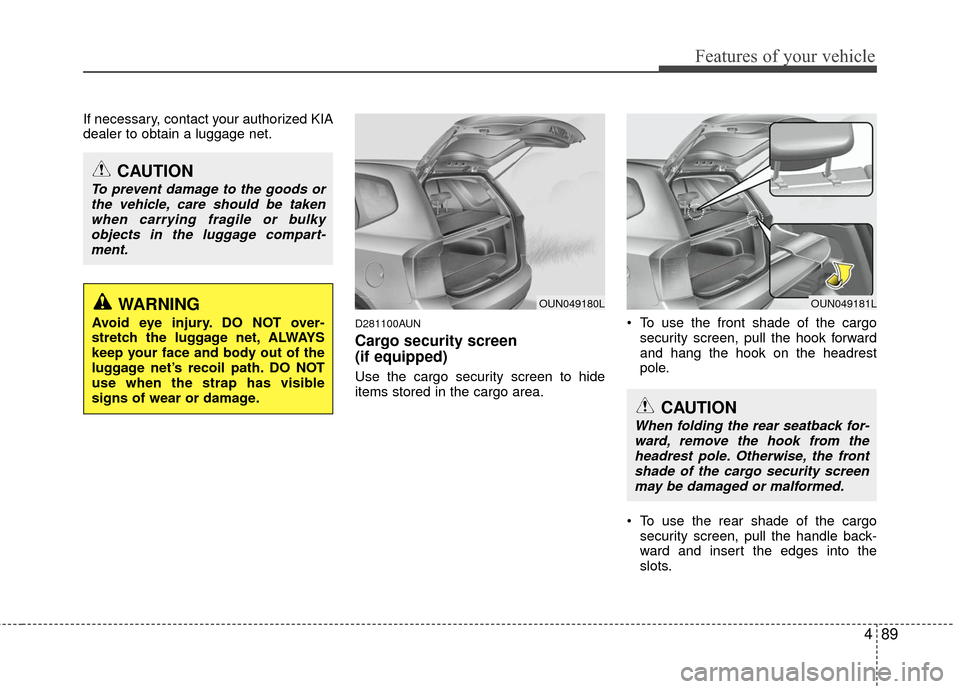

Cargo security screen
(if equipped)
Use the cargo security screen to hide
items stored in the cargo area. To use the front shade of the cargo
security screen, pull the hook forward
and hang the hook on the headrest
pole.
To use the rear shade of the cargo security screen, pull the handle back-
ward and insert the edges into the
slots.
CAUTION
To prevent damage to the goods orthe vehicle, care should be takenwhen carrying fragile or bulkyobjects in the luggage compart-ment.
WARNING
Avoid eye injury. DO NOT over-
stretch the luggage net, ALWAYS
keep your face and body out of the
luggage net’s recoil path. DO NOT
use when the strap has visible
signs of wear or damage.
CAUTION
When folding the rear seatback for-ward, remove the hook from theheadrest pole. Otherwise, the front shade of the cargo security screenmay be damaged or malformed.
OUN049180LOUN049181L
