Features of your vehicle42
3Seat cushion heightPush the front portion (1) of the control
knob up to raise or down to lower the
front part of the seat cushion. Push the
rear portion (2) of the control knob up to
raise or down to lower the rear part of the
seat cushion. Release the knob once the
seat reaches to the desired position.
Headrest (front)The headrest not only provides comfort
for the driver and passengers, but also
helps to protect the head and neck in the
event of a collision.
For best protection, adjust the headrest
so its center is as high as your ears. Also
adjust the headrest so its distance from
the head is as wide as your fist.
Active headrest (if equipped)
The active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and
front passenger’s head from moving
backward and thus helps prevent neck
injuries.
1VQA2046
1VQH3900N

343
Features of your vehicle

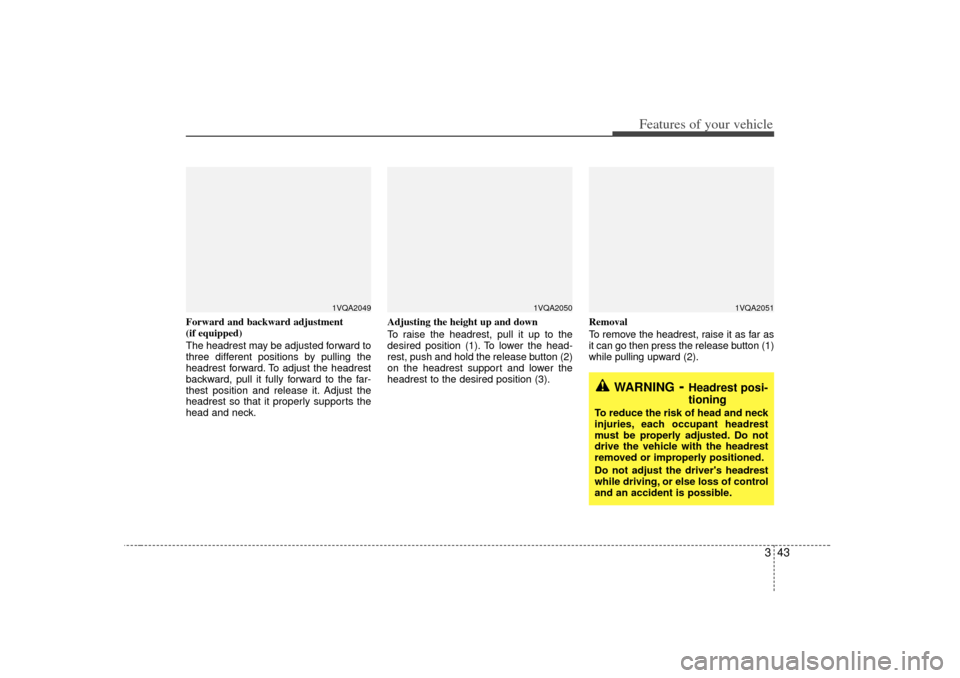

Forward and backward adjustment
(if equipped)
The headrest may be adjusted forward to
three different positions by pulling the
headrest forward. To adjust the headrest
backward, pull it fully forward to the far-
thest position and release it. Adjust the
headrest so that it properly supports the
head and neck.Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).
Removal
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).
WARNING
- Headrest posi-
tioning
To reduce the risk of head and neck
injuries, each occupant headrest
must be properly adjusted. Do not
drive the vehicle with the headrest
removed or improperly positioned.
Do not adjust the driver's headrest
while driving, or else loss of control
and an accident is possible.
1VQA2051
1VQA2050
1VQA2049

Features of your vehicle44

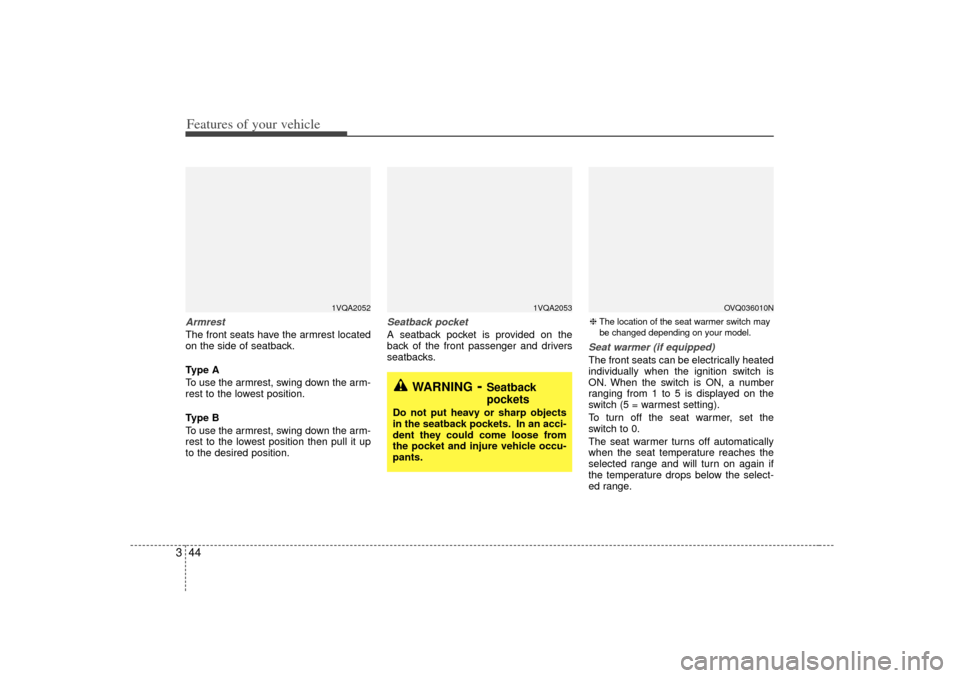

3ArmrestThe front seats have the armrest located
on the side of seatback.
Type A
To use the armrest, swing down the arm-
rest to the lowest position.
Type B
To use the armrest, swing down the arm-
rest to the lowest position then pull it up
to the desired position.
Seatback pocketA seatback pocket is provided on the
back of the front passenger and drivers
seatbacks.
Seat warmer (if equipped)The front seats can be electrically heated
individually when the ignition switch is
ON. When the switch is ON, a number
ranging from 1 to 5 is displayed on the
switch (5 = warmest setting).
To turn off the seat warmer, set the
switch to 0.
The seat warmer turns off automatically
when the seat temperature reaches the
selected range and will turn on again if
the temperature drops below the select-
ed range.
1VQA2052
WARNING
- Seatback
pockets
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-
pants.
1VQA2053
❈ The location of the seat warmer switch may
be changed depending on your model.
OVQ036010N

345
Features of your vehicle

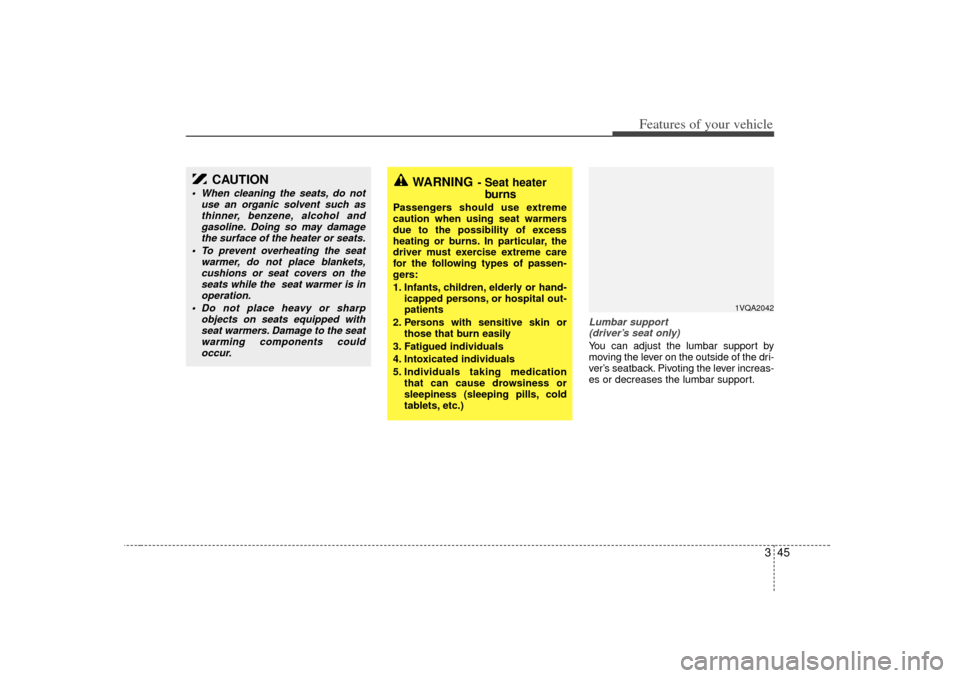

Lumbar support (driver’s seat only)You can adjust the lumbar support by
moving the lever on the outside of the dri-
ver’s seatback. Pivoting the lever increas-
es or decreases the lumbar support.
WARNING
- Seat heater burns
Passengers should use extreme
caution when using seat warmers
due to the possibility of excess
heating or burns. In particular, the
driver must exercise extreme care
for the following types of passen-
gers:
1. Infants, children, elderly or hand-
icapped persons, or hospital out-
patients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)
CAUTION
 When cleaning the seats, do not use an organic solvent such asthinner, benzene, alcohol and gasoline. Doing so may damagethe surface of the heater or seats.
 To prevent overheating the seat warmer, do not place blankets,cushions or seat covers on the seats while the seat warmer is inoperation.
 Do not place heavy or sharp objects on seats equipped withseat warmers. Damage to the seatwarming components couldoccur.
1VQA2042

Features of your vehicle46
3Rear seat adjustmentAdjusting the seat forward and back-
ward (2nd row)To move the seat forward or backward:
1. Pull the seat slide adjustment lever under the front edge of the seat cush-
ion up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
Seatback angleTo recline the seatback:
1. Lean forward slightly and lift up on the seatback recline lever located on the
outside of the seat, at the rear. 2. Carefully lean back on the seat and
adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
OVQ036203N
OVQ036204NOVQ036205N
2nd row seat3rd row seat

347
Features of your vehicle
ArmrestThe 2nd row seats have the armrest
located on the side of seatback.
To use the armrest, swing down the arm-
rest to the lowest position.
Headrest (rear)The headrest not only provides comfort
for the driver and passengers, but also
helps to protect the head and neck in the
event of a collision. For best protection,
adjust the headrest so its center is as
high as your ears.
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Removal
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
1VQA2057
OVQ036206N
1VQA2058
WARNING
To reduce the risk of head and neck
injuries, do not drive the vehicle
with the headrest removed or
improperly positioned.

Features of your vehicle48

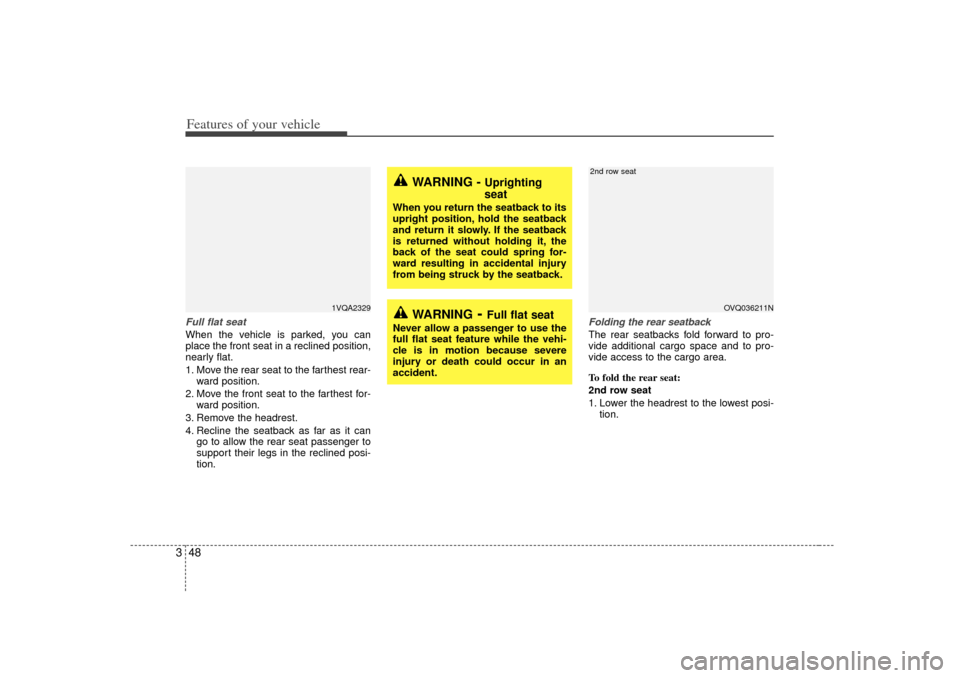

3Full flat seatWhen the vehicle is parked, you can
place the front seat in a reclined position,
nearly flat.
1. Move the rear seat to the farthest rear-
ward position.
2. Move the front seat to the farthest for- ward position.
3. Remove the headrest.
4. Recline the seatback as far as it can go to allow the rear seat passenger to
support their legs in the reclined posi-
tion.
Folding the rear seatbackThe rear seatbacks fold forward to pro-
vide additional cargo space and to pro-
vide access to the cargo area.
To fold the rear seat:
2nd row seat
1. Lower the headrest to the lowest posi-tion.
WARNING
- Full flat seat
Never allow a passenger to use the
full flat seat feature while the vehi-
cle is in motion because severe
injury or death could occur in an
accident.
WARNING -
Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly. If the seatback
is returned without holding it, the
back of the seat could spring for-
ward resulting in accidental injury
from being struck by the seatback.
1VQA2329
OVQ036211N
2nd row seat

349
Features of your vehicle

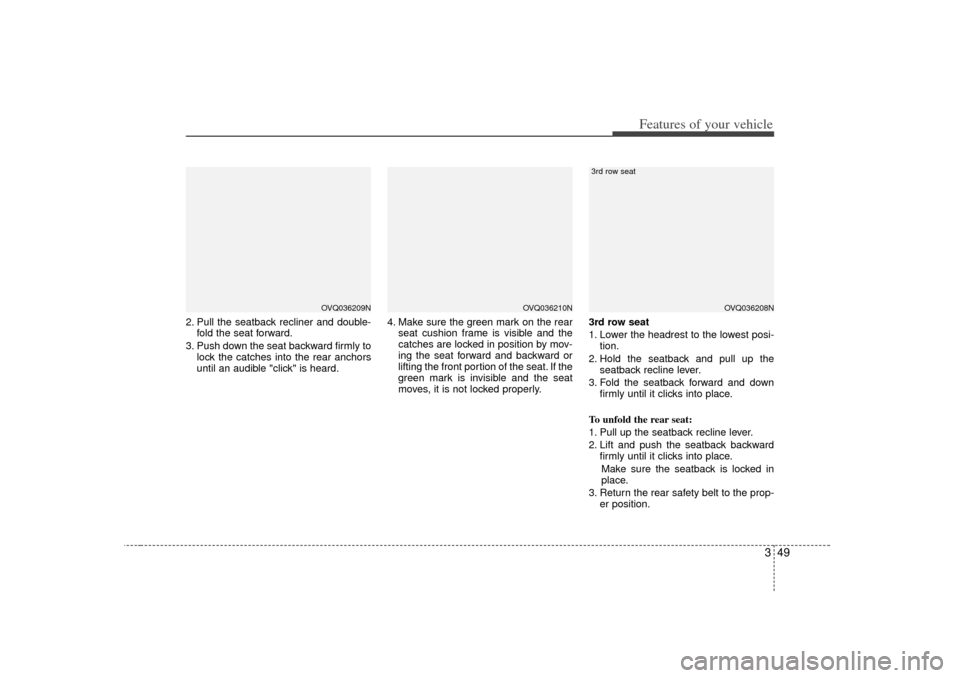

2. Pull the seatback recliner and double-fold the seat forward.
3. Push down the seat backward firmly to lock the catches into the rear anchors
until an audible "click" is heard. 4. Make sure the green mark on the rear
seat cushion frame is visible and the
catches are locked in position by mov-
ing the seat forward and backward or
lifting the front portion of the seat. If the
green mark is invisible and the seat
moves, it is not locked properly. 3rd row seat
1. Lower the headrest to the lowest posi-
tion.
2. Hold the seatback and pull up the seatback recline lever.
3. Fold the seatback forward and down firmly until it clicks into place.
To unfold the rear seat:
1. Pull up the seatback recline lever.
2. Lift and push the seatback backward firmly until it clicks into place.
Make sure the seatback is locked in
place.
3. Return the rear safety belt to the prop- er position.
OVQ036208N
3rd row seat
OVQ036209N
OVQ036210N

Features of your vehicle50
3Double-folding the rear seat
(2nd row)To fold the rear seat:
1. Lower the headrest to the lowest posi- tion.
2. Move the seat to rear-most position.
3. Double-fold the rear seat forward by pull up the seatback recline lever. 4. Pull the folding strap out of the pocket
located under the seat cushion.
5. Lift the entire folded seat forward and tie the folded seat to the assist handle
using the strap. To unfold the rear seat
1. Untie the strap from the assist handle.
2. Insert the strap into the pocket.
3. Push down the seat backward firmly to
lock the catches into the rear anchors
until an audible “click” is heard.
OVQ036211N
OVQ036212N
OVQ036213N

351
Features of your vehicle
4. Make sure the green mark on the rearseat cushion frame is visible and the
catches are locked in position by mov-
ing the seat forward and backward or
lifting the front portion of the seat. If the
green mark is invisible and the seat
moves, it is not locked properly.
5. Push the seatbacks to an upright and locked position.

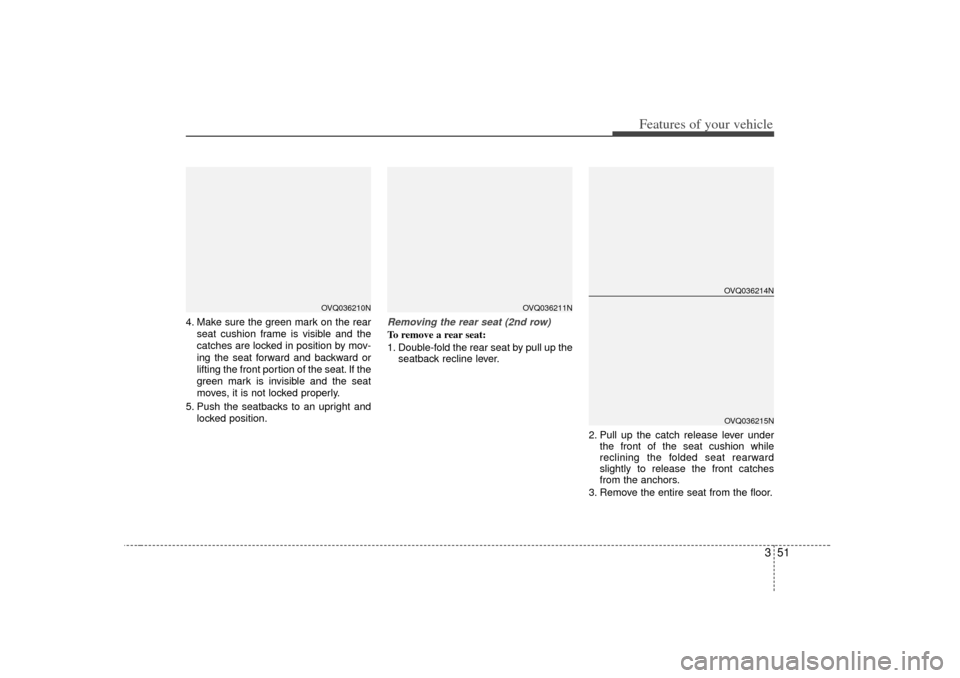

Removing the rear seat (2nd row)To remove a rear seat:
1. Double-fold the rear seat by pull up theseatback recline lever.
2. Pull up the catch release lever underthe front of the seat cushion while
reclining the folded seat rearward
slightly to release the front catches
from the anchors.
3. Remove the entire seat from the floor.
OVQ036211N
OVQ036214NOVQ036215N
OVQ036210N
