KIA Sedona 2009 2.G Owner's Guide

Features of your vehicle12
3
To lock a door without the key, push the
inside door lock button (1) or door lock
switch (2) to the “Lock” position and close
the door (3).
✽ ✽
NOTICEIf the door is locked/unlocked multiple
times in rapid succession with either the
vehicle key or door lock switch, the sys-
tem may stop operating temporarily in
order to protect the circuit and prevent
damage to system components.
WARNING
When the rear sliding door is not
fully open, it is not latched and may
move unintentionally. This could
result in a serious injury.
OVQ036001N1VQA2327
Front doorRear door
CAUTION
The left sliding door cannot be
opened when the fuel filler lid isopen. However, if the fuel filler lid isopened after the door is opened slightly, the left sliding door can beslide rearward. Close the left sliding door to prevent possible damage tothe door or the fuel filler lid.
WARNING
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.

313
Features of your vehicle
Operating door locks from inside
the vehicleWith the door lock button To unlock a door, pull the door lock but-ton (1) to the “Unlock” position. If the
door is unlocked, the red part (2) of the
button becomes visible. To lock a door, push the door lock but-
ton (1) to the “Lock” position. If the door
is locked, red part (2) of the button
becomes invisible.
To open a door, pull the door handle (3).
If the inner door handle of the front door is pulled when the door lock but-
ton is in lock position, the button is
unlocked and door opens. (if equipped)
Front doors cannot be locked if the ignition key is in the ignition switch and
door is open.
✽ ✽ NOTICE
- Door lock malfunction
If a power door lock ever fails to func-
tion while you are in the vehicle, try one
or more of the following techniques to
exit:
• Operate the door unlock feature
repeatedly (both electronic and manu-
al) while simultaneously pulling on
the door handle.
• Operate the other door locks and han- dles, front and rear.
• Lower a front window and use the key to unlock the door from outside.
With central door lock switchThe central door locking switch is located
on the front door arm rest. It is operated
by depressing the door lock switch. If any
door is open when the switch is
depressed, the door will remain locked
when closed.
1VQA20071VQA2008
Front doorRear door
Lock
Unlock
Lock
Unlock
OVQ026021N
Driver’s door

Features of your vehicle14
3 When pushing down on the front por-
tion (1) of the switch, all vehicle doors
will lock.
When pushing down on the rear por- tion (2) of the switch, all vehicle doors
will unlock.
However, if the key is in the ignition switch and any front door is open, the
doors will not lock when the front por-
tion of central door lock switch is
pressed.
1VQA2012
Passenger’s door (if equipped)
WARNING
- Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING
- Unattendedchildren
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING -
Doors
The doors should always be fully
closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows.
Be careful when opening doors and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.

315
Features of your vehicle

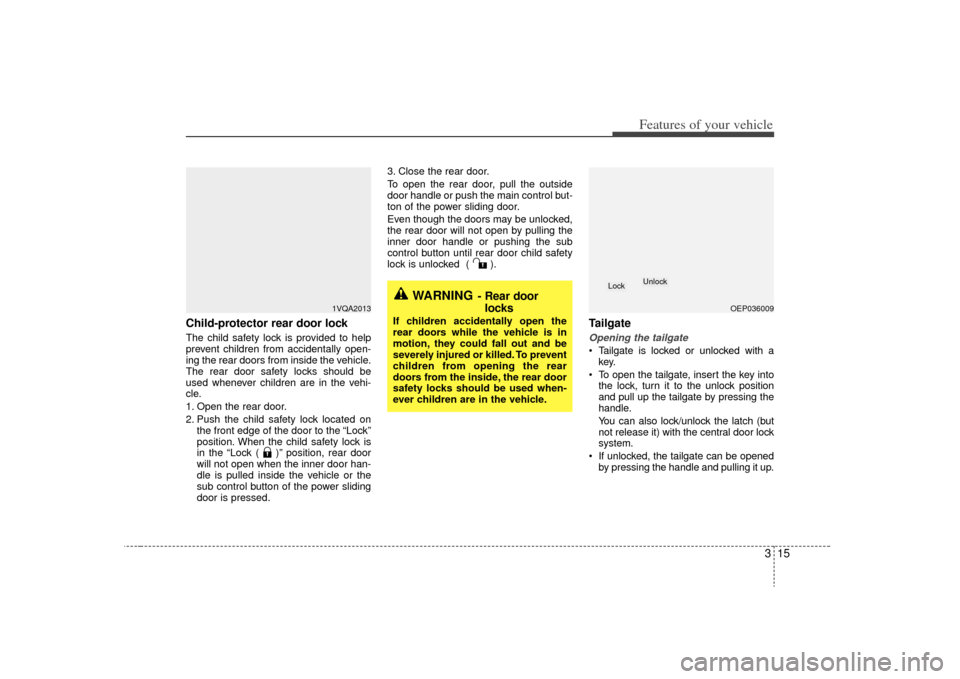

Child-protector rear door lockThe child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle.
1. Open the rear door.
2. Push the child safety lock located onthe front edge of the door to the “Lock”
position. When the child safety lock is
in the “Lock ( )” position, rear door
will not open when the inner door han-
dle is pulled inside the vehicle or the
sub control button of the power sliding
door is pressed. 3. Close the rear door.
To open the rear door, pull the outside
door handle or push the main control but-
ton of the power sliding door.
Even though the doors may be unlocked,
the rear door will not open by pulling the
inner door handle or pushing the sub
control button until rear door child safety
lock is unlocked ( ).
TailgateOpening the tailgate Tailgate is locked or unlocked with a
key.
To open the tailgate, insert the key into the lock, turn it to the unlock position
and pull up the tailgate by pressing the
handle.
You can also lock/unlock the latch (but
not release it) with the central door lock
system.
If unlocked, the tailgate can be opened by pressing the handle and pulling it up.
WARNING
- Rear doorlocks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To prevent
children from opening the rear
doors from the inside, the rear door
safety locks should be used when-
ever children are in the vehicle.
1VQA2013
Lock
Unlock
OEP036009

Features of your vehicle16

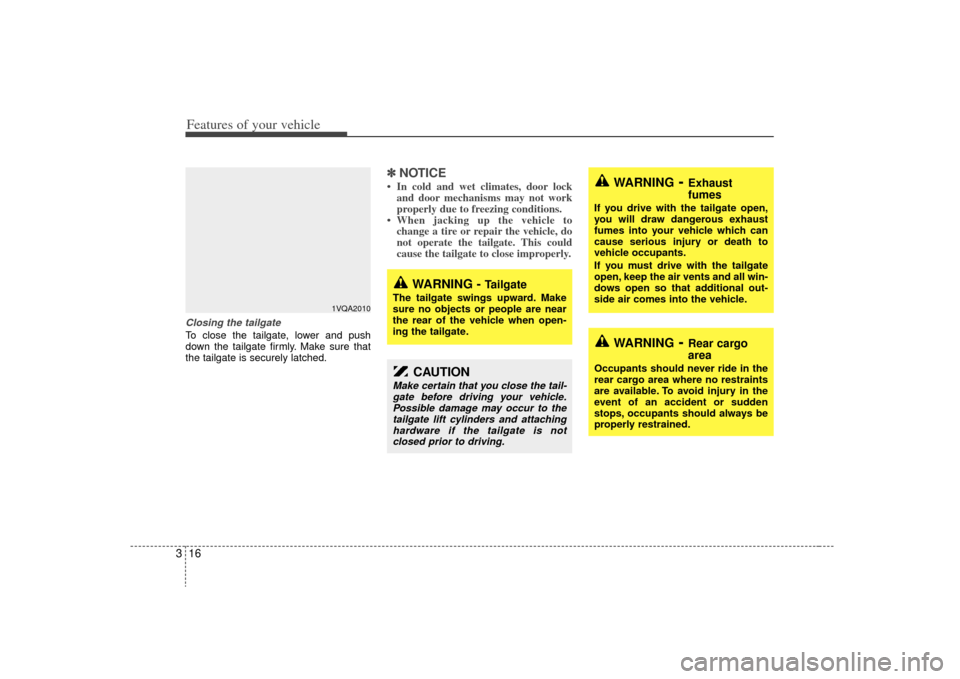

3Closing the tailgateTo close the tailgate, lower and push
down the tailgate firmly. Make sure that
the tailgate is securely latched.
✽ ✽
NOTICE• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• When jacking up the vehicle to change a tire or repair the vehicle, do
not operate the tailgate. This could
cause the tailgate to close improperly.
1VQA2010
WARNING -
Tailgate
The tailgate swings upward. Make
sure no objects or people are near
the rear of the vehicle when open-
ing the tailgate.
CAUTION
Make certain that you close the tail-
gate before driving your vehicle.Possible damage may occur to the tailgate lift cylinders and attachinghardware if the tailgate is notclosed prior to driving.
WARNING
- Exhaust
fumes
If you drive with the tailgate open,
you will draw dangerous exhaust
fumes into your vehicle which can
cause serious injury or death to
vehicle occupants.
If you must drive with the tailgate
open, keep the air vents and all win-
dows open so that additional out-
side air comes into the vehicle.
WARNING
- Rear cargo
area
Occupants should never ride in the
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
stops, occupants should always be
properly restrained.

317
Features of your vehicle

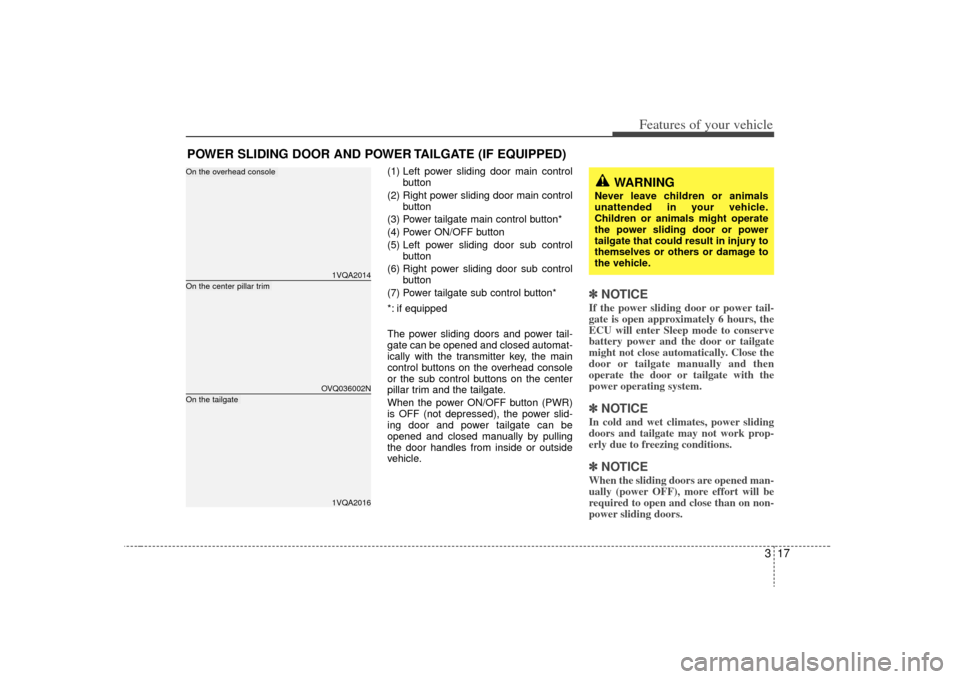

(1) Left power sliding door main controlbutton
(2) Right power sliding door main control button
(3) Power tailgate main control button*
(4) Power ON/OFF button
(5) Left power sliding door sub control button
(6) Right power sliding door sub control button
(7) Power tailgate sub control button*
*: if equipped
The power sliding doors and power tail-
gate can be opened and closed automat-
ically with the transmitter key, the main
control buttons on the overhead console
or the sub control buttons on the center
pillar trim and the tailgate.

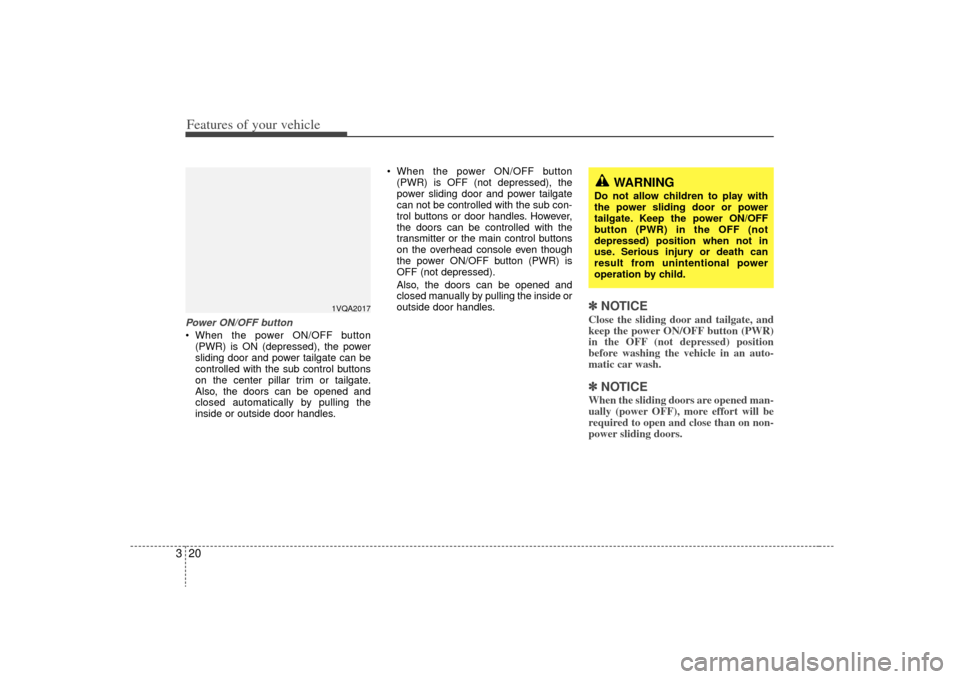

When the power ON/OFF button (PWR)
is OFF (not depressed), the power slid-
ing door and power tailgate can be
opened and closed manually by pulling
the door handles from inside or outside
vehicle.
✽ ✽ NOTICEIf the power sliding door or power tail-
gate is open approximately 6 hours, the
ECU will enter Sleep mode to conserve
battery power and the door or tailgate
might not close automatically. Close the
door or tailgate manually and then
operate the door or tailgate with the
power operating system.✽ ✽NOTICEIn cold and wet climates, power sliding
doors and tailgate may not work prop-
erly due to freezing conditions.✽ ✽NOTICEWhen the sliding doors are opened man-
ually (power OFF), more effort will be
required to open and close than on non-
power sliding doors.
POWER SLIDING DOOR AND POWER TAILGATE (IF EQUIPPED)
1VQA2014OVQ036002N1VQA2016
On the center pillar trimOn the tailgateOn the overhead console
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals might operate
the power sliding door or power
tailgate that could result in injury to
themselves or others or damage to
the vehicle.

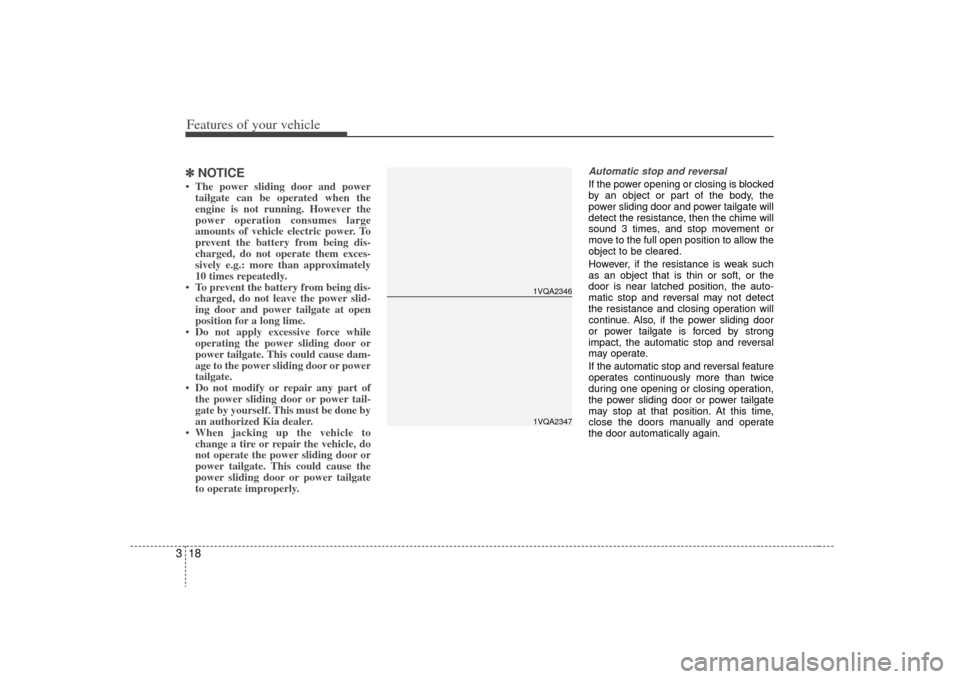

Features of your vehicle18
3✽
✽
NOTICE• The power sliding door and power
tailgate can be operated when the
engine is not running. However the
power operation consumes large
amounts of vehicle electric power. To
prevent the battery from being dis-
charged, do not operate them exces-
sively e.g.: more than approximately
10 times repeatedly.
• To prevent the battery from being dis- charged, do not leave the power slid-
ing door and power tailgate at open
position for a long lime.
• Do not apply excessive force while operating the power sliding door or
power tailgate. This could cause dam-
age to the power sliding door or power
tailgate.
• Do not modify or repair any part of the power sliding door or power tail-
gate by yourself. This must be done by
an authorized Kia dealer.
• When jacking up the vehicle to change a tire or repair the vehicle, do
not operate the power sliding door or
power tailgate. This could cause the
power sliding door or power tailgate
to operate improperly.
Automatic stop and reversalIf the power opening or closing is blocked
by an object or part of the body, the
power sliding door and power tailgate will
detect the resistance, then the chime will
sound 3 times, and stop movement or
move to the full open position to allow the
object to be cleared.
However, if the resistance is weak such
as an object that is thin or soft, or the
door is near latched position, the auto-
matic stop and reversal may not detect
the resistance and closing operation will
continue. Also, if the power sliding door
or power tailgate is forced by strong
impact, the automatic stop and reversal
may operate.
If the automatic stop and reversal feature
operates continuously more than twice
during one opening or closing operation,
the power sliding door or power tailgate
may stop at that position. At this time,
close the doors manually and operate
the door automatically again.
1VQA23461VQA2347

319
Features of your vehicle

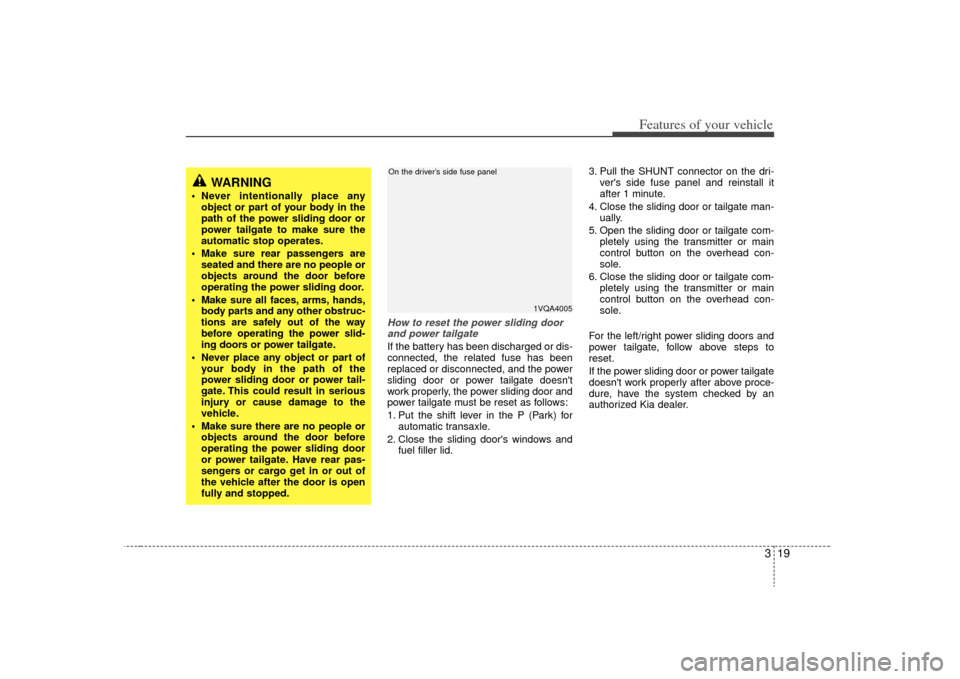

How to reset the power sliding doorand power tailgateIf the battery has been discharged or dis-
connected, the related fuse has been
replaced or disconnected, and the power
sliding door or power tailgate doesn't
work properly, the power sliding door and
power tailgate must be reset as follows:
1. Put the shift lever in the P (Park) for automatic transaxle.
2. Close the sliding door's windows and fuel filler lid. 3. Pull the SHUNT connector on the dri-
ver's side fuse panel and reinstall it
after 1 minute.
4. Close the sliding door or tailgate man- ually.
5. Open the sliding door or tailgate com- pletely using the transmitter or main
control button on the overhead con-
sole.
6. Close the sliding door or tailgate com- pletely using the transmitter or main
control button on the overhead con-
sole.
For the left/right power sliding doors and
power tailgate, follow above steps to
reset.
If the power sliding door or power tailgate
doesn't work properly after above proce-
dure, have the system checked by an
authorized Kia dealer.
WARNING
Never intentionally place any object or part of your body in the
path of the power sliding door or
power tailgate to make sure the
automatic stop operates.
Make sure rear passengers are seated and there are no people or
objects around the door before
operating the power sliding door.
Make sure all faces, arms, hands, body parts and any other obstruc-
tions are safely out of the way
before operating the power slid-
ing doors or po wer tailgate.
Never place any object or part of your body in the path of the
power sliding door or power tail-
gate. This could result in serious
injury or cause damage to the
vehicle.
Make sure there are no people or objects around the door before
operating the power sliding door
or power tailgate. Have rear pas-
sengers or cargo get in or out of
the vehicle after the door is open
fully and stopped.
1VQA4005
On the driver’s side fuse panel

Features of your vehicle20
3Power ON/OFF button When the power ON/OFF button
(PWR) is ON (depressed), the power
sliding door and power tailgate can be
controlled with the sub control buttons
on the center pillar trim or tailgate.
Also, the doors can be opened and
closed automatically by pulling the
inside or outside door handles. When the power ON/OFF button
(PWR) is OFF (not depressed), the
power sliding door and power tailgate
can not be controlled with the sub con-
trol buttons or door handles. However,
the doors can be controlled with the
transmitter or the main control buttons
on the overhead console even though
the power ON/OFF button (PWR) is
OFF (not depressed).
Also, the doors can be opened and
closed manually by pulling the inside or
outside door handles.
✽ ✽ NOTICEClose the sliding door and tailgate, and
keep the power ON/OFF button (PWR)
in the OFF (not depressed) position
before washing the vehicle in an auto-
matic car wash.✽ ✽NOTICEWhen the sliding doors are opened man-
ually (power OFF), more effort will be
required to open and close than on non-
power sliding doors.
1VQA2017
WARNING
Do not allow children to play with
the power sliding door or power
tailgate. Keep the power ON/OFF
button (PWR) in the OFF (not
depressed) position when not in
use. Serious injury or death can
result from unintentional power
operation by child.

321
Features of your vehicle
Power sliding door operation Push the corresponding main controlbutton on the overhead console to
open or close the power sliding door.
However, the power sliding door will
not open with the transmitter or the
main control button when all power
sliding doors and power taligate are
locked and closed. When the power ON/OFF button
(PWR) is ON (depressed), do as fol-
lows to open or close the power sliding
doors:
- Push the corresponding sub controlbutton on the center pillar trim.
- Pull the door handle from inside or outside vehicle.
- If the sub control button is pushed while the door is locked or child safe-
ty lock is engaged, the chime sounds
once, and the power sliding door will
not open. - If the door handle is pulled from
inside or outside while the door is
locked or child safety lock is
engaged, the power sliding door will
not open. However, the power sliding
door can be opened by pulling the
outside door handle while the door is
unlocked and child safety lock is
engaged.
When the power ON/OFF button (PWR) is OFF (not depressed), the
power sliding door can not be con-
trolled with the sub control buttons or
door handles, and if the sub control
button is pushed, chime sounds once.
However, the doors can be opened
and closed manually by pulling the
door handles from inside or outside
vehicle.
On a steep grade, the power sliding door will slide faster when closing. And
the drive unit motor may operate addi-
tionally for a moment after the door is
closed. This is a normal operation to
ensure door closing, not a malfunction.
1VQA2018
On the overhead console
OVQ036003N
On the center pillar trim
