KIA Sedona 2011 2.G User Guide

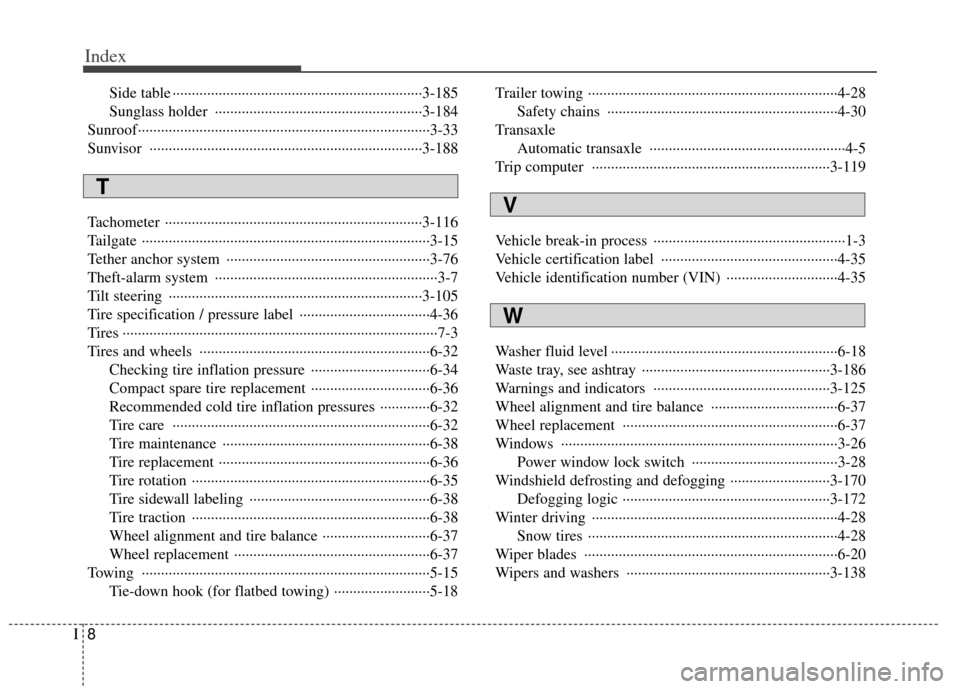

Index
8I
Side table ··················\
··················\
··················\
···········3-185
Sunglass holder ··················\
··················\
··················\
3-184
Sunroof··················\
··················\
··················\
··················\
····3-33
Sunvisor ·················\
··················\
··················\
··················\
3-188
Tachometer ················\
··················\
··················\
···············3-116
Tailgate ················\
··················\
··················\
··················\
·····3-15
Tether anchor system ··················\
··················\
·················3-76\
Theft-alarm system ··················\
··················\
··················\
····3-7
Tilt steering ··················\
··················\
··················\
············3-105
Tire specification / pressure label ··················\
················4-36
Tires ··················\
··················\
··················\
··················\
··········7-3
Tires and wheels ··················\
··················\
··················\
······6-32 Checking tire inflation pressure ··················\
·············6-34
Compact spare tire replacement ··················\
·············6-36
Recommended cold tire inflation pressures ·············6-32
Tire care ··················\
··················\
··················\
·············6-32
Tire maintenance ··················\
··················\
··················\
6-38
Tire replacement ··················\
··················\
··················\
·6-36
Tire rotation ··················\
··················\
··················\
········6-35
Tire sidewall labeling ··················\
··················\
···········6-38
Tire traction ··················\
··················\
··················\
········6-38
Wheel alignment and tire balance ··················\
··········6-37
Wheel replacement ··················\
··················\
···············6-37
Towing ·················\
··················\
··················\
··················\
····5-15 Tie-down hook (for flatbed towing) ··················\
·······5-18 Trailer towing ··················\
··················\
··················\
···········4-28
Safety chains ··················\
··················\
··················\
······4-30
Transaxle Automatic transaxle ··················\
··················\
···············4-5
Trip computer ··················\
··················\
··················\
········3-119
Vehicle break-in process ··················\
··················\
··············1-3
Vehicle certification label ··················\
··················\
··········4-35
Vehicle identification number (VIN) ··················\
···········4-35
Washer fluid level ··················\
··················\
··················\
·····6-18
Waste tray, see ashtray ··················\
··················\
·············3-186
Warnings and indicators ··················\
··················\
··········3-125
Wheel alignment and tire balance ··················\
···············6-37
Wheel replacement ··················\
··················\
··················\
··6-37
Windows ··················\
··················\
··················\
··················\
3-26 Power window lock switch ··················\
··················\
··3-28
Windshield defrosting and defogging ··················\
········3-170 Defogging logic ··················\
··················\
··················\
3-172
Winter driving ··················\
··················\
··················\
··········4-28 Snow tires ··················\
··················\
··················\
···········4-28
Wiper blades ··················\
··················\
··················\
············6-20
Wipers and washers ··················\
··················\
·················3-13\
8
T
V
W

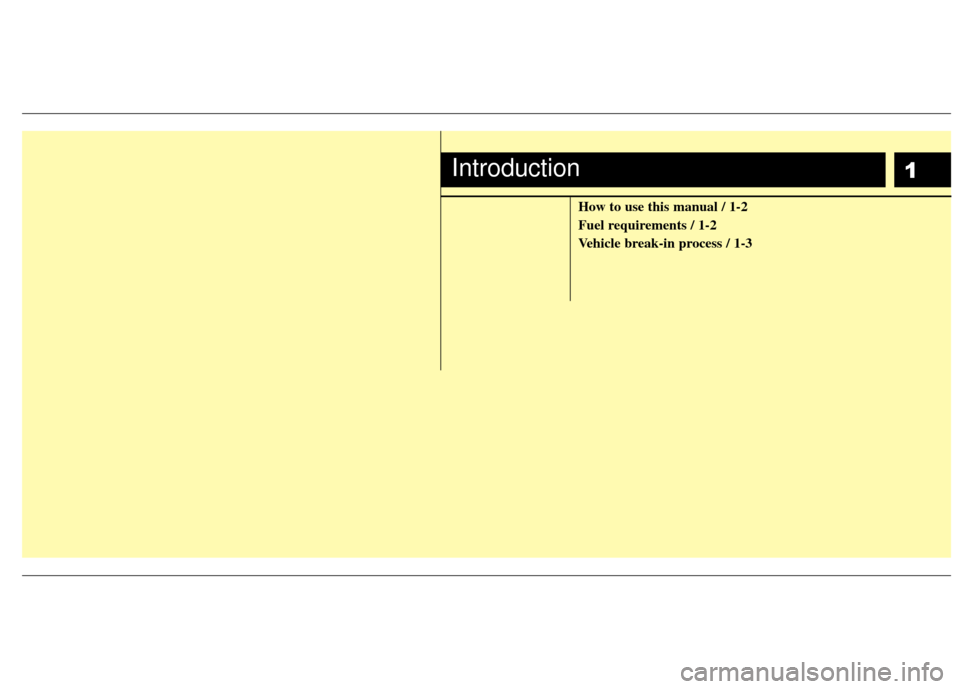

1
How to use this manual / 1-2
Fuel requirements / 1-2
Vehicle break-in process / 1-3
Introduction

Introduction
21
We want to help you get the greatest
possible driving pleasure from your vehi-
cle. Your Owner’s Manual can assist you
in many ways. We strongly recommend
that you read the entire manual. In order
to minimize the chance of death or injury,
you must read the WARNING and CAU-
TION sections spread throughout the
manual.
Illustrations complement the words in this
manual to best explain how to enjoy your
vehicle. By reading your manual, you
learn about features, important safety
information, and driving tips under vari-
ous road conditions.
The general layout of the manual is pro-
vided in the Table of Contents. A good
place to start is the index; it has an alpha-
betical listing of all information in your
manual.
Sections: This manual has seven sec-
tions plus an index. Each section begins
with a brief list of contents so you can tell
at a glance if that section has the infor-
mation you want.You’ll find various WARNING’s,
CAUTION’s, and NOTICE’s in this manu-
al. These were prepared to enhance your
personal safety. You should carefully read
and follow ALL procedures and recom-
mendations provided in these
WARNING’s, CAUTION’s and NOTICE’s.
✽ ✽


NOTICE
A NOTICE indicates interesting or help-
ful information is being provided.
Your new Kia vehicle is designed to use
only unleaded fuel with a minimum
Octane Rating of 87 Anti-Knock Index
(AKI).

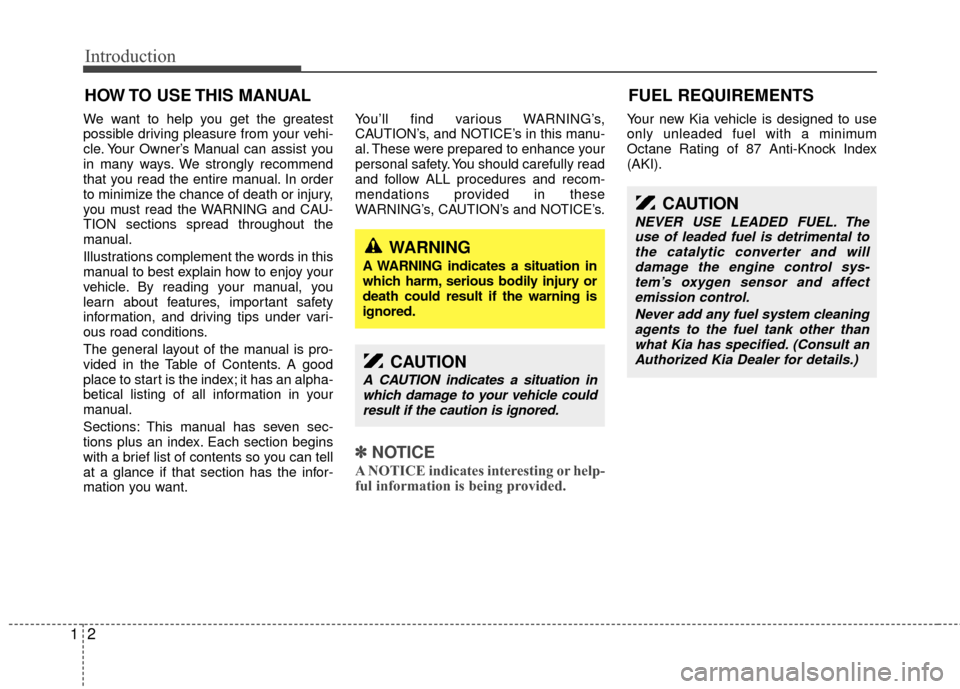

HOW TO USE THIS MANUAL
WARNING
A WARNING indicates a situation in
which harm, serious bodily injury or
death could result if the warning is
ignored.
CAUTION
A CAUTION indicates a situation in
which damage to your vehicle couldresult if the caution is ignored.
CAUTION
NEVER USE LEADED FUEL. Theuse of leaded fuel is detrimental tothe catalytic converter and willdamage the engine control sys- tem’s oxygen sensor and affectemission control.
Never add any fuel system cleaningagents to the fuel tank other than what Kia has specified. (Consult anAuthorized Kia Dealer for details.)
FUEL REQUIREMENTS

13
Introduction

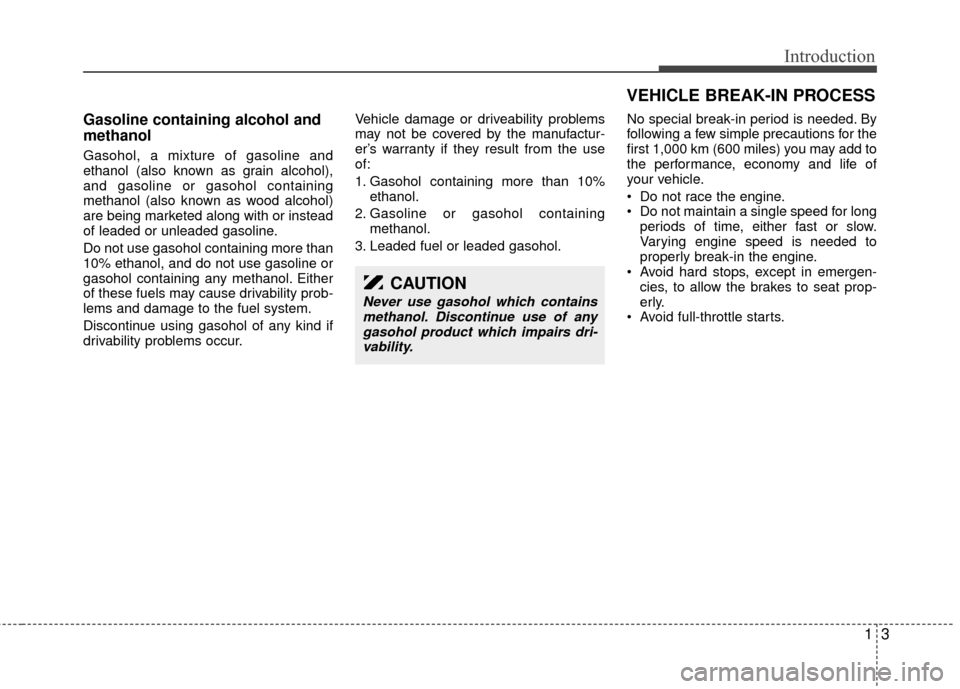

Gasoline containing alcohol and
methanol
Gasohol, a mixture of gasoline and
ethanol (also known as grain alcohol),
and gasoline or gasohol containing
methanol (also known as wood alcohol)
are being marketed along with or instead
of leaded or unleaded gasoline.
Do not use gasohol containing more than
10% ethanol, and do not use gasoline or
gasohol containing any methanol. Either
of these fuels may cause drivability prob-
lems and damage to the fuel system.
Discontinue using gasohol of any kind if
drivability problems occur.Vehicle damage or driveability problems
may not be covered by the manufactur-
er’s warranty if they result from the use
of:
1. Gasohol containing more than 10%
ethanol.
2. Gasoline or gasohol containing methanol.
3. Leaded fuel or leaded gasohol. No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
Do not race the engine.
Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
Avoid hard stops, except in emergen- cies, to allow the brakes to seat prop-
erly.
Avoid full-throttle starts.
CAUTION
Never use gasohol which contains methanol. Discontinue use of any gasohol product which impairs dri-vability.
VEHICLE BREAK-IN PROCESS

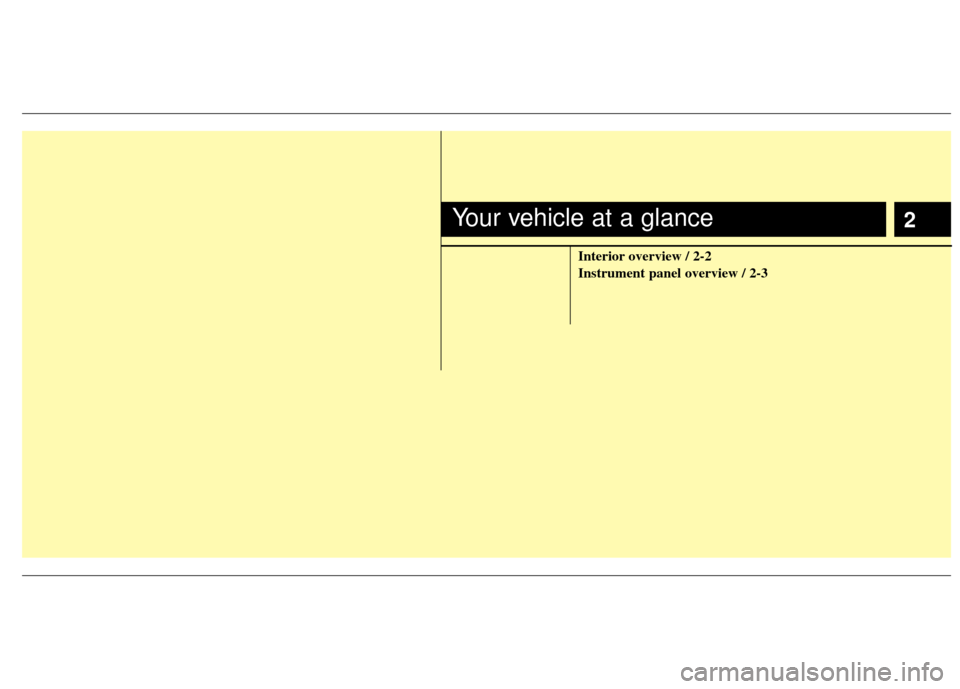

2
Interior overview / 2-2
Instrument panel overview / 2-3
Your vehicle at a glance

Your vehicle at a glance
22
INTERIOR OVERVIEW
OVQ020001N
1. Door lock/unlock button ....................3-13
2. Driver position memory system* .......3-59
3. Seat adjust knob*..............................3-40
4. Outside rearview mirror control switch .............................................3-107
5. Power rear quarter window switches* ...........................................3-26
6. Power window switches ....................3-26
7. Central door lock switch....................3-13
8. Power window lock switch.................3-28
9. Fuel filler lid release button...............3-30
10. Instrument panel illumination* ......3-118
11. Room light main control switch .....3-131
12. Power adjustable pedal control switch*.............................................3-61
13. Steering wheel tilt .........................3-105
14. Parking brake release lever* ...........4-16
15. Fuse box .........................................6-20
16. Hood release lever .........................3-29
17. Parking brake pedal ........................4-16
18. Brake pedal .....................................4-14
19. Accelerator pedal ..............................4-7
20. Seat.................................................3-37
* : if equipped

23
Your vehicle at a glance

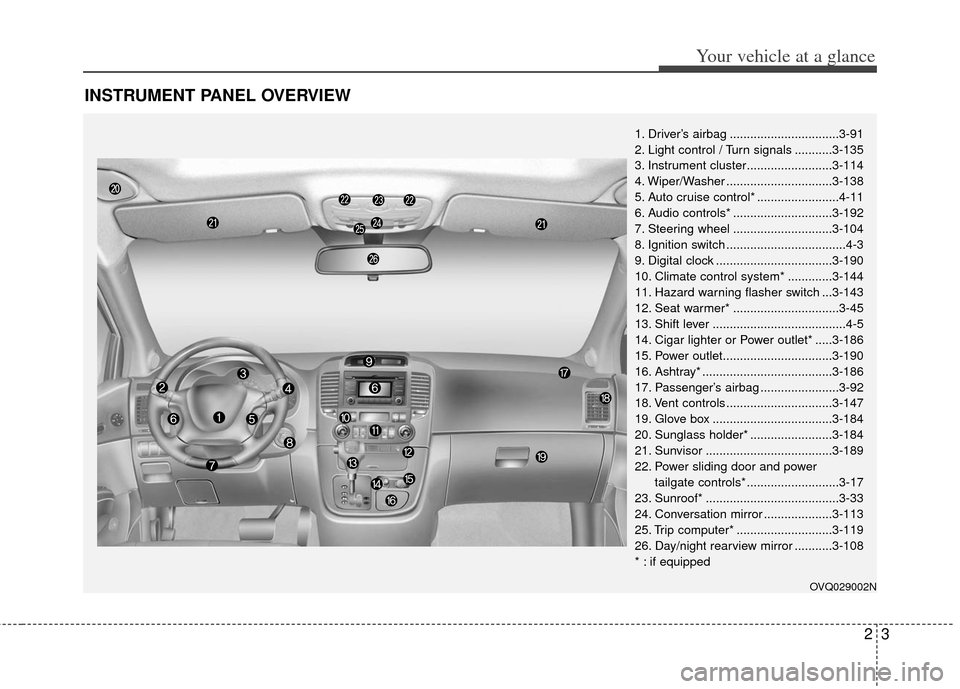

INSTRUMENT PANEL OVERVIEW
1. Driver’s airbag ................................3-91
2. Light control / Turn signals ...........3-135
3. Instrument cluster.........................3-114
4. Wiper/Washer ...............................3-138
5. Auto cruise control* ........................4-11
6. Audio controls* .............................3-192
7. Steering wheel .............................3-104
8. Ignition switch ...................................4-3
9. Digital clock ..................................3-190
10. Climate control system* .............3-144
11. Hazard warning flasher switch ...3-143
12. Seat warmer* ...............................3-45
13. Shift lever .......................................4-5
14. Cigar lighter or Power outlet* .....3-186
15. Power outlet................................3-190
16. Ashtray* ......................................3-186
17. Passenger’s airbag .......................3-92
18. Vent controls ...............................3-147
19. Glove box ...................................3-184
20. Sunglass holder* ........................3-184
21. Sunvisor .....................................3-189
22. Power sliding door and power tailgate controls* ...........................3-17
23. Sunroof* .......................................3-33
24. Conversation mirror ....................3-113
25. Trip computer* ............................3-119
26. Day/night rearview mirror ...........3-108
* : if equipped
OVQ029002N

3
Keys / 3-3
Remote keyless entry / 3-4
Theft-alarm system / 3-7
Immobilizer system / 3-9
Door locks / 3-11
Power sliding door and power tailgate / 3-17
Window / 3-26
Hood / 3-29
Fuel filler lid / 3-30
Sunroof / 3-33
Seat / 3-37
Driver position memory system / 3-59
Power adjustable pedals / 3-61
Safety belts / 3-62
Child restraint system / 3-74
Air bags-advanced restraint system / 3-81
Steering wheel / 3-104
Mirrors / 3-106
Instrument cluster / 3-114
Gauges / 3-115
Trip computer / 3-119
Warnings and indicators / 3-125

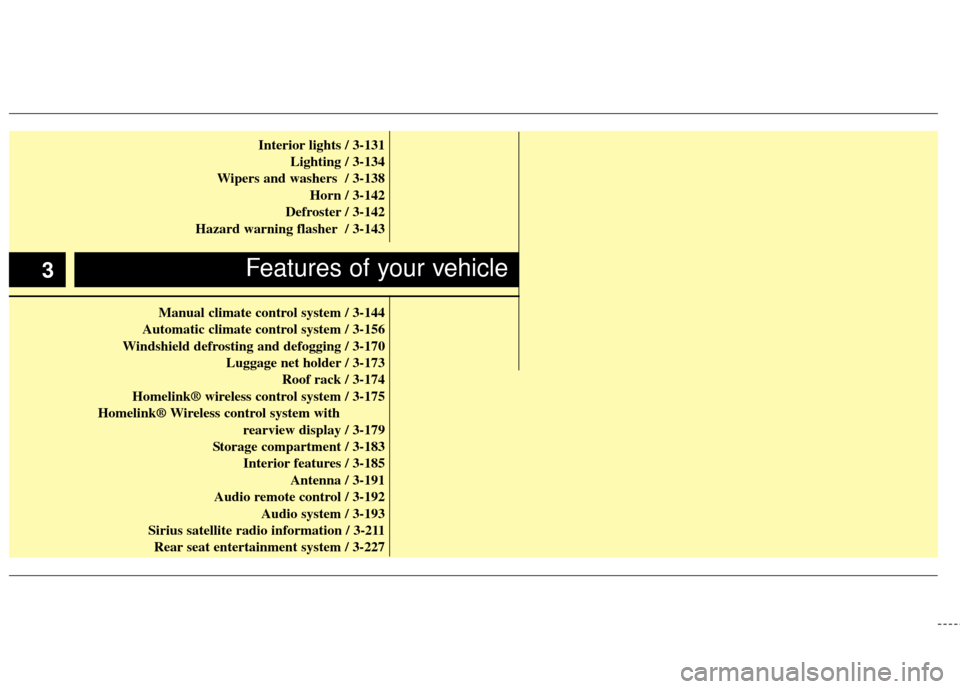

Features of your vehicle

Interior lights / 3-131Lighting / 3-134
Wipers and washers / 3-138 Horn / 3-142
Defroster / 3-142
Hazard warning flasher / 3-143
Manual climate control system / 3-144
Automatic climate control system / 3-156
Windshield defrosting and defogging / 3-170 Luggage net holder / 3-173Roof rack / 3-174
Homelink® wireless control system / 3-175
Homelink® Wireless control system with rearview display / 3-179
Storage compartment / 3-183 Interior features / 3-185 Antenna / 3-191
Audio remote control / 3-192 Audio system / 3-193
Sirius satellite radio information / 3-211 Rear seat entertainment system / 3-227
Features of your vehicle3

33
Features of your vehicle
The key code number is stamped on the
plate attached to the key set. Should you
lose your keys, this number will enable
an authorized Kia Dealer to duplicate the
keys easily. Remove the plate and store it
in a safe place. Also, record the code
number and keep it in a safe and handy
place, but not in the vehicle.
Key operations
Master key
Used to start the engine, lock and unlock
the doors, lock and unlock the glove box
and center console storage (if equipped).
KEYS
WARNING- Ignition key
Leaving children unattended in a
vehicle with the ignition key is dan-
gerous even if the key is not in the
ignition. Children copy adults and
they could place the key in the igni-
tion. The ignition key would enable
children to operate power windows
or other controls, or even make the
vehicle move, which could result in
serious bodily injury or even death.
Never leave the keys in your vehicle
with unsupervised children.
1VQA2001
WARNING
Use only Kia original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the ignition
switch may not return to ON after
START. If this happens, the starter
will continue to operate causing
damage to the starter motor and
possible fire due to excessive cur-
rent in the wiring.
