2
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
Head Unit
NameDescription
0003000300330032003A002800350012
000300390032002F When power is off, press to turn power on
When power is on, press and hold (over 0.8 seconds) to turn
power off
When power is on, press shortly (under 0.8 seconds) to turn Audio off
Turn left/right to control volume
003500240027002C0032Converts to FM/AM/SiriusXM™ mode
Each time the key is pressed, the mode is changed in order of FM 0003
044F0003 AM 0003044F0003
SiriusXM™ 0003044F0003
FM
003000280027002C0024Converts to MEDIA mode
If the media is not connected or the CD player is not available
for Model, MEDIA mode will not be activated.
003800390032Displays the UVO mode
0033002B003200310028Takes user to phone screen
When key is pressed shortly. (under 0.8 seconds)
FM/AM mode: plays previous/next frequency
SiriusXM™ mode: plays the previous/next channel
MEDIA (Disc/USB/iPod/My Music) mode: changes the track, file or chapter (except USB Image and AUX)
When key is pressed and held. (over 0.8 seconds)
FM/AM mode: continuously changes the frequency until the key is released
SiriusXM™ mode: continuously changes the channel until the key is released and plays the current channel
MEDIA (Disc/USB/iPod/My Music) mode: rewinds or fastforwards the track or file (except USB Image, Bluetooth Audio and AUX)
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 6 of 92
3
NameDescription
003000240033
00390032002C00260028Displays the map for the current position
00310024Takes you to the menu screen where you can find your destina-
tion and set the route.
002C003100290032Displays the information mode
00360028003700380033Displays the Setup mode
0037003800310028 FM/AM mode: changes the frequency
SiriusXM™ mode: changes the channel
MEDIA (Disc/USB/iPod/My Music) mode: changes the track,
file or title (except USB Image, Bluetooth Audio and AUX)
Press to insert or eject disc
00350028003600280037 Resets the system settings. (Preset radio channels and other
data will not be deleted.)
SD Card insert slot
0424
The actual feature in the vehicle may differ from the illustration.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 7 of 92
4
Steering Wheel Remote Controller
002600520051005700550052004F00560003004400510047000300290058005100460057004C005200510056
NameDescription
When pressed shortly. (under 0.8 seconds)
Activates voice recognition
When pressed and held. (over 0.8 seconds)
Ends voice recognition
Activates Siri Eyes Free
0030003200270028
Each time this key is pressed, mode is changed in order of FM
044F AM 044F
SiriusXM™ 044F
Disc 044F0003
USB Music or iPod 044F
AUX 044F
Bluetooth Audio 044F
My Music
If the media is not connected, corresponding modes will be dis- abled
Press and hold the key (over 0.8 seconds) to turn the Audio system on/off
When power is off, press the key to turn power back on
000E
0010Controls the volume
0003
0003
When keys are pressed shortly. (under 0.8 seconds)
FM/AM mode: searches broadcast frequencies saved to Presets
SiriusXM™ mode: searches broadcast channels saved to Presets
MEDIA(Disc/USB/iPod/My Music) mode: changes the track, file or chapter (except USB Image, AUX)
When keys are pressed and held. (over 0.8 seconds)
FM/AM Mode: Automatically searches broadcast frequencies
SiriusXM™ mode: automatically searches broadcast channels
MEDIA(Disc/USB/iPod/My Music) mode: Quickly looks up songs (excluding USB images, AUX, and Bluetooth audio files)
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 10 of 92
7
You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music player will fast
forward/rewind the music.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 25 of 92
22
003800360025
USB Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
When a track in the file tab on the list screen is selected:
Displays folder, file, title, artist, album info
When a track in the other tabs on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous
File If press button short (less than 0.8 seconds): Moves to the previous file
or play the current file from the beginning (Depends on the play time)
If play time is less than 3 seconds, moves to previous file
If play time is more than 3 seconds, plays the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/Pauses the current file
Next File If button is pressed (less than 0.8 seconds): Moves to the next file
If button is pressed (more than 0.8 seconds): It fast-forwards the track
Repeat
Repeats the current file Select the song in the file tab on the list screen: Press the 003500480053004800440057 button to switch between repeating one song ,
repeating folder , and turning repeat off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
003500480053004800440057 button to switch
between repeating one song and turning repeat off
Back Button Converts to basic mode screen
Menu Add to Playlist: Add the current track to the Playlist: Playlist is
placed on the left tab in the list
Save to My Music: You can save the current track to My Music. You can play saved track from My Music without USB.
Access to My Music in the Media mode.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 26 of 92
23
FeaturesDescription

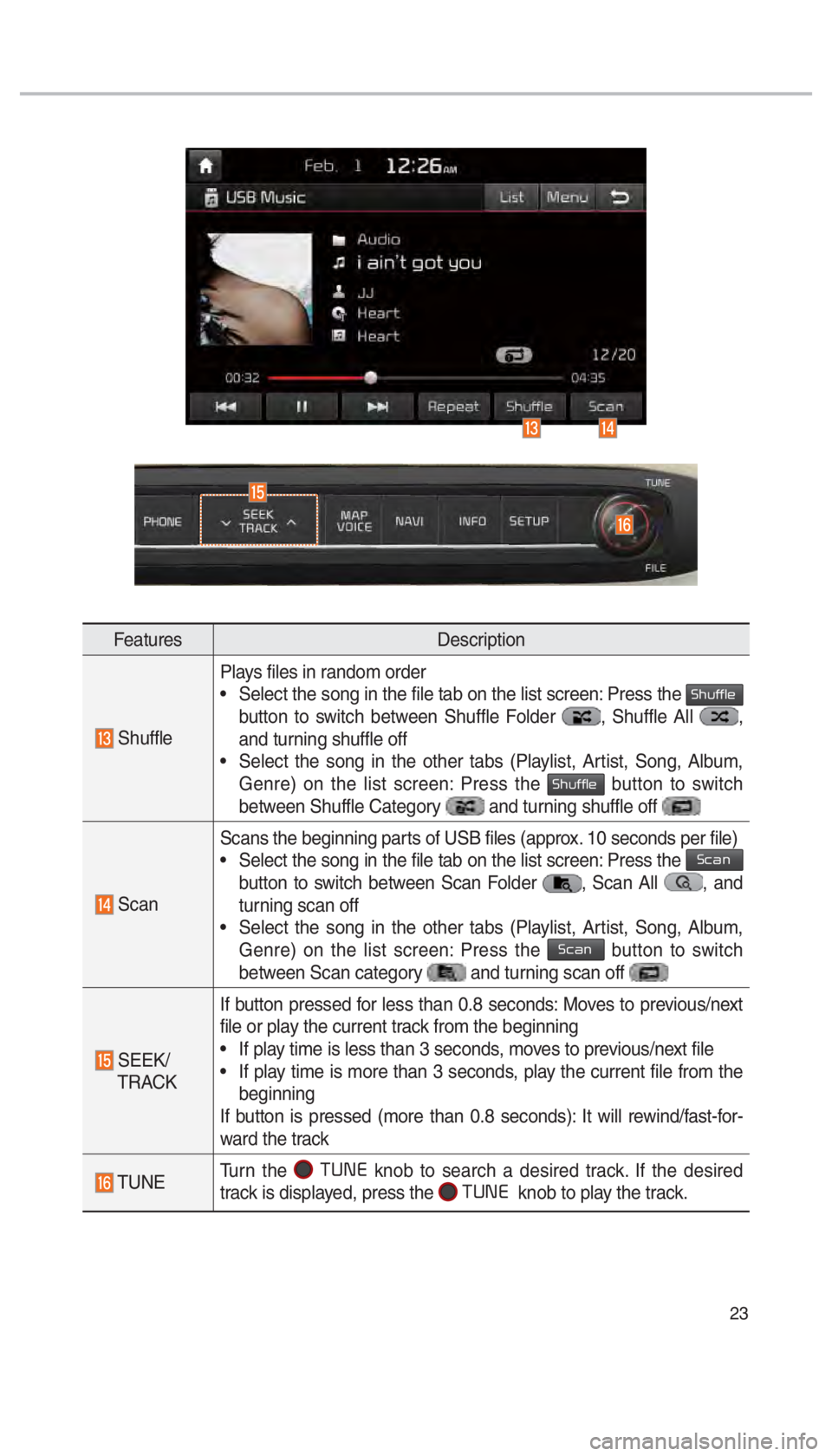

ShufflePlays files in random order
Select the song in the file tab on the list screen: Press the
0036004B005800490049004F0048
button to switch between Shuffle Folder , Shuffle All ,
and turning shuffle off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004B005800490049004F0048 button to switch
between Shuffle Category and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
Select the song in the file tab on the list screen: Press the
0036004600440051
button to switch between Scan Folder , Scan All , and
turning scan off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004600440051 button to switch
between Scan category and turning scan off
SEEK/ TRACK If button pressed for less than 0.8 seconds: Moves to previous/next
file or play the current track from the beginning
If play time is less than 3 seconds, moves to previous/next file
If play time is more than 3 seconds, play the current file from the
beginning
If button is pressed (more than 0.8 seconds): It will rewind/fast-for-
ward the track
TUNE Turn the 0003
knob to search a desired track. If the desired
track is displayed, press the 00030037003800310028 0003 knob to play the track.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 27 of 92
24
003800360025
USB Image
FeaturesDescription
Mode
Displays the current operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 33 of 92
30
FeaturesDescription
ShufflePlays files in random order
Select the song in the file tab on the list screen: Press the
0036004B005800490049004F0048
button to switch between shuffle and turning shuffle off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004B005800490049004F0048 button to switch
between shuffle and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
Select the song in the file tab on the list screen: Press the
0036004600440051
button to switch between scan and turning scan off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004600440051 button to switch
between scan and turning scan off
Menu Add to Playlist: Adds the current song to the Playlist: Playlist is
placed on the left tab in the list
Delete Current File: Deletes the current track from My Music.
SEEK/
TRACK If button pressed for less than 0.8 seconds: Moves to previous/next file
or play the current song from the beginning
If play time is less than 3 seconds, moves to previous/next file
If play time is more than 3 seconds, plays the current file from the
beginning
If button is pressed (more than 0.8 seconds): It will rewind/fast-forward
the track
TUNE Turn the
0037003800310028 knob to search a desired track. If the desired track is
displayed, press the 0037003800310028 knob to play the track.
If the 0037003800310028 knob is not pressed within 5 seconds of searching
tracks, the track info for the current track is restored.
0030005C0003003000580056004C0046
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 39 of 92
36
00350048004600520050005000480051004700440057004C0052005100560003
0035004800540058004C00550048004700030049005200550003
003600580046004600480056005600490058004F00030039
0035004800460052004A0051004C0057004C00520051
1. Voice recognition supports only
the commands that are displayed
on the screen and written in the
User’s Guide.
2. To ensure the correct recognition
and execution of your command,
say your command when you hear
the beep after a voice prompt.
3. Voice recognition automatically
ends if: 1) A call is incoming or outgoing
2) A media device (USB or iPod,
etc.) is connected or discon-
nected
3) The front or rear view camera is
operated (optional)
4) The car engine starts or stops
5) A system key, such as
003500240027002C0032
or
003000280027002C0024 is selected
6) An emergency occurs, for
example re-searching for the
route after the navigation route
has been lost
4. The microphone used for the
voice recognition system is
located in the headliner directly
above the driver’s head. To make
your commands better under-
stood, keep your body straight in
the driver’s seat when speaking
the command. 5.
Speaking naturally and clearly will
ensure better recognition of your
voice commands.
6. In the following cases voice rec-
ognition will be affected by ambi-
ent noise.
1) The sound of the wind if any
window or the sun roof is open.
2) A strong wind blowing from the
air vents. Set climate control to
blow softer than level 3.
3) Vibrations from passing through
a tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
0039
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
