Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood ......................................................4-56
2. Head lamp..................................4-132, 7-75
3. Fog lamp ....................................4-137, 7-75
4. Wheel and tire ................................7-49, 8-4
5. Outside rearview mirror .........................4-77
6. Sunroof ..................................................4-62
7. Front windshield wiper blades....4-139, 7-43
8. Windows ................................................4-51
9. Parking assist system .........................4-125
OYP014001K
■Front view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ...................................4-27
2. Power window switch...............................4-51
3. Central door lock switch ..........................4-28
4. Power window and rear sunrooflock button................................................4-55
5. Outside rearview mirror control ...............4-78
6. Outside rearview mirror folding switch ....4-79
7. Fuel filler lid open switch .........................4-58
8. Instrument panel illumination control switch ...........................................4-83
9. BSD ON/OFF button ...............................5-70
10. LDWS ON/OFF button ..........................5-77
11. AC inverter button ................................4-193
12. ESC OFF button ....................................5-25
13. Steering wheel .......................................4-67
14. Tilt and telescopic steering control lever ...........................................4-68
15. Inner panel fuse panel. ..........................7-65
16. Brake pedal............................................5-19
17. Parking brake pedal...............................5-21
18. Hood release lever.................................4-56
19. Seat..........................................................3-2
OYP016003N❈ The actual interior in the vehicle may differ from the illustration

361
Safety features of your vehicle
Noise and smoke
When inflated, the air bags make a
loud noise and leave smoke and
powder in the air inside the vehicle.
This is normal and is a result of the
ignition of the air bag inflator. After
the air bag inflates, you may feel sub-
stantial discomfort in breathing due
to the contact of your chest with both
the seat belt and the air bag, as well
as from breathing the smoke and
powder.Open your doors and/or
windows as soon as possible after
impact in order to reduce discom-
fort and prevent prolonged expo-
sure to the smoke and powder.
Though smoke and powder are non-
toxic, it may cause irritation to the
skin (eyes, nose and throat, etc). If
this is the case, wash and rinse with
cold water immediately and consult a
doctor if the symptom persists.WARNING- Hot compo-
nents
Do not touch the air bag storage
area's internal components
immediately after airbag infla-
tion. The air bag related parts in
the steering wheel, instrument
panel and the roof rails above
the front and rear doors are
very hot. Hot components can
result in burn injuries.WARNING- Airbag infla- tion
Sit as far back as possible from
the steering wheel while still
maintaining comfortable con-
trol of your vehicle. A distance
of at least 10" from your chest
to the steering wheel is recom-
mended. Failure to do so can
result in airbag inflation injuries
to the driver.

Safety features of your vehicle
78
3

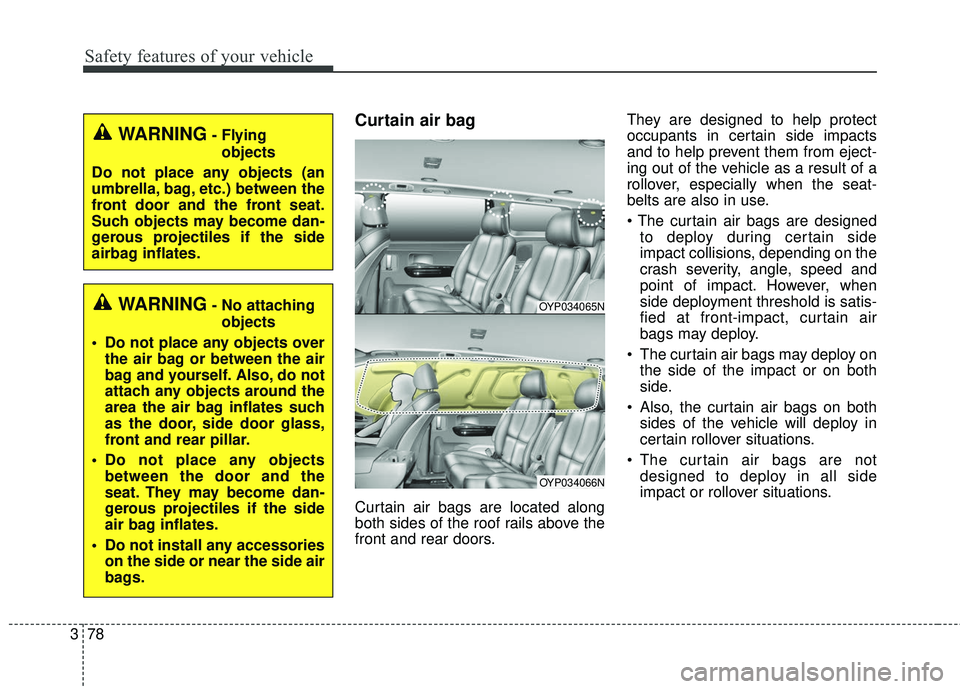

Curtain air bag
Curtain air bags are located along
both sides of the roof rails above the
front and rear doors. They are designed to help protect
occupants in certain side impacts
and to help prevent them from eject-
ing out of the vehicle as a result of a
rollover, especially when the seat-
belts are also in use.

to deploy during certain side
impact collisions, depending on the
crash severity, angle, speed and
point of impact. However, when
side deployment threshold is satis-
fied at front-impact, curtain air
bags may deploy.
The curtain air bags may deploy on the side of the impact or on both
side.
Also, the curtain air bags on both sides of the vehicle will deploy in
certain rollover situations.
The curtain air bags are not designed to deploy in all side
impact or rollover situations.
WARNING- Flying
objects
Do not place any objects (an
umbrella, bag, etc.) between the
front door and the front seat.
Such objects may become dan-
gerous projectiles if the side
airbag inflates.
OYP034065N
OYP034066N
WARNING- No attaching objects
Do not place any objects over the air bag or between the air
bag and yourself. Also, do not
attach any objects around the
area the air bag inflates such
as the door, side door glass,
front and rear pillar.
Do not place any objects between the door and the
seat. They may become dan-
gerous projectiles if the side
air bag inflates.
Do not install any accessories on the side or near the side air
bags.

379
Safety features of your vehicle
Do not allow the passengers to lean
their heads or bodies against the
doors, put their arms on the doors,
stretch their arms out of the window
or place objects between the doors
and passengers when they are seat-
ed on seats equipped with side
impact and/or curtain air bags.✽ ✽NOTICE
Never try to open or repair any com-
ponents of the side and curtain air
bag system. This should only be
done by an authorized Kia dealer.
WARNING- No attaching
objects
Do not place any objects over the air bag. Also, do not attach
any objects around the area
the air bag inflates such as the
door, side door glass, front
and rear pillar, roof side rail.
Do not hang hard or breakable objects on the clothes hanger.

385
Safety features of your vehicle

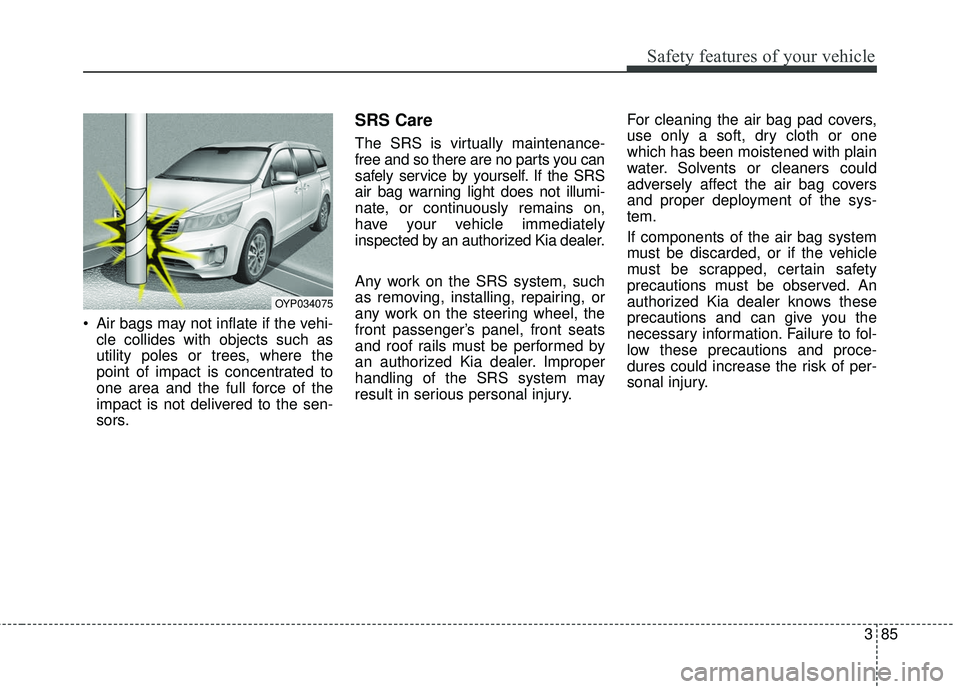

Air bags may not inflate if the vehi-cle collides with objects such as
utility poles or trees, where the
point of impact is concentrated to
one area and the full force of the
impact is not delivered to the sen-
sors.
SRS Care
The SRS is virtually maintenance-
free and so there are no parts you can
safely service by yourself. If the SRS
air bag warning light does not illumi-
nate, or continuously remains on,
have your vehicle immediately
inspected by an authorized Kia dealer.
Any work on the SRS system, such
as removing, installing, repairing, or
any work on the steering wheel, the
front passenger’s panel, front seats
and roof rails must be performed by
an authorized Kia dealer. Improper
handling of the SRS system may
result in serious personal injury. For cleaning the air bag pad covers,
use only a soft, dry cloth or one
which has been moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the sys-
tem.
If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed. An
authorized Kia dealer knows these
precautions and can give you the
necessary information. Failure to fol-
low these precautions and proce-
dures could increase the risk of per-
sonal injury.
OYP034075

Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62\
• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63
• Tilting the sunroof (for front sunroof) . . . . . . . . . . . 4-64
• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
65
• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
• Rear sunroof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
• Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
• Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . 4-67
• Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . 4-68
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-70
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71\
• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-71
• Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-77
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
• Instrument Cluster Control . . . . . . . . . . . . . . . . . . . . 4-83
• LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-84
• Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . 4-88
LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
• LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89
• Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
• User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92• Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• SCC/LDWS Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
• A/V Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
96
• Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-103
• Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
104
• Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
• One time driving information mode . . . . . . . . . . . . 4-107
Warning and indicator lights . . . . . . . . . . . . . . . 4-108
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
• Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Rear parking assist system . . . . . . . . . . . . . . . . . 4-121
• Operation of the rear parking assist system . . . . . . 4-121
• Non-operational conditions of rear parking
assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
• Rear parking assist system precautions . . . . . . . . . 4-123
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Parking assist system . . . . . . . . . . . . . . . . . . . . . . 4-125
• Operation of the parking assist system . . . . . . . . . . 4-125
• Non-operational conditions of parking assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
4

Storage compartments . . . . . . . . . . . . . . . . . . . . . 4-186
• Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-187
• Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18\
8
• Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-188
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-189
• Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-189
• Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-190
• Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-190
• Seat cooler (Air ventilation seat) . . . . . . . . . . . . . . . 4-191
• Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
192
• Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-192
• AC inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-193
• USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-195
• Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-196
• Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19\
6
• Floor mat anchor (s) . . . . . . . . . . . . . . . . . . . . . . . . . 4-197
• Side curtain (if equipped) . . . . . . . . . . . . . . . . . . . . . 4-197
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-199
• Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19\
9
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-201
• Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 4-201
• AUX, USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-201
• How vehicle audio works . . . . . . . . . . . . . . . . . . . . . 4-202
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
206
• Feature of Your Audio. . . . . . . . . . . . . . . . . . . . . . . . 4-207
• Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-213
• SiriusXM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21\
4
• Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-216
• Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-230
• Siri . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 4-239
• Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-240
4

451
Features of your vehicle

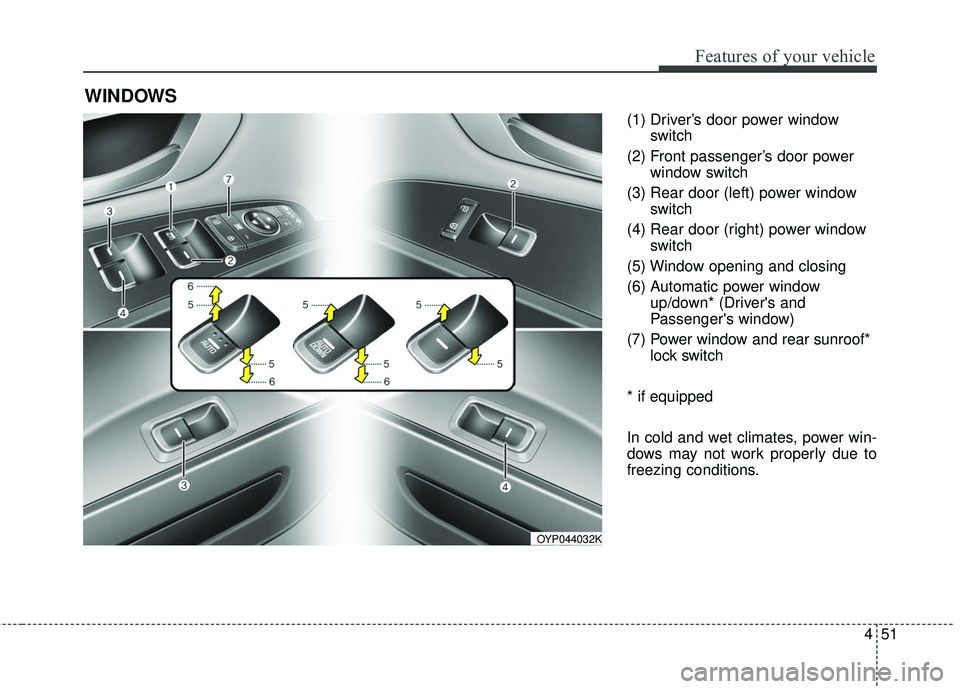

(1) Driver’s door power windowswitch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down* (Driver's and
Passenger's window)
(7) Power window and rear sunroof* lock switch
* if equipped
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
OYP044032K

Features of your vehicle
52
4

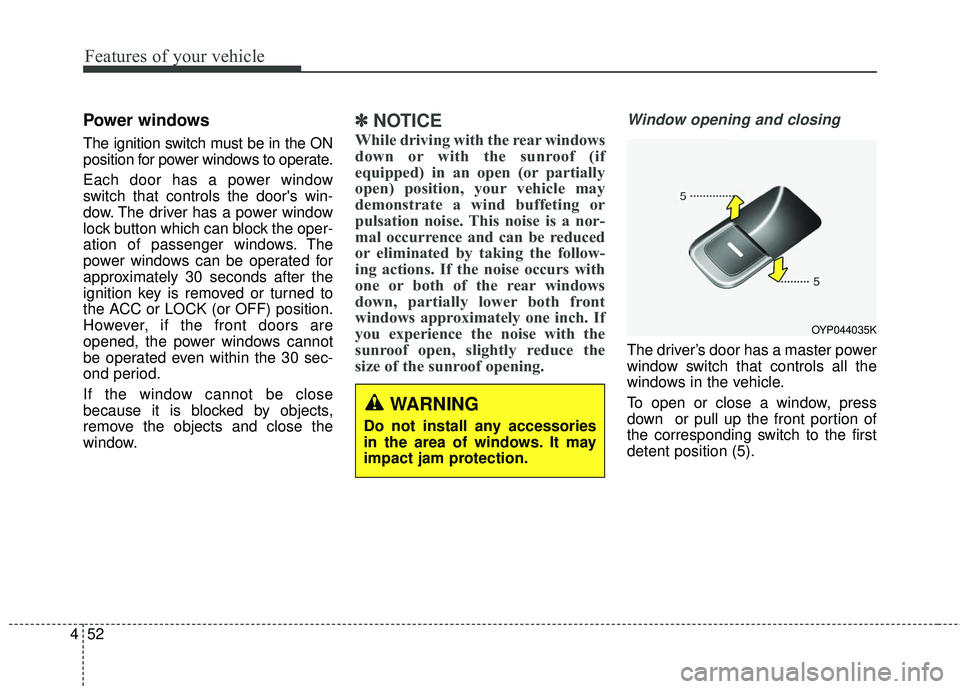

Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock button which can block the oper-
ation of passenger windows. The
power windows can be operated for
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK (or OFF) position.
However, if the front doors are
opened, the power windows cannot
be operated even within the 30 sec-
ond period.
If the window cannot be close
because it is blocked by objects,
remove the objects and close the
window.
✽ ✽
NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open) position, your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the first
detent position (5).
OYP044035K
WARNING
Do not install any accessories
in the area of windows. It may
impact jam protection.
