Page 9 of 84
6
Learn how to touch the screen to
operate the system.
Select
Tap lightly on a menu or an item to
select it.
NOTICE
• The system will not recognize your
touch if you w
ear a glove or other non-
conductive material. Touch the screen
using your finger, an electrostatic
touch-screen glove, or a stylus pen.
Drag & Drop
Select a menu or item you want,
then drag and drop it to where you
want to place it.
Drag or touch the slider along the
play bar in the music screens to
jump to the point that you want to
play from.
Flick (Quick Scrolling)
Quickly moves up and down in the
list.
NOTICE
• Moving the list when there are many
items will display a handler on the r
ight
of the display. You can easily move
many items at a time with the handler.
Select and Hold
Selecting and holding the or
buttons in the music player
will rewind or fast forward the music.
00320051001000360046005500480048005100030037
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 13 of 84
10
00290030001200240030
You can access the radio player either by pressing the 003500240027002C0032 key or by
selecting the Radio menu option from All Menus on the Home screen.
FM/AM Mode Display Controls
i Information
•
If you press the 003500240027002C0032 key when the power is off, then the power will turn on and a
radio broadcast will be tuned from the current mode.
• If you are in the FM/AM mode, select the FM/AM radio widget from the Home screen to
access the r adio pla
yer.
Features Description
Mode Display• Displays the current operating mode
• If you tap on FM, AM, or SiriusXM in the Mode Display, the
corresponding mode will be selected.
Preset • Shows saved presets for user selection
• After selecting frequency, press and hold the preset button
for more than 0.8 seconds. A ‘beep’ will sound and the fre-
quency is saved to the selected preset button.
A total of 24 frequencies with 12 preset frequencies each
for FM/AM modes can be saved.
Frequency Bar • Flick the frequency bar left/right to search for available radio
channels to the left or right of the current channel.
• Dragging: Drag the frequency bar to the left/right to find the radio channel that you want.
Frequency Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for 5 seconds each
HD RadioWhen the HD Radio soft button is ON (the red indicator on the HD
Radio button is illuminated), HD Radio signals will be received.
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
& 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 17 of 84
14
You can access the radio player either by pressing the 003500240027002C0032 key or by select-
ing the Radio menu option from All Menus on the Home screen. Select the
SiriusXM™ tab from the radio player.
SiriusXM™ Mode Display Controls
i Information
•
If you press the 003500240027002C0032 key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home
screen to access the r adio pla
yer.
• When the power is off, pressing the
003500240027002C0032 key will turn the power on and play a
SiriusXM™ Radio broadcast.
Features Description
Mode Display• Displays the current operating mode
• If you tap on FM, AM, or SiriusXM in the Mode Display, the
corresponding mode will be selected.
Preset • Shows saved presets for user selection.
• After selecting frequency, press and hold the preset button
for more than 0.8 seconds. A ‘beep’ will sound and the fre-
quency is saved to the selected preset button
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo.
Channel InfoDisplays the current channel number and name.
Contents InfoDisplays the artist, title and other information about the current
playing song.
Category Info
Displays the current playing category.
0036004C0055004C00580056003B00300430
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

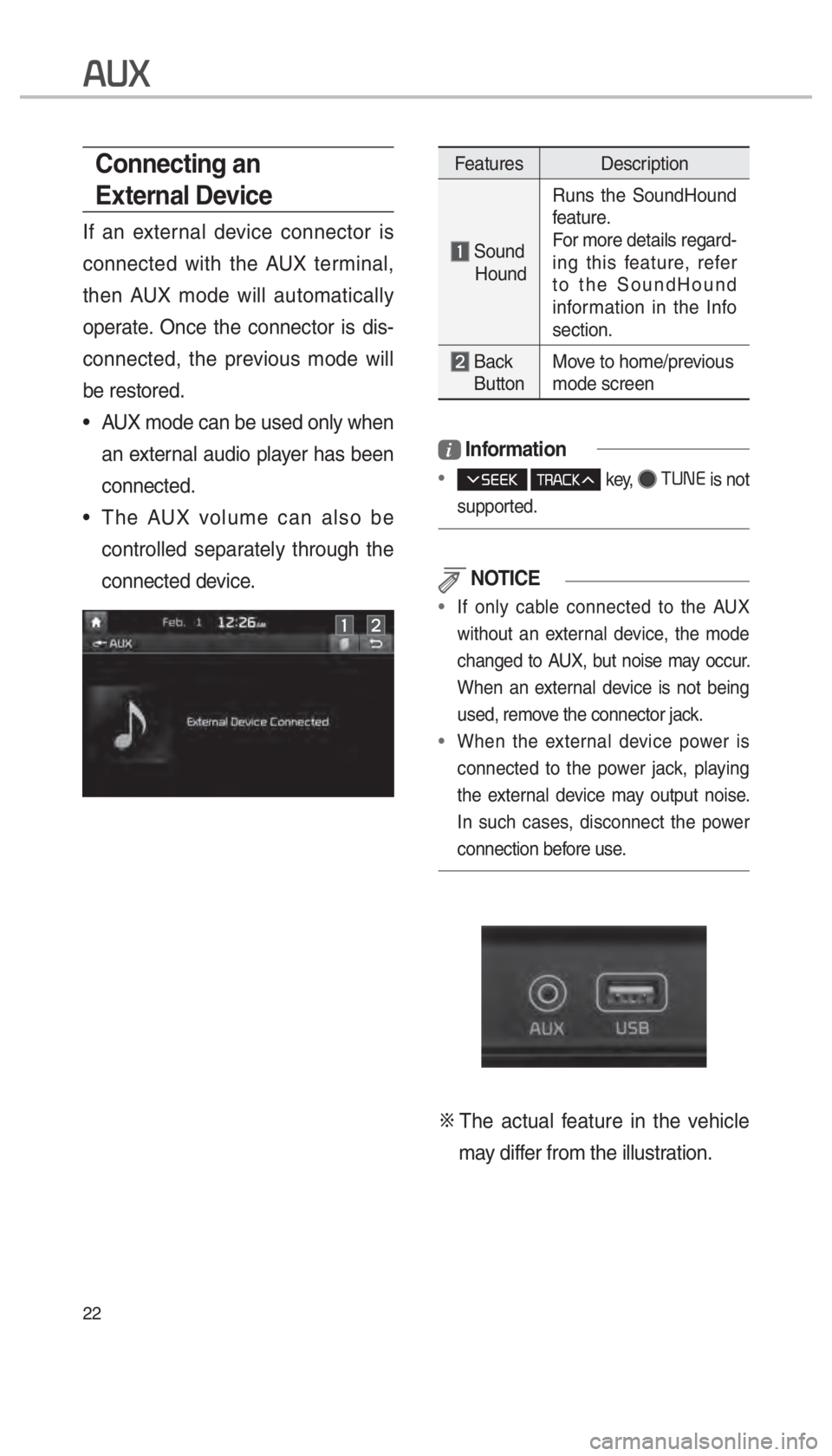

Page 25 of 84
22
Features Description
Sound
Hound Runs the SoundHound
feature.
For more details regard-
ing this feature, refer
to the SoundHound
information in the Info
section.
Back
Button Move to home/previous
mode screen
i
Information
• key, 0037003800310028
is not
supported.
NOTICE
• If only cable connected to the AUX
without an exter
nal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the po w
er jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
0424 The actual feature in the vehicle
may differ from the illustration.
00240038003B
Connecting an
External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
• AUX mode can be used only when an external audio player has been
connected.
• The AUX volume can also be controlled separately through the
connected device.
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 46 of 84
43
To listen to Pandora Radio by connecting a smartphone, app should be
installed on your phone.
From the Home screen, select All Menus then select Pandora button.
Pandora Radio Mode Screen Controls
00330044005100470052005500440003003500440047004C0052
NameDescription
Mode
Displays the current operating mode.
Artist InfoShows the artist information current playing.
Track InfoShows the title information current playing.
Play TimeDisplays the current play time.
Thumb DownIf you don’t like the music currently playing, press this button to
move to the next song and to minimize the number of playbacks
of similar genremusic. You can move to next song up to specific times which pandora
allows.
Thumb up If you like the genre of the music currently playing, press this but-
ton to send a “Thumbs Up” signal to Pandora so that more similar
music will play
Play/Pause
Plays/pauses the current song
SkipMoves to the next track You can move to next song up to specific times which pandora
allows.
Station Moves to the station list screen.
Menu• Bookmark Track
Adds the music current playing to the bookmarks list.
• Bookmark Artist Adds the artist of the music current playing to the bookmarks
list. You can view your bookmarked artists and songs from your Pandora profile online. Go to pandora.com, then click on the
“Your Profile” button above the player. That will bring up a page
with your stations, bookmarked artists, and bookmarked songs.
, @ + ' 1 ) & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E & 7 @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
