audio KIA SELTOS 2021 Navigation System Quick Reference Guide

4-7
Listening to music via Bluetooth
To use a Bluetooth device for audio playback, connect a device
that supports Bluetooth communication such as mobile phone
and MP3 player.
For more information about Bluetooth connection:
> see “Connecting a Bluetooth device.”
A
A
The controls or display screens may differ depending on the
connected Bluetooth device, phone model, and music player
application.
A
A
The streaming may not be supported in some music player
applications.
A
A
Some functions may not be available depending on the
connected Bluetooth device or phone model.
A
A
When a media device or mobile phone is connected by both
the Bluetooth and USB cable at the same time, the device
or system may not work properly. To use the Bluetooth
connection, remove all cables from the device.
A
A
When connecting a USB storage, do not use a separate
extension cable and directly connect to the USB port. When
you connect a USB storage via a USB hub or extension cable,
the device may not be recognized.
A
A
Push the USB connector fully into the USB port. When the
connector is not fully inserted, a communication problem
may occur.
A
A
Noise may occur when removing a USB device from the
system.
A
A
You can play only the files that have been encoded in the
standard format.
A
A
The following USB devices may not be recognized or may not
work properly.

Encrypted MP3 players

USB devices that are not recognized as removable disks
A
A
USB devices may not be recognized depending on the device
status.
A
A
Some USB devices may not be supported due to compatibility
issues.
A
A
USB device recognition may take longer than usual depending
on the device type, capacity, and file formats on the device.
A
A
Some devices may not be charged through USB connection. It
depends on the USB specifications.
A
A
You can hide files only in the USB device formatted in exFAT/
NTFS/FAT16/32. The hidden files can be found in the “Hidden_”
folder.

4-8
j Displays the sequence number of the current file and the total
number of files for playback.
k Moves to the music list screen.A
A
The list of Bluetooth audio files may not appear
depending on the connected device or app.
l The list of menu items appears.
Media Sources: Opens the media selection window.
Change Device: Find and connect other Bluetooth
devices.
Sound Settings: Displays the system sound settings
screen.
> See “
Configuring the sound settings.”
 User's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
Split Screen: Can turn on or off the split screen mode.
A
A
The screen may differ depending on the vehicle model and
specifications.
A
A
The sound effect settings button may appear on the screen
depending on the amp specifications.
Bluetooth audio playback screen
The media player runs when you play a music file from a
connected audio device via Bluetooth.
a
kc
l
d
efg
j
h
i
b
a Returns to the previous step.
b Name of the connected Bluetooth device
c When two Bluetooth audio devices are connected to the
system, select a device to play music.
d Displays the information of the current music.
e Restart playing the current file or play the previous file.
f Can pause or resume playback.
g Can play the next file.
h Can see the duration of the playing song and the current
playback position.
i Find and connect other Bluetooth devices.

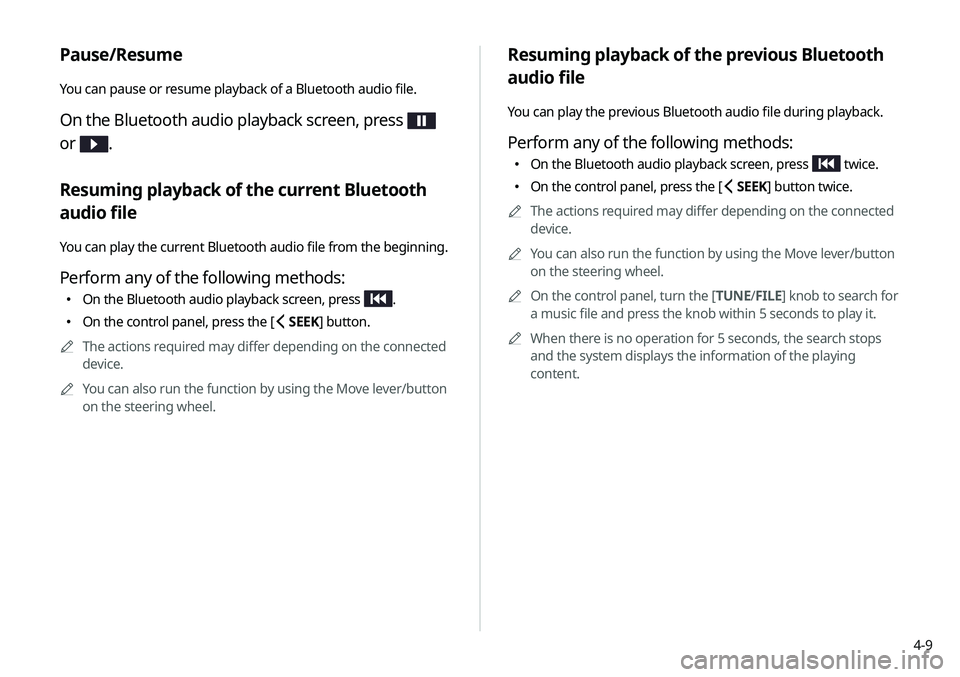

4-9
Resuming playback of the previous Bluetooth
audio file
You can play the previous Bluetooth audio file during playback.
Perform any of the following methods:
On the Bluetooth audio playback screen, press twice.
On the control panel, press the [
SEEK] button twice.
A
A
The actions required may differ depending on the connected
device.
A
A
You can also run the function by using the Move lever/button
on the steering wheel.
A
A
On the control panel, turn the [TUNE/ FILE] knob to search for
a music file and press the knob within 5 seconds to play it.
A
A
When there is no operation for 5 seconds, the search stops
and the system displays the information of the playing
content.
Pause/Resume
You can pause or resume playback of a Bluetooth audio file.
On the Bluetooth audio playback screen, press
or
.
Resuming playback of the current Bluetooth
audio file
You can play the current Bluetooth audio file from the beginning.
Perform any of the following methods:
 On the Bluetooth audio playback screen, press .
On the control panel, press the [
SEEK] button.
A
A
The actions required may differ depending on the connected
device.
A
A
You can also run the function by using the Move lever/button
on the steering wheel.

4-10
Resuming playback of the next Bluetooth audio
file
You can play the next Bluetooth audio file during playback.
Perform any of the following methods:
On the Bluetooth audio playback screen, press .
On the control panel, press the [
TRACK ] button.
A
A
You can also run the function by using the Move lever/button
on the steering wheel.
A
A
On the control panel, turn the [TUNE/FILE] knob to search for
a music file and press the knob within 5 seconds to play it.
A
A
When there is no operation for 5 seconds, the search stops
and the system displays the information of the playing
content.

6-2
Connecting a Bluetooth device
Bluetooth is a short-range wireless networking technology.
The Bluetooth communication function allows you to exchange
data by connecting a Bluetooth device to another neighboring
Bluetooth device without a cable connection. With this function,
you can use different types of devices more efficiently.
To make a phone call or play audio from a Bluetooth device, check
the following first:
For a device that is not registered to the system,
> see “
Registering a device.”
 A registered device will automatically connect to the system
when you bring it near the system. If it does not automatically
connect,
> see “
Connecting a registered device ”, “Disconnecting a
registered device.”
ÝWarning
 Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe bodily injury, or death.
The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any vehicle systems,
including the touch screen and steering wheel controls, which
take the driver's eyes, attention, and focus away from the safe
operation of the vehicle, or which are not permissible by law,
should never be used during the operation of the vehicle.
Park the vehicle at a safe place before connecting a Bluetooth
device to the system. It may take the driver attention off the
road and cause a traffic accident which can result in damages,
injuries, and/or death.
A
A
The Bluetooth connection function supports only the hands-
free and audio related functions. Connect your mobile phone,
MP3 player, or device that supports the hands-free or audio
function.
A
A
For more information on Bluetooth-enabled devices and their
functional compatibility, visit the KIA Motors America website
(https://www.kia.com).

6-3
3 Turn on Bluetooth on the Bluetooth device to
connect and select the vehicle system on the list
of searched devices.
A
A
The system’s Bluetooth name can be seen on the Add New
Device window.
4 Check that the authentication code on the
Bluetooth device screen matches the one on the
system screen and approve the connection on the
device.
5 When your smartphone is using Bluetooth
communication, to download contacts from the
phone to the system or use the text message
notification, allow access to your phone.
A
A
Access is only required to use Bluetooth calling. There will
be no access request when you connect an audio device.
Registering a device
To connect a Bluetooth device to the system, first add the device
to the list of Bluetooth devices on the system.
1 On the All Menus screen, press Setup >
Device
Connections >
Bluetooth >
Bluetooth
Connections >
Add New.
A
A
To register a device for the first time, press the Call button
on the steering wheel or by pressing Phone on the All
Menus screen.
2 Select the function to connect.
A
A
To use your phone on the system via Bluetooth
communication, press Handsfree Calling.
A
A
To listen to music on the system via Bluetooth
communication, press Audio Streaming.

6-4
Connecting a registered device
To use a Bluetooth device, first connect a registered Bluetooth
device to the system.A
A
You can add one Bluetooth hands-free kit or up to two
Bluetooth audio devices.
1 On the All Menus screen, press Setup >
Device
Connections >
Bluetooth >
Bluetooth
Connections.
2 Press the device name or icons to connect.
AA After the access request is approved, it may take a while
until the Bluetooth connection is completed. As soon as the
Bluetooth connection is completed, the Bluetooth connection
indicator icon appears at the top of the screen.
A
A
Access to data can be enabled or disabled by using the
Bluetooth Settings menu on the mobile phone. For more
details, refer to the mobile phone’s user manual.
A
A
You cannot register another device while operating a
Bluetooth device.
A
A
In order not to use the automatic Bluetooth connection, turn
off the Bluetooth function on the device.
A
A
You can add Bluetooth devices up to 6.

6-5
Bluetooth connection screen
d
a
c
e
f
b
a Returns to the previous step.
b Search for a setting item by voice or by entering a keyword.
c Select hands-free or Bluetooth audio to connect or disconnect
Bluetooth devices.A
A
A device list will appear when a Bluetooth device is added
to the system.
d Add a new device to the system.
e Delete a registered device from the system.
f The list of menu items appears.
Auto Connection Priority: Set the priority order for
automatic Bluetooth connection to the system when it
turns on.
Search for Settings: Search for a setting item by voice or
by entering a keyword.
User's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
3 Select the function to connect and press OK.
A
A
If you cannot connect your device, check to make sure its
Bluetooth option is enabled.
A
A
When the connection is terminated abnormally due to
being out of range or device failures, the connection is
automatically restored as soon as the device returns to
the connection range or normal state.
A
A
When the connection is unstable due to a Bluetooth
communication error, on the All Menus screen, press
Setup >
Device Connections >
Bluetooth >
Reset to
initialize the Bluetooth function and connect the device
again.
> See “ Reset.”

7-20
Playing a voice memo
You can select and play a recorded voice memo.
From the list of Voice Memos, press the desired voice
memo.
Recording a voice memo
1 On the Voice Memo screen, press .
It starts recording a voice memo.
2 When recording is finished, press on the
screen or press the End Call button on the
steering wheel.
The voice memo is automatically saved.
A
A
To temporarily stop recording, press
.
A
A
When recording starts, the other audio functions are muted
or playback is paused.
A
A
When you make or receive a call while recording, the
recording is paused.
A
A
When you make an emergency call or you are connected to
an emergency call after airbag deployment, the recording is
stopped and the recorded voice memo is automatically saved.

9-15
Bluetooth
You can register or delete a Bluetooth device for the system and
connect or disconnect a registered device. You can also configure
operation settings such as notifications, messages, and other
settings for Bluetooth devices.
A
A
For more information on how to use the Bluetooth functions:
> see “Connecting a Bluetooth device.”
A
A
Some setting options appear when a smartphone is
connected to the system.
A
A
To edit or delete a message, park the vehicle at a safe place
and access the messaging function on your smartphone. You
cannot edit or delete a message from the system. A
A
When an iPhone is connected to the system, there are some
restrictions when receiving messages as follows:

Only the sender name appears when the sender
information is saved.

Only the phone number appears when the sender
information is not saved.

You cannot use the auto-reply message function.

When the incoming message notification or lock-screen
view option is off, messages cannot be received.
A
A
The message reader function may not be supported
depending on the system language.
Bluetooth Connections
You can register or delete a Bluetooth device from the system
and connect or disconnect a registered device.
A
A
You can add one Bluetooth hands-free kit or up to two
Bluetooth audio devices.
Auto Connection Priority
Set the priority order for automatic Bluetooth connection to the
system when it turns on.
A
A
On the device list, press
on the right and drag the item to
reposition.
