9
Running the UVO 8-4
Contacting for roadside assistance 8-5
Diagnosing the vehicle 8-5
Using the received location information 8-6
Checking maintenance service intervals 8-7
Contacting the UVO Center 8-8
Configuring the UVO settings 8-8
Checking the weather information 8-8
Using Voice Local Search 8-9
Route guidance service 8-10
Finding the route to the destination by manual entry 8-10
09 Settings
Configuring the vehicle settings 9-2
Head-Up Display 9-2
Driver Assistance 9-3
Drive Mode 9-7
Climate 9-9
Lights 9-10
Door 9-10
Cluster 9-11
Convenience 9-12
Seat 9-13
Reset 9-14
07 Voice functions
Voice recognition 7-2
Using the voice recognition 7-2
Seeing the voice recognition help 7-4
Available voice commands 7-6
POI names 7-10
Using the Siri Eyes Free 7-18
Voice Memo 7-19
Using the voice memos 7-19
Recording a voice memo 7-20
Playing a voice memo 7-20
08 UVO
UVO service 8-2
Service restrictions 8-2
Subscribing to the service 8-3

2-13
g Can turn on or off the automatic temperature control
function.
h Can turn on or off the air conditioner.
i Can turn on or off the function that adjusts the temperatures
for the driver’s seat and passenger’s seat equally.
j The list of menu items appears.
User's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
Split Screen: Can turn on or off the split screen mode.
When you manipulate the climate control system while using
the product, the climate settings appear on the upper part of the
screen.
icdefgh
AA The temperature of the climate system can be adjusted by
1 ℉ increments. When the temperature is set to the lower
limit or upper limit, “LOW” or “HIGH” appears on the screen.
A
A
In Auto mode, the mode turns off in the following situations:

The fan speed or air direction is changed.

The air conditioner is turned on or off.

The Auto Defog function is turned on to ensure driver’s
visibility.
A
A
Available settings may differ depending on the vehicle model
and specifications.
Using the climate control
system
(if equipped)
You can check and adjust the climate system settings on the
screen.
Press the [ CLIMATE] button on the climate control
system.
A
A
For more information about how to use the heater and air
conditioner, refer to Owner’s Manual of the vehicle.
cdef
b
ghi
ja
a Returns to the previous step.
b Displays the outside temperature.
c Can adjust the driver’s seat temperature.
d Can to adjust the passenger’s seat temperature.
e Can adjust the fan speed.
f Can adjust the air direction.

2-14
bcd
f
g
ha
For manual temperature control
a Returns to the previous step.
b Can set the inside temperature.
c Can adjust the air direction.
d Can adjust the fan speed.
e Can turn on or off the automatic temperature control
function of the rear seat.
f The climate for the rear seat is turned off.
g Can lock to prevent any occupant from controlling the
climate control system.
h The list of menu items appears.
User's Manual on Web (QR Code): Displays the QR
code that provides access to the online user manual
for the system.
Split Screen: Can turn on or off the split screen mode.
A
A
Available settings may differ depending on the vehicle
model and specifications.
Using the rear-seat climate
control system
(if equipped)
You can check or set the rear-seat climate status on the system
screen.
1 Perform any of the following methods:
Press the [
REAR] button on the climate control system.
On the All Menus screen, press Rear Climate Controls.
2 Select and then change the settings.
bcd
ef
g
ha
For automatic temperature control

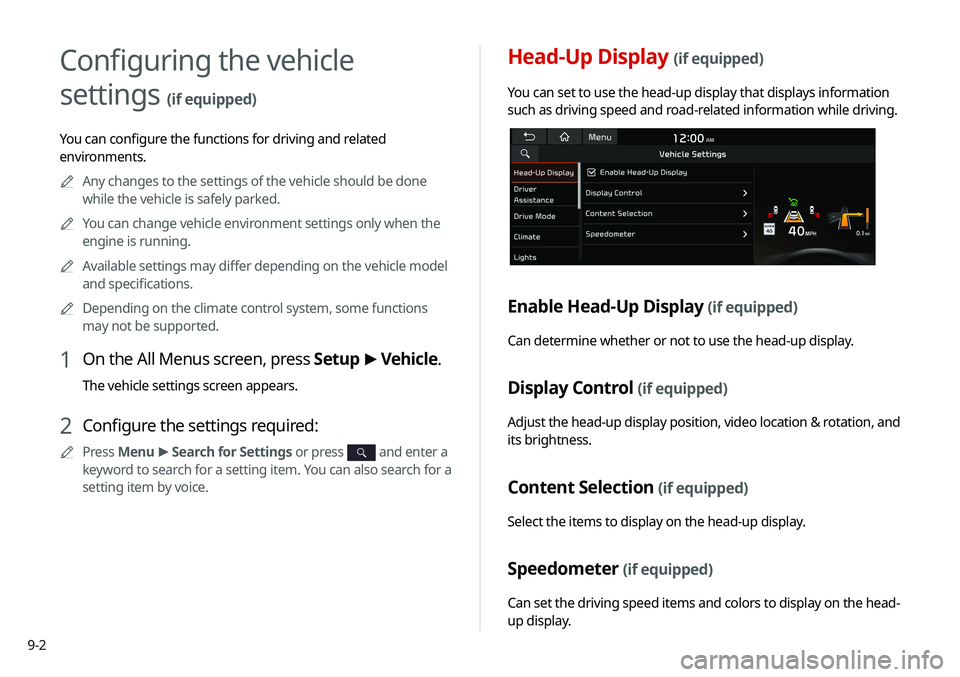

9-2
Head-Up Display (if equipped)
You can set to use the head-up display that displays information
such as driving speed and road-related information while driving.
Enable Head-Up Display (if equipped)
Can determine whether or not to use the head-up display.
Display Control (if equipped)
Adjust the head-up display position, video location & rotation, and
its brightness.
Content Selection (if equipped)
Select the items to display on the head-up display.
Speedometer (if equipped)
Can set the driving speed items and colors to display on the head-
up display.
Configuring the vehicle
settings
(if equipped)
You can configure the functions for driving and related
environments.A
A
Any changes to the settings of the vehicle should be done
while the vehicle is safely parked.
A
A
You can change vehicle environment settings only when the
engine is running.
A
A
Available settings may differ depending on the vehicle model
and specifications.
A
A
Depending on the climate control system, some functions
may not be supported.
1 On the All Menus screen, press Setup >
Vehicle.
The vehicle settings screen appears.
2 Configure the settings required:
A
A
Press Menu >
Search for Settings or press and enter a
keyword to search for a setting item. You can also search for a
setting item by voice.

9-8
Drive Mode Change Alert (if equipped)
You can set how to display the notification message when the
drive mode is changed.
Detailed Alert
: Displays a detailed notification message along
with the vehicle image when the drive mode is changed.
 Simple Alert: Displays the notification at the top or on the
split screen when the drive mode is changed.
Off: When the drive mode changes, no notification is
provided.
Reset ECO/NORMAL/SPORT (EV only)
You can reset the drive mode settings to the default values.
A
A
The display may differ depending on the vehicle model and
specifications.
A
A
See how to improve ECO potential by pressing the Help
button from an EV(Electric Vehicle). In most cases, a vehicle
can travel a longer distance when its ECO potential score is
higher (EV only).
ECO (EV only)
This is a drive mode for increasing the vehicle's fuel efficiency.
You can change the climate control mode, the active coast energy
regeneration level, and speed limit settings.
NORMAL (EV only)
This is a drive mode focused on the driver and passenger's
comfort. You can change the climate control mode and the active
coast energy regeneration level.
SPORT (EV only)
This drive mode enables a more dynamic driving performance.
You can change the climate control mode and the active coast
energy regeneration level.

9-9
Automatic Ventilation (if equipped)
You can set to prevent condensation inside and keep inside air
pleasant using this feature.
Auto Dehumidify: Once the inside air circulation mode has
been used for a long time, it is switched to the outside air
inflow mode to prevent condensation.
Defog/Defrost Options (if equipped)
You can set to enable the defogger to secure driver visibility.
Auto Defog: When the sensor detects fog on the windshield,
the automatic ventilation is run for defogging.
Climate Features (if equipped)
You can set or change the settings for the climate system.
Rear Climate Controls: Used to move to the climate control
screen for the rear seat. You can check or set the climate
status for the rear seat.
A
A
For more information about controlling the rear-seat
climate control system:
> see “Using the rear-seat climate
control system (if equipped)”
Climate (if equipped)
You can configure the operation environment for climate control
system.
A
A
The screen may differ depending on the vehicle model and
specifications.
Recirculate Air (if equipped)
You can set to keep the inside air pleasant by blocking inflow of
outside air.
Activate upon Washer Fluid Use: Sets to automatically
switch to the inside air circulation mode to prevent inflow of
washer fluid scent when spraying washer fluid.

9-13
Seat (if equipped)
You can configure the settings of the steering wheel or seats,
such as seat position change notification and automatic control
of the steering wheel warmer.
A
A
The screen may differ depending on the vehicle model and
specifications.
Seat Position Change Alert (if equipped)
You can set the system to display a notification message along
with the seat image on the screen when a seat position is
changed.
Smart Posture Care (if equipped)
You can see the recommended driving posture according to your
physical data, and the clinical inspection result for your waist.
Heated/Ventilated Features (if equipped)
You can manage the driving environment pleasantly by linking
the climate controls to the steering wheel warmer and driver’s
seat warmer/ventilation.
Auto. Controls That Use Climate Control Settings:
Automatically controls the heating wire or ventilation for
the driver's seat and steering wheel, in sync with the climate
control function.

Steering Wheel Warmer: Steering Wheel Warmer adjusts
automatically based on Climate settings.

Seat Warmer/Ventilation: Seat Warmer/Ventilation
adjusts automatically based on Climate settings.
Seating Easy Access (if equipped)
For convenience upon getting on and off, you can adjust the
position of the driver's seat or steering wheel to secure space
inside the vehicle.
 Steering Easy Access: The steering wheel moves upward
when getting on and off.
Seat Slide Easy Access: The seat moves forward or backward
by a certain distance when getting on and off.
Rear Seat Heating Control (if equipped)
You can set to enable the warmer for the rear-left and rear-right
seats.
