language KIA SELTOS 2021 Navigation System Quick Reference Guide

7
ÝWarning
•Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe bodily injury, or death.
The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any vehicle systems,
including the touch screen and steering wheel controls, which
take the driver's eyes, attention, and focus away from the safe
operation of the vehicle, or which are not permissible by law,
should never be used during the operation of the vehicle.
•Some functions may not be active while driving to ensure
safety. Those functions run only when the vehicle is stationary.
In order to use them, first stop the vehicle.
•When the screen is not displayed, the volume is muted, or
other system failures occur, immediately stop using the
system. When you use the faulty system continuously, it may
cause fire, electric shock, or fatal system failure.
ÜCaution
•The system can be turned on even when the ignition switch is
in “ACC” or “ON.” However, when you use the system without
turning on the vehicle for a long time, it may cause battery
discharge. To use the system for a long time, be sure to turn
on the vehicle.
•When you use the system with the vehicle turned off, the
battery warning message appears. The warning message
disappears as soon as you turn on the vehicle.
Turning the system on or off
Turning on the system
1 Turn on the vehicle.
2 When a safety warning message appears, read it
and press Confirm.
A
A
To change the display language, press Language.
Turning off the system
To turn off the system while driving, press and hold
the Power button on the panel.
The screen and sound will be turned off.
A
A
To use the system again, press the Power button.
A
A
When a specified period of time elapses after turning off the
vehicle, the system automatically shuts down. When you open
the driver's door, the system immediately shuts down.

10
Configuring the voice recognition settings 9-27
Guidance 9-27
Configuring the navigation settings 9-28
Display 9-28
Guidance 9-30
Alerts 9-31
Others 9-32
Configuring the UVO settings 9-33
Activate UVO 9-33
911 Connect 9-34
Modem Information 9-35
Modem Status 9-35
Configuring the user profile settings 9-35
Profile Settings 9-36
Configuring the general system settings 9-37
SW Info/Update 9-37
System Info 9-38
My Data 9-39
Date/Time 9-39
Language 9-40
Keyboard 9-40
Units 9-41
Configuring the device connection settings 9-14
Bluetooth 9-15
Android Auto 9-16
Apple CarPlay 9-16
Configuring the advanced system settings 9-17
Return to Map: Set Time 9-17
TUNE Knob Function 9-18
Custom Button ☆ 9-18
Steering Wheel MODE Button 9-19
Home Screen 9-19
Split Screen 9-20
My Data 9-20
Extend Rear Camera Use 9-21
Configuring the button settings 9-21
TUNE Knob Function 9-22
Custom Button ☆ 9-22
Steering Wheel MODE Button 9-23
Configuring the sound settings 9-23
Premium Sound 9-24
Sound Tuning 9-24
Driving Guidance 9-25
System Volumes 9-25
FM Radio Noise Control 9-26
Reset 9-27
Turning on/off the screen touch sound 9-27

1-4
Turning the system on or off
The following explains how to turn on or off the system. Before
using the system, be sure to read the user's manual for safe and
convenient manipulation.
Turning on the system
1 Turn on the vehicle.
2 When a safety warning message appears, read it
and press Confirm.
A
A
To change the display language, press Language.
Type A
Move lever/button
(
/)
 While listening to the radio, switch
between the stations on the preset
list. Press and hold to search for a
station.
While playing media, change the
track/file. Press and hold to rewind or
fast forward (except for the Bluetooth
audio mode).
Call button
(
)
 Before connection of Bluetooth: Press
to display the Bluetooth connection
window.
After connection of Bluetooth: Press
to display the recent calls list, press
and hold to redial the last number,
and press for an incoming call to
answer it.
On a Bluetooth call: Press to switch
to Call Waiting and press and hold
to switch between the system and
mobile phone.
End Call button
(
)
 During a Bluetooth call, press to end
the call.
Press to ignore a call with the
Bluetooth connected.

2-2

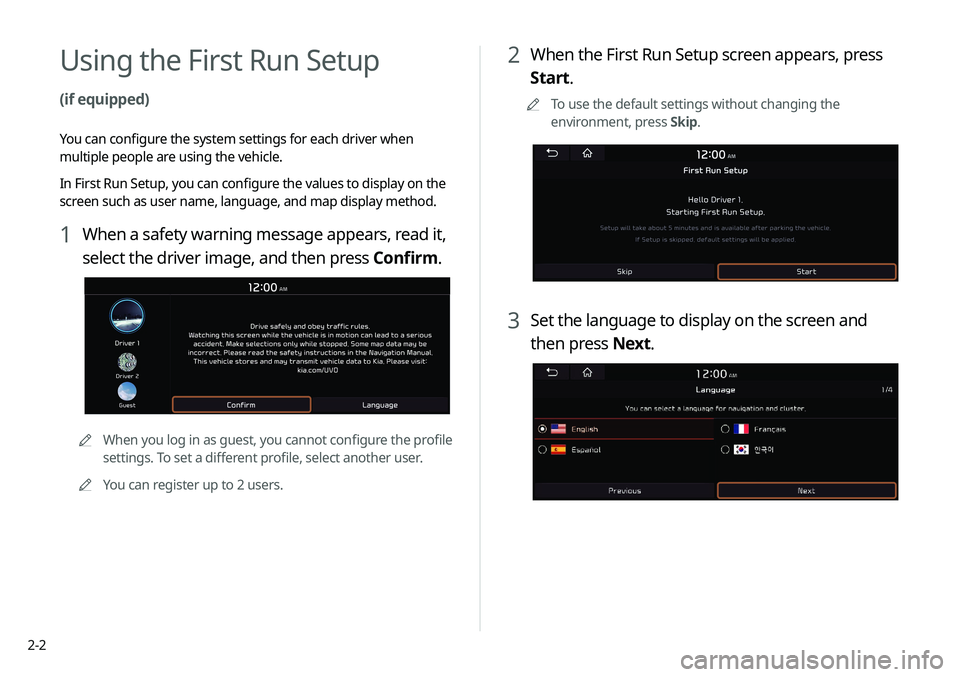

2 When the First Run Setup screen appears, press
Start.
A
A
To use the default settings without changing the
environment, press Skip.
3 Set the language to display on the screen and
then press Next.
Using the First Run Setup
(if equipped)
You can configure the system settings for each driver when
multiple people are using the vehicle.
In First Run Setup, you can configure the values to display on the
screen such as user name, language, and map display method.
1 When a safety warning message appears, read it,
select the driver image, and then press Confirm.
AAWhen you log in as guest, you cannot configure the profile
settings. To set a different profile, select another user.
A
A
You can register up to 2 users.

6-20
Sending a text by using the voice
recognition
When you connect your mobile device to the system via
Bluetooth, contacts from the device are downloaded to the
system so you can text a message to a contact by using the voice
recognition.A
A
To call using voice recognition, there must be contacts stored
on the system.
A
A
It is available only when the UVO service is active.
1 Perform any of the following methods:
On the All Menus screen, press Phone.
On the steering wheel, press the Call button.
2 On the bluetooth message screen, press .
3 When a guiding beep is heard, say the message.
The system sends the text to the selected contact.
d Used to make a call to a message sender.
e Used to move to the previous or next message.
f Can text a message by using the voice recognition.
> See “
Sending a text by using the voice recognition.”
g The list of menu items appears.
 Split Screen: Can turn on or off the split screen mode.
A
A
The auto-reply messaging may not be available depending on
the smartphone model.
A
A
To edit or delete a message, park the vehicle at a safe place
and access the messaging function on your smartphone. You
cannot edit or delete a message from the system.
A
A
When an iPhone is connected to the system, there are some
restrictions when receiving messages as follows:

Only the sender name appears when the sender
information is saved.

When the sender information is not saved, only the phone
number appears.

You cannot use the auto-reply message function.

When the incoming message notification or lock-screen
view option is off, messages cannot be received.
A
A
The message reader function may not be supported
depending on the system language.

8-9
Using Voice Local Search
With UVO, you can search for locations from the online map
database by using voice commands.
If you did not update the map or system or you cannot find your
destination in the navigation, you can use the latest information
from the online server to search for locations and receive
guidance.
1 Press the [] button on the vehicle.
Voice recognition starts with voice guidance.
2 After the voice guidance ends and you hear a
beep, say the POI name or Address.
A
A
Depending on the system language, voice recognition
may not be supported.
a Returns to the previous step.
b Can see the weather information for today or the next 3 days.
c Can update to the latest weather information.
d The list of menu items appears.
Current Position: Displays the weather of the current
position.
Waypoint: Displays the weather of the waypoint, if
specified.
Destination: Displays the weather of the destination, if
specified.
Search:
Can see the weather information by searching for
an address.
 Forecast: Can see the weather information for today or
the next 3 days.
User's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
Split Screen: Can turn on or off the split screen mode.

9-15
Bluetooth
You can register or delete a Bluetooth device for the system and
connect or disconnect a registered device. You can also configure
operation settings such as notifications, messages, and other
settings for Bluetooth devices.
A
A
For more information on how to use the Bluetooth functions:
> see “Connecting a Bluetooth device.”
A
A
Some setting options appear when a smartphone is
connected to the system.
A
A
To edit or delete a message, park the vehicle at a safe place
and access the messaging function on your smartphone. You
cannot edit or delete a message from the system. A
A
When an iPhone is connected to the system, there are some
restrictions when receiving messages as follows:

Only the sender name appears when the sender
information is saved.

Only the phone number appears when the sender
information is not saved.

You cannot use the auto-reply message function.

When the incoming message notification or lock-screen
view option is off, messages cannot be received.
A
A
The message reader function may not be supported
depending on the system language.
Bluetooth Connections
You can register or delete a Bluetooth device from the system
and connect or disconnect a registered device.
A
A
You can add one Bluetooth hands-free kit or up to two
Bluetooth audio devices.
Auto Connection Priority
Set the priority order for automatic Bluetooth connection to the
system when it turns on.
A
A
On the device list, press
on the right and drag the item to
reposition.

9-37
Configuring the general
system settings
You can configure general settings for date, time, language, and
the like. You can also check information of the system.
1 On the All Menus screen, press Setup >
General.
The general settings screen appears.
2 Configure the settings required:
A
A
Press Menu >
Search for Settings or press and enter a
keyword to search for a setting item. You can also search for a
setting item by voice.
SW Info/Update
You can see the versions of system components. You can also
update the system to the latest version.
A
A
For details on how to update the system software:
> see “Updating the system software and map.”

9-40
Keyboard
You can change the keyboard type for each language to use when
entering the text.
English Keyboard
You can select the keyboard type to use when entering the
English text.
Default Keyboard
You can select the default keyboard type.
Daylight Saving Time
Displays the system time in the format of Daylight Saving Time.
Language
You can set the system display language.
A
A
Once the language has been changed, it takes a while to
apply the new language to the system. The notification pop-
up window appears as soon as the new language is applied to
the system. When you wait a while or press anywhere outside
the pop-up window, the window automatically disappears.
A
A
When you change the system language, it does not affect the
display of other unique data such as MP3 music file name.
A
A
Depending on the system language, the Bluetooth phone
message view and voice recognition may not be supported.

10-21
E
Editing a location 5-25
Editing a route 5-16
EV charging stations 5-27
F
FAQ 10-11Bluetooth 10-11
Broadcast reception 10-12
Navigation 10-11
Self-inspection method upon
failure 10-13
Finding a route easily 5-3 Destination search 5-3
Finding the route Adding a waypoint 5-16
Address search 5-10
Detour 5-18
Displaying POIs on the map 5-15
Frequently visited places 5-24
Gas stations 5-26
Location registration
Deleting a POI 5-26
Editing a POI 5-25
Registration after search 5-22
Map 5-6
Map update 9-47
Previous Destinations 5-11
Saving the current position 5-23
Searching for POIs 5-13
Volume adjustment 5-8
H
HD Radio Data 2-18
HD Radio™ 3-6
Home screen 1-10
K
Keyboard settings 9-40
L
Language settings 9-40
Listening to musicBluetooth audio 4-7
Location registration 5-22
M
Map 5-6 POI display 5-15
Map update 9-47
Media device connection 4-2
Media player Bluetooth audio 4-8
USB music 4-2
Messages 6-18
Microphone 7-2
Multi-page Home screen 1-10
N
Navigation 5-2, 5-9
Navigation settings 9-28
Notifications 2-21
