GETTING STARTED
As you get to know your new Kia, you can explore this booklet to better understand
how to operate its many features and systems. You can find the complete Table of
Contents on the next two pages, but first, be sure to review the following to better
understand some of your Kia’s most used features:
1 Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2 Fuel Filler Release Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3 Power Adjustable Driver’s Seat* / Front Seat Headrest Adjustment . . . . . 45-47
4 Seat Warmers* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5 Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7 Smart Cruise Control (SCC)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
8 Normal Maintenance Schedules . . . . . . . . . . . . . . . . . . . . 56, Back Cover
9 User Settings / Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . 09
10 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . 28-29
11 UVO link Activation* / UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . 33
12 Audio Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-35
13 Kia Access with UVO link App Download . . . . . . . . . . . . . . . . . . . . . . 34
14 Kia Access with UVO link App Features Guide . . . . . . . . . . . . . . . . . . . 34
15 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . . . . . . . . . . . . . 31
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www .kia .com Consumer Affairs – Roadside Assistance†1 8: 1-800-333-4KIA (800-333-4542)
Always check the Owner ’s Manual for complete operating information and safet y warnings .
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED1

2*IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES . . . . . . .Inside Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . .03Indicators & Warning Lights . . . . . . . . . . . . . . . . . .04Tire Pressure Monitoring System (TPMS) . . . . .05Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05Drive Mode Integrated Control System* . . . . . . .06
VEHICLE SETTINGSLCD Instrument Cluster Modes . . . . . . . . . . . . . . .07Trip Modes / Trip Computer . . . . . . . . . . . . . . . . . .07Instant Fuel Economy . . . . . . . . . . . . . . . . . . . . . . .07Service Interval Mode* . . . . . . . . . . . . . . . . . . . . . .08Sound Mood Lamp* . . . . . . . . . . . . . . . . . . . . . . . . .08User Settings – Instrument Cluster . . . . . . . . . . .09Vehicle Settings* – Audio Head Unit . . . . . . . . . .09Vehicle Auto-Shut Off* . . . . . . . . . . . . . . . . . . . . . . .10
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) . . . . . .11Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . .12Blind-Spot Collision-Avoidance Assist (BCA)* . . .13 Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . .14Driver Attention Warning (DAW) . . . . . . . . . . . . . . .14Cruise Control (CC) . . . . . . . . . . . . . . . . . . . . . . . . . .15Smart Cruise Control (SCC)* . . . . . . . . . . . . . . . . . .16Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . .18Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . .19Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . .20Rear Cross-Traffic Collision Avoidance Assist (RCCA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
DRIVER’S PANELInstrument Cluster Control* . . . . . . . . . . . . . . . . . . .22Electronic Stability Control (ESC) . . . . . . . . . . . . . .22Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . .22Engine Start/Stop Button* . . . . . . . . . . . . . . . . . . . .23
DRIVER’S PANEL (CONTINUED)Power Windows, Window Lock & Central Door Lock . . . . . . . . . . . . . . . . . . . . . . . .24Rear Door Locks – Double Pull to Open . . . . . . . .24Auto Door Lock/Unlock . . . . . . . . . . . . . . . . . . . . . . .24Rear Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24Power Outside Mirrors . . . . . . . . . . . . . . . . . . . . . . .25Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . . . . .25Manual Folding Mirrors* . . . . . . . . . . . . . . . . . . . . . .25
STEERING WHEEL CONTROLSTilt/Telescoping Steering Wheel . . . . . . . . . . . . . . .25Headlights & High Beams . . . . . . . . . . . . . . . . . . . . .26Daytime Running Lights (DRL)* . . . . . . . . . . . . . . .26Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . .26Windshield Wipers & Washers . . . . . . . . . . . . . . . . .27Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . .27
AUDIO SYSTEMSBluetooth® Wireless Technology . . . . . . . . . . . . . .28 Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Android Auto™ / Apple CarPlay® Setup . . . . . . . . .31Standard Audio System* . . . . . . . . . . . . . . . . . . . . . .32UVO link Activation* . . . . . . . . . . . . . . . . . . . . . . . . . .33UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33Kia Access with UVO link App Download . . . . . .34Kia Access with UVO link App Features Guide .34UVO link with Navigation* . . . . . . . . . . . . . . . . . . . .35
CENTER PANELDigital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36Multimedia USB Port, Power Outlets & USB Charger Port . . . . . . . . . . . . . . . . . . . . . . . .36Wireless Smartphone Charging System* . . . . . . .37Automatic Climate Control . . . . . . . . . . . . . . . . . . . .38Manual Climate Control* . . . . . . . . . . . . . . . . . . . . . .39Idle, Stop & Go (ISG) . . . . . . . . . . . . . . . . . . . . . . . . .40Automatic Gear Shift / Sportmatic® Shifting . . . .41Dual Clutch Transmission (DCT)* . . . . . . . . . . . . . .41
CENTER PANEL (CONTINUED)Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . .42Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42Downhill Brake Control . . . . . . . . . . . . . . . . . . . . . .43All Wheel Drive (AWD) System* . . . . . . . . . . . . . . .43Seat Warmers* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
SEATINGPower Adjustable Driver ’s Seat* . . . . . . . . . . . . . .456-Way Manual Adjustable Driver ’s Seat* . . . . . .45Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . .46Rear Occupant Alert (ROA) with Door Monitoring . . . . . . . . . . . . . . . . . . . . . .46Front Seat Headrest Adjustment . . . . . . . . . . . . . .47Unfastening Center Seat Belt . . . . . . . . . . . . . . . . .47
OTHER KEY FEATURESSmart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48Remote Keyless Entry (Folding Key)* . . . . . . . . . .49Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . .49Fuel Cap / Malfunction Indicator . . . . . . . . . . . . .50Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . .50Hood Release Lever and Latch . . . . . . . . . . . . . . .50Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . .51Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . . . . . .52Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52Liftgate Release Button . . . . . . . . . . . . . . . . . . . . . . .53
SAFETY FEATURESSeat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54Occupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . .54Child-Protector Rear Door Lock . . . . . . . . . . . . . .54
TURBO MAINTENANCE CHART . . . . . . . .56
NON-TURBO MAINTENANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . .Inside Back Cover

INSTRUMENT CLUSTERINSTRUMENT CLUSTER
3 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
(Type A Cluster)This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .

Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations .

For more information on the instrument cluster and the function of all indicator and warning lights, please refer to the Owner ’s Manual .
Refer to section 4 in the Owner ’s Manual for more information .
A Tachometer
B Turn Signal Indicators
C Speedometer
D Engine Coolant Temperature Gauge
E Indicator & Warning Lights
F Gear Shift Position Indicator, Odometer, Trip Modes / Trip Computer
G
Fuel Gauge
Arrow direction indicates the side of
the vehicle the fuel door is located
Instrument Cluster Overview
BB
C
D
E
G
FA

INSTRUMENT CLUSTER
INSTRUMENT CLUSTER
4 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE

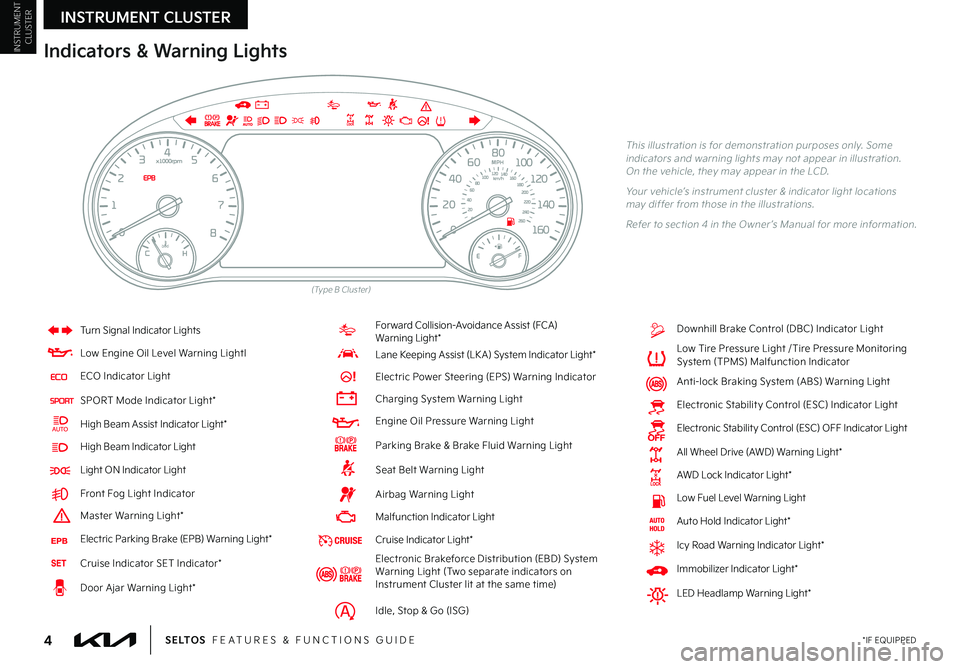

(Type B Cluster)
Indicators & Warning Lights
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .

Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations .
Refer to section 4 in the Owner ’s Manual for more information .
Turn Signal Indicator Lights
Low Engine Oil Level Warning LightI
ECO Indicator Light
SPORT Mode Indicator Light*
High Beam Assist Indicator Light*
High Beam Indicator Light
Light ON Indicator Light
Front Fog Light Indicator
Master Warning Light*
Electric Parking Brake (EPB) Warning Light*
Cruise Indicator SET Indicator*
Door Ajar Warning Light*
For ward Collision-Avoidance Assist (FCA) Warning Light*
Lane Keeping Assist (LK A) System Indicator Light*
Electric Power Steering (EPS) Warning Indicator
Charging System Warning Light
Engine Oil Pressure Warning Light
Parking Brake & Brake Fluid Warning Light
Seat Belt Warning Light
Airbag Warning Light
Malfunction Indicator Light
Cruise Indicator Light*
Electronic Brakeforce Distribution (EBD) System Warning Light (Two separate indicators on Instrument Cluster lit at the same time)
Idle, Stop & Go (ISG)
Downhill Brake Control (DBC) Indicator Light
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Anti-lock Braking System (ABS) Warning Light
Electronic Stabilit y Control (ESC) Indicator Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
All Wheel Drive (AWD) Warning Light*
AWD Lock Indicator Light*
Low Fuel Level Warning Light
Auto Hold Indicator Light*
Icy Road Warning Indicator Light*
Immobilizer Indicator Light*
LED Headlamp Warning Light*

INSTRUMENT CLUSTERINSTRUMENT CLUSTER
5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
The TPMS indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator .
The indicator will illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower .
Inflate tire(s) to specifications using an accurate digital tire pressure gauge to turn off Low Tire Pressure Indicator . See front driver ’s door jamb for PSI specification . The Low Tire Pressure Position Indicator A is displayed on the LCD screen in the Instrument Cluster when the tire(s) is underinflated .
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate . See dealer for service .
Tire Pressure Monitoring System (TPMS)†2 4
REMINDERS:
•
Check the recommended tire pressure label located on the left side of driver's door jamb, visible when the door is opened
•
Consult your dealer for ser vice if Low Tire Pressure Light remains illuminated after inflating your tire(s)
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc .) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
Fuel Economy
There are several factors that contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics . Below are some tips on how to help improve fuel economy:
Refer to section 4 in the Owner ’s Manual for more information or snap the QR Code above to view a video .
The above images are for illustration purposes only and may not reflect actual display
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
24
32 32
32
psi
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Tire Pressure Monitoring System Video
Fuel Economy Video
QR CODE
•Even with TPMS, tire pressure should be checked manually at least once a month . Only adjust tire pressure on “cold tires” that have been sit ting for 20 minutes, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
A
Refer to section 6 in the Owner ’s Manual for more information .

INSTRUMENT CLUSTER
INSTRUMENT CLUSTER
6 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Drive Mode Integrated Control System*
(Type A shown . Located above gear shift)
The drive modes may be changed according to the driver ’s preferences or road conditions . To cycle through the drive modes A or deactivate a drive mode, rotate the DRIVE MODE knob B .
When a drive mode is selected, the drive mode indicator will illuminate in the Instrument Cluster (except for NORMAL) . The system’s default mode is NORMAL mode and when selected, the indicator will not be illuminated .
• NORMAL Mode
• SPORT Mode
• SMART Mode* – When the SMART mode is activated, the system automatically selects the drive mode best suited to the current driving style (economic, average, spirited) . The color of the SMART mode indicator (green, white, red) depends on the current driving style P
R
N
D
+
•
-
DRIVE
MODERefer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Drive Mode Integrated Control System Video
QR CODE
REMINDERS:
•
The system is turned ON and in NORMAL mode when ignition is in the ON position
•
Steering effor t may be slightly increased in Spor t mode
•
When SPORT mode is selected, fuel economy may decrease
B
ANORMALSPORTSMART

VEHICLESETTINGS
VEHICLE SETTINGS
7 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
The Trip Computer is a driver information system that displays
information related to driving . It appears on the display when the
ignition switch or the Engine Start/Stop button* is in the ON position .
To cycle through the different LCD
Instrument Cluster modes, press the
Mode button A .
When in Trip Computer mode ,
press the Move/Reset/OK button B
up/down to cycle through the screens .
When displaying TRIP A or TRIP B
screens, press and hold the OK
button B to reset the Tripmeter to zero .
Trip Modes / Trip Computer LCD Instrument Cluster Modes*
Press the Mode button A to cycle through different LCD Instrument Cluster Modes:
Your vehicle’s steering wheel but tons may differ from those in the illustrations .
Refer to section 4 in the Owner ’s Manual for more information .
Refer to section 4 in the Owner ’s Manual for more information .
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
Refer to section 4 in the Owner ’s Manual for more information .
Fuel Economy
Average16.8MPG025 5075
FUEL ECONOMY:
• Average Fuel Economy• Instant Fuel Economy
Digital Speedometer
Transmission Temperature*
ACCUMUL ATED INFO
• Tripmeter• Fuel Economy• Timer
DRIVE INFO
• Tripmeter • Fuel Economy • Timer
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
(Type A; Controls located on right side of Steering Wheel)
Instant Fuel Economy
Press the Mode button A and cycle to the Fuel Economy screen in the Trip Computer to display Instant Fuel Consumption, which calculates fuel consumption during the past few seconds .
Trip Computer Mode: Displays driving information for fuel economy, accumulated info, speedometer, etc .
Turn-by-Turn Mode*: Displays the route guidance and destination info
Driving Assist: Displays the Lane Safety, Driver Attention Warning, Smart Cruise Control* and TPMS info
User Settings Mode*: Change settings of Driver Assistance, doors, lights, sound, convenience, service and other features
Master Warning Mode: Displays warning messages related to the vehicle when one or more systems is not operating normally
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE
REMINDERS:
•
Instant Fuel Consumption Mode is not to be used in calculation of or as a reference for AVER AGE fuel economy
•
If the vehicle speed exceeds 1 mph (1 .6 km/h) after being refueled with more than 1 .6 gallons (6 liters), the average fuel economy will be cleared to zero (----)
•
Prolonged use of the audio control unit in ACC mode may drain the vehicle’s bat ter y
REMINDERS:
•
Appearance of Tripmeter display may differ, as equipped
•
All stored driving information (except Odometer and Range) is reset if the bat ter y is disconnectedB
A

VEHICLESETTINGS
VEHICLE SETTINGS
9 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
User Settings Modes:
Driving Assistance*• Driving Assist• Warning Timing• Warning Volume*• Driver At tention Warning (DAW)*• For ward Safet y• Lane Safet y*• Blind-Spot Safet y• Parking Safet y
Door/Liftgate• Automatically Lock• Automatically Unlock
Lights• One-Touch Turn Signal• Headlight Delay• High Beam Assist
Convenience• Welcome Mirror• Wireless Charging System• Wiper/Lights Display• Auto Rear Wiper (in R)• Gear Position Pop-up• Ice Road Warning
Service Interval• Enable Ser vice Inter val• Adjust Inter val• Reset
Other Features• Fuel Economy Auto Reset• Speedometer Unit• Fuel Economy Unit• Temperature Unit• Torque Unit• Tire Pressure Unit
Reset• All menus in the User Set tings mode are reset back to factor y set tings, except language and service interval
Language*• Choose the language
User Settings - Instrument Cluster
To enter the User Settings in the LCD Instrument Cluster,
ensure that the vehicle is at a stand still, shift lever in Park,
and have the Engine Start/Stop button or Key in the ON
position . Then press the Mode button A and select User
Settings by pressing the Move/Reset (OK) button B .
You can navigate the selections on the display by pressing
the OK button B up/down . Select the item by pressing the
OK button B .
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
(Type A; Controls located on right side of Steering Wheel)
Vehicle Settings - Audio Head Unit*
(Vehicles with wide-screen navigation system)
To enter the Vehicle Settings mode in the audio head unit screen C, press the SETUP key on the audio head unit . Then press the Vehicle icon D, which will take you to the Vehicle Settings screen . Use the touchscreen to navigate through the menus .
Vehicle Settings modes:
Driver Assistance: Driving Assist, Warning Time, Warning Volume, Driver Attention Warning, Forward Safety, Blind-Spot Safety, Parking Safety
Climate: Recirculate Air, Automatic Ventilation, Defog/Defrost Options
Lights: One Touch Turn Signal, Headlight Display, High Beam Assist
Door: Auto Lock, Auto Unlock, Two-Press Unlock
Cluster: Energy Consumption Reset, Content Selection, Cluster Voice Guidance Volume, Welcome Sound
Convenience: Rear Occupant Alert, Wireless Charging System, Auto Rear Wiper (in R)
Reset: Reset Vehicle Settings to Factory Defaults
Vehicle Settings
Drive ModeDrive Mode Change AlertDetailed AlertClimate
Lights
Seats/Steering
Menu
Vehicle
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
QR CODE
REMINDER: Some set tings appear in User Set tings in the Instrument Cluster . Check section 4 in the Owner ’s Manual or the Car Infotainment System Quick Star t Guide for more information .
REMINDER: Some set tings appear in Vehicle Set tings* in the audio head unit . Check your Car Infotainment System Quick Star t Guide for more information or section 4 in the Owner ’s Manua
B
CDA

See section 5 in the Owner ’s Manual for more information .CENTER PANEL
CENTER PANEL
40 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Idle, Stop & Go (ISG) System
The ISG system is designed to help reduce fuel consumption by automatically shutting down the engine when the vehicle is at a standstill .
When the ISG system is ON and the vehicle is at a standstill, the engine will stop, and the green AUTO STOP indicator A on the instrument cluster will illuminate green .
The engine will restart when the brake pedal is released or the shift lever is moved from D (Drive) to the R (Reverse) position or to Manual Shift mode . When engine restarts, the green AUTO STOP indicator on the instrument cluster will turn off .
To deactivate the ISG System, press the ISG OFF button B . If you press again, the system will be activated .
(Cluster B shown)
(But tons located on left of Steering Wheel)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Idle, Stop & Go (ISG)Video
QR CODE
•The ISG system will not activate when:
– A seat belt is unfastened
– The hood or a door is opened
– Bat ter y condition is not adequate
– The front or rear defroster is turned on
– Engine coolant temperature is low
– The outside ambient temperature is too low/high
– Emission control devices activate
– The vehicle is on a steep slope
QUICK TIPSREMINDERS:
•
When the ISG system is on and the vehicle is at a standstill, the engine may not stop and the AUTO STOP indicator on the instrument cluster will illuminate YELLOW . This indicates the system is functional but not all enabling criteria have been met .
•
ISG is active by default at vehicle star tup . When ignition is cycled, ISG will turn ON again
•
Under cer tain conditions, the engine will restar t automatically even if the brake pedal is still depressed
•
If the AUTO STOP indicator is continuously blinking yellow and the ISG but ton LED is on, please contact an authorized Kia dealer
A
B

50 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Place the Fuel Cap on the inside of the Fuel Filler Lid when fueling F .
QUICK TIP
REMINDERS:
•
While lowering and closing, keep hands away from under the Hood
•
Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in P (Park) position and set ting the parking brake
•Make sure the hood is securely closed before driving
Fuel Filler Lid ReleaseFuel Cap / Malfunction Indicator
(Check Engine Light)To open the Fuel Filler lid:
1 . Pull the Fuel Filler Door Open Lever A inside the vehicle (on floor left of Driver ’s Seat)
2 . Pull the Fuel Filler door to fully open B
To open the Fuel Cap, turn it counterclockwise C .
To access the Fuel Cap, pull the Fuel Filler Door Open Lever A inside the vehicle (on floor left of Driver ’s Seat) . Tighten for ONE CLICK to prevent Malfunction Indicator from illuminating .
See section 4 in the Owner ’s Manual for more information .
See section 4 in the Owner ’s Manual for more information .
See section 4 in the Owner ’s Manual for more information .
OTHER KEY FEATURES
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
One-Click Fuel Cap Video
QR CODE
Hood Release Lever and Latch
Opening the Hood:
1 . Pull the Hood Release Lever E to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, push the secondary Latch to the front inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood by pressing the front center of the Hood . Then, press down to securely lock in place .
A
REMINDER: It is normal operation when tightening to hear one click, and then when Fuel Cap is released, it clicks back .
E
B
C
D
