KIA SELTOS 2023 Features and Functions Guide
Manufacturer: KIA, Model Year: 2023, Model line: SELTOS, Model: KIA SELTOS 2023Pages: 62, PDF Size: 7.51 MB
Page 21 of 62
19ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways
Always drive safely and use caution See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions Images are for illustrative purposes only and may not reflect actual feature or operation
Highway Driving Assist (HDA)*†5
Highway Driving Assist (HDA) is designed to adjust the set speed of the vehicle and the distance with the vehicle ahead, when driving on limited/controlled access highways/freeways HDA can adjust the vehicle’s speed based on available highway speed information The automatic speed setting mode is designed to adjust the Smart Cruise Control (SCC) set speed automatically by adjusting to the current speed limits of the highway the vehicle is traveling on
When HDA is activated, the conditions are met, the Instrument Cluster indicator will illuminate green A If proper conditions are not met, HDA will be in standby mode and the indicator will illuminate gray When HDA is operating, and if both lanes are recognized, the Instrument LCD image will show the lanes illuminated white B and the HDA indicator A illuminated green
If HDA is activated and operating, conditions are met and the Smart Cruise Control (SCC) speed is set by the driver (at the posted highway speed limit or slower), HDA will enter the automatic speed setting mode The set speed and AUTO will be displayed C in green and an audible alert will sound
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster, and an audible warning will sound If hands on the Steering Wheel is not detected, HDA will cancel
HDA will operate only when these conditions are met:
•The vehicle is traveling slower than 95 mph
•When driving on limited/controlled access highways/freeways
•When the SCC is on and operating
•When the SCC speed is set to current limited/controlled access highways/freeways speed
HDA settings:
•HDA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User Settings* in the Instrument Cluster - Press the Mode button B on the Steering Wheel to toggle to User Settings Press the OK C up/down to toggle to Driver Assistance, then Driving Assist Select Highway Driving Assist and press the OK button C
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Driver Convenience Select Highway Driving Assist to activate
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
REMINDERS:
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
•
When the ignition is cycled, HDA returns to its previous state
E
D
A
mph
60mph
B
C
ADAS
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
MY23 Seltos FFG Inside March 2022.indd 19MY23 Seltos FFG Inside March 2022.indd 194/15/22 3:39 AM4/15/22 3:39 AM
Page 22 of 62
20†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
(Rear View Camera)
(Rear View Camera Display)P
R
N
DSHIFTL OCK
RELEASE
Rear View Monitor (RVM)†5
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the infotainment system screen while the vehicle is in R (Reverse)
Rear View Monitor activates when the:
1 Engine Start/Stop* button is in the ON (Red light) position
2
Gear Shift Lever is in the R (Reverse) position
When engaged, Rear View Monitor is not a substitute for proper and safe backing-up procedures Always drive safely and use caution when backing up The Rear View Monitor may not display ever y object behind the vehicle
The screen image above is for illustrative purposes only The actual image or graphics may differ in your vehicle
Refer to section 4 in the Owner ’s Manual for more information
REMINDERS:
•
Through normal use and after inclement weather or washing, the rear camera may become dir t y Use a clean, microfiber cloth to remove any dir t, debris or spots that may have accumulated on the lens
•While Rear View Monitor is active the volume will be lowered on all audio modes
ADAS
MY23 Seltos FFG Inside March 2022.indd 20MY23 Seltos FFG Inside March 2022.indd 204/15/22 3:39 AM4/15/22 3:39 AM
Page 23 of 62
21
Rear Cross-Traffic Collision Avoidance Assist (RCCA)*†5
Rear Cross-Traffic Collision-Avoidance Assist (RCCA), under certain conditions, is designed to warn the driver and may activate the Electronic Stability Control (ESC) and temporarily apply braking if it detects cross traffic approaching the vehicle, when vehicle is in reverse
When the RCCA rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A, RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B If RCCA detects that the collision risk has increased, RCCA automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision
RCCA is designed to operate under the following conditions:
•
When the gear shift is in Reverse
•When the vehicle is moving slower than 6 mph
RCCA Settings:
•RCCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings Press the OK button D up/down to toggle to Driver Assistance, then Parking Safety Select Rear Cross Traffic Safety and press the OK button D
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Parking Safety and select Rear Cross Traffic Safety
•RCCA Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
– Later: Reduces the amount of distance between the vehicles before the initial warning occurs
Refer to section 5 in the Owner ’s Manual for more information
RES
SET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISECRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
(Type A; Controls located on right side of Steering Wheel)
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Rear Cross-Traffic Collision Avoidance Assist (RCCA) Video
QR CODE
REMINDERS:
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, RCCA will show a warning
•
RCCA is a supplemental system Do not solely rely on this system and always pay at tention to the road and its conditions
•
Prolonged use of the audio control unit in ACC mode may drain the vehicle’s bat ter y
RCCA Warning Volume* can be adjusted in the User Set tings* in the Instrument Cluster or the Vehicle Set tings* on the infotainment system Go to Driver Assistance, then Warning Volume
QUICK TIP
C
D
A
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
B
MY23 Seltos FFG Inside March 2022.indd 21MY23 Seltos FFG Inside March 2022.indd 214/15/22 3:39 AM4/15/22 3:39 AM
Page 24 of 62
22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Hill-Start Assist Control (HAC)†7
HAC is designed to help prevent the vehicle from rolling backward when accelerating from a stop while on a steep incline HAC provides a 2-second delay before the vehicle may start rolling backward by keeping the brakes momentarily engaged even after you depress the accelerator
HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned OFF
(But tons located on left of Steering Wheel)
See section 5 in the Owner ’s Manual for more information
See section 4 in the Owner ’s Manual for more information
See section 5 in the Owner ’s Manual for more information
DRIVER’S PANEL
Instrument Cluster Control
With parking lights/headlights ON, toggle switch A up (+) or down (-) to adjust the brightness of the instrument panel illumination
Electronic Stability Control (ESC)†7
ESC is designed to help stabilize the vehicle during certain cornering maneuvers It is a good idea to keep the ESC turned ON for daily driving whenever possible
Press the ESC OFF button B to turn ESC OFF
•When HAC is active (e g , during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal operation
•HAC provides a t wo-second delay before the vehicle may star t rolling backward
QUICK TIPS
REMINDERS:
•
HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
•
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
•In the event of HAC system malfunction, see an Authorized Kia Dealer for ser vice
REMINDERS:
•
ESC is turned ON by default at vehicle star tup When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
REMINDER: This control does not adjust brightness on the infotainment system* screens Use the display set tings in the Setup menu to adjust the brightness on the screen
A
B
DRIVER’S PANEL
MY23 Seltos FFG Inside March 2022.indd 22MY23 Seltos FFG Inside March 2022.indd 224/15/22 3:39 AM4/15/22 3:39 AM
Page 25 of 62
23†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
DRIVER’S PANEL
ENGINESTART
STOP
(But ton located on right of Steering Wheel)
Refer to section 5 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Start/Stop Button Video
QR CODEEngine Start/Stop Button*†8
To start the engine:
1 Depress the brake pedal
2
Press the Engine Start/Stop button while in P (Park) or N (Neutral)
To turn the engine OFF, press the Engine Start/Stop button
To use the Engine Start/Stop button, you must have the Smart Key fob on your person or inside the vehicle
To use electrical accessories:
ACC position
•When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton once (amber light A)
On position
•When already in the ACC position (amber light A) and without depressing the brake pedal, press the Engine Star t/Stop but ton again (red light A)
When in the OFF position (no light) and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice (reddish-orange light A)
Keeping the vehicle in ACC or the ON position for extended periods of time without turning the engine on may discharge the vehicle’s bat ter y
QUICK TIPS
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the Engine Start/Stop button for more than 2 seconds or 3 times successively within 3 seconds
•
If Smar t Key fob bat ter y is dead, with the lock but ton facing the Engine Star t/Stop but ton, hold the fob up against the Engine Star t/Stop but ton and press and hold until the engine star ts
•
With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more dif ficult to control
A
DRIVER’S PANEL
MY23 Seltos FFG Inside March 2022.indd 23MY23 Seltos FFG Inside March 2022.indd 234/15/22 3:39 AM4/15/22 3:39 AM

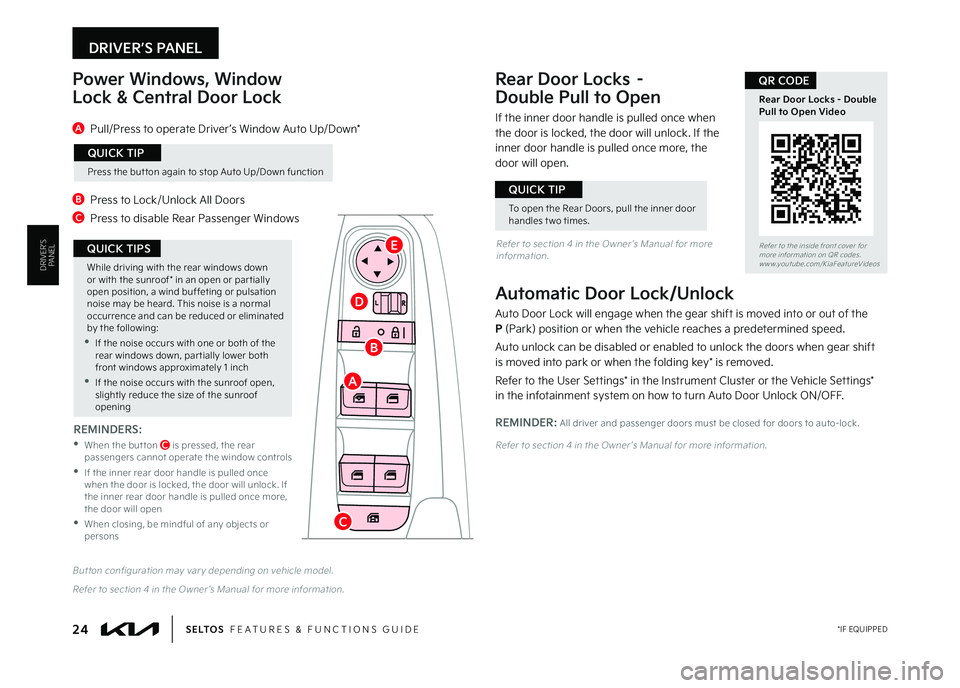

Page 26 of 62
24 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
DRIVER’S PANEL
Auto Door Lock will engage when the gear shift is moved into or out of the P (Park) position or when the vehicle reaches a predetermined speed
Auto unlock can be disabled or enabled to unlock the doors when gear shift is moved into park or when the folding key* is removed
Refer to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the infotainment system on how to turn Auto Door Unlock ON/OFF
REMINDER: All driver and passenger doors must be closed for doors to auto-lock
Refer to section 4 in the Owner ’s Manual for more information
But ton configuration may var y depending on vehicle model
Refer to section 4 in the Owner ’s Manual for more information
Power Windows, Window
Lock & Central Door Lock
A Pull/Press to operate Driver ’s Window Auto Up/Down*
B Press to Lock/Unlock All Doors
C Press to disable Rear Passenger Windows
Automatic Door Lock/Unlock
Rear Door Locks –
Double Pull to Open
If the inner door handle is pulled once when the door is locked, the door will unlock If the inner door handle is pulled once more, the door will open
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Rear Door Locks - Double Pull to Open Video
QR CODE
While driving with the rear windows down or with the sunroof* in an open or par tially open position, a wind buffeting or pulsation noise may be heard This noise is a normal occurrence and can be reduced or eliminated by the following:
•If the noise occurs with one or both of the rear windows down, par tially lower both front windows approximately 1 inch
•If the noise occurs with the sunroof open, slightly reduce the size of the sunroof opening
QUICK TIPS
Press the but ton again to stop Auto Up/Down function
QUICK TIP
To open the Rear Doors, pull the inner door handles t wo times
QUICK TIP
REMINDERS:
•
When the but ton C is pressed, the rear passengers cannot operate the window controls
•
If the inner rear door handle is pulled once when the door is locked, the door will unlock If the inner rear door handle is pulled once more, the door will open
•
When closing, be mindful of any objects or persons
A
B
C
D
ERefer to section 4 in the Owner ’s Manual for more information DRIVER’S PANEL
MY23 Seltos FFG Inside March 2022.indd 24MY23 Seltos FFG Inside March 2022.indd 244/15/22 3:39 AM4/15/22 3:39 AM
Page 27 of 62
25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
DRIVER’S PANEL
Do not adjust the steering wheel while driving as this may cause you to lose control of the vehicle
See section 4 in the Owner ’s Manual for more information
Tilt/Telescoping Steering Wheel†2 1
To adjust the Steering Wheel, press the lock-release lever C down and adjust to the desired angle D and then the distance E
When finished, pull the lock-release lever C up to lock Steering Wheel in place
Power Outside Mirrors
A Press the L or R buttons to select the mirror to adjust
B Press button arrows left/right or up/down to adjust mirror position
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window
Refer to section 4 in the Owner ’s Manual for more information
Images are for illustrative purposes only and may not reflect actual feature or operation
STEERING WHEEL CONTROLS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tilt/Telescoping/Heated Steering Wheel Video
QR CODE
If needed, pull the mirror firmly until it folds
QUICK TIP
It may be helpful to pull/push bot tom of Steering Wheel towards/away from you to adjust desired distance prior to adjusting the angle
QUICK TIP
A
B
C
D
E
Heated Outside Mirrors*
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF The Rear Window Defroster button* is located on climate control system panel
Refer to section 4 in the Owner ’s Manual for more information
Refer to section 4 in the Owner ’s Manual for more information
DRIVER’S PANEL
STEERING WHEEL CONTROLS
MY23 Seltos FFG Inside March 2022.indd 25MY23 Seltos FFG Inside March 2022.indd 254/15/22 3:39 AM4/15/22 3:39 AM
Page 28 of 62
26 *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
STEERING WHEEL CONTROLS
High Beam Assist is designed to automatically adjust the headlight range by switching between high and low beams based on light detected from other vehicles and road conditions
To enable HBA , toggle the light switch to the AUTO Light position and turn on the high beams by pushing the lever away from you The High Beam Assist indicator will illuminate
Headlight ON position
Parking light position
AUTOAuto Light / DRL / HBA
OFFLights OFF
AUTO
OF F
OFF
Refer to section 4 in the Owner ’s Manual for more information
Refer to section 4 in the Owner ’s Manual for more information
Headlights & High BeamsHigh Beam Assist (HBA)
To operate:
•Rotate lever switch to change the Headlight function
•Push lever to turn High Beams ON
•Pull lever to flash Headlights / High Beams
AUTO Light – When the light switch is in the AUTO Light position, the tail lights and headlights will turn ON/OFF automatically, depending on the amount of light outside the vehicle Turn Signals & Fog Lights*
To operate:
•Turn Signals - Move lever Up/Down for Right/Left Turn Signal
•Fog Lights - Press switch A up/down to turn Fog Lights ON/OFF
One-Touch Lane Change Signal is activated by briefly pressing the Turn Signal Lever up/down slightly for less than 1 second and then releasing The lane change signal will blink 3 times
To change how many times (3/5/7) the Lane Change Signal blinks, go to User Settings Mode* in the LCD Instrument Cluster modes
For illustrative purposes only Your actual display, but tons and/or features may var y
See section 4 in the Owner ’s Manual for more information
Daytime Running Lights (DRL)*
DRL may help others to see the front of your vehicle during the day The lights will be on automatically when the ignition or Engine Start/Stop button is ON and the headlight switch
is in the AUTO position, unless one of the following occurs:
•Headlights are on
•Parking brake is applied
•Fog lights are on
•Engine is turned off
•Switch is in the OFF position
REMINDERS:
•
HBA will operate when vehicle speed exceeds 25 mph
•
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously If the lever is pulled toward you while HBA is operational, HBA will turn off
•
If the light switch is switched to the headlight position, HBA will turn off and the low beams will be on continuously
•
High Beam Assist does not operate below cer tain speeds, or in some lighting and driving conditions Please be aware of your surroundings and exercise proper road etiquet te when operating a vehicle using the high beams
" 0 O F 5 P V D I - B O F $ I B O H F 4 J H O B MAREMINDER: DRL only operates during the day time
REMINDER: Headlights must be ON for fog light operation
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
High Beam Assist (HBA) Video
QR CODE
STEERING WHEEL CONTROLS
MY23 Seltos FFG Inside March 2022.indd 26MY23 Seltos FFG Inside March 2022.indd 264/15/22 3:39 AM4/15/22 3:39 AM
Page 29 of 62
27 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
LO and HI sets wiper speed No intermit tent wipe function is available on rear wipers
QUICK TIP
STEERING WHEEL CONTROLS
Windshield Wipers & Washers
Rear Wiper & Washer*
Front Wiper & Washer
To operate front wipers and washers:
•Move lever Up/Down to change Wiper modes
•Press INT switch A up/down to adjust Intermittent Wipe Speed
•Pull lever to spray and wipe
To operate rear wipers and washers:
•Rotate Rear Wiper switch to change Wiper modes
•Push lever to spray and wipe
PUSH
PULL
PUSH
PULL
QUIC K T IP
MIST: Single wipe
OFF: Wiper off
INT/AUTO: Intermittent Auto Wipe
LO: Slow Wiper Speed
HI: High Wiper Speed
See section 4 in the Owner ’s Manual for more information
PUSH
PULL
PUSH
PULL
QUIC K T IPHI: Continuous wipe
LO: Slow wipe
OFF: Wiper off
See section 4 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wipers and Wiper Stalk Video
QR CODE
•
Moving switch A up increases intermit tent wipe frequency and wipe speed Moving switch A down decreases frequency of wipes
•
Set the wiper to OFF position when the wiper is not in use
QUICK TIPS
A
STEERING WHEEL CONTROLS
MY23 Seltos FFG Inside March 2022.indd 27MY23 Seltos FFG Inside March 2022.indd 274/15/22 3:39 AM4/15/22 3:39 AM
Page 30 of 62
RESSET
CNCL+
–
CRUISE
OK
RESSET
CNCL+
–
CRUISE
OKRESSET
CNCL+
–
CRUISE
OK
RESSET+
–
CRUISE CRUISE CRUISE
OK
RES
SET+
–
CRUISE
OKRESSET+
–
CRUISE MODE
OK
RES
SET+
–OKRESSET+
–OK
MODE
A
Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system Press and hold to exit voice recognition
Kia Connect with Navigation* – When enrolled with a Kia Connect subscription, press this button to activate the Kia Connect Voice Assist to use navigation guidance and search destinations
B
Volume button: Press up/down to raise/lower speaker volume Mute button: Press to mute the microphone during a call and to mute the audio system speakers, or to pause Bluetooth® streaming media
C
Receive/Place Call button: Press to place/receive incoming calls Press to pair a phone (If no phone is paired)
D End Call button: Press to end a call, reject an incoming call or cancel a function
Bluetooth® Wireless Technology†4 , 1 8
For more information, refer to the Car Infotainment System Quick Reference Guide For Bluetooth® wireless technology FAQs, go to w w w kia com, Owners section
Your vehicle’s steering wheel but tons may differ from those in the illustrations See your Owner ’s Manual for more details
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
28†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDS E LT O S FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Steering Wheel Controls Video
QR CODE
•The system can register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•When using the voice command feature, wait for the system BEEP before speaking the command
•Phone book transfer upload time varies by phone model and with number of phone book entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
QUICK TIPS
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
A
B
CD
INFOTAINMENT SYSTEMS
INFOTAINMENT
SYSTEMS
MY23 Seltos FFG Inside March 2022.indd 28MY23 Seltos FFG Inside March 2022.indd 284/15/22 3:39 AM4/15/22 3:39 AM
