headrest KIA Sorento 2006 1.G Owner's Manual

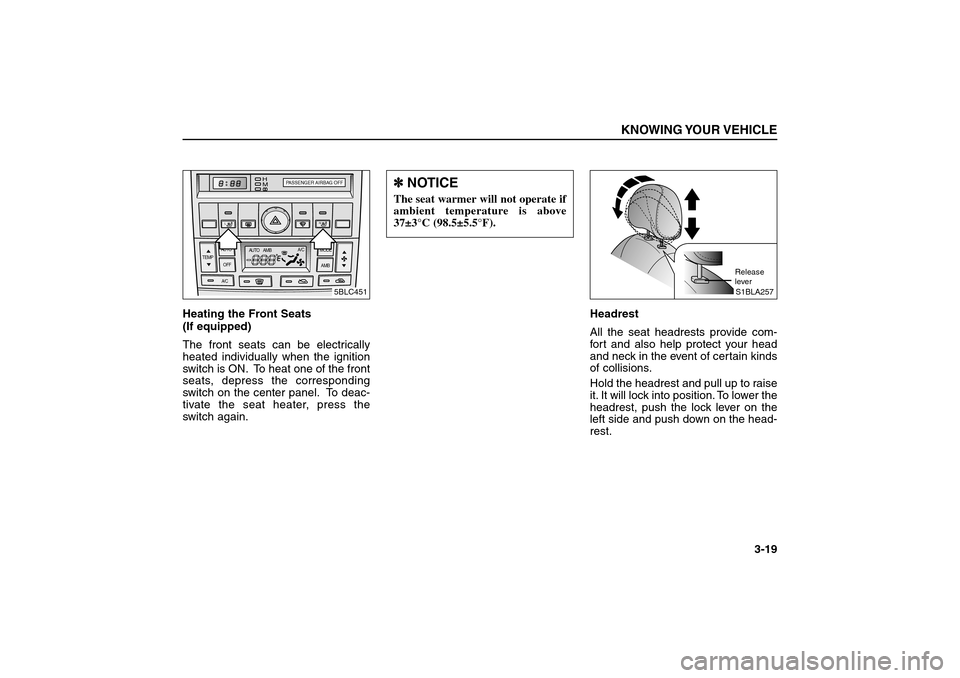

Heating the Front Seats
(If equipped)
The front seats can be electrically
heated individually when the ignition
switch is ON. To heat one of the front
seats, depress the corresponding
switch on the center panel. To deac-
tivate the seat heater, press the
switch again.Headrest
All the seat headrests provide com-
fort and also help protect your head
and neck in the event of certain kinds
of collisions.
Hold the headrest and pull up to raise
it. It will lock into position. To lower the
headrest, push the lock lever on the
left side and push down on the head-
rest.
KNOWING YOUR VEHICLE
3-19
AUTO
AUTO AMB
OFF TEMPMODE
AMB
A/C
A/C
L
R
H
M
PASSENGER AIRBAG OFF
5BLC451
S1BLA257Release
lever
✽ ✽
NOTICEThe seat warmer will not operate if
ambient temperature is above
37±3°C (98.5±5.5°F).
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 19

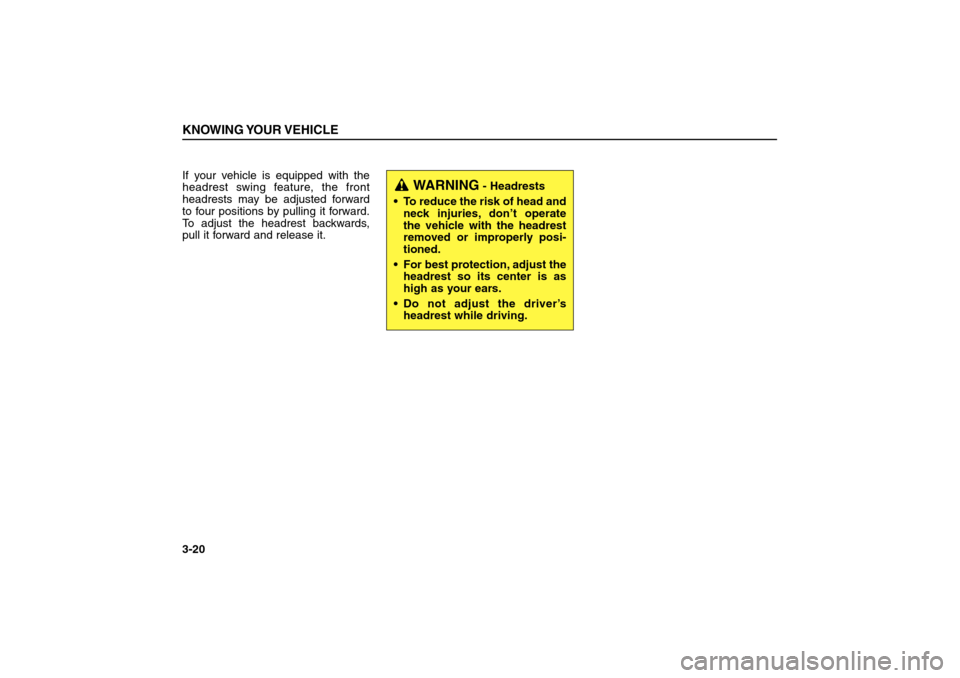

If your vehicle is equipped with the
headrest swing feature, the front
headrests may be adjusted forward
to four positions by pulling it forward.
To adjust the headrest backwards,
pull it forward and release it.KNOWING YOUR VEHICLE3-20
WARNING
- Headrests
 To reduce the risk of head and
neck injuries, don’t operate
the vehicle with the headrest
removed or improperly posi-
tioned.
 For best protection, adjust the
headrest so its center is as
high as your ears.
 Do not adjust the driver’s
headrest while driving.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 20

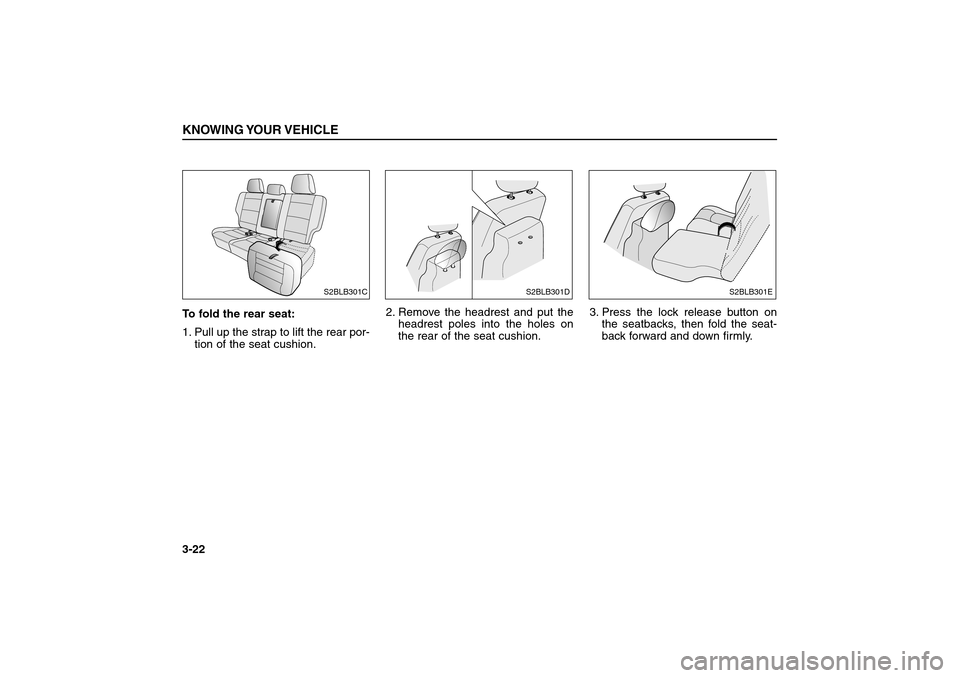

To fold the rear seat:
1. Pull up the strap to lift the rear por-
tion of the seat cushion.2. Remove the headrest and put the
headrest poles into the holes on
the rear of the seat cushion.3. Press the lock release button on
the seatbacks, then fold the seat-
back forward and down firmly.KNOWING YOUR VEHICLE3-22
S2BLB301C
S2BLB301D
S2BLB301E
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 22

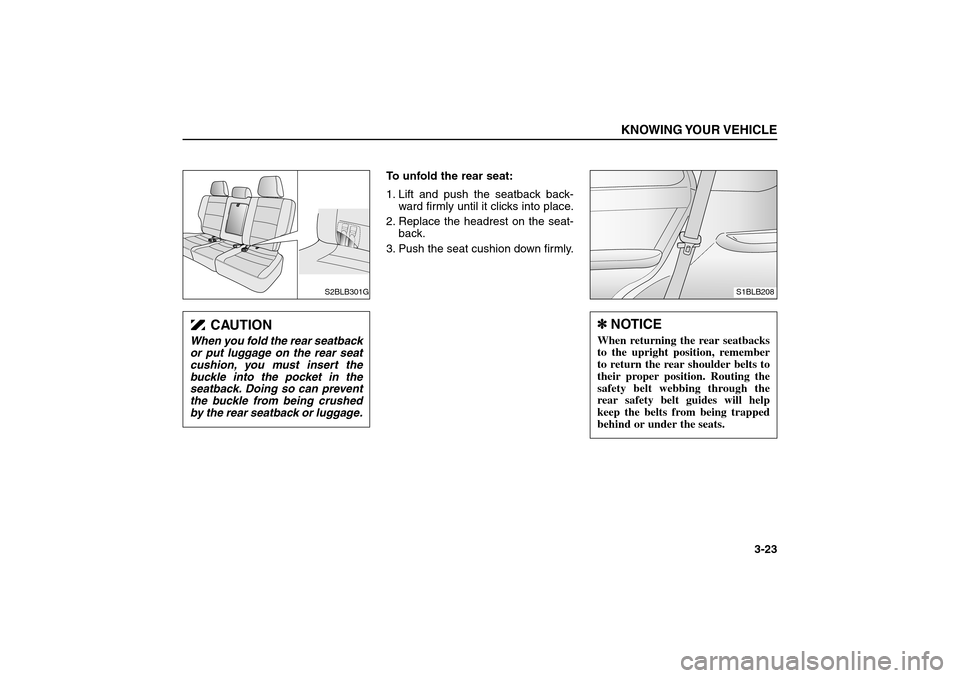

To unfold the rear seat:
1. Lift and push the seatback back-
ward firmly until it clicks into place.
2. Replace the headrest on the seat-
back.
3. Push the seat cushion down firmly.
KNOWING YOUR VEHICLE
3-23
S2BLB301G
S1BLB208
CAUTION
When you fold the rear seatback
or put luggage on the rear seat
cushion, you must insert the
buckle into the pocket in the
seatback. Doing so can prevent
the buckle from being crushed
by the rear seatback or luggage.
✽ ✽
NOTICEWhen returning the rear seatbacks
to the upright position, remember
to return the rear shoulder belts to
their proper position. Routing the
safety belt webbing through the
rear safety belt guides will help
keep the belts from being trapped
behind or under the seats.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 23
