KIA Sorento 2008 1.G Owner's Manual

83
Specifications
Tires
P225/75R16 7.0JJ x 16 210 (30)9~11
(65~79, 88~107)
P245/70R16 7.0JJ x 16 210 (30)9~11
(65~79, 88~107)
P245/65R17 7.0JJ x 17 210 (30)9~11
(65~79, 88~107)
T165/90R17 4.0T x 17 420 (60)9~11
(65~79, 88~107)
Full size tire
Compact
spare tireWheel lug nut torque
kg·m (lb·ft, N·m) Inflation pressure
kPa (psi) ItemTire sizeWheel size

Specifications
4 8

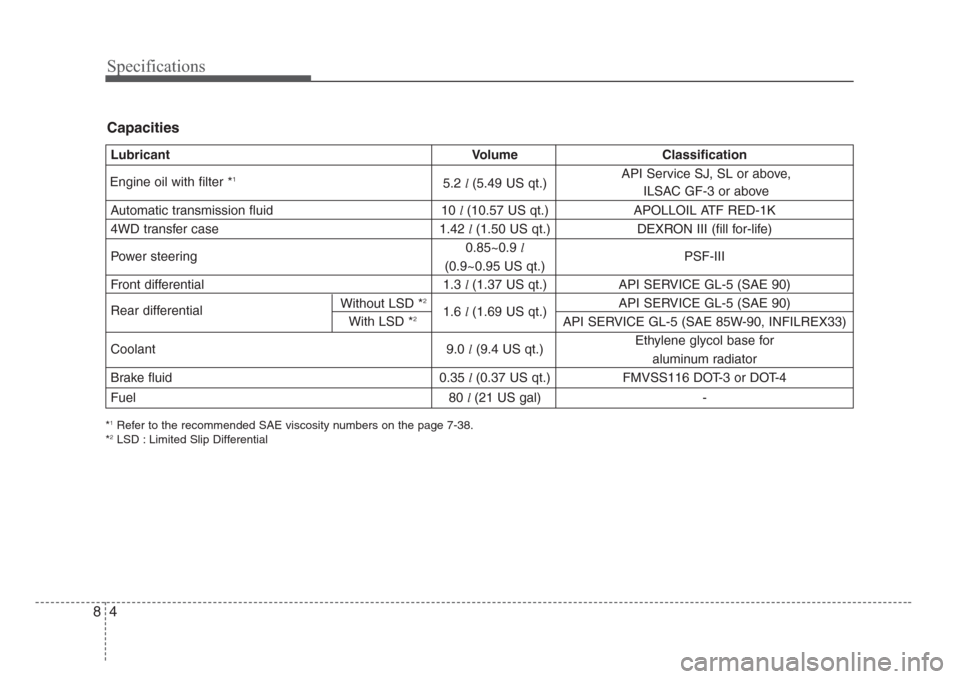

Capacities
*1Refer to the recommended SAE viscosity numbers on the page 7-38.
*2LSD : Limited Slip Differential
Lubricant Volume Classification
5.2l(5.49 US qt.)
Automatic transmission fluid 10 l(10.57 US qt.) APOLLOIL ATF RED-1K
4WD transfer case 1.42 l(1.50 US qt.) DEXRON III (fill for-life)
Power steering0.85~0.9l
PSF-III
(0.9~0.95 US qt.)
Front differential 1.3 l(1.37 US qt.) API SERVICE GL-5 (SAE 90)
Rear differentialAPI SERVICE GL-5 (SAE 90)
1.6l(1.69 US qt.)
API SERVICE GL-5 (SAE 85W-90, INFILREX33)
Coolant 9.0 l(9.4 US qt.)Ethylene glycol base for
aluminum radiator
Brake fluid 0.35 l(0.37 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel 80 l(21 US gal) -
Engine oil with filter *1
Without LSD *2
With LSD *2
API Service SJ, SL or above,
ILSAC GF-3 or above

9Index

Index
2 9
Air bags - advanced supplemental restraint
system ········································································3-47
Air cleaner ····································································7-19
Antenna ·········································································3-98
Audio remote control···················································3-99
Audio system ······························································3-100
Auto fuel cutoff switch ················································3-74
Automatic climate control system ······························4-66
Automatic transmission ········································4-5,7-16
Battery···········································································7-22
Before driving·································································5-5
Brake fluid ····································································7-14
Brake system ································································4-20
Climate control air filter ·············································7-20
Cruise control system ··················································4-27
Defroster ·······································································4-57
Door locks ·······································································3-7Electrical circuit protection ··········································6-7
Electronic stability control ··········································4-30
Emergency starting························································6-4
Emission control system ················································5-3
Engine compartment ·············································2-3,7-10
Engine cooling system ·················································7-12
Engine oil ······································································7-11
Exterior care·································································7-39
Four wheel drive (4WD)··············································4-10
Fuel filler lid ·································································3-71
Fuel requirements ··························································5-2
Gauges ···········································································4-37
Hazard warning flasher ··············································4-58
Homelink® wireless control system ···························3-78
Hood ··············································································3-69
How to use this manual ·················································1-2
A
B
C
D
E
F
G
H

93
Index
If you have a flat tire ···················································6-19
Ignition switch ································································4-2
Immobilizer system ························································3-5
Instrument cluster ·······················································4-36
Instrument panel overview ···········································2-2
Interior care··································································7-42
Interior features ···························································3-86
Interior lights ·······························································3-82
Keys ·················································································3-2
Label information ························································5-39
Lighting·········································································4-51
Limited slip differential···············································4-19
Lubricant specifications ··············································7-37
Lubricants and fluids ··················································7-18
Luggage center box ······················································3-96
Luggage net ··································································3-94
Maintenance schedule Owner maintenance ················7-7
Maintenance services ·····················································7-2
Manual climate control system···································4-59
Mirrors ··········································································3-74Multi-meter···································································4-45
Overheating····································································6-3
Power steering······························································7-15
Rear parking assist system··········································4-33
Remote keyless entry ·····················································3-3
Road warning·································································6-2
Roof rack ······································································3-96
Safety belts····································································3-25
Seat ················································································3-15
Special driving conditions ·············································5-7
Specifications ··································································8-2
Starting the engine ·························································4-4
Steering wheel·······························································4-25
Storage compartment ··················································3-83
Suggestions for economical operation··························5-6
Sunroof ··········································································3-91
K
L
M
I
O
P
R
S

Index
4 9
Tires and wheels···························································7-25
Tonneau cover ······························································3-95
Towing···········································································6-14
Trailer towing·······························································5-31
Using four-wheel drive ················································5-11
Vehicle break-in process ················································1-3
Vehicle handling instructions········································1-3
Vehicle load limit··························································5-25
Warnings and indicators ·············································4-39
We ight of the vehicle ···················································5-29
Window ·········································································3-13
Windshield defrosting and defogging························4-75
Wiper blades·································································7-20
Wipers and washers·····················································4-54
V
W
U
T
