sensor KIA SORENTO 2010 Owner's Manual

What to do in an emergency
24
6

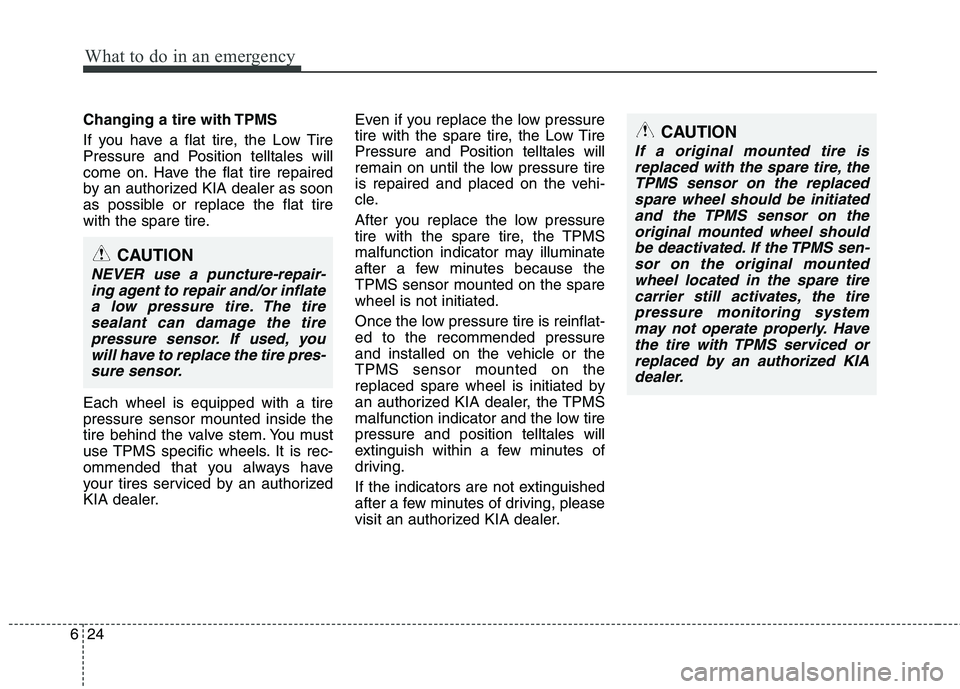

Changing a tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will
come on. Have the flat tire repaired
by an authorized KIA dealer as soon
as possible or replace the flat tire
with the spare tire. Each wheel is equipped with a tire pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is rec-
ommended that you always have
your tires serviced by an authorized
KIA dealer. Even if you replace the low pressure
tire with the spare tire, the Low Tire
Pressure and Position telltales will
remain on until the low pressure tire
is repaired and placed on the vehi-
cle.
After you replace the low pressure
tire with the spare tire, the TPMS
malfunction indicator may illuminate
after a few minutes because theTPMS sensor mounted on the sparewheel is not initiated.
Once the low pressure tire is reinflat- ed to the recommended pressure
and installed on the vehicle or theTPMS sensor mounted on the
replaced spare wheel is initiated by
an authorized KIA dealer, the TPMS
malfunction indicator and the low tirepressure and position telltales will
extinguish within a few minutes of
driving.
If the indicators are not extinguished
after a few minutes of driving, please
visit an authorized KIA dealer.CAUTION
If a original mounted tire is
replaced with the spare tire, theTPMS sensor on the replaced spare wheel should be initiatedand the TPMS sensor on theoriginal mounted wheel shouldbe deactivated. If the TPMS sen- sor on the original mountedwheel located in the spare tirecarrier still activates, the tire pressure monitoring systemmay not operate properly. Havethe tire with TPMS serviced or replaced by an authorized KIAdealer.
CAUTION
NEVER use a puncture-repair-ing agent to repair and/or inflatea low pressure tire. The tire sealant can damage the tirepressure sensor. If used, youwill have to replace the tire pres- sure sensor.

733
Maintenance

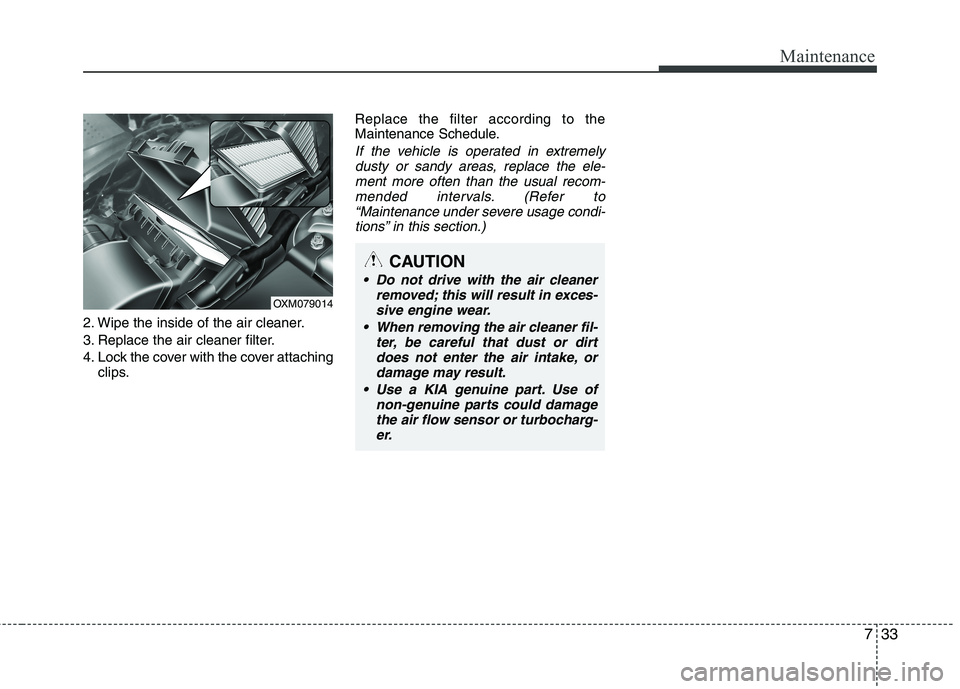

2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover attachingclips. Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-ment more often than the usual recom-
mended intervals. (Refer to“Maintenance under severe usage condi-tions” in this section.)
OXM079014
CAUTION
Do not drive with the air cleaner removed; this will result in exces-sive engine wear.
When removing the air cleaner fil- ter, be careful that dust or dirt
does not enter the air intake, ordamage may result.
Use a KIA genuine part. Use of non-genuine parts could damagethe air flow sensor or turbocharg-
er.

Maintenance
56
7

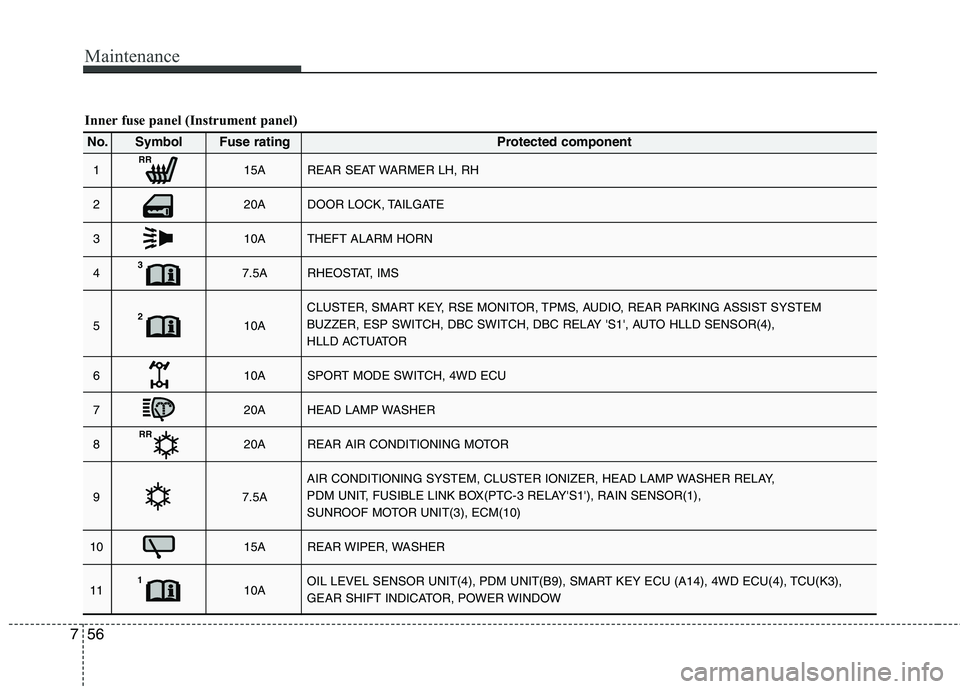

Inner fuse panel (Instrument panel)
1 15A REAR SEAT WARMER LH, RH
2 20A DOOR LOCK, TAILGATE
3 10A THEFT ALARM HORN
4 7.5A RHEOSTAT, IMS
5 10A CLUSTER, SMART KEY, RSE MONITOR, TPMS, AUDIO, REAR PARKING ASSIST SYSTEM
BUZZER, ESP SWITCH, DBC SWITCH, DBC RELAY 'S1', AUTO HLLD SENSOR(4),
HLLD ACTUATOR
6 10A SPORT MODE SWITCH, 4WD ECU
7 20A HEAD LAMP WASHER
8 20A REAR AIR CONDITIONING MOTOR
9 7.5A AIR CONDITIONING SYSTEM, CLUSTER IONIZER, HEAD LAMP WASHER RELAY,
PDM UNIT, FUSIBLE LINK BOX(PTC-3 RELAY'S1'), RAIN SENSOR(1),
SUNROOF MOTOR UNIT(3), ECM(10)
10 15A REAR WIPER, WASHER
11 10A OIL LEVEL SENSOR UNIT(4), PDM UNIT(B9), SMART KEY ECU (A14), 4WD ECU(4), TCU(K3),
GEAR SHIFT INDICATOR, POWER WINDOW
No. Symbol Fuse rating Protected component
RR
3
2
RR
1

759
Maintenance

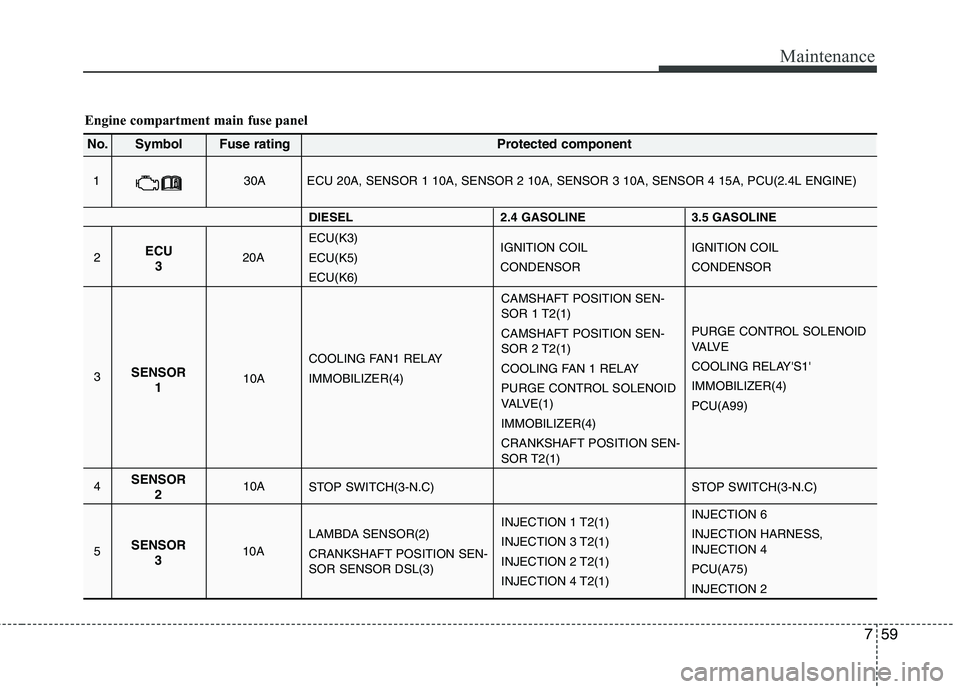

Engine compartment main fuse panel
1 30A ECU 20A, SENSOR 1 10A, SENSOR 2 10A, SENSOR 3 10A, SENSOR 4 15A, PCU(2.4L ENGINE)20A
2
10A
3
10A
4 ECU(K3) ECU(K5) ECU(K6)
IGNITION COILCONDENSOR
IGNITION COILCONDENSOR
COOLING FAN1 RELAY IMMOBILIZER(4) CAMSHAFT POSITION SEN-
SOR 1 T2(1) CAMSHAFT POSITION SEN-
SOR 2 T2(1)
COOLING FAN 1 RELAY
PURGE CONTROL SOLENOID
VALVE(1) IMMOBILIZER(4) CRANKSHAFT POSITION SEN- SOR T2(1)PURGE CONTROL SOLENOID
VALVE
COOLING RELAY'S1' IMMOBILIZER(4) PCU(A99)
STOP SWITCH(3-N.C) STOP SWITCH(3-N.C)
10A
5 LAMBDA SENSOR(2) CRANKSHAFT POSITION SEN- SOR SENSOR DSL(3)INJECTION 1 T2(1)
INJECTION 3 T2(1)
INJECTION 2 T2(1)
INJECTION 4 T2(1)INJECTION 6
INJECTION HARNESS, INJECTION 4 PCU(A75) INJECTION 2
No. Symbol Fuse rating Protected component
DIESEL 2.4 GASOLINE 3.5 GASOLINE
ECU
3
SENSO
R1
SENSO
R2
SENSO
R3

Maintenance
60
7

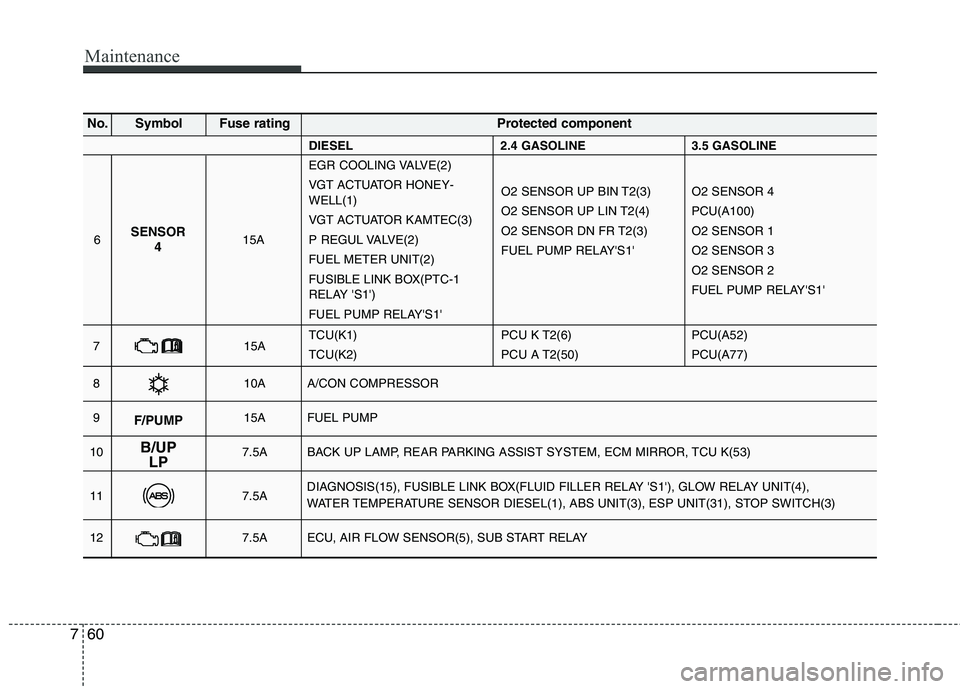

No. Symbol Fuse rating Protected component
8 10A A/CON COMPRESSOR
9 15A FUEL PUMP
10 7.5A BACK UP LAMP, REAR PARKING ASSIST SYSTEM, ECM MIRROR, TCU K(53)
11 7.5A DIAGNOSIS(15), FUSIBLE LINK BOX(FLUID FILLER RELAY 'S1'), GLOW RELAY UNIT(4),
WATER TEMPERATURE SENSOR DIESEL(1), ABS UNIT(3), ESP UNIT(31), STOP SWITCH(3)
12 7.5A ECU, AIR FLOW SENSOR(5), SUB START RELAY
No. Symbol Fuse rating Protected component
15A
6 DIESEL 2.4 GASOLINE 3.5 GASOLINE
EGR COOLING VALVE(2)
VGT ACTUATOR HONEY- WELL(1)
VGT ACTUATOR KAMTEC(3)
P REGUL VALVE(2) FUEL METER UNIT(2)
FUSIBLE LINK BOX(PTC-1
RELAY 'S1')
FUEL PUMP RELAY'S1'O2 SENSOR UP BIN T2(3)
O2 SENSOR UP LIN T2(4)
O2 SENSOR DN FR T2(3)
FUEL PUMP RELAY'S1'
O2 SENSOR 4 PCU(A100) O2 SENSOR 1 O2 SENSOR 3 O2 SENSOR 2
FUEL PUMP RELAY'S1'
7 15A TCU(K1) TCU(K2)PCU K T2(6)
PCU A T2(50)
PCU(A52) PCU(A77)SENSOR4
F/PUMP
B/UP
LP

761
Maintenance

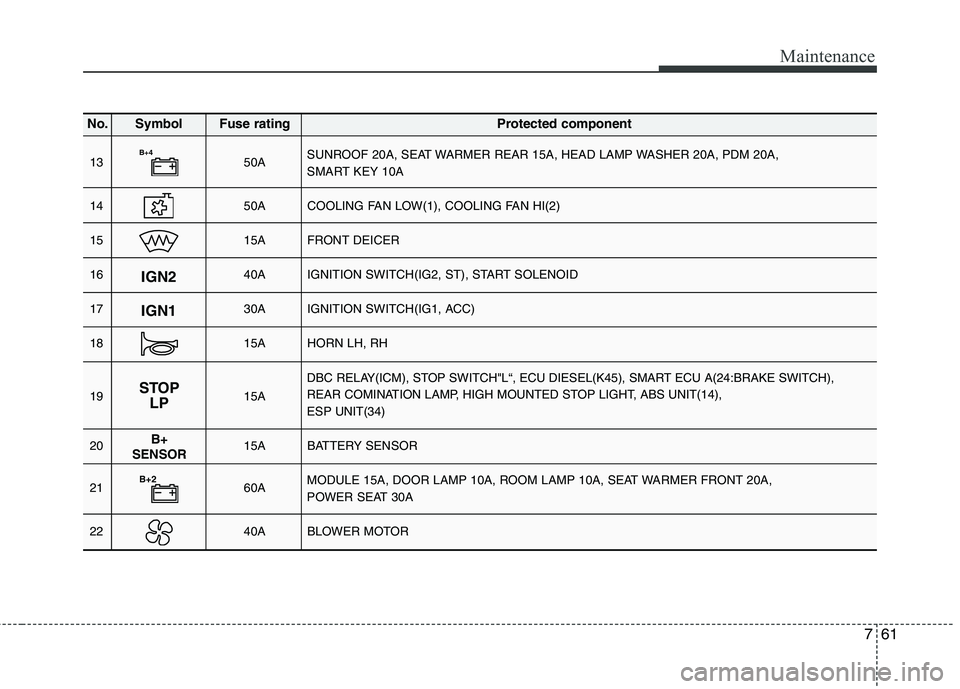

13 50ASUNROOF 20A, SEAT WARMER REAR 15A, HEAD LAMP WASHER 20A, PDM 20A,
SMART KEY 10A
14 50A COOLING FAN LOW(1), COOLING FAN HI(2)
15 15A FRONT DEICER
16 40A IGNITION SWITCH(IG2, ST), START SOLENOID
17 30A IGNITION SWITCH(IG1, ACC)
18 15A HORN LH, RH
19 15A DBC RELAY(ICM), STOP SWITCH"L“, ECU DIESEL(K45), SMART ECU A(24:BRAKE SWITCH),
REAR COMINATION LAMP, HIGH MOUNTED STOP LIGHT, ABS UNIT(14), ESP UNIT(34)
20 15A BATTERY SENSOR
21 60A MODULE 15A, DOOR LAMP 10A, ROOM LAMP 10A, SEAT WARMER FRONT 20A,
POWER SEAT 30A
22 40A BLOWER MOTOR
No. Symbol Fuse rating Protected component
B+4
IGN2
IGN1
STOP LP
B+
SENSO
R
B+2
