Introduction
A090000AENAs with other vehicles of this type, failure
to operate this vehicle correctly may
result in loss of control, an accident or
vehicle rollover.
Specific design characteristics (higher
ground clearance, track, etc.) give this
vehicle a higher center of gravity than
other types of vehicles. In other words
they are not designed for cornering at the
same speeds as conventional 2-wheel
drive vehicles. Avoid sharp turns or
abrupt maneuvers. Again, failure to oper-
ate this vehicle correctly may result in
loss of control, an accident or vehicle
rollover.Be sure to read the “Reducing
the risk of a rollover” driving guide-
lines, in section 5 of this manual.
A030000AUNNo special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
 Do not race the engine.
 While driving, keep your engine speed (rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
 Do not maintain a single speed for long periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
 Avoid hard stops, except in emergen- cies, to allow the brakes to seat prop-
erly.
 Don't let the engine idle longer than 3 minutes at one time.
 Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.VEHICLE BREAK-IN PROCESS
VEHICLE HANDLING
INSTRUCTIONS
XM CAN (ENG) 1.QXP 11/26/2009 11:33 AM Page 5

Introduction61INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat Belt Warning LightTurn Signal IndicatorABS Warning Light*
Parking Brake & Brake Fluid
Warning LightMalfunction Indicator*Immobilizer Indicator* Low Fuel Level Warning Light* if equipped
Tailgate Open Warning Light
❈ For more detailed explanations, refer to “Instrument cluster” in section 4.Charging System Warning Light
Door Ajar Warning Light
A050000AX-EC
Front Fog Light Indicator*
Engine Oil Pressure Warning LightAir Bag Warning Light*Shift Pattern Indicator
ESC Indicator*ESC OFF Indicator*
Cruise Indicator*
4WD system warning light*
4WD LOCK indicator*
DBC indicator*Low windshield washer fluid level
warning light*
Key out warning light*
KEY
OUTECO
ECOMINDER
TM indicator*
Cruise SET Indicator*
High Beam Indicator
XM CAN (ENG) 1.QXP 11/26/2009 11:33 AM Page 6

23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-44
2. Lighting controls / Turn signals.........4-63
3. Steering wheel audio controls* ......4-102
4. Horn .................................................4-35
5. Driver’s front air bag .........................3-51
6. Cruise controls* ................................5-39
7. Wiper/Washer switch ........................4-68
8. Ignition switch* orENGINE START/STOP button* ...5-4, 5-7
9. Digital clock ......................................4-98
10. Audio* ...........................................4-102
11. Hazard warning flasher ...........4-62, 6-2
12. Climate control system* ........4-74, 4-83
13. Seat heater switch* ..........................3-9
14. Power outlet* ..................................4-97
15. AUX, USB and iPod port*.............4-103
16. Shift lever ..............................5-12, 5-15
17. Parking brake pedal* ......................5-28
18. Brake pedal ....................................5-27
19. Accelerator pedal .............................5-5
20. Passenger’s front air bag* ..............3-51
21. Glove box .......................................4-94
* : if equipped
OXM019002N
❈ The actual instrument panel in the vehicle may differ from the illustration
XM CAN (ENG) 2.QXP 11/26/2009 11:35 AM Page 3

Your vehicle at a glance42ENGINE COMPARTMENTB030000AUN-C1
OXM079001N
❈The actual engine compartment in the vehicle may differ from the illustration. 1. Engine Coolant Reservoir ................7-15
2. Windshield Washer Fluid Reservoir....7-20
3. Power Steering Fluid Reservoir*
......7-19
4. Radiator Cap ....................................7-17
5. Engine Oil Filler Cap ........................7-14
6. Engine Oil Dipstick ...........................7-14
7. Brake/Clutch* Fluid Reservoir ..........7-18
8. Air Cleaner .......................................7-21
9. Fuse Box ..........................................7-45
10. Negative Battery Terminal ..............7-29
11. Positive Battery Terminal ................7-29
* if equipped
XM CAN (ENG) 2.QXP 11/26/2009 11:36 AM Page 4

315

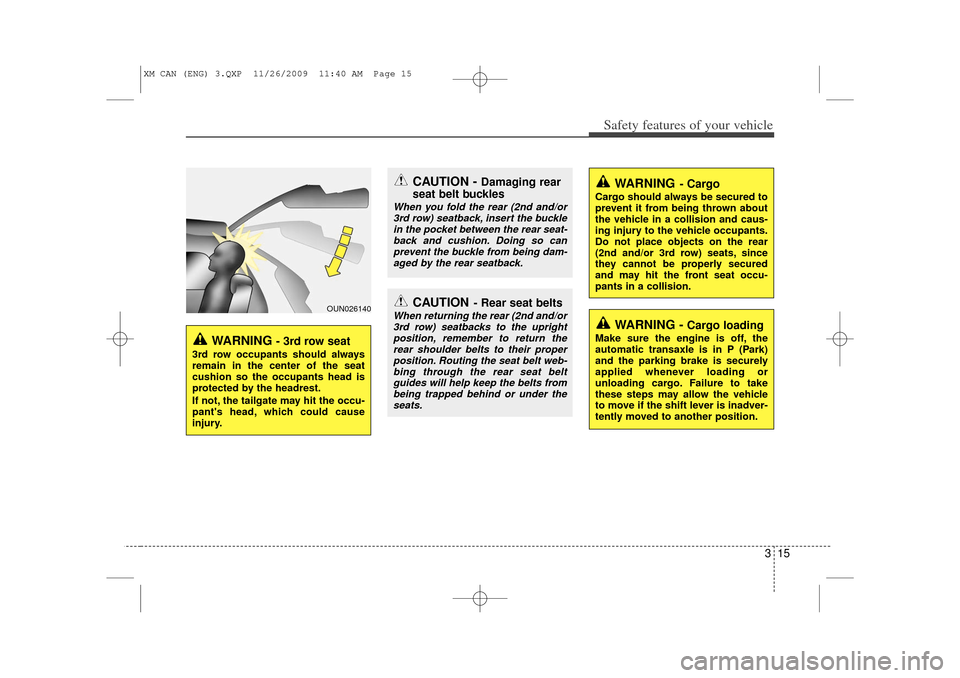

Safety features of your vehicle
OUN026140
WARNING
- 3rd row seat
3rd row occupants should always
remain in the center of the seat
cushion so the occupants head is
protected by the headrest.
If not, the tailgate may hit the occu-
pant's head, which could cause
injury.
CAUTION
- Rear seat belts
When returning the rear (2nd and/or3rd row) seatbacks to the upright position, remember to return therear shoulder belts to their proper position. Routing the seat belt web-bing through the rear seat belt guides will help keep the belts frombeing trapped behind or under the seats.
CAUTION -
Damaging rear
seat belt buckles
When you fold the rear (2nd and/or
3rd row) seatback, insert the bucklein the pocket between the rear seat- back and cushion. Doing so canprevent the buckle from being dam- aged by the rear seatback.
WARNING -
Cargo loading
Make sure the engine is off, the
automatic transaxle is in P (Park)
and the parking brake is securely
applied whenever loading or
unloading cargo. Failure to take
these steps may allow the vehicle
to move if the shift lever is inadver-
tently moved to another position.
WARNING
- Cargo
Cargo should always be secured to
prevent it from being thrown about
the vehicle in a collision and caus-
ing injury to the vehicle occupants.
Do not place objects on the rear
(2nd and/or 3rd row) seats, since
they cannot be properly secured
and may hit the front seat occu-
pants in a collision.
XM CAN (ENG) 3.QXP 11/26/2009 11:40 AM Page 15

Safety features of your vehicle62
3 Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
“ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this "under-ride" situation
because deceleration forces that are
detected by sensors may be signifi-
cantly reduced by such “under-ride”
collisions.  Front air bags may not inflate in
rollover accidents because front air
bag deployment would not provide
additional occupant protection.
However, if equipped with side impact
and curtain air bags, the air bags may
inflate in a rollover, when it is detected
by the rollover sensor.  Air bags may not inflate if the vehicle
collides with objects such as utility
poles or trees, where the point of
impact is concentrated to one area and
the full force of the impact is not deliv-
ered to the sensors.
1VQA2090
1VQA2091
1VQA2092
XM CAN (ENG) 3.QXP 11/26/2009 11:43 AM Page 62

415
Features of your vehicle
D050100AAM-EUOperating door locks from out-
side the vehicle  Turn the key clockwise to unlock andcounterclockwise to lock.
 If you lock the driver’s door with a key, all vehicle doors will lock automatically.
 From the driver’s door, turn the key to the right once to unlock the door and
once more within 4 seconds to unlock
all doors.  Doors can also be locked and
unlocked with the transmitter.
 Once the doors are unlocked, they may be opened by pulling the door handle.
 When closing the door, push the door by hand. Make sure the doors are
closed securely.
✽ ✽ NOTICE• In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked multi- ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operating
temporarily in order to protect the
circuit and prevent damage to system
components.
 To lock a door without the key, push the
inside door lock button (1) or central
door lock switch (2 ) to the “Lock” posi-
tion and close the door (3).
 If you lock the door with the central door lock switch (2), all vehicle doors
will lock automatically.✽ ✽ NOTICEAlways remove the ignition key, engage
the parking brake, close all windows
and lock all doors when leaving your
vehicle unattended.
DOOR LOCKS
OHM048002L
Lock
Unlock
OXM049006
XM CAN (ENG) 4(~101).QXP 4/14/2010 10:38 AM Page 15

417
Features of your vehicle
D050202AAM-EUWith central door lock switchOperate by pressing the central door lock
switch.
 When pressing the front portion (1) ofthe switch, all vehicle doors will lock.
 When pressing the rear portion (2) of the switch, all vehicle doors will unlock.  If the key is in the ignition switch and
any front door is opened, the doors will
not lock even though the front portion
(1) of the central door lock switch is
pressed.
WARNING
- Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING
- Unattendedchildren
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING -
Doors
 The doors should always be fully
closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows down.
 Be careful when opening doors and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.
OXM049008
Driver’s door
OXM049009
Passenger’s door
XM CAN (ENG) 4(~101).QXP 4/14/2010 10:38 AM Page 17

451
Features of your vehicle
D150300AAMWarnings and indicatorsAll warning lights are checked by turning
the ignition switch ON (do not start the
engine). Any light that does not illuminate
should be checked by an authorized KIA
dealer.
After starting the engine, check to make
sure that all warning lights are off. If any
warning lights are still on, this indicates a
situation that needs attention. When
releasing the parking brake, the brake
system warning light should go off. The
fuel warning light will stay on if the fuel
level is low.
D150301AXM-EUECOMINDER
TMindicator
(if equipped)
The ECOMINDER
TMindicator is a system
that illuminates "ECO" when the driver
has reached optimum fuel efficiency.
 The ECOMINDERTM
indicator will turn
the ECO light green on the instrument
panel when you are driving fuel effi-
ciently in the ECO ON mode.
If you don't want the indicator dis-
played, you can turn the ECO ON
mode to OFF mode by pressing the
TRIP button.
For ECO ON/OFF Mode operation,
please refer to the previous page.
 Fuel efficient driving can be influenced by driving habits and road conditions.
 The indicator will not display while in P (Park), N (Neutral) or R (Reverse).
ECO
ECOMINDER
TMWARNING
Don't keep watching the “ECO”
ECOMINDER
TM indicator while driv-
ing. It may distract you while driv-
ing and cause an accident that
could result in severe personal
injury.
XM CAN (ENG) 4(~101).QXP 4/14/2010 10:41 AM Page 51

Features of your vehicle52
4D150302AUNAir bag warning lightThis warning light will illuminate for
approximately 6 seconds each time you
turn the ignition switch to the ON posi-
tion.
This light also comes on when the
Supplemental Restraint System (SRS) is
not working properly. If the AIR BAG
warning light does not come on, or con-
tinuously remains on after operating for
about 6 seconds when you turned the
ignition switch to the ON position or start-
ed the engine, or if it comes on while
driving, have the SRS inspected by an
authorized KIA dealer.
D150303AHM-U1Anti-lock brake system
(ABS) warning lightThis warning light illuminates if the igni-
tion switch is turned ON and goes off in
approximately 3 seconds if the system is
operating normally.
If the ABS warning light remains on,
comes on while driving, or does not
come on when the ignition switch is
turned to the ON position, this indicates
that the ABS may have malfunctioned.
If this occurs, have your vehicle checked
by an authorized KIA dealer as soon as
possible. The normal braking system will
still be operational, but without the assis-
tance of the anti-lock brake system. Electronic brake
force distribution
(EBD) system
warning light
If these two warning lights illuminate at
the same time while driving, the ABS and
EBD system may have malfunctioned.
In this case, your ABS and regular brake
system may not work normally. Have the
vehicle checked by an authorized KIA
dealer as soon as possible.
✽ ✽
NOTICEIf the ABS warning light or EBD warn-
ing light is on and stays on, the
speedometer or odometer/tripmeter
may not work. In this case, have your
vehicle checked by an authorized KIA
dealer as soon as possible.
WARNING
If both ABS and brake warning
lights are on and stay on, your vehi-
cle’s brake system will not work
normally during sudden braking. In
this case, avoid high speed driving
and abrupt braking. Have your vehi-
cle checked by an authorized KIA
dealer as soon as possible.
XM CAN (ENG) 4(~101).QXP 4/14/2010 10:41 AM Page 52
