Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-7
Vehicle certification label / 8-7
Tire specification and pressure label / 8-8
Engine number / 8-8
Specifications & Consumer information
8
XM CAN (ENG) 8.QXP 4/19/2011 10:58 AM Page 1

Specifications & Consumer information28DIMENSIONSBULB WATTAGEI010000AXM-EU
I030000AXM-EU
Light BulbWattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights / Position lights 28/8
Side turn signal* LED
Front fog lights* 27
Stop and tail lights 28/8
Tail lights 8 *
1
Rear turn signal lights 27
Back-up lights 16
High mounted stop light LED
License plate lights 5
Map lamps* 6
Room lamps 8 or 10
Luggage lamp* 10
Vanity mirror lamps* 5
Door mood lamps* LED* If equipped
*1Can use 28/8
Itemmm (in)
Overall length 4670 (183.9)
Overall width 1885 (74.2)
2.4 MPI 1710 (67.3)/1745 (68.7)*
1/
Overall height 1755 (69.1)*
2
2.4 GDI/ 1700 (66.9)/1735 (68.3)*
1/
3.5 MPI 1745 (68.7)*
2
Front tread 1618 (63.7)
Rear tread 1621 (63.8)
Wheelbase 2700 (106.3)*1with roof rack
*2with sunroof and roof rack
XM CAN (ENG) 8.QXP 4/19/2011 10:58 AM Page 2

83
Specifications & Consumer information
TIRES AND WHEELSI020000AXM-EU
FrontRear
P235/65R17 7.0J×17 230230
P235/60R18 7.0J×18 (33)(33)
420 420
T165/90R17 4.0T×17 (60)(60)
Full size tire
Compact spare tire (if equipped) Wheel lug nut torque
kg•m (lbft, Nm)
9~11
(65~79, 88~107)
Item
Tire
size Wheel sizeCAUTION
When replacing tires, use the same
size originally supplied with the vehicle.
Using tires of a different size candamage the related parts or make itwork irregularly.
Cold tire inflation pressure
kPa (psi)
XM CAN (ENG) 8.QXP 4/19/2011 10:58 AM Page 3

Specifications & Consumer information48RECOMMENDED LUBRICANTS AND CAPACITIESThese lubricants and fluids are recommended for use in your vehicle.LubricantVolume Classification
2.4 Engine 4.6 l (4.86 US qt.) API Service SM*
3,
3.5 Engine 5.2 l (5.49 US qt.) ILSAC GF-4 or above
Manual transaxle fluid 2.4 Engine 1.8 l(1.90 US qt.) API GL-4, SAE 75W/85
2.4 Engine 7.1 l (7.50 US qt.) MICHANG ATF SP-IV
Automatic transaxle fluid SK ATF SP-IV
3.5 Engine 7.8 l (8.24 US qt.) NOCA ATF SP-IV
KIA genuine ATF SP-IV
Power steering 1.0 l (1.06 US qt.) PSF-3
2.4 Engine MT 6.5
l (6.87 US qt.)
Mixture of antifreeze and distilled water
Coolant AT 6.6 l (6.97 US qt.)
(Ethylene glycol base coolant for aluminum radiator)
3.5 Engine AT 8.6 l (9.09 US qt.)
Engine oil
*1 *2
(drain and refill)To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
XM CAN (ENG) 8.QXP 4/19/2011 10:58 AM Page 4

85
Specifications & Consumer information
LubricantVolume Classification
Brake fluid 0.7~0.8 l (0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD) 0.7 l(0.74 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil 2.4 Engine0.6 l(0.63 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(4WD) 3.5 Engine0.7 l(0.74 US qt.) (SHELL SPIRAX X or equivalent)
Fuel 68 l (17.96 US gal.) Refer to “Fuel requirements” in section 1*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3If the API service SM engine oil is not available in your country, you are able to use API service SL.
MT : Manual transaxle
AT : Automatic transaxle
XM CAN (ENG) 8.QXP 4/19/2011 10:58 AM Page 5

Specifications & Consumer information68I040000AAM-EURecommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especially important in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1°C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
10W-30
5W-20 (5W-30)
XM CAN (ENG) 8.QXP 4/19/2011 10:58 AM Page 6

87
Specifications & Consumer information
H010000AXMThe vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the front passenger seat. To check
the number, open the carpet flap.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
H020000AUN The vehicle certification label attached
on the driver’s side center pillar gives the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OCM056002
VEHICLE CERTIFICATION
LABEL
OEN086004N
OXM089001
VIN Label (if equipped)
Frame Number
XM CAN (ENG) 8.QXP 4/19/2011 10:59 AM Page 7

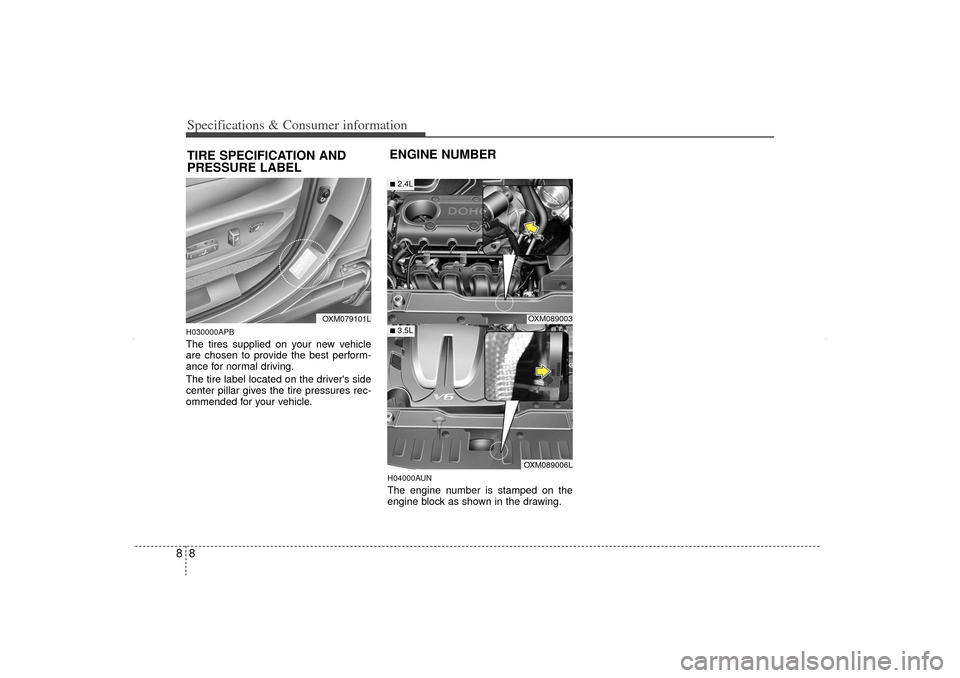

Specifications & Consumer information88H030000APBThe tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.
H04000AUNThe engine number is stamped on the
engine block as shown in the drawing.ENGINE NUMBER
OXM079101L
TIRE SPECIFICATION AND
PRESSURE LABEL
OXM089003
■2.4L■3.5L
OXM089006L
XM CAN (ENG) 8.QXP 4/19/2011 10:59 AM Page 8
