check engine light KIA SORENTO 2014 Features and Functions Guide

Active ECO System* 05
Air Conditioning / Climate Control 22
Audio System - Standard* 16
Audio System - Navigation System* 20
Audio System - UVO System* 19
AUX/USB/iPod® Port & Power Outlets 21
Bluetooth® Wireless Technology 12
Cruise Control* 14
Digital Clock 21
Folding 2nd & 3rd Row Seats* 27
Front Active Headrests 28
PASSENGER AIR BAG OFF Indicator 35
Smart Key* 29
Tire Pressure Monitoring System (TPMS) 05
Windshield/Rear Wipers & Washers* 11
VIDEOS & QR CODES 02INSTRUMENT CLUSTERInstrument Cluster Overview / Indicators & Warning Lights 03Trip Computer / Tripmeter* 04Fuel Efficiency 04Tire Pressure Monitoring System (TPMS) 05Active ECO System* 05DRIVER’S PANELElectronic Stability Control (ESC) 06Blind Spot Detection (BSD) System* 06Hill-Start Assist Control (HAC) 06Hood Release Lever and Latch 06Instrument Panel Dimmer* 07All Wheel Drive (AWD) Transfer Mode* 07Heated Steering Wheel Button* 07Power Windows, Window Lock & Central Door Lock 08Electric/Folding Mirrors* 08Power/Heated Outside Mirrors* 08Engine Start/Stop Button* 08STEERING WHEEL CONTROLSTilt/Telescopic Steering Wheel 09LCD Display Control 09Headlights & High Beams 10Turn Signals & Fog Lights* 10Windshield/Rear Wipers & Washers* 11Bluetooth® Wireless Technology 12Audio Controls 14Cruise Control 14FlexSteer™ Steering Wheel Mode* 15AUDIO SYSTEMStandard Audio System Overview* 16Standard Audio System Operation* 17UVO System* 19Navigation System* 20
CENTER PANELDigital Clock 21AUX/USB/iPod® Port & Power Outlets 21Automatic Climate Control* 22Manual Climate Control* 233rd Row Air Conditioning Control* 23Automatic Gear Shift with Sportmatic® Shifting 24S E AT I N GSeat Warmers/Ventilated Seats* 25Driver Position Memory System* 25Power Adjustable Driver’s Seat* 266-Way Manual Adjustable Driver’s Seat* 26Folding 2nd & 3rd Row Seats* 27Front Active Headrests* 28Front Seat Headrest Adjustment 28OTHER KEY FEATURESRemote Keyless Entry (Folding Key)* 29Double-Turn Lock/Unlock All* 29Smart Key* 29HomeLink® with Auto-Dimming Rearview Mirror* 30Power Tailgate 31Fuel Cap / Malfunction Indicator (Check Engine Light) 31Manual Rear Hatch Release Button 31Map/Room/Dome Lamps 32Sunvisor 32Sunroof Operation* 33Roof Rack* 33 Rear-Camera Display* 34Backup Warning System* 34SAFETYOccupant Detection System (ODS) / PASSENGER AIR BAG OFF Indicator 35Child Safety Locks 35Safety Belts 36LEGAL DISCLAIMERS (See Back Inside Cover Page) MAINTENANCE (See Back Cover)
ESSENTIAL FEATURES
SORENTO FEATURES & FUNCTIONS GUIDE*IF EQUIPPED
Driving while drowsy or distracted is dangerous and should be avoided. Drivers should remain attentive to driving and exercise caution when using vehicle systems while driving.

3ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS
INSTRUMENT CLUSTER
Charging System Warning Light
Cruise SET Indicator
Cruise Indicator
Engine Oil Pressure Warning Light
Low Fuel Level Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light
Electronic Power Steering Warning Light
160140
120
100
80
60
40
20
0
MPH
0
20
40
60
80
100
120
140
160
180
200
220
240
260km/h
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
!
MPHkm/hN00
20
40
6080100120
140
16020406080100120140160180200220240260ODO123456160 140
120
100
80
60
40
20
0
MPH
0
20
40
60
80
100
120
140
160
180
200
220
240
260km/h
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/hmi.INSTRANGE AVGE/Tc
F
X
!
!
MPHkm/hN00
20
40
6080100120
140
16020406080100120140160180200220240260ODO123456
REMINDER: Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations See your Owner’s Manual for more details
Instrument Cluster Overview / Indicators & Warning Lights
A Tachometer
B Turn Signal Indicators
C Speedometer
D Engine Temperature Gauge
E Indicator & Warning Lights
F Gear Shift Position Indicator*
G Odometer/Tripmeter*
H Trip Computer*
I Fuel Gauge
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual
QUICK TIPS
Low Windshield Washer Warning Light
Light on Indicator
AWD System Warning Light*
AWD LOCK Indicator*
ECOMINDER® Indicator
Key Out Warning Light*
Immobilizer Indicator*
High Beam Indicator
Electronic Stability Control (ESC) Indicator*
Electronic Stability Control (ESC) OFF Indicator*

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Malfunction Indicator
Tailgate Open Warning Light
Front Fog Light Indicator
Seat Belt Warning Light
Parking Brake & Brake Fluid Warning Light
Door Ajar Warning Light
Air Bag Warning Light
Anti-lock Braking System (ABS) Warning Light
*IF EQUIPPED
A
B
CD
G
H
IFE
(Type B Cluster)(Type A Cluster)

5ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
INSTRUMENT CLUSTER
Kia Tire Pressure Monitoring System Video
To view a video on your mobile device, SNAP this QR code or visit the listed website
Refer to page 2 for more information
Ecominder and Active ECO Video

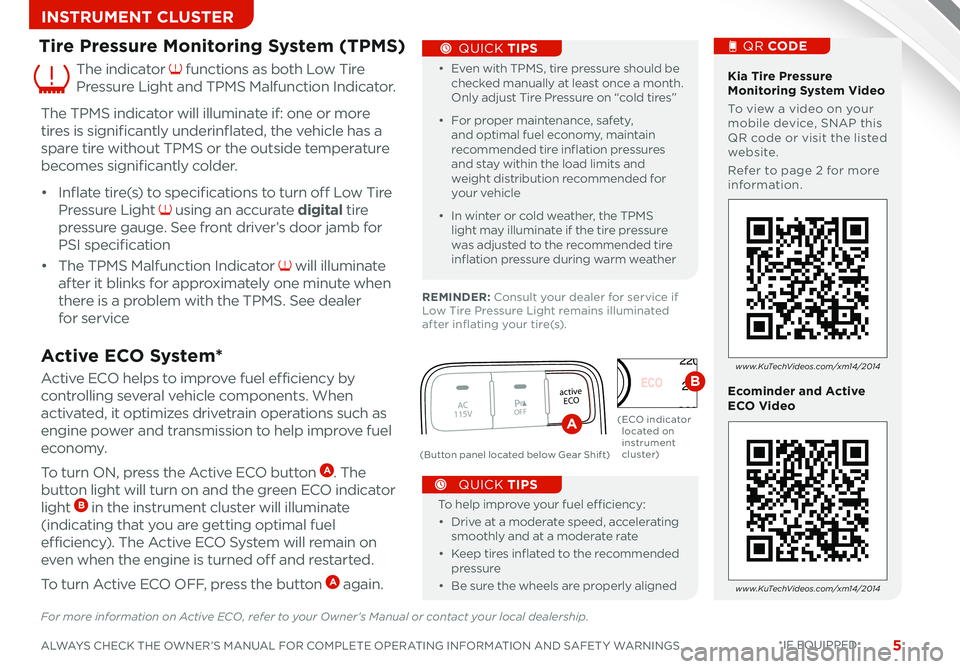

QR CODETire Pressure Monitoring System (TPMS)
REMINDER: Consult your dealer for service if Low Tire Pressure Light remains illuminated after inflating your tire(s)
www.KuTechVideos.com/xm14/2014
www.KuTechVideos.com/xm14/2014
The indicator functions as both Low Tire
Pressure Light and TPMS Malfunction Indicator
The TPMS indicator will illuminate if: one or more
tires is significantly underinflated, the vehicle has a
spare tire without TPMS or the outside temperature
becomes significantly colder
• Inflate tire(s) to specifications to turn off Low Tire
Pressure Light using an accurate digital tire
pressure gauge See front driver’s door jamb for
PSI specification
• The TPMS Malfunction Indicator will illuminate
after it blinks for approximately one minute when
there is a problem with the TPMS See dealer
for service
•
• Even with TPMS, tire pressure should be checked manually at least once a month Only adjust Tire Pressure on “cold tires”
• For proper maintenance, safety, and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
• In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
ac tive
EC OAC
115VPO FF

To help improve your fuel efficiency:
• Drive at a moderate speed, accelerating smoothly and at a moderate rate
• Keep tires inflated to the recommended pressure
• Be sure the wheels are properly aligned
QUICK TIPS
Active ECO System*
Active ECO helps to improve fuel efficiency by
controlling several vehicle components When
activated, it optimizes drivetrain operations such as
engine power and transmission to help improve fuel
economy
To turn ON, press the Active ECO button A The
button light will turn on and the green ECO indicator
light B in the instrument cluster will illuminate
(indicating that you are getting optimal fuel
efficiency) The Active ECO System will remain on
even when the engine is turned off and restarted
To turn Active ECO OFF, press the button A again
(Button panel located below Gear Shif t)
( ECO indicator located on instrument cluster)
160140
120
100
80
60
40
20
0
MPH
0
20
40
60
80
100
120
140
160
180
200
220
240
260km/h
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/h
mi.
INSTRANGE AVGE/Tc
F
X
!
8
7
6
5
4
3
2 1
0 EF
C
H
x1000rpm
kmMPGMPH
/100km/h
mi.
INSTRANGE AVGE/Tc
F
X
!
!
MPHkm/hN00
20
40
60
80100
120
140
160
20
40
60
80
100120140160
180
200
220
240
260
ODO123456
For more information on Active ECO, refer to your Owner’s Manual or contact your local dealership.
B
A

7ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED 7
DRIVER’S PANELDRIVER’S PANELDRIVER’S PANEL
AWD Transfer Mode*
Press the AWD Mode selector button E to activate or deactivate AWD Lock mode
AWD Lock Mode:
Activates AWD for climbing or descending sharp grades, off-road driving,
driving on sandy and muddy roads, etc , to help provide optimal traction
given the terrain
AWD Auto Mode:
The vehicle operates similar to conventional 2WD vehicles If the system
determines that there is a need for the AWD mode, the engine’s driving power
is distributed to all four wheels automatically without driver intervention
Instrument Panel Dimmer*
With parking lights/headlights ON, press
button D (+) or (-) to adjust the brightness
of the instrument panel illumination
REMINDER: Door mood lamp is a fixed brightness and cannot be adjusted
REMINDER: The Instrument Panel Dimmer does not adjust brightness on the Navigation System screen Use Navigation setup to adjust brightness on the Navigation System
Heated Steering
Wheel Button*
Press F to turn ON/OFF
Steering Wheel Heater, while
the Engine Start/Stop Button
is in the ON position Steering
Wheel Heater will turn OFF
automatically in 30 minutes,
or when button is pressed
again to deactivate
If ignition is turned OFF, then ON again within 30 minutes of Steering Wheel Heater being turned ON, the system will remain in the ON position
QUICK TIPS
X
X
X
EF
D

31ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
OTHER KEY FEATURES
CLICK!
Fuel Cap/Malfunction
Indicator (Check
Engine Light)
Tighten for ONE
CLICK to prevent
Malfunction
Indicator
from illuminating
Located underneath the
Rear Hatch With Rear Hatch
unlocked, press the Rear
Hatch Release button C and
pull the Rear Hatch up by the
handle to open
Inside the Vehicle:
Press the Power Tailgate
Open/Close button A to
automatically open/close
the tailgate
Press the Power Tailgate
OFF button B to disable
Manual Rear Hatch
Release Button
Power Tailgate*
Outside the Vehicle:
To open Power Tailgate automatically, press the Rear
Hatch Release button C
Smart Key:
To open the Power Tailgate, press and hold the tailgate
button until the tailgate begins opening Press again to close •
• The Rear Hatch must be unlocked before it can be opened by the Rear Hatch Release Button
• The Rear Hatch unlocks automatically and then can be opened manually when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
Kia One Click Fuel Cap Video To view a video on your mobile device, SNAP this QR code or visit the listed website
Refer to page 2 for more information
QR CODE
www.KuTechVideos.com/xm14/2014
How to Sync Transmitter with HomeLink®*
REMINDER: The Fuel Filler Door Release button is located on the lower part of the driver’s door panel
REMINDER: If Power Tailgate button is pressed OFF, the Power Tailgate button on the Smart Key will be disabled
REMINDER: Pulling the Rear Hatch upward by the handle or pressing the button a second time will interrupt the automatic opening of the Power Ta i l g a t e
OPEN
CLOSEROOM DOOROFFAB
HOLD
HOLD
C
C
(Rear Hatch Release Button C)

SORENTO FEATURES & FUNCTIONS GUIDE34*IF EQUIPPED
OTHER KEY FEATURES
The Backup Warning System is not a safety
device The Backup Warning System is a
supplemental system that assists the driver
by chiming if any object is detected within the
sensing area to the rear and side of the vehicle
when backing up When the ignition is ON, and
the Backup Warning System ON/OFF button is
pressed ON, the system is activated
Backup Warning System*
Press the Backup Warning System OFF button to deactivate the system
QUICK TIPS
REMINDER: If the vehicle is moving at speeds over 3 mph (5 kmh), the system may not activate correctly
REMINDER: When more than two objects are sensed at the same time, the closest one will be recognized first
Rear-Camera Display*
The Rear-Camera Display system is not
a safety device It is a supplemental
system that displays the view behind
the vehicle through the Navigation*
or UVO* screen while the vehicle is in
Reverse
The Rear- Camera Display activates
when the:
1 Engine Start/Stop* button is in the
ON position (Reddish Orange Light)
2
Gear Shift Lever is in the R (Reverse)
position
W arning! Check yo ur sur roun dings for safe\fy
Sorento Rear Parking Assist System Video To view a video on your mobile device, SNAP this QR code or visit the listed website
Refer to page 2 for more information
www.KuTechVideos.com/xm14/2014
(button located below Gear Shift)
QR CODE
REMINDER: The Rear-Camera Display and Back-Up Warning System are not substitutes for proper and safe backing-up procedures Always drive safely and use caution when backing up The Rear-Camera Display and Back-Up Warning System may not detect every object behind the vehicle
REMINDER: UVO System - While camera is active, only the volume controls on the Audio System can be operated
REMINDER: Navigation System - While camera is active, only the Audio System can be operated on the Steering Wheel and Audio Control Unit Navigation features are disabled
active
EC OAC
115VPO FF
