KIA Sorento 2015 3.G Owner's Guide

37
Safety features of your vehicle

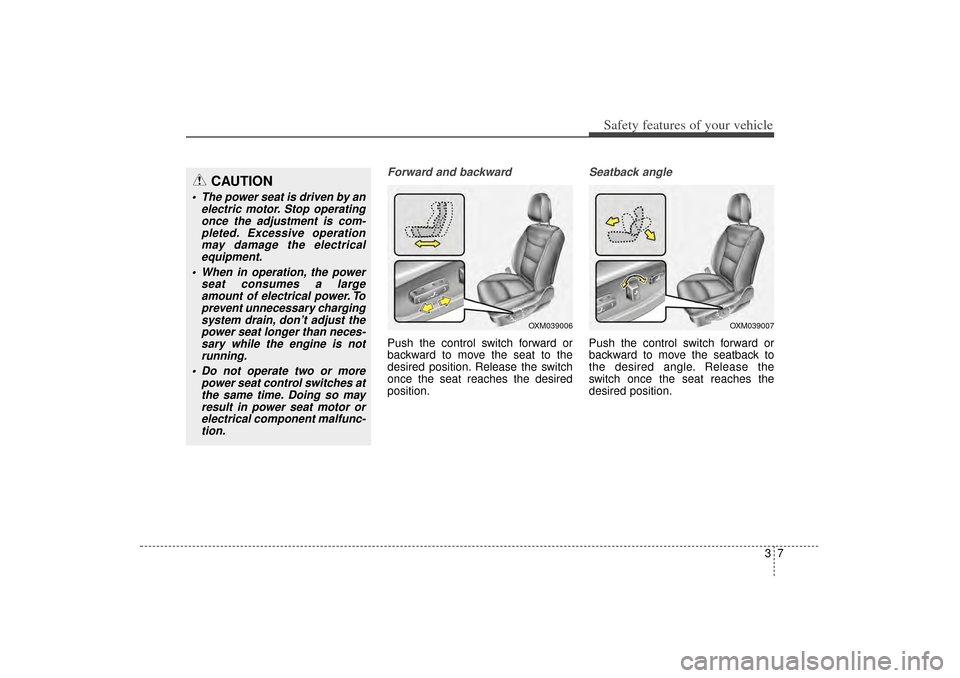

Forward and backwardPush the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.
Seatback anglePush the control switch forward or
backward to move the seatback to
the desired angle. Release the
switch once the seat reaches the
desired position.
CAUTION
 The power seat is driven by anelectric motor. Stop operatingonce the adjustment is com-pleted. Excessive operationmay damage the electricalequipment.
 When in operation, the power seat consumes a largeamount of electrical power. Toprevent unnecessary chargingsystem drain, don’t adjust thepower seat longer than neces-sary while the engine is notrunning.
 Do not operate two or more power seat control switches atthe same time. Doing so mayresult in power seat motor orelectrical component malfunc-tion.
OXM039006
OXM039007
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 7

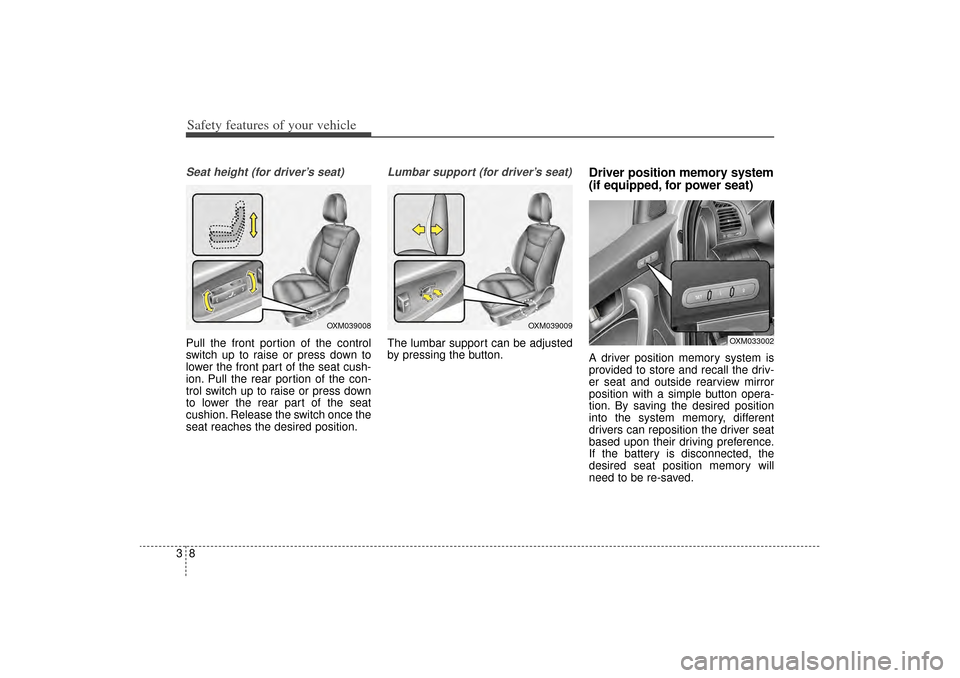

Safety features of your vehicle83Seat height (for driver’s seat)Pull the front portion of the control
switch up to raise or press down to
lower the front part of the seat cush-
ion. Pull the rear portion of the con-
trol switch up to raise or press down
to lower the rear part of the seat
cushion. Release the switch once the
seat reaches the desired position.
Lumbar support (for driver’s seat)The lumbar support can be adjusted
by pressing the button.
Driver position memory system
(if equipped, for power seat)A driver position memory system is
provided to store and recall the driv-
er seat and outside rearview mirror
position with a simple button opera-
tion. By saving the desired position
into the system memory, different
drivers can reposition the driver seat
based upon their driving preference.
If the battery is disconnected, the
desired seat position memory will
need to be re-saved.
OXM039008
OXM039009
OXM033002
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 8

39
Safety features of your vehicle

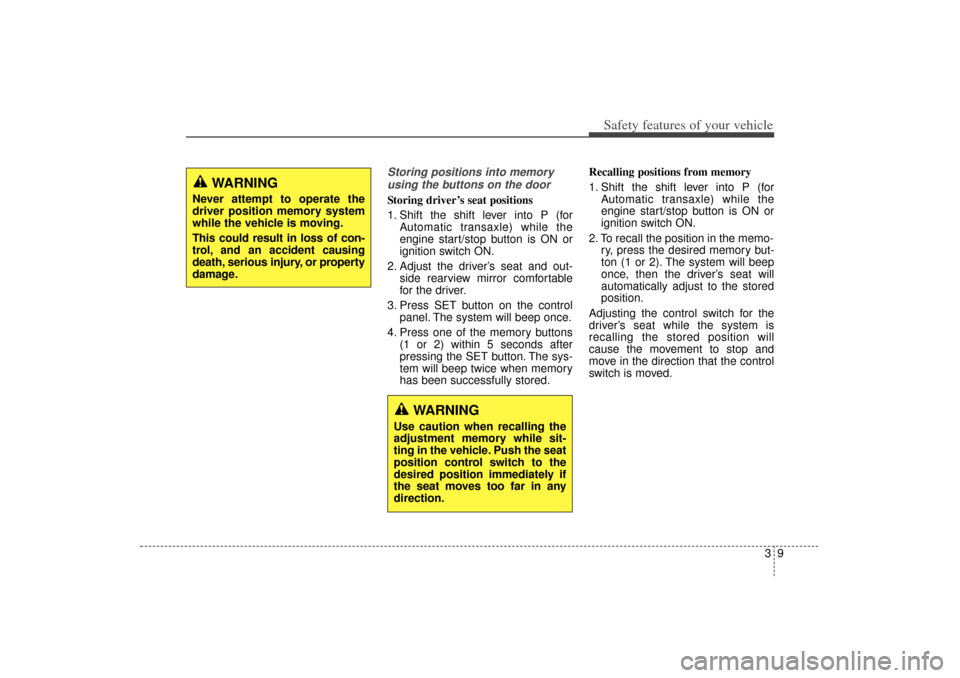

Storing positions into memoryusing the buttons on the doorStoring driver’s seat positions
1. Shift the shift lever into P (for Automatic transaxle) while the
engine start/stop button is ON or
ignition switch ON.
2. Adjust the driver’s seat and out- side rearview mirror comfortable
for the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 5 seconds after
pressing the SET button. The sys-
tem will beep twice when memory
has been successfully stored. Recalling positions from memory
1. Shift the shift lever into P (for
Automatic transaxle) while the
engine start/stop button is ON or
ignition switch ON.
2. To recall the position in the memo- ry, press the desired memory but-
ton (1 or 2). The system will beep
once, then the driver’s seat will
automatically adjust to the stored
position.
Adjusting the control switch for the
driver’s seat while the system is
recalling the stored position will
cause the movement to stop and
move in the direction that the control
switch is moved.
WARNING
Use caution when recalling the
adjustment memory while sit-
ting in the vehicle. Push the seat
position control switch to the
desired position immediately if
the seat moves too far in any
direction.
WARNING
Never attempt to operate the
driver position memory system
while the vehicle is moving.
This could result in loss of con-
trol, and an accident causing
death, serious injury, or property
damage.
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 9

Safety features of your vehicle10

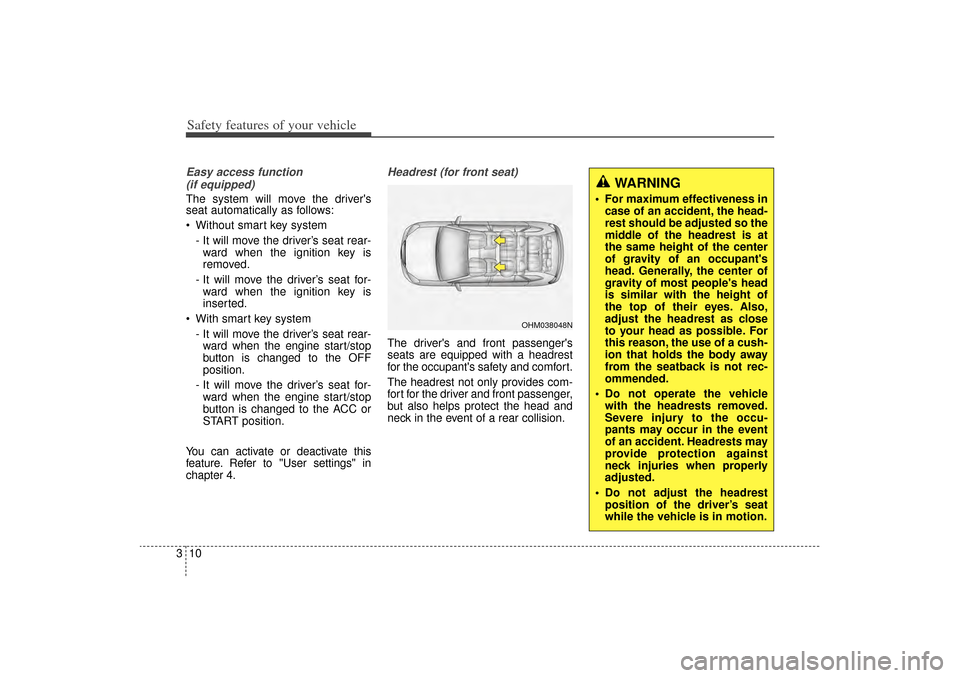

3Easy access function
(if equipped)The system will move the driver's
seat automatically as follows:
 Without smart key system
- It will move the driver’s seat rear-ward when the ignition key is
removed.
- It will move the driver’s seat for- ward when the ignition key is
inserted.
 With smart key system - It will move the driver’s seat rear-ward when the engine start/stop
button is changed to the OFF
position.
- It will move the driver’s seat for- ward when the engine start/stop
button is changed to the ACC or
START position.
You can activate or deactivate this
feature. Refer to "User settings" in
chapter 4.
Headrest (for front seat)The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and comfort.
The headrest not only provides com-
fort for the driver and front passenger,
but also helps protect the head and
neck in the event of a rear collision.
OHM038048N
WARNING
 For maximum effectiveness in case of an accident, the head-
rest should be adjusted so the
middle of the headrest is at
the same height of the center
of gravity of an occupant's
head. Generally, the center of
gravity of most people's head
is similar with the height of
the top of their eyes. Also,
adjust the headrest as close
to your head as possible. For
this reason, the use of a cush-
ion that holds the body away
from the seatback is not rec-
ommended.
 Do not operate the vehicle with the headrests removed.
Severe injury to the occu-
pants may occur in the event
of an accident. Headrests may
provide protection against
neck injuries when properly
adjusted.
 Do not adjust the headrest position of the driver’s seat
while the vehicle is in motion.
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 10

311
Safety features of your vehicle

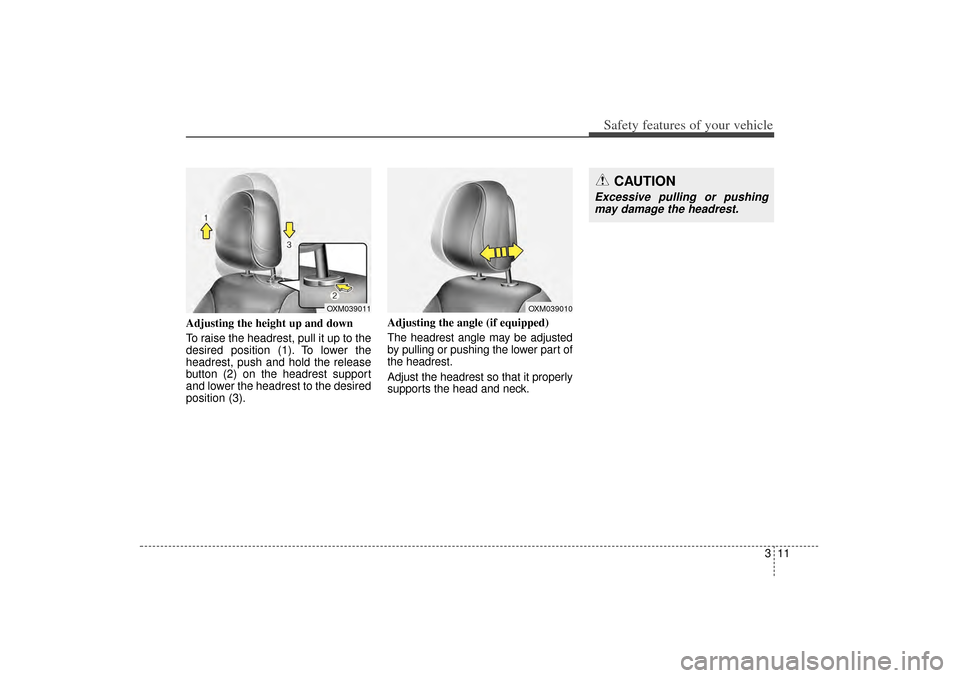

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).Adjusting the angle (if equipped)
The headrest angle may be adjusted
by pulling or pushing the lower part of
the headrest.
Adjust the headrest so that it properly
supports the head and neck.
OXM039011
OXM039010
CAUTION
Excessive pulling or pushing
may damage the headrest.
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 11

Safety features of your vehicle12

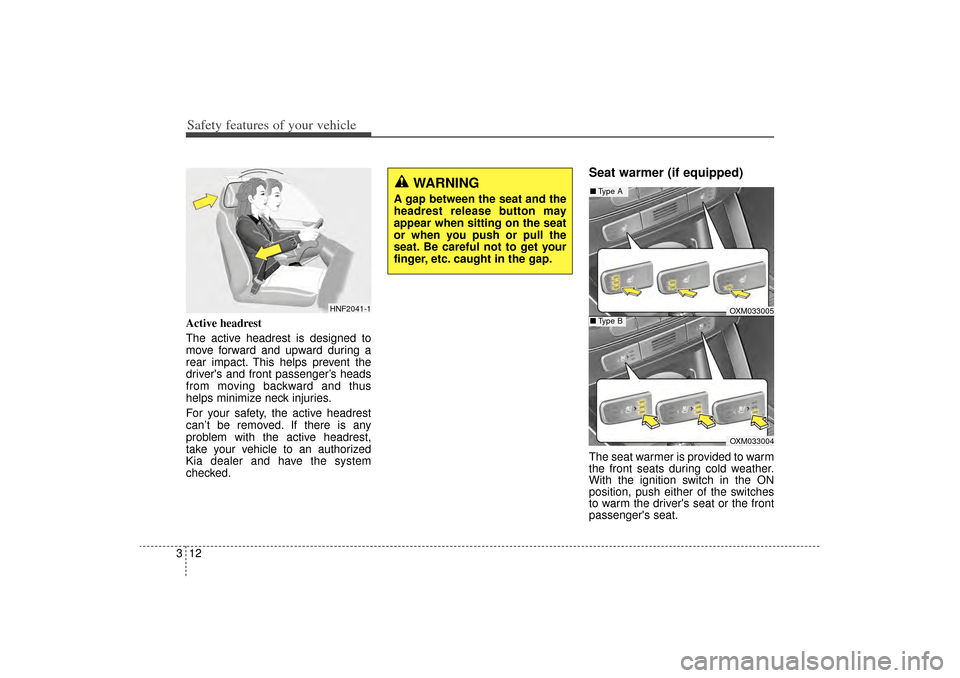

3Active headrest
The active headrest is designed to
move forward and upward during a
rear impact. This helps prevent the
driver's and front passenger’s heads
from moving backward and thus
helps minimize neck injuries.
For your safety, the active headrest
can’t be removed. If there is any
problem with the active headrest,
take your vehicle to an authorized
Kia dealer and have the system
checked.
Seat warmer (if equipped)The seat warmer is provided to warm
the front seats during cold weather.
With the ignition switch in the ON
position, push either of the switches
to warm the driver's seat or the front
passenger's seat.
WARNING
A gap between the seat and the
headrest release button may
appear when sitting on the seat
or when you push or pull the
seat. Be careful not to get your
finger, etc. caught in the gap.
OXM033005OXM033004
■ Type A■Type B
HNF2041-1
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 12

313
Safety features of your vehicle

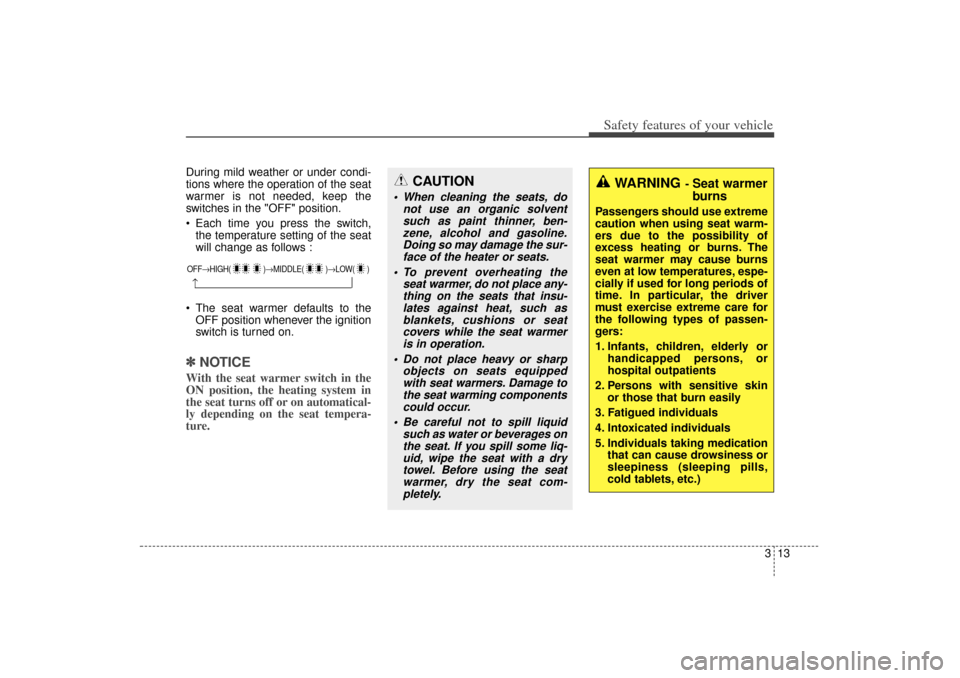

During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the "OFF" position.
 Each time you press the switch,the temperature setting of the seat
will change as follows :
 The seat warmer defaults to the OFF position whenever the ignition
switch is turned on.✽ ✽ NOTICEWith the seat warmer switch in the
ON position, the heating system in
the seat turns off or on automatical-
ly depending on the seat tempera-
ture.OFF→ HIGH( )→ MIDDLE( )→LOW( )→
CAUTION
 When cleaning the seats, do
not use an organic solventsuch as paint thinner, ben-zene, alcohol and gasoline.Doing so may damage the sur-face of the heater or seats.
 To prevent overheating the seat warmer, do not place any-thing on the seats that insu-lates against heat, such asblankets, cushions or seatcovers while the seat warmeris in operation.
 Do not place heavy or sharp objects on seats equippedwith seat warmers. Damage tothe seat warming componentscould occur.
 Be careful not to spill liquid such as water or beverages onthe seat. If you spill some liq-uid, wipe the seat with a drytowel. Before using the seatwarmer, dry the seat com-pletely.
WARNING
- Seat warmer
burns
Passengers should use extreme
caution when using seat warm-
ers due to the possibility of
excess heating or burns. The
seat warmer may cause burns
even at low temperatures, espe-
cially if used for long periods of
time. In particular, the driver
must exercise extreme care for
the following types of passen-
gers:
1. Infants, children, elderly or handicapped persons, or
hospital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills,
cold tablets, etc.)
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 13

Safety features of your vehicle14

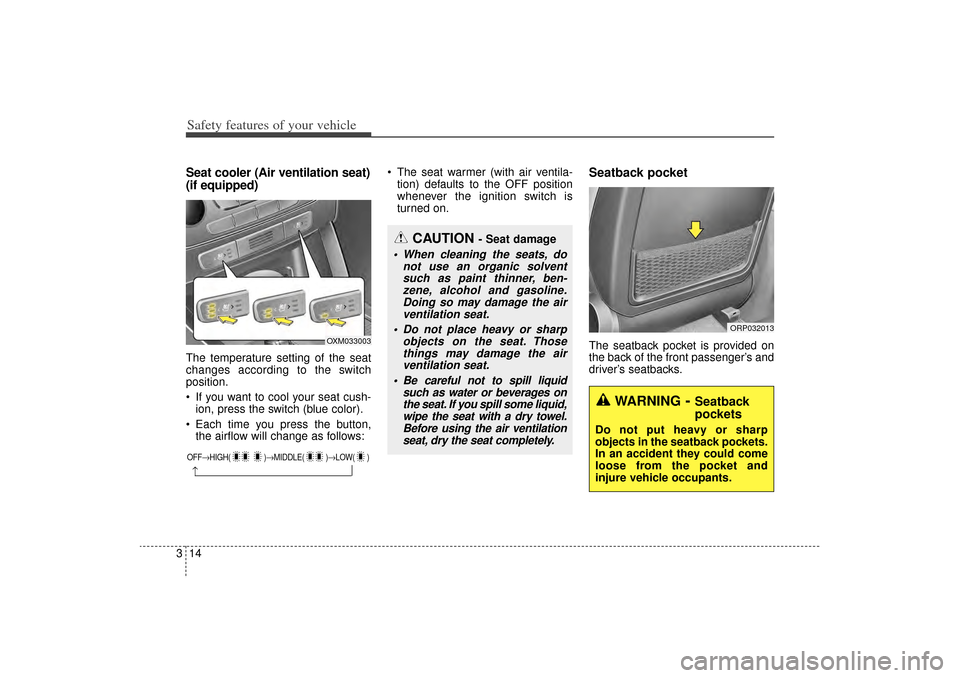

3Seat cooler (Air ventilation seat)
(if equipped)The temperature setting of the seat
changes according to the switch
position.
 If you want to cool your seat cush-
ion, press the switch (blue color).
 Each time you press the button, the airflow will change as follows:  The seat warmer (with air ventila-
tion) defaults to the OFF position
whenever the ignition switch is
turned on.
Seatback pocketThe seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
OXM033003
OFF→ HIGH( )→ MIDDLE( )→LOW( )→
ORP032013
WARNING
- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
CAUTION
- Seat damage
 When cleaning the seats, do
not use an organic solventsuch as paint thinner, ben-zene, alcohol and gasoline.Doing so may damage the airventilation seat.
 Do not place heavy or sharp objects on the seat. Thosethings may damage the airventilation seat.
 Be careful not to spill liquid such as water or beverages onthe seat. If you spill some liquid,wipe the seat with a dry towel.Before using the air ventilationseat, dry the seat completely.
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 14

315
Safety features of your vehicle

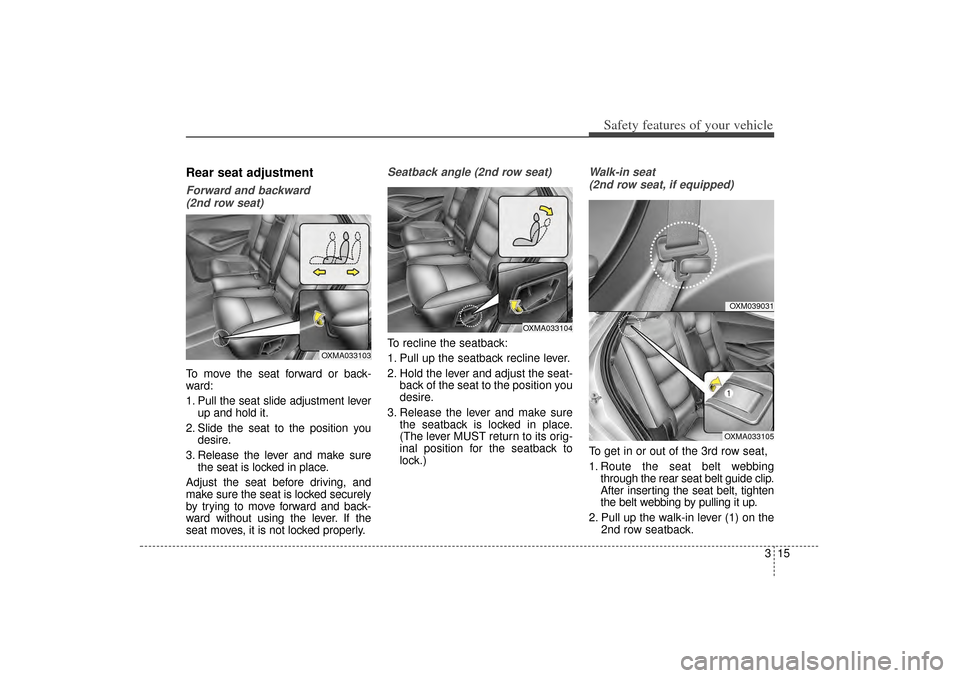

Rear seat adjustmentForward and backward (2nd row seat)To move the seat forward or back-
ward:
1. Pull the seat slide adjustment lever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
Seatback angle (2nd row seat)To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seat- back of the seat to the position you
desire.
3. Release the lever and make sure the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
Walk-in seat
(2nd row seat, if equipped)To get in or out of the 3rd row seat,
1. Route the seat belt webbing through the rear seat belt guide clip.
After inserting the seat belt, tighten
the belt webbing by pulling it up.
2. Pull up the walk-in lever (1) on the 2nd row seatback.
OXMA033103
OXMA033104
OXM039031OXMA033105
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 15

Safety features of your vehicle16

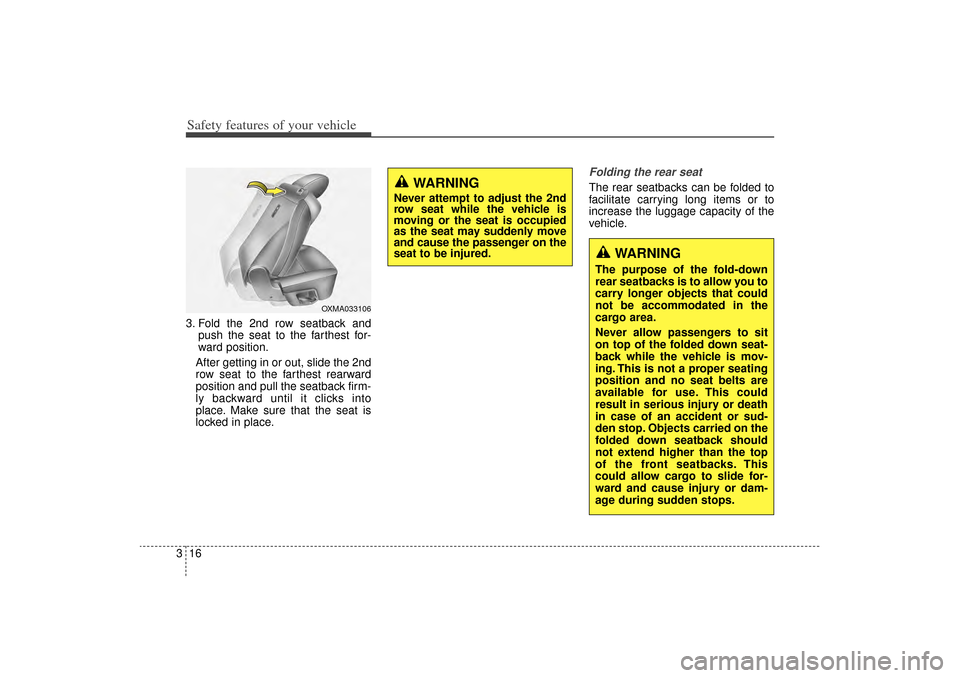

33. Fold the 2nd row seatback and
push the seat to the farthest for-
ward position.
After getting in or out, slide the 2nd
row seat to the farthest rearward
position and pull the seatback firm-
ly backward until it clicks into
place. Make sure that the seat is
locked in place.
Folding the rear seatThe rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
OXMA033106
WARNING
Never attempt to adjust the 2nd
row seat while the vehicle is
moving or the seat is occupied
as the seat may suddenly move
and cause the passenger on the
seat to be injured.
WARNING
The purpose of the fold-down
rear seatbacks is to allow you to
carry longer objects that could
not be accommodated in the
cargo area.
Never allow passengers to sit
on top of the folded down seat-
back while the vehicle is mov-
ing. This is not a proper seating
position and no seat belts are
available for use. This could
result in serious injury or death
in case of an accident or sud-
den stop. Objects carried on the
folded down seatback should
not extend higher than the top
of the front seatbacks. This
could allow cargo to slide for-
ward and cause injury or dam-
age during sudden stops.
XM(FL) CAN(ENG) 3.QXP 1/23/2013 3:23 PM Page 16
