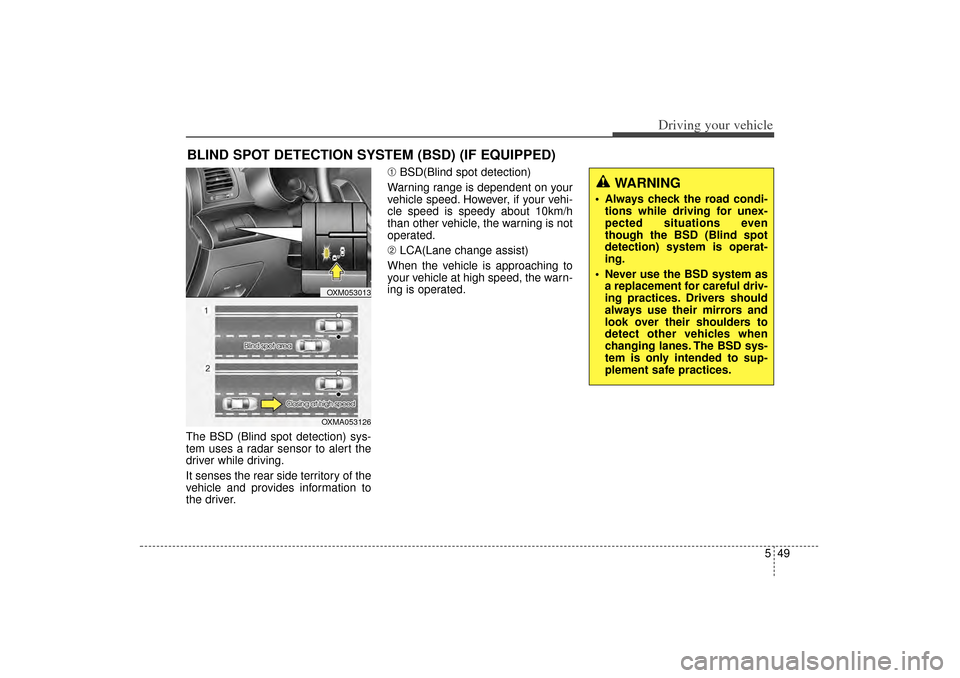

The BSD (Blind spot detection) sys-
tem uses a radar sensor to alert the
driver while driving.
It senses the rear side territory of the
vehicle and provides information to
the driver.➀
BSD(Blind spot detection)
Warning range is dependent on your
vehicle speed. However, if your vehi-
cle speed is speedy about 10km/h
than other vehicle, the warning is not
operated.
➁ LCA(Lane change assist)
When the vehicle is approaching to
your vehicle at high speed, the warn-
ing is operated.BLIND SPOT DETECTION SYSTEM (BSD) (IF EQUIPPED)
WARNING
• Always check the road condi- tions while driving for unex-
pected situations even
though the BSD (Blind spot
detection) system is operat-
ing.
 Never use the BSD system as a replacement for careful driv-
ing practices. Drivers should
always use their mirrors and
look over their shoulders to
detect other vehicles when
changing lanes. The BSD sys-
tem is only intended to sup-
plement safe practices.
OXMA053126OXM053013
XM(FL) CAN(ENG) 5.QXP 2/13/2013 9:53 AM Page 49

551
Driving your vehicle

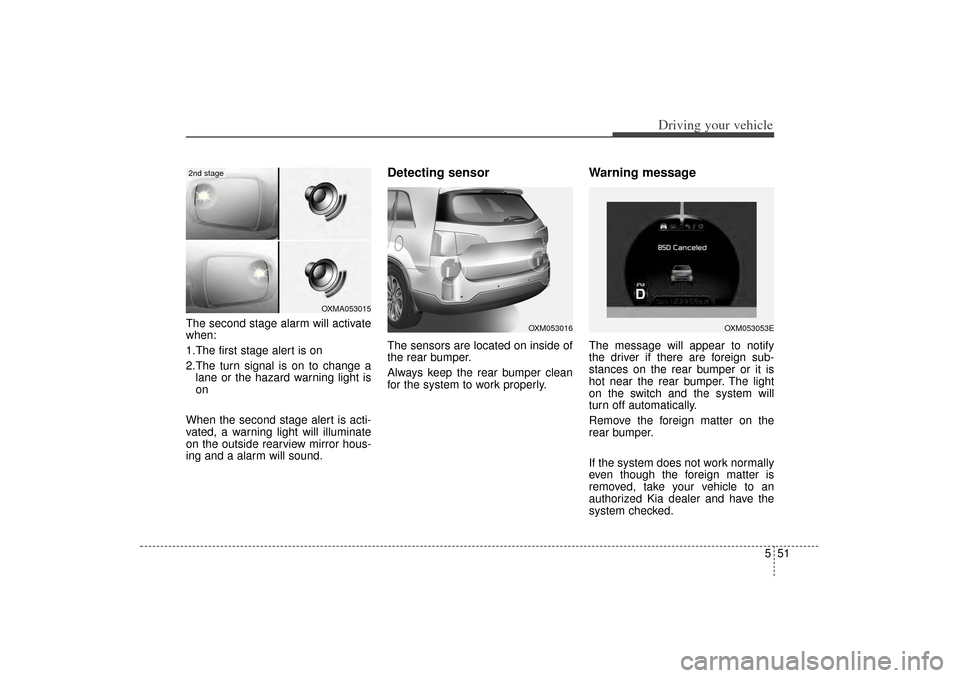

The second stage alarm will activate
when:
1.The first stage alert is on
2.The turn signal is on to change alane or the hazard warning light is
on
When the second stage alert is acti-
vated, a warning light will illuminate
on the outside rearview mirror hous-
ing and a alarm will sound.
Detecting sensorThe sensors are located on inside of
the rear bumper.
Always keep the rear bumper clean
for the system to work properly.
Warning messageThe message will appear to notify
the driver if there are foreign sub-
stances on the rear bumper or it is
hot near the rear bumper. The light
on the switch and the system will
turn off automatically.
Remove the foreign matter on the
rear bumper.
If the system does not work normally
even though the foreign matter is
removed, take your vehicle to an
authorized Kia dealer and have the
system checked.
OXM053016
OXM053053E
OXMA053015
2nd stage
XM(FL) CAN(ENG) 5.QXP 1/23/2013 3:31 PM Page 51

553
Driving your vehicle

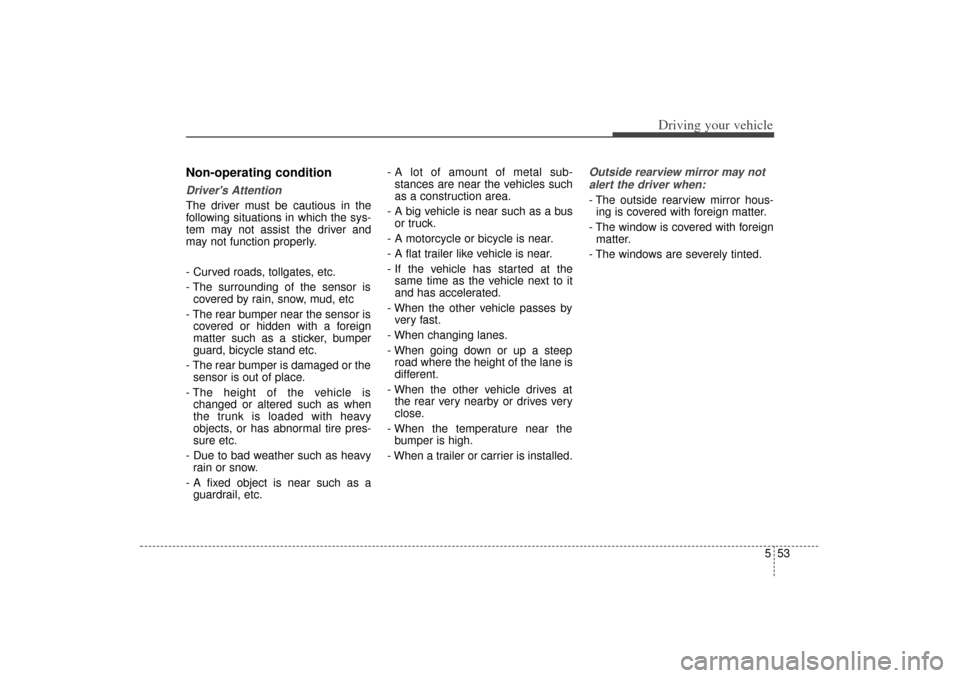

Non-operating conditionDriver's AttentionThe driver must be cautious in the
following situations in which the sys-
tem may not assist the driver and
may not function properly.
- Curved roads, tollgates, etc.
- The surrounding of the sensor iscovered by rain, snow, mud, etc
- The rear bumper near the sensor is covered or hidden with a foreign
matter such as a sticker, bumper
guard, bicycle stand etc.
- The rear bumper is damaged or the sensor is out of place.
- The height of the vehicle is changed or altered such as when
the trunk is loaded with heavy
objects, or has abnormal tire pres-
sure etc.
- Due to bad weather such as heavy rain or snow.
- A fixed object is near such as a guardrail, etc. - A lot of amount of metal sub-
stances are near the vehicles such
as a construction area.
- A big vehicle is near such as a bus or truck.
- A motorcycle or bicycle is near.
- A flat trailer like vehicle is near.
- If the vehicle has started at the same time as the vehicle next to it
and has accelerated.
- When the other vehicle passes by very fast.
- When changing lanes.
- When going down or up a steep road where the height of the lane is
different.
- When the other vehicle drives at the rear very nearby or drives very
close.
- When the temperature near the bumper is high.
- When a trailer or carrier is installed.
Outside rearview mirror may not alert the driver when:- The outside rearview mirror hous- ing is covered with foreign matter.
- The window is covered with foreign matter.
- The windows are severely tinted.
XM(FL) CAN(ENG) 5.QXP 1/23/2013 3:31 PM Page 53

617
What to do in an emergency
TOWINGTowing serviceIf emergency towing is necessary,
we recommend having it done by an
authorized Kia dealer or a commer-
cial tow-truck service. Proper lifting
and towing procedures are neces-
sary to prevent damage to the vehi-
cle. The use of wheel dollies or
flatbed is recommended.
For trailer towing guidelines informa-tion, refer to “Trailer towing” in sec-tion 5.On 4WD vehicles, your vehicle must
be towed with a wheel lift and dollies
or flatbed equipment with all the
wheels off the ground.
On 2WD vehicles, it is acceptable to
tow the vehicle with the rear wheels
on the ground (without dollies) and
the front wheels off the ground.
If any of the loaded wheels or sus-
pension components are damaged
or the vehicle is being towed with the
front wheels on the ground, use a
towing dolly under the front wheels.
When being towed by a commercial
tow truck and wheel dollies are not
used, the front of the vehicle should
always be lifted, not the rear.
OXM069028 dollydolly
CAUTION
The 4WD vehicle should never
be towed with the wheels on theground. This can cause seriousdamage to the transaxle or the4WD system.
WARNING
If your vehicle is equipped with
side and curtain air bag, set the
ignition switch to LOCK or ACC
position when the vehicle is
being towed.
The side and curtain air bag
may deploy when the ignitions
is ON, and the rollover sensor
detects the situation as a
rollover.
XM(FL) CAN(ENG) 6.QXP 1/23/2013 3:34 PM Page 17

Maintenance40

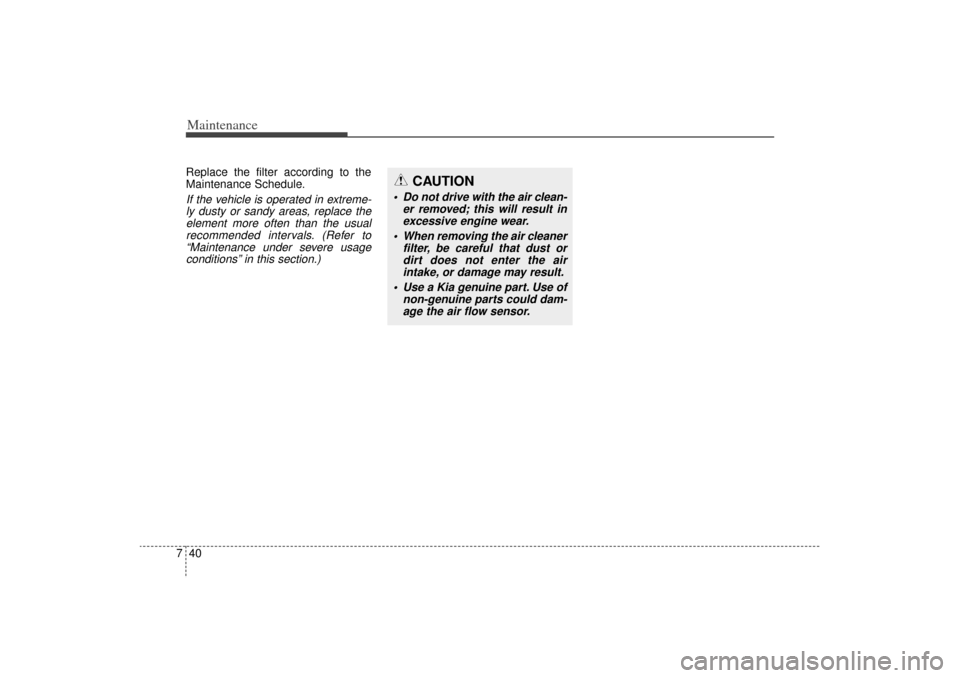

7Replace the filter according to the
Maintenance Schedule.If the vehicle is operated in extreme-
ly dusty or sandy areas, replace theelement more often than the usualrecommended intervals. (Refer to“Maintenance under severe usageconditions” in this section.)
CAUTION
 Do not drive with the air clean- er removed; this will result inexcessive engine wear.
 When removing the air cleaner filter, be careful that dust ordirt does not enter the airintake, or damage may result.
 Use a Kia genuine part. Use of non-genuine parts could dam-age the air flow sensor.
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:36 PM Page 40

769
Maintenance

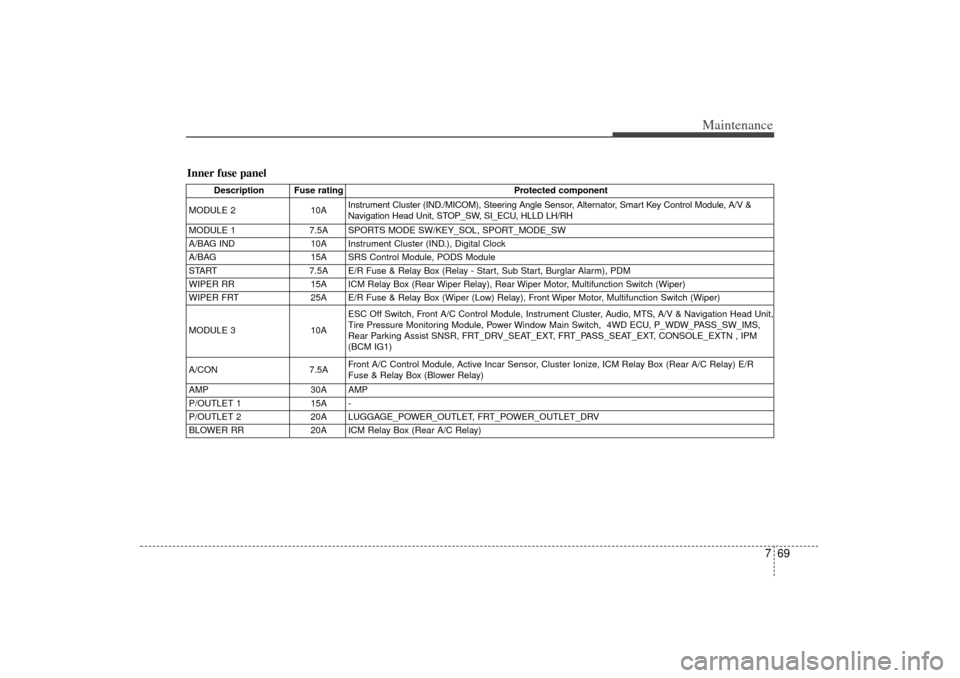

Inner fuse panel
Description Fuse ratingProtected component
MODULE 2 10AInstrument Cluster (IND./MICOM), Steering Angle Sensor, Alternator, Smart Key Control Module, A/V &
Navigation Head Unit, STOP_SW, SI_ECU, HLLD LH/RH
MODULE 1 7.5A SPORTS MODE SW/KEY_SOL, SPORT_MODE_SW
A/BAG IND 10A Instrument Cluster (IND.), Digital Clock
A/BAG 15A SRS Control Module, PODS Module
START 7.5A E/R Fuse & Relay Box (Relay - Start, Sub Start, Burglar Alarm), PDM
WIPER RR 15A ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor, Multifunction Switch (Wiper)
WIPER FRT 25A E/R Fuse & Relay Box (Wiper (Low) Relay), Front Wiper Motor, Multifunction Switch (Wiper)
MODULE 3 10AESC Off Switch, Front A/C Control Module, Instrument Cluster, Audio, MTS, A/V & Navigation Head Unit,
Tire Pressure Monitoring Module, Power Window Main Switch, 4WD ECU, P_WDW_PASS_SW_IMS,
Rear Parking Assist SNSR, FRT_DRV_SEAT_EXT, FRT_PASS_SEAT_EXT, CONSOLE_EXTN , IPM
(BCM IG1)
A/CON 7.5AFront A/C Control Module, Active Incar Sensor, Cluster Ionize, ICM Relay Box (Rear A/C Relay) E/R
Fuse & Relay Box (Blower Relay)
AMP 30A AMP
P/OUTLET 1 15A -
P/OUTLET 2 20A LUGGAGE_POWER_OUTLET, FRT_POWER_OUTLET_DRV
BLOWER RR 20A ICM Relay Box (Rear A/C Relay)
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 69

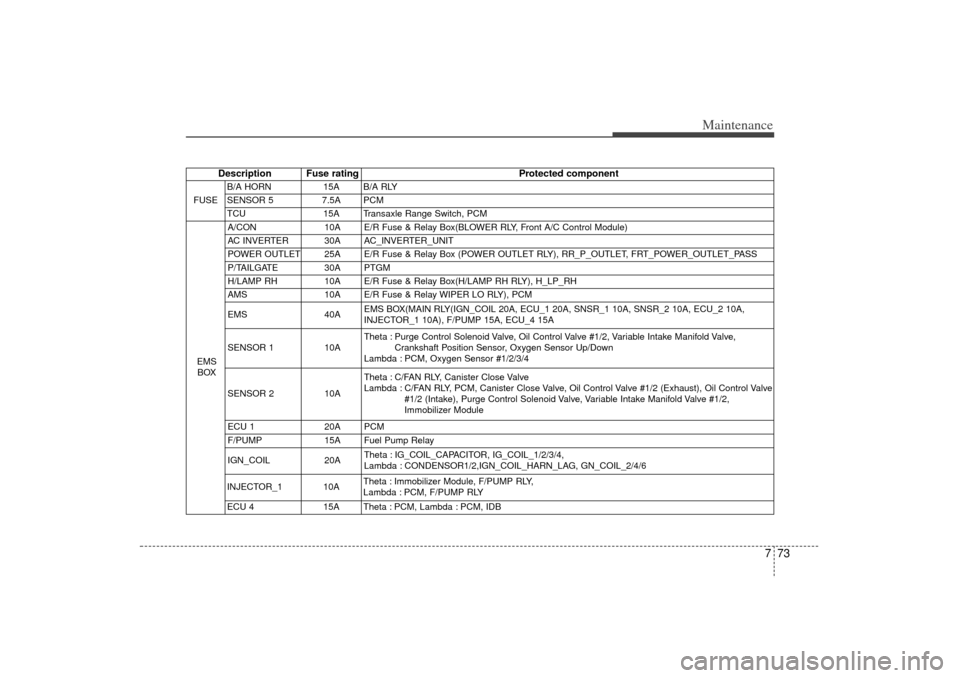

773
Maintenance
Description Fuse ratingProtected component
FUSE
B/A HORN
15A
B/A RLY
SENSOR 5
7.5A
PCM
TCU
15A
Transaxle Range Switch, PCM
EMS BOX A/CON 10A E/R Fuse & Relay Box(BLOWER RLY, Front A/C Control Module)
AC INVERTER 30A AC_INVERTER_UNIT
POWER OUTLET 25A E/R Fuse & Relay Box (POWER OUTLET RLY), RR_P_OUTLET, FRT_POWER_OUTLET_PASS
P/TAILGATE 30A PTGM
H/LAMP RH 10A E/R Fuse & Relay Box(H/LAMP RH RLY), H_LP_RH
AMS
10A
E/R Fuse & Relay WIPER LO RLY), PCM
EMS
40A
EMS BOX(MAIN RLY(IGN_COIL 20A, ECU_1 20A, SNSR_1 10A, SNSR_2 10A, ECU_2 10A,
INJECTOR_1 10A), F/PUMP 15A, ECU_4 15A
SENSOR 1
10A
Theta : Purge Control Solenoid Valve, Oil Control Valve #1/2, Variable Intake Manifold Valve,
Crankshaft Position Sensor, Oxygen Sensor Up/Down
Lambda : PCM, Oxygen Sensor #1/2/3/4
SENSOR 2 10A Theta : C/FAN RLY, Canister Close Valve
Lambda : C/FAN RLY, PCM, Canister Close Valve, Oil Control Valve #1/2 (Exhaust), Oil Control Valve
#1/2 (Intake), Purge Control Solenoid Valve, Variable Intake Manifold Valve #1/2,
Immobilizer Module
ECU 1 20A PCM
F/PUMP 15A Fuel Pump Relay
IGN_COIL 20A Theta : IG_COIL_CAPACITOR, IG_COIL_1/2/3/4,
Lambda : CONDENSOR1/2,IGN_COIL_HARN_LAG, GN_COIL_2/4/6
INJECTOR_1
10A
Theta : Immobilizer Module, F/PUMP RLY,
Lambda : PCM, F/PUMP RLY
ECU 4
15A
Theta : PCM, Lambda : PCM, IDB
XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 73
