Page 170 of 508
479

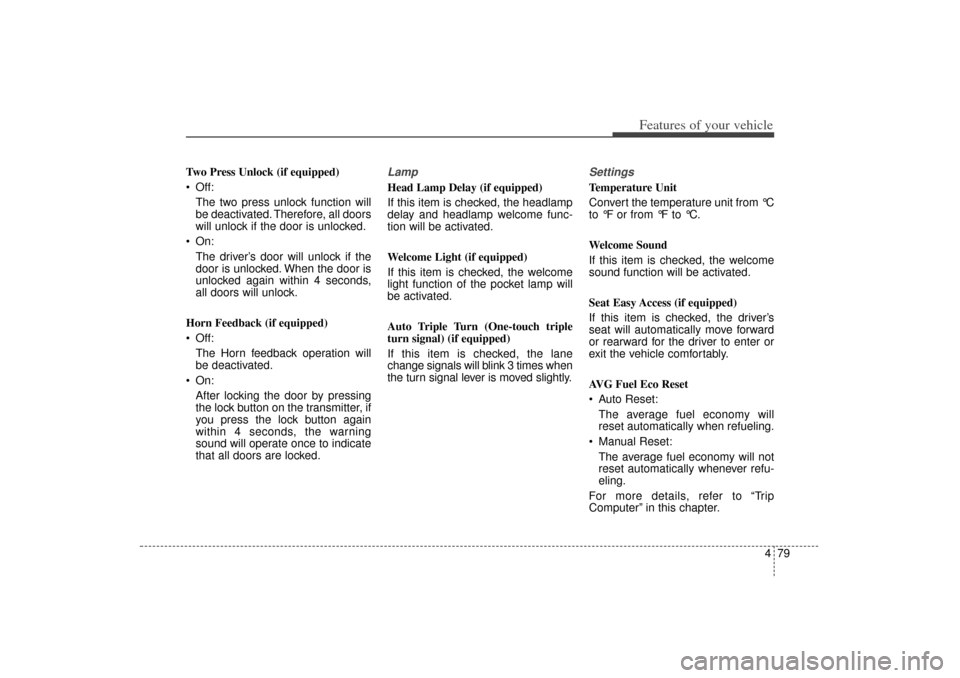

Features of your vehicle
Two Press Unlock (if equipped)
Off:The two press unlock function will
be deactivated. Therefore, all doors
will unlock if the door is unlocked.
On: The driver’s door will unlock if the
door is unlocked. When the door is
unlocked again within 4 seconds,
all doors will unlock.
Horn Feedback (if equipped)
Off: The Horn feedback operation will
be deactivated.
On: After locking the door by pressing
the lock button on the transmitter, if
you press the lock button again
within 4 seconds, the warning
sound will operate once to indicate
that all doors are locked.
LampHead Lamp Delay (if equipped)
If this item is checked, the headlamp
delay and headlamp welcome func-
tion will be activated.
Welcome Light (if equipped)
If this item is checked, the welcome
light function of the pocket lamp will
be activated.
Auto Triple Turn (One-touch triple
turn signal) (if equipped)
If this item is checked, the lane
change signals will blink 3 times when
the turn signal lever is moved slightly.
SettingsTemperature Unit
Convert the temperature unit from °C
to °F or from °F to °C.
Welcome Sound
If this item is checked, the welcome
sound function will be activated.
Seat Easy Access (if equipped)
If this item is checked, the driver’s
seat will automatically move forward
or rearward for the driver to enter or
exit the vehicle comfortably.
AVG Fuel Eco Reset
Auto Reset:The average fuel economy will
reset automatically when refueling.
Manual Reset: The average fuel economy will not
reset automatically whenever refu-
eling.
For more details, refer to “Trip
Computer” in this chapter.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:49 PM Page 79
Page 491 of 508
83
Specifications & Consumer information

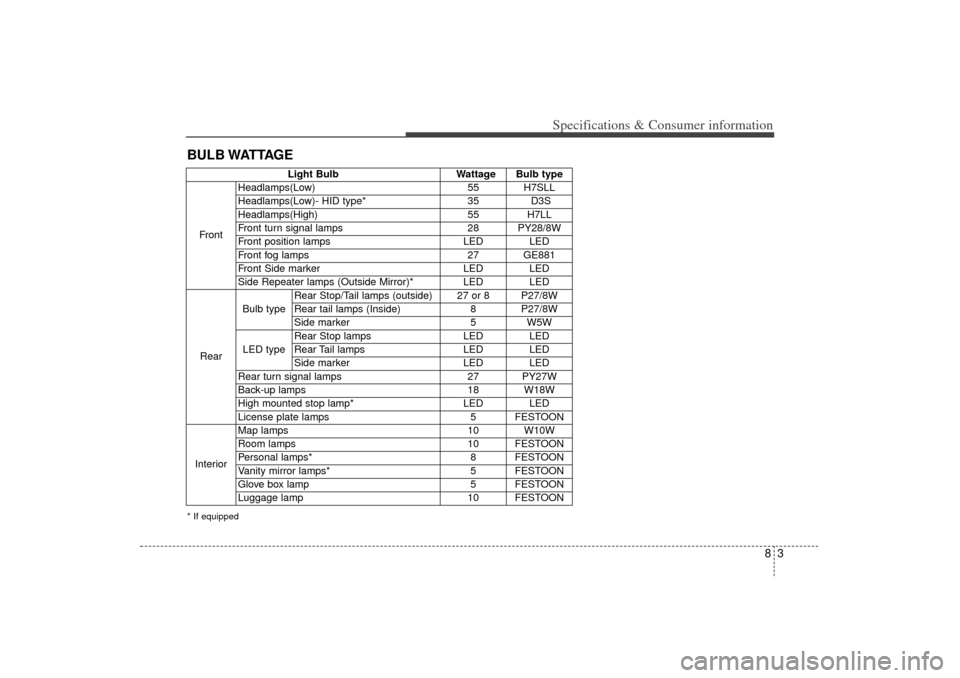

BULB WATTAGE
Light BulbWattage Bulb type
Front Headlamps(Low)
55 H7SLL
Headlamps(Low)- HID type* 35D3S
Headlamps(High) 55 H7LL
Front turn signal lamps 28 PY28/8W
Front position lamps LED LED
Front fog lamps 27 GE881
Front Side marker
LED
LED
Side Repeater lamps (Outside Mirror)* LED LED
Rear Bulb type
Rear Stop/Tail lamps (outside) 27 or 8 P27/8W
Rear tail lamps (Inside) 8 P27/8W
Side marker
5
W5W
LED type Rear Stop lamps
LED LED
Rear Tail lamps LED LED
Side marker
LED
LED
Rear turn signal lamps 27 PY27W
Back-up lamps 18 W18W
High mounted stop lamp* LED LED
License plate lamps 5 FESTOON
Interior Map lamps 10 W10W
Room lamps 10 FESTOON
Personal lamps* 8 FESTOON
Vanity mirror lamps* 5 FESTOON
Glove box lamp 5 FESTOON
Luggage lamp 10 FESTOON
* If equipped
XM(FL) CAN(ENG) 8.QXP 1/23/2013 4:01 PM Page 3
Page 503 of 508
I5
Index
Flat tire ........................................................................\
....6-8Jack and tools ..............................................................6-8
Removing and storing the spare tire ..........................6-9
Changing tires ..........................................................6-11
Compact spare tire ....................................................6-15
Floor mat anchor(s) ....................................................4-155
Fluid ........................................................................\
......7-36 Brakes/clutch fluid ....................................................7-36
Washer fluid ..............................................................7-37
Fog light (front) ..........................................................4-112
Front seat adjustment - Manual ......................................3-5
Front seat adjustment - power ........................................3-6
Fuel Economy ................................................................4-89
Fuel filler lid ..................................................................4-40
Fuel Gauge ....................................................................4-72\
Fuel requirements ............................................................1-3
Fuse switch ....................................................................7-66\
Fuses ........................................................................\
......7-64 Instrument panel fuse ................................................7-65
Fuse switch ................................................................7-66
Multi fuse ..................................................................7-67
Fuse/relay panel description......................................7-68 Gauges ........................................................................\
..4-71
Glove box ....................................................................4-14\
6
Gross vehicle weight ......................................................8-5
Hazard warning flasher................................................4-107
Hazardous driving conditions ........................................5-57
Headlamp escort function ............................................4-108
Headlamp welcome ....................................................4-108
Headlamp welcome function ......................................4-108
Headrest(front) ..............................................................3-10
Headrest(rear) ................................................................3-22
Heated steering wheel....................................................4-51
Heater ........................................................................\
..4-131
Automatic climate control system ..........................4-131
High - beam operation ................................................4-111
Hight adjustment............................................................3-28
Highway driving ............................................................5-61
Hill-start assist control (HAC) ......................................5-41
Hood ........................................................................\
......4-38
Horn ........................................................................\
......4-51
How to use this manual ..................................................1-2F
GH
XM(FL) CAN(ENG) Index.qxp 1/23/2013 3:41 PM Page 5
Page 505 of 508
I7
Index
Turn By Turn Mode ..................................................4-80
Warning Messages ....................................................4-81
LCD Display Control ....................................................4-70
LCD modes ....................................................................4-75\
Lighting........................................................................\
4-108 Battery saver function ............................................4-108
Headlamp escort function ......................................4-108
Headlamp welcome function ..................................4-108
Lighting control ......................................................4-109
High - beam operation ............................................4-111
Turn signals ............................................................4-112
Front fog light ........................................................4-112
Daytime running light ............................................4-109
Lighting control ..........................................................4-109 Autolight..................................................................4-110
Lubricants and capacities ................................................8-6
Luggage net (holder) ..................................................4-156
Luggage room lamp ....................................................4-119
Luggage volume ..............................................................8-5
Maintenance ....................................................................7-5 Maintenance services ..................................................7-5
Owner maintenance ....................................................7-7
Scheduled maintenance service ..................................7-9
Explanation of scheduled maintenance items ..........7-27
Tire maintenance ......................................................7-55 Maintenance schedule ..................................................7-10
Maintenance services ......................................................7-5
Manual climate control system....................................4-121
Manual transaxle............................................................5-13
Map lamp ....................................................................4-118
Mirrors ........................................................................\
..4-55
Day/night rearview mirror ........................................4-55
Electric chromic mirror (ECM) ................................4-56
Inside rearview mirror ..............................................4-55
Outside rearview mirror ............................................4-64
Moonroof, see panorama sunroof ..................................4-44
Multi fuse ......................................................................7-\
67
Odometer ......................................................................4-\
73
Oil (Engine) ..................................................................7-31
Outside rearview mirror ................................................4-64
Overheats ........................................................................\
6-7
Owner maintenance ........................................................7-7
Panorama sunroof ..........................................................4-44
Parking brake ................................................................5-32 Checking the parking brake ......................................7-38
Power brakes..................................................................5-30
Power outlet ................................................................4-151
OP
M
XM(FL) CAN(ENG) Index.qxp 1/23/2013 3:41 PM Page 7
Page 508 of 508
Index10ITowing ........................................................................\
..6-17Towing service ..........................................................6-17
Trailer towing ................................................................5-66
Transaxle ........................................................................\
5-13 Manual transaxle ......................................................5-13
Automatic transaxle ..................................................5-16
Transaxle Shift Indicator ..............................................4-74
Trip A/B ........................................................................\
4-88
Trip computer ................................................................4-87 Trip A/B ....................................................................4-88\
Fuel Economy ..........................................................4-89
Turn By Turn Mode ......................................................4-80
Turn signals ..................................................................4-112
User Settings Mode ......................................................4-78
Vanity mirror lamp ......................................................4-119
Vehicle break-in process ..................................................1-5
Vehicle identification number (VIN) ..............................8-9
Vehicle stability management ........................................5-40
Vehicle weight ..............................................................5-81 Warning light ................................................................4-91
Warning Messages ........................................................4-81
Washer fluid ..................................................................7-37
Welcome system ..........................................................4-108
Headlamp welcome ................................................4-108
Wheel alignment and tire balance ................................7-53
Wheel replacement ........................................................7-55
Windows ........................................................................\
4-33 Power window lock button ......................................4-36
Windshield defrosting and defogging..........................4-142
Windshield washers ....................................................4-115
Windshield wipers ......................................................4-114
Winter driving ................................................................5-63 Snow tires ..................................................................5-63
Wiper blades ..................................................................7-43
Wipers and washers ....................................................4-113 Windshield wipers ..................................................4-114
Windshield washers ................................................4-115UV
W
