Maintenance
82
7
LIGHT BULBS
Please prepare lamps with appropri-
ate standards in case of emergen-
cies. (Refer to chapter 8 for further
information)
When changing lamps and sorts,
first turn off the engine at a safe
place, firmly apply the side brake and
take out the battery’s negative (-) ter-
minal.Use only the bulbs of the specified
wattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed from an operating
lamp activated by electricity, the
fuse box’s electronic device may
scan it as a malfunction.
Therefore, a lamp malfunction
history may be recorded in
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp may blink temporarily. Since this
occurrence is due stabilization
function of the vehicle’s electronic
control device, if the lamp lights
up normally after temporary
blinking, there is no problem in
the vehicle.
However, if the lamp continues to
blink several times or turn off
completely, there may be an error
in the vehicle’s electronic control
device. So please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned-
out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean headlamp lens with chem-ical solvents or strong deter-gents.
Page 535 of 576
783
Maintenance
If you don’t have necessary tools, the
correct bulbs and the expertise, con-
sult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If unauthentic parts or substandard
lights are used when changing lights,
it may lead to fuse disconnection and
malfunction, and other wiring dam-
ages.
Do not install extra lamps or LED to
the vehicle. If supplementary lights
are installed, it may lead to lamp mal-
function and flickering of the lights. In
addition, the fuse box and other writ-
ing may be damaged.Front lamp bulb replacement(1) Headlamp (High and DRL)
(2) Headlamp (Low)
(3) Turn signal lamp
(4) Side marker lamp
(5) Position lamp
(6) Fog lamp (if equipped)
OUMA074027
OUMA074114
■Type A
■Type B
Page 536 of 576
Maintenance
84
7

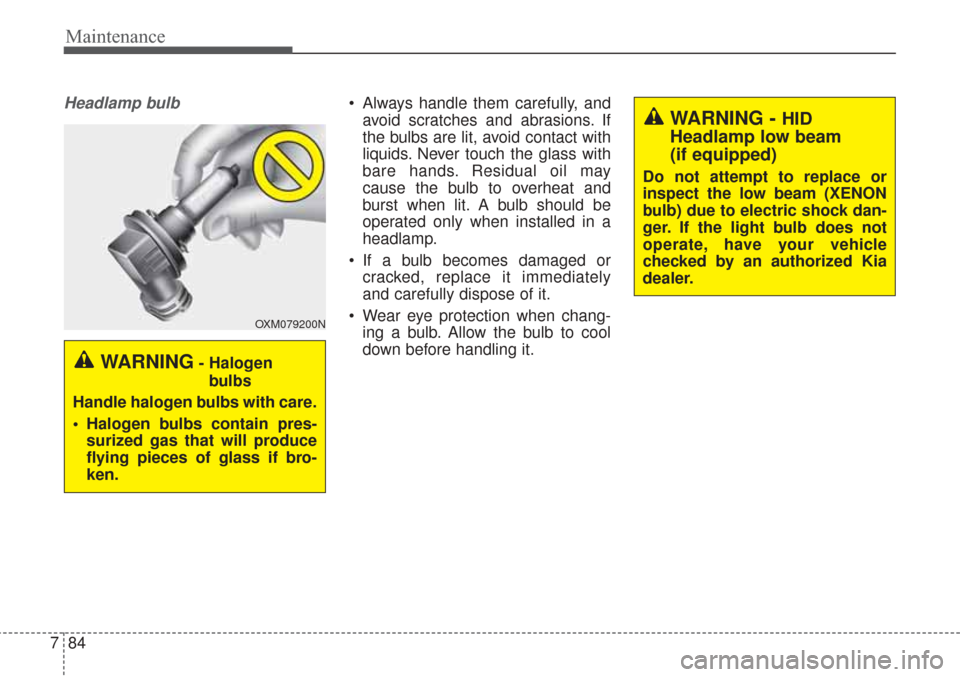

Headlamp bulb Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
WARNING - HID
Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the light bulb does not
operate, have your vehicle
checked by an authorized Kia
dealer.
OXM079200N
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
Page 537 of 576
785
Maintenance

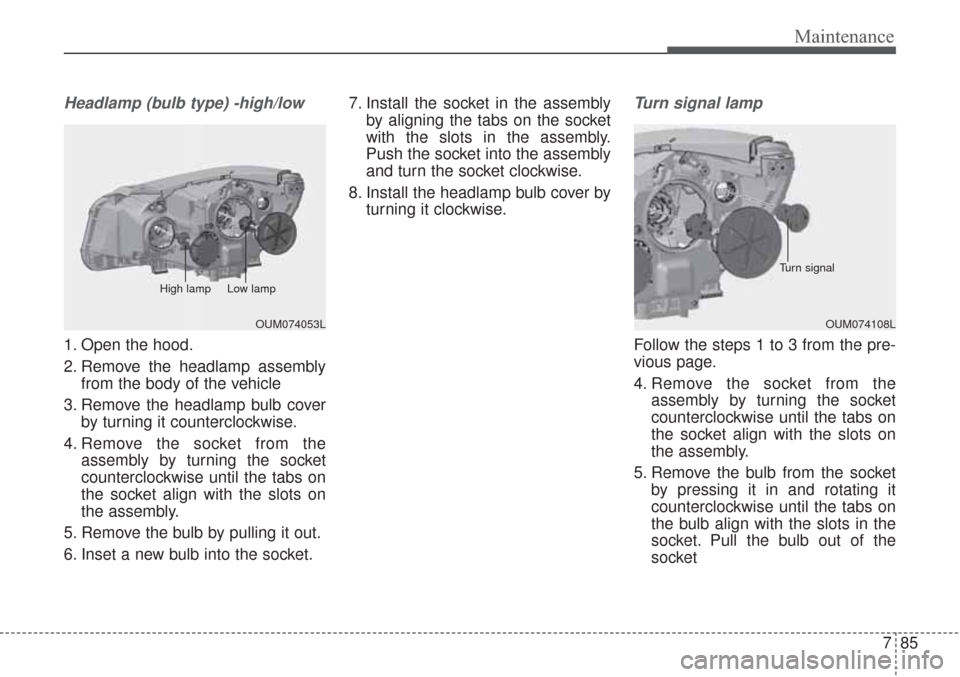

Headlamp (bulb type) -high/low
1. Open the hood.
2. Remove the headlamp assemblyfrom the body of the vehicle
3. Remove the headlamp bulb cover by turning it counterclockwise.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb by pulling it out.
6. Inset a new bulb into the socket. 7. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8. Install the headlamp bulb cover by turning it clockwise.
Turn signal lamp
Follow the steps 1 to 3 from the pre-
vious page.
4. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket
OUM074108L
Turn signal
OUM074053L
High lamp Low lamp
Page 538 of 576
Maintenance
86
7
6. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
7. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
✽ ✽NOTICE
If bulb will not rotate inside socket,
remove bulb, rotate 180°, and try
again.

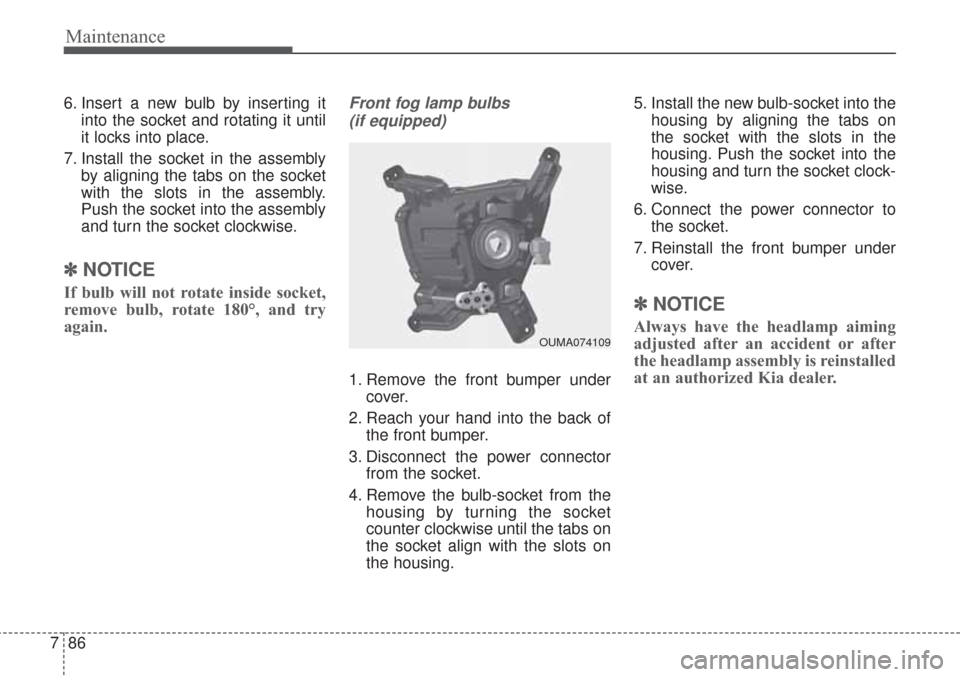

Front fog lamp bulbs
(if equipped)
1. Remove the front bumper under cover.
2. Reach your hand into the back of the front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing. 5. Install the new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover.
✽ ✽NOTICE
Always have the headlamp aiming
adjusted after an accident or after
the headlamp assembly is reinstalled
at an authorized Kia dealer.OUMA074109
Page 539 of 576
787
Maintenance

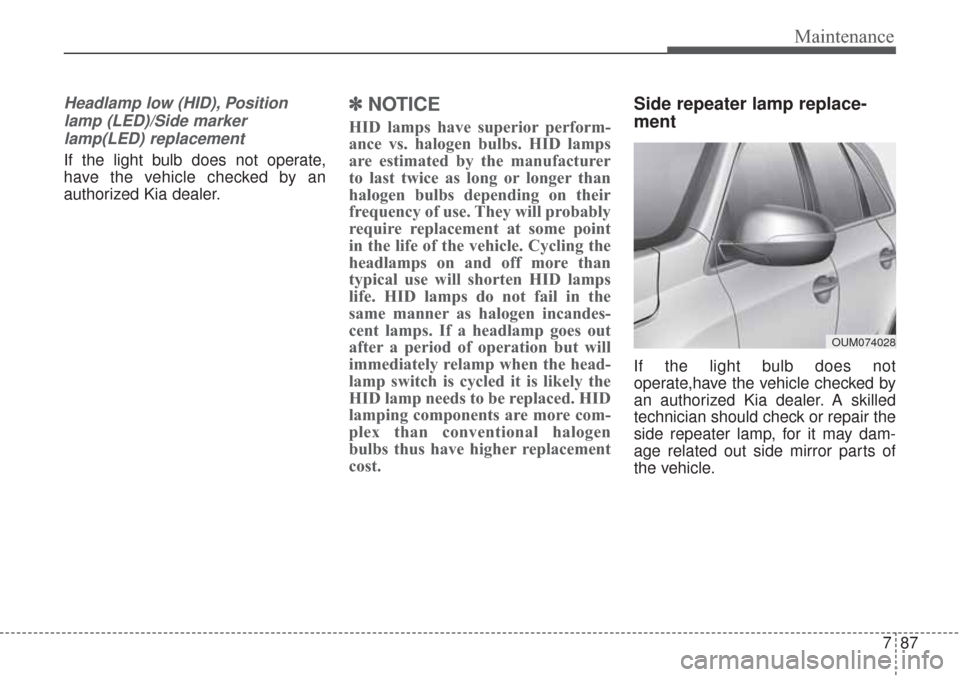

Headlamp low (HID), Positionlamp (LED)/Side markerlamp(LED) replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
✽ ✽ NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer
to last twice as long or longer than
halogen bulbs depending on their
frequency of use. They will probably
require replacement at some point
in the life of the vehicle. Cycling the
headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the
same manner as halogen incandes-
cent lamps. If a headlamp goes out
after a period of operation but will
immediately relamp when the head-
lamp switch is cycled it is likely the
HID lamp needs to be replaced. HID
lamping components are more com-
plex than conventional halogen
bulbs thus have higher replacement
cost.
Side repeater lamp replace-
ment
If the light bulb does not
operate,have the vehicle checked by
an authorized Kia dealer. A skilled
technician should check or repair the
side repeater lamp, for it may dam-
age related out side mirror parts of
the vehicle.
OUM074028
Page 559 of 576
83

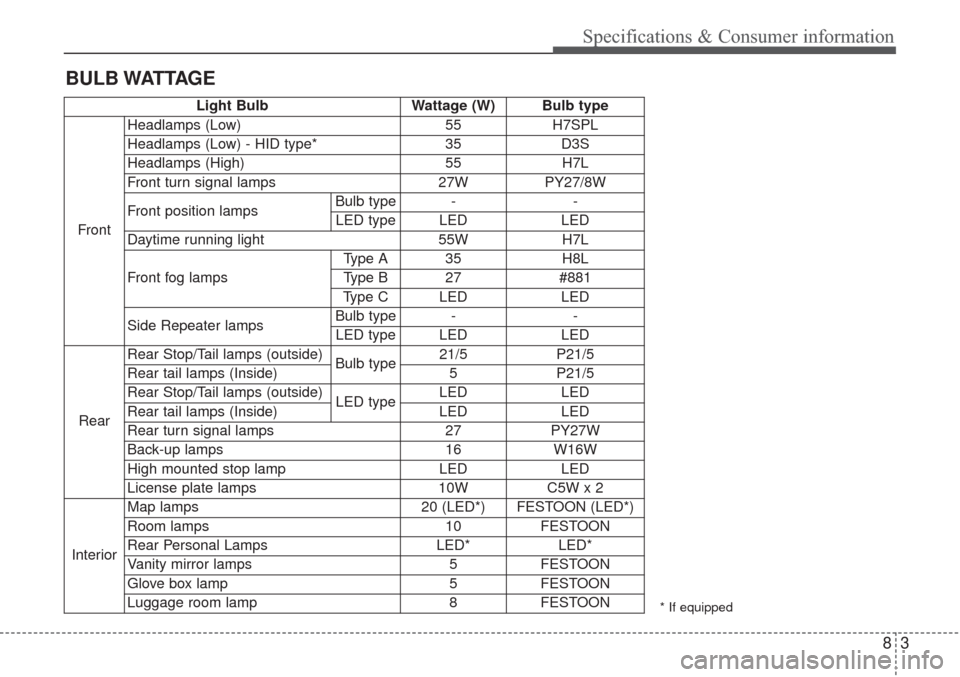

BULB WATTAGESpecifications & Consumer information
* If equipped
Light BulbWattage (W)Bulb type
Front
Headlamps (Low) 55H7SPL
Headlamps (Low) - HID type* 35D3S
Headlamps (High) 55H7L
Front turn signal lamps 27WPY27/8W
Front position lamps Bulb type--
LED typeLEDLED
Daytime running light55WH7L
Front fog lamps
Type A35H8L
Type B27#881
Type CLEDLED
Side Repeater lamps Bulb type--
LED typeLEDLED
Rear
Rear Stop/Tail lamps (outside)Bulb type21/5P21/5
Rear tail lamps (Inside)5P21/5
Rear Stop/Tail lamps (outside)LED typeLEDLED
Rear tail lamps (Inside)LEDLED
Rear turn signal lamps27PY27W
Back-up lamps16W16W
High mounted stop lampLEDLED
License plate lamps10WC5W x 2
Interior
Map lamps 20 (LED*)FESTOON (LED*)
Room lamps10FESTOON
Rear Personal LampsLED*LED*
Vanity mirror lamps5FESTOON
Glove box lamp5FESTOON
Luggage room lamp 8FESTOON
Page 575 of 576
I9
Index
Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . . 5-108
Hitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10\
6
If you do decide to pull a trailer. . . . . . . . . . . . . . . 5-112
Maintenance when trailer towing . . . . . . . . . . . . . . 5-111
Safety chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106
Trailer brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106
Trip modes (trip computer). . . . . . . . . . . . . . . . . . . . . . 4-80 A/V mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
One time driving information mode . . . . . . . . . . . . 4-83
ASCC/LDWS mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82\
Trip Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-86
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle handling instructions . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-9
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-114 Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-114 Tire and loading information label. . . . . . . . . . . . . 5-114
Vehicle weight glossary . . . . . . . . . . . . . . . . . . . . . . . 5-120 Base curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . 5-120
Cargo weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-120
GAW (Gross axle weight) . . . . . . . . . . . . . . . . . . . 5-120
GAWR (Gross axle weight rating). . . . . . . . . . . . . 5-120
GVW (Gross vehicle weight). . . . . . . . . . . . . . . . . 5-120
GVWR (Gross vehicle weight rating) . . . . . . . . . . 5-120
Vehicle curb weight . . . . . . . . . . . . . . . . . . . . . . . . 5-120
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-97 Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40 Checking the washer fluid level. . . . . . . . . . . . . . . . 7-40
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128 Headlight (headlamp) escort function . . . . . . . . . . 4-128
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-39 Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Windshield defrosting and defogging. . . . . . . . . . . . . 4-154 Automatic climate control system . . . . . . . . . . . . . 4-155
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Manual climate control system . . . . . . . . . . . . . . . 4-154
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-103
V
W
