headrest KIA Sorento 2017 3.G User Guide

Safety features of your vehicle
22
3

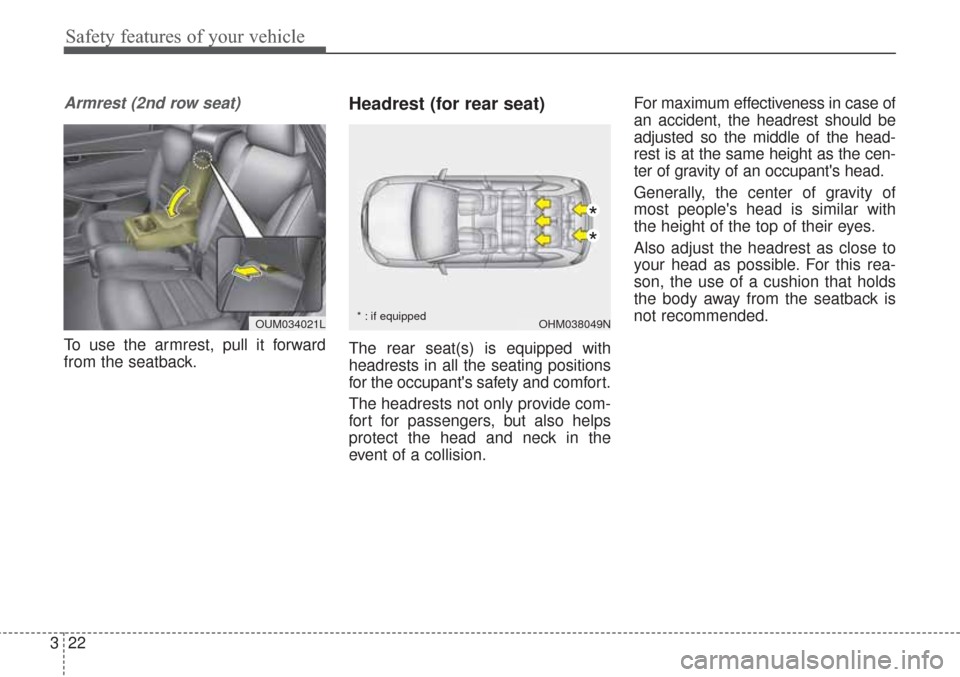

Armrest (2nd row seat)
To use the armrest, pull it forward
from the seatback.
Headrest (for rear seat)
The rear seat(s) is equipped with
headrests in all the seating positions
for the occupant's safety and comfort.
The headrests not only provide com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision. For maximum effectiveness in case of
an accident, the headrest should be
adjusted so the middle of the head-
rest is at the same height as the cen-
ter of gravity of an occupant's head.
Generally, the center of gravity of
most people's head is similar with
the height of the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
OUM034021LOHM038049N
* : if equipped
*
*

323
Safety features of your vehicle

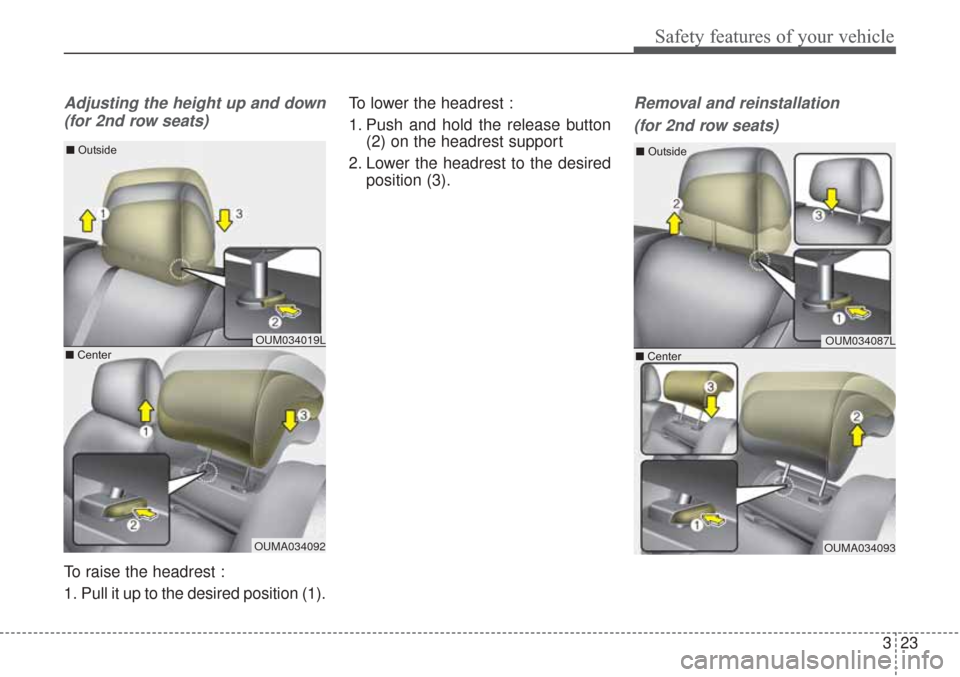

Adjusting the height up and down(for 2nd row seats)
To raise the headrest :
1. Pull it up to the desired position (1). To lower the headrest :
1. Push and hold the release button
(2) on the headrest support
2. Lower the headrest to the desired position (3).
Removal and reinstallation
(for 2nd row seats)
OUMA034092
■
Outside
■ Center
OUM034019LOUM034087L
OUMA034093
■
Outside
■ Center

Safety features of your vehicle
24
3

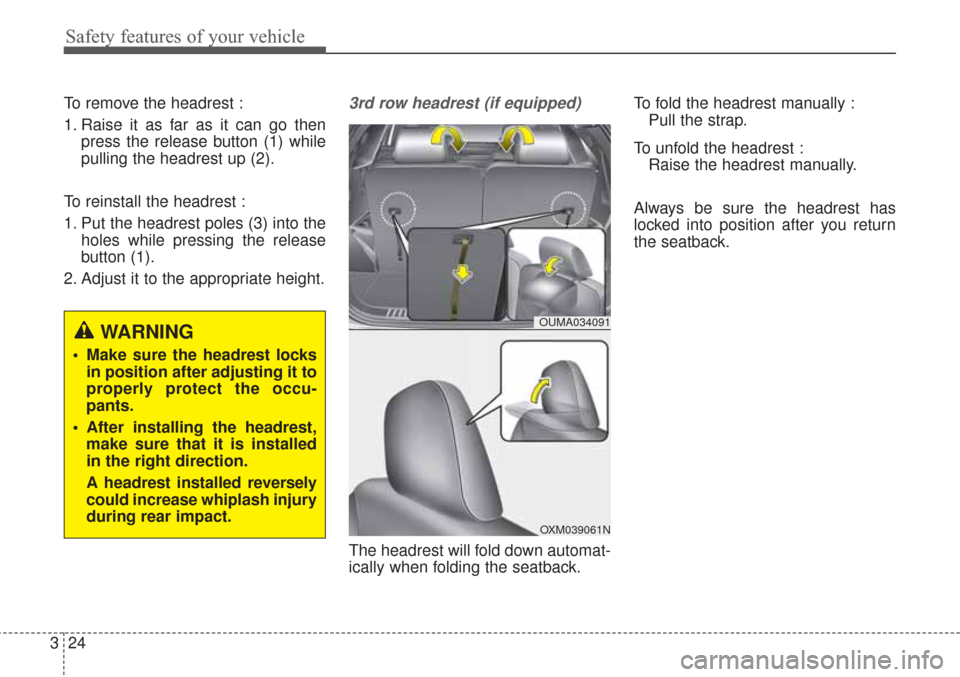

To remove the headrest :
1. Raise it as far as it can go then
press the release button (1) while
pulling the headrest up (2).
To reinstall the headrest :
1. Put the headrest poles (3) into the holes while pressing the release
button (1).
2. Adjust it to the appropriate height.3rd row headrest (if equipped)
The headrest will fold down automat-
ically when folding the seatback. To fold the headrest manually :
Pull the strap.
To unfold the headrest : Raise the headrest manually.
Always be sure the headrest has
locked into position after you return
the seatback.
WARNING
Make sure the headrest locks in position after adjusting it to
properly protect the occu-
pants.
After installing the headrest, make sure that it is installed
in the right direction.
A headrest installed reversely
could increase whiplash injury
during rear impact.
OUMA034091
OXM039061N

339
Safety features of your vehicle

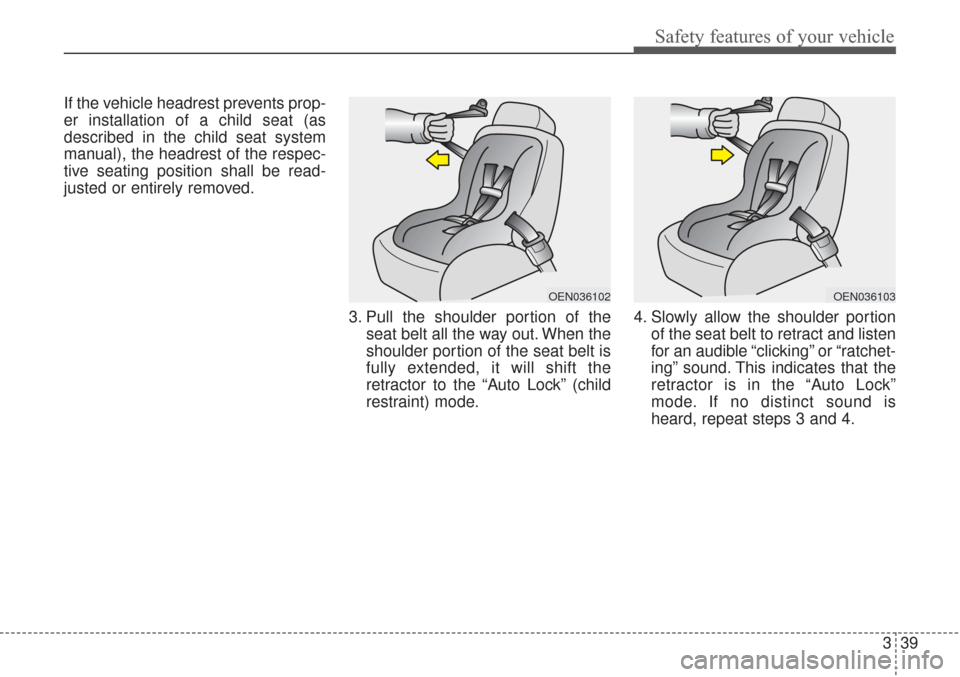

If the vehicle headrest prevents prop-
er installation of a child seat (as
described in the child seat system
manual), the headrest of the respec-
tive seating position shall be read-
justed or entirely removed.3. Pull the shoulder portion of theseat belt all the way out. When the
shoulder portion of the seat belt is
fully extended, it will shift the
retractor to the “Auto Lock” (child
restraint) mode. 4. Slowly allow the shoulder portion
of the seat belt to retract and listen
for an audible “clicking” or “ratchet-
ing” sound. This indicates that the
retractor is in the “Auto Lock”
mode. If no distinct sound is
heard, repeat steps 3 and 4.
OEN036103OEN036102

341
Safety features of your vehicle

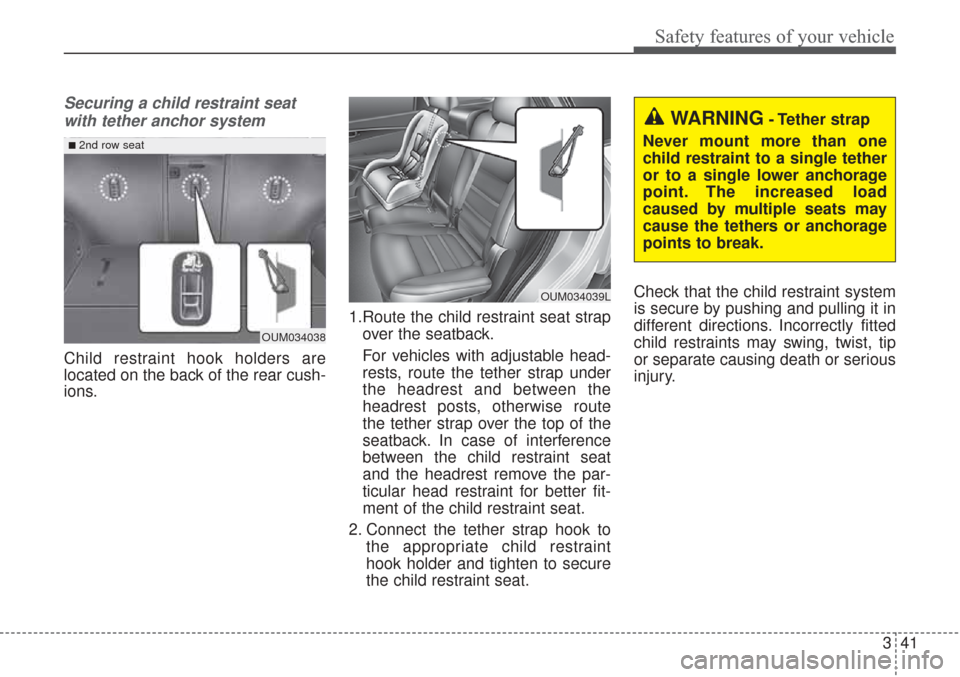

Securing a child restraint seatwith tether anchor system
Child restraint hook holders are
located on the back of the rear cush-
ions. 1.Route the child restraint seat strap
over the seatback.
For vehicles with adjustable head-
rests, route the tether strap under
the headrest and between the
headrest posts, otherwise route
the tether strap over the top of the
seatback. In case of interference
between the child restraint seat
and the headrest remove the par-
ticular head restraint for better fit-
ment of the child restraint seat.
2. Connect the tether strap hook to the appropriate child restraint
hook holder and tighten to secure
the child restraint seat. Check that the child restraint system
is secure by pushing and pulling it in
different directions. Incorrectly fitted
child restraints may swing, twist, tip
or separate causing death or serious
injury.
WARNING- Tether strap
Never mount more than one
child restraint to a single tether
or to a single lower anchorage
point. The increased load
caused by multiple seats may
cause the tethers or anchorage
points to break.
OUM034039L
OUM034038
■2nd row seat

I7

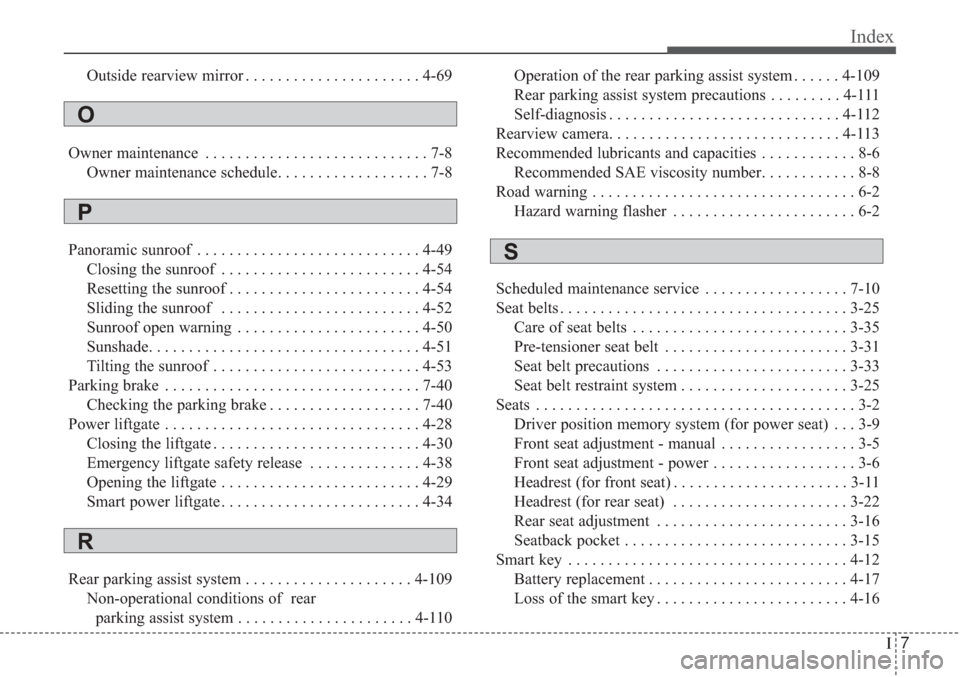

Index
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-69
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8 Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-8
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-54
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-54
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-50
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51\
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40 Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-40
Power liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28 Closing the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Emergency liftgate safety release . . . . . . . . . . . . . . 4-38
Opening the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Smart power liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
Rear parking assist system . . . . . . . . . . . . . . . . . . . . . 4-109 Non-operational conditions of rearparking assist system . . . . . . . . . . . . . . . . . . . . . . 4-110 Operation of the rear parking assist system . . . . . . 4-109
Rear parking assist system precautions . . . . . . . . . 4-111
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Rearview camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended SAE viscosity number. . . . . . . . . . . . 8-8
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 6-2
Scheduled maintenance service . . . . . . . . . . . . . . . . . . 7-10
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-25 Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-31
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-25
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-2 Driver position memory system (for power seat) . . . 3-9
Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-5
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-6
Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . 3-11
Headrest (for rear seat) . . . . . . . . . . . . . . . . . . . . . . 3-22
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
12 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . 4-16
