Page 21 of 84
18
00380056004C0051004A000300300033001600030030005200470048
FeaturesDescription
Mode
Displays currently operating mode
File IndexShows the current MP3 file/total number of MP3 files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Song InfoDisplays artist/title/album info for current song
ListMoves to the list screen
Previous File
• If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
- If play time is less than 3 seconds, moves to previous file
- If play time is more than 3 seconds, play the current file
from the beginning
• If button is pressed (over than 0.8 seconds) it rewinds the track
Play/PausePlays/Pauses the current track
Next File
• If button is pressed (less than 0.8 seconds): Moves to the
next file.
• If button is pressed (over than 0.8 seconds): It fast-forwards
the track.
Repeat
Repeats the current song or all songs in the folder
Select the 003500480053004800440057 button to switch between repeating 1 song 044F
repeating folder 044F
and turning repeat off
Repeat 1 song: Repeats the current song
Repeat Folder: Repeats songs in the folder
Shuffle
Plays files in the folder or in the disc in random order
Select the 0036004B005800490049004F0048 button to switch between shuffle folder 044F
shuffle all 044F
and turning shuffle off
Shuffle folder: Plays songs in the folder in random order
Shuffle All: Plays songs in the disc in random order.
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 22 of 84
19
FeaturesDescription
Scan Scans the beginning parts of MP3 files (approx. 10 seconds
per file)
Select the 0036004600440051 button to switch between scan folder
044F
scan all 044F
and turning scan off
Scan Folder: Scans tracks in the current folder
Scan All: Scans all tracks in the disc
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
TUNETurn the
0037003800310028 0003
knob to search a desired track. If the
desired track is displayed, press the 0037003800310028 0003
knob to play
the track.
If the 0037003800310028 0003
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
i Information
• Album artwork is not available in the Disc CD and Disc MP3 mode.
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 23 of 84
20
003800360025
USB Music
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/title/album info
ListMoves to the list screen
Previous File
• If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
- If play time is less than 3 seconds, moves to previous file
- If play time is more than 3 seconds, play the current file
from the beginning
• If button is pressed (over than 0.8 seconds) it rewinds the
track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds): Moves to the
next file.
• If button is pressed (over than 0.8 seconds): It fast-forwards
the track.
Repeat Repeats the current file
• Select the song in the file tab on the list screen: Select the
003500480053004800440057 button to switch between repeating one song, repeat-
ing folder, and turning repeat off
• Select the song in the other tabs on the list screen: Select
the
003500480053004800440057 button to switch between repeating one song and
turning repeat off
Back Button Converts to basic mode screen
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 24 of 84
21
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Select the
0036004B005800490049004F0048 button to switch between Shuffle Folder, Shuffle All,
and turning shuffle off
• Select the song in the other tabs on the list screen: Select the
0036004B005800490049004F0048 button to switch between Shuffle Category and turn-
ing shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Select the
0036004600440051 button to switch between Scan Folder, Scan All, and
turning scan off
• Select the song in the other tabs on the list screen: Select the
0036004600440051 button to switch between Scan category and turning
scan off
Menu
• Save to My Music: You can save the current track to My
Music. You can play saved track from My Music without USB.
Access to My Music in the Media mode.
• Hide Current File: a selected file can be deleted. Deleted file
can be found in the “Hidden_” folder.
This function is only supported when USB format is compati-
ble with FAT16 or FAT32.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
TUNE
Turn the
0037003800310028 knob to search a desired track. If the desired
track is displayed, press the 0037003800310028 knob to play the track.
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 25 of 84
22
003800360025
USB Image
FeaturesDescription
Mode
Displays currently operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 26 of 84
23
iPod®
004C0033005200470071
FeaturesDescription
Mode
Displays the current operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the currently operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the artist/title/album info
ListMoves to the list screen
Previous File
• If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
- If play time is less than 3 seconds, moves to previous file
- If play time is more than 3 seconds, play the current file
from the beginning
• If button is pressed (over than 0.8 seconds) it rewinds the
track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds): Moves to the
next file.
• If button is pressed (over than 0.8 seconds): It fast-forwards
the track.
Repeat Repeats the current file
Select the 003500480053004800440057 button to switch between repeating 1 track,
and turning repeat off
Shuffle Plays files in random order
When selecting 0036004B005800490049004F0048 button, it changes to shuffle category
044F deactivate shuffle then repeat
• Shuffle Category: Shuffle song in the current category
Back Button
Move to home/previous mode screen
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

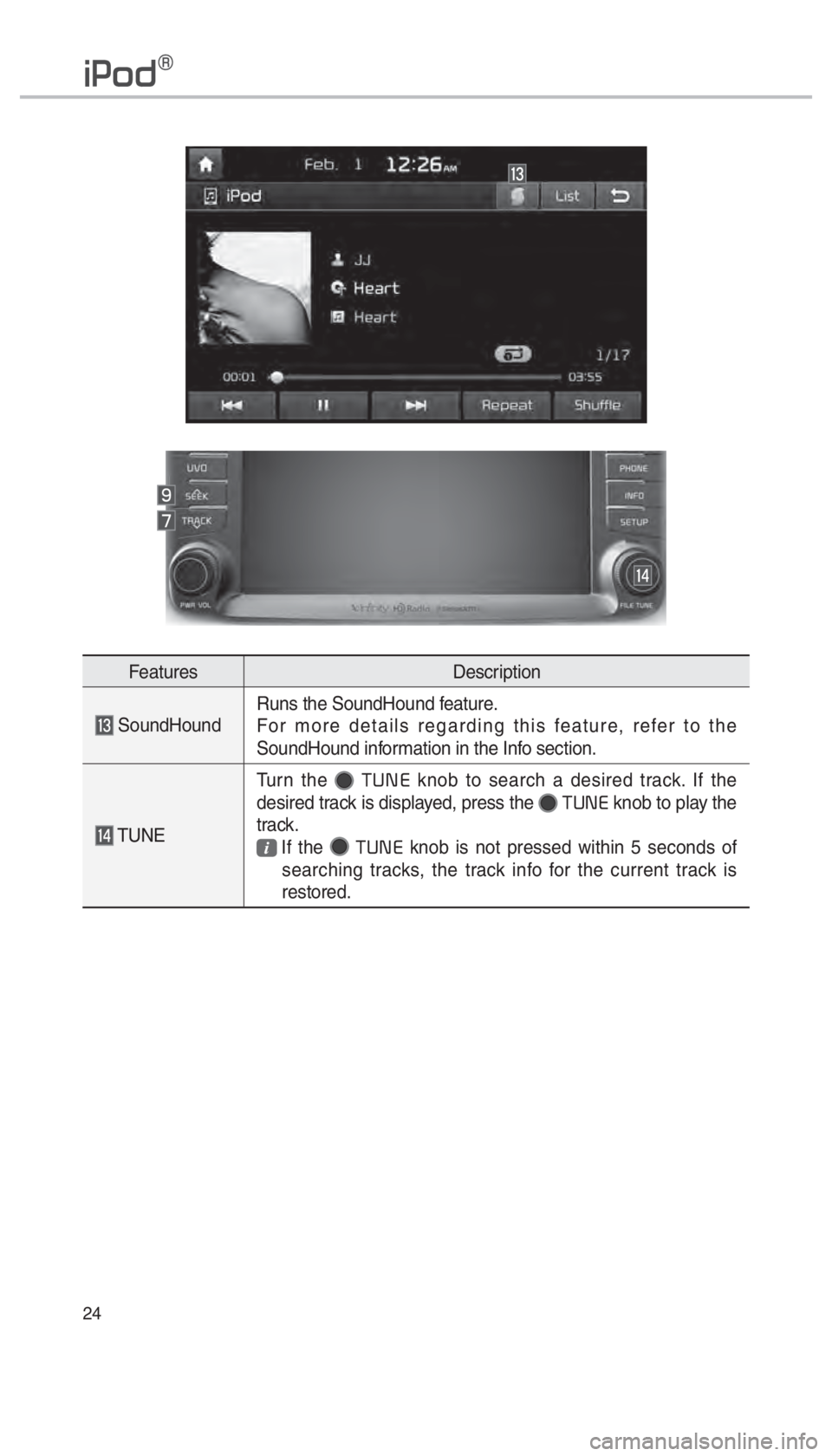

Page 27 of 84
24
004C0033005200470071
FeaturesDescription
SoundHoundRuns the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
TUNETurn the
0037003800310028 knob to search a desired track. If the
desired track is displayed, press the 0037003800310028 knob to play the
track.
If the
0037003800310028 knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

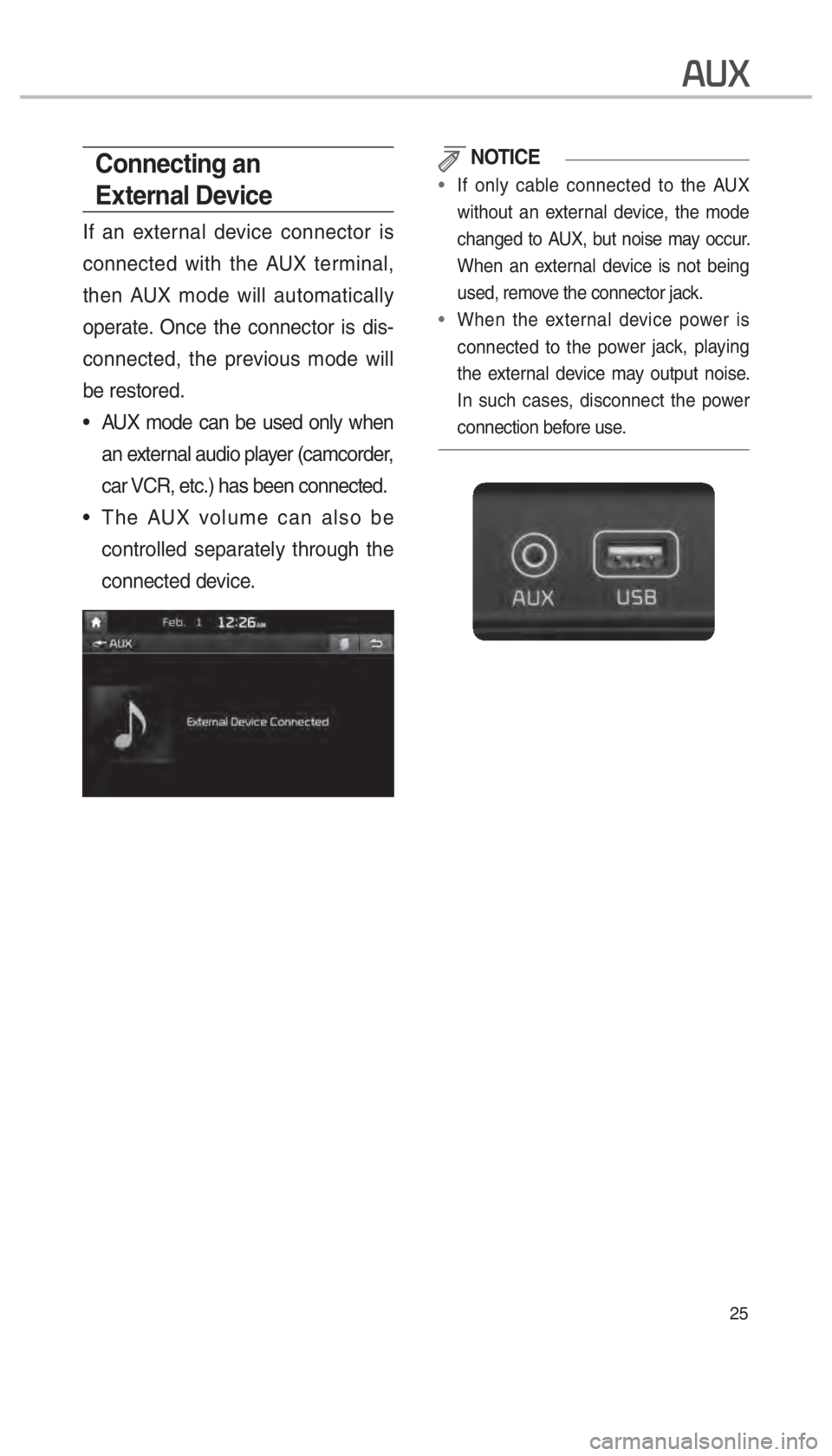

Page 28 of 84
25
00240038003B
Connecting an
External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
• AUX mode can be used only when
an external audio player (camcorder,
car VCR, etc.) has been connected.
• The AUX volume can also be
controlled separately through the
connected device.
NOTICE
• If only cable connected to the AUX
without an exter
nal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the po w
er jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 29 of 84
26
0025004F005800480057005200520057004B00710003002400580047004C0052
FeaturesDescription
Mode
Displays the current operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous File
• If play time is less than 3 seconds, moves to the previous file
• If play time is more than 3 seconds, plays the current file
from the beginning
This function may differ depending on the model of mobile
phone.
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
RepeatRepeats the current file This function may differ depending on the model of mobile
phone.
Shuffle Plays files in random order This function may differ depending on the model of mobile
phone.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
Connections
Moves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s).
SEEK/TRACK Plays the previous/next file
TUNE
0037003800310028 is not supported.
i Information
•
Artist info and Title may not be supported by mobile phone.
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 30 of 84
27
0030005C0003003000580056004C0046
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files
Repeat/Shuffle/
Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/title/album info
ListMoves to the list screen
Previous File
• If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
- If play time is less than 3 seconds, moves to previous file
- If play time is more than 3 seconds, play the current file
from the beginning
• If button is pressed (over than 0.8 seconds) it rewinds the
track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds): Moves to the
next file.
• If button is pressed (over than 0.8 seconds): It fast-forwards
the track.
Repeat Repeats the current file
• If select the song in the file tab on the list screen: Press the
003500480053004800440057 button to switch between repeating one song and
turning repeat off.
• If select the song in the other tabs on the list screen: Press
the
003500480053004800440057 button to switch between repeating one song
and turning repeat off
, @ 6 . B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
