KIA SORENTO 2018 Owner's Guide

Safety features of your vehicle
14
3

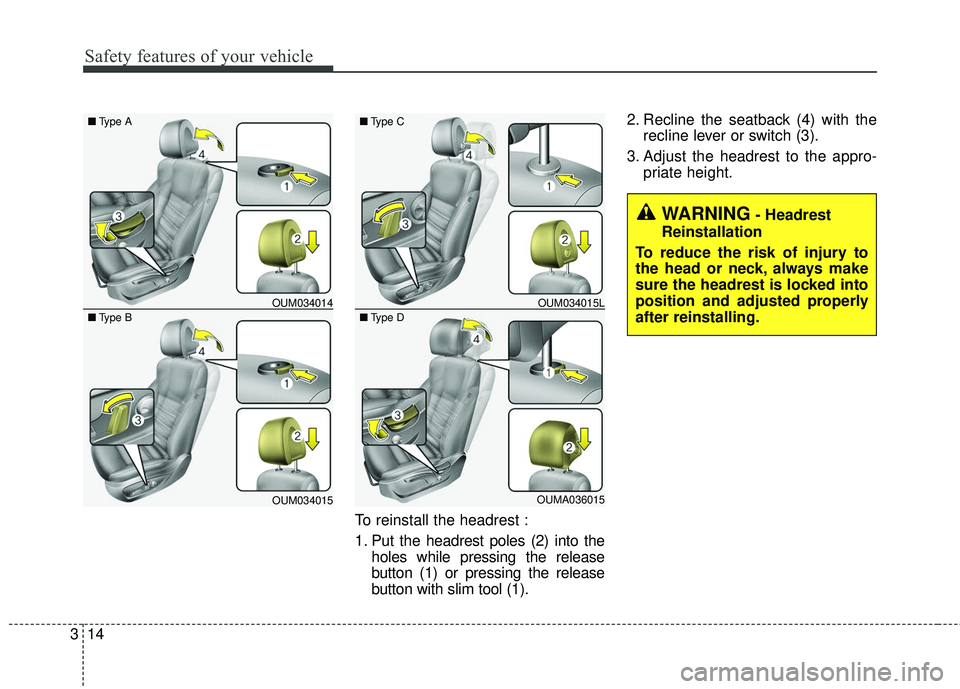

To reinstall the headrest :
1. Put the headrest poles (2) into the
holes while pressing the release
button (1) or pressing the release
button with slim tool (1). 2. Recline the seatback (4) with the
recline lever or switch (3).
3. Adjust the headrest to the appro- priate height.
OUM034014
OUM034015
■
Type B
■Type A
OUM034015L
OUMA036015
■
Type D
■Type C
WARNING- Headrest
Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly
after reinstalling.

315
Safety features of your vehicle

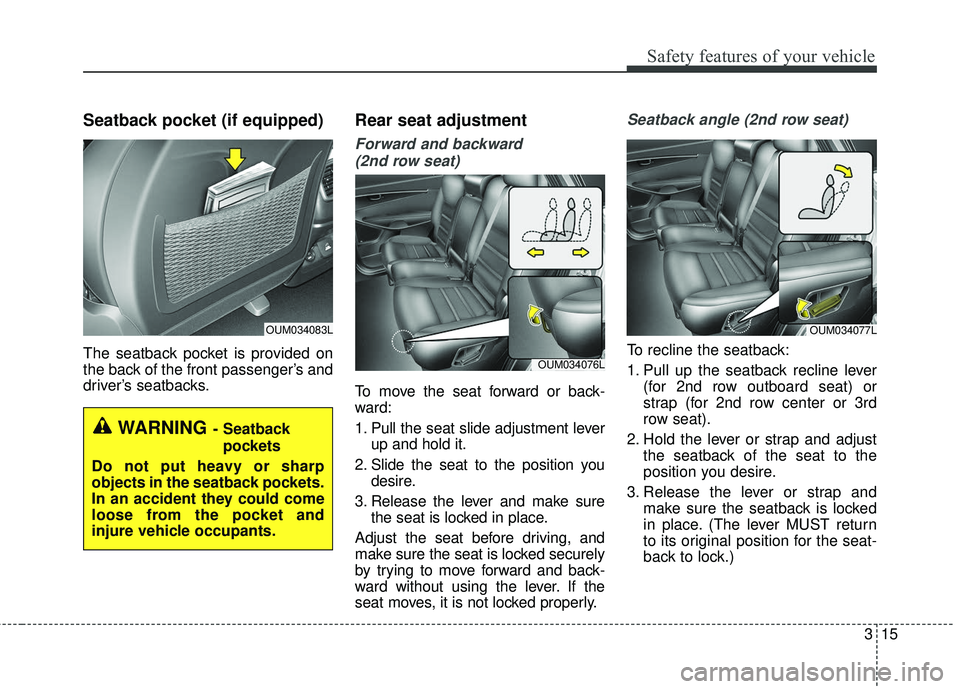

Seatback pocket (if equipped)
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
Rear seat adjustment
Forward and backward (2nd row seat)
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment lever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
Seatback angle (2nd row seat)
To recline the seatback:
1. Pull up the seatback recline lever (for 2nd row outboard seat) or
strap (for 2nd row center or 3rd
row seat).
2. Hold the lever or strap and adjust the seatback of the seat to the
position you desire.
3. Release the lever or strap and make sure the seatback is locked
in place. (The lever MUST return
to its original position for the seat-
back to lock.)
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
OUM034083L
OUM034076L
OUM034077L

Safety features of your vehicle
16
3

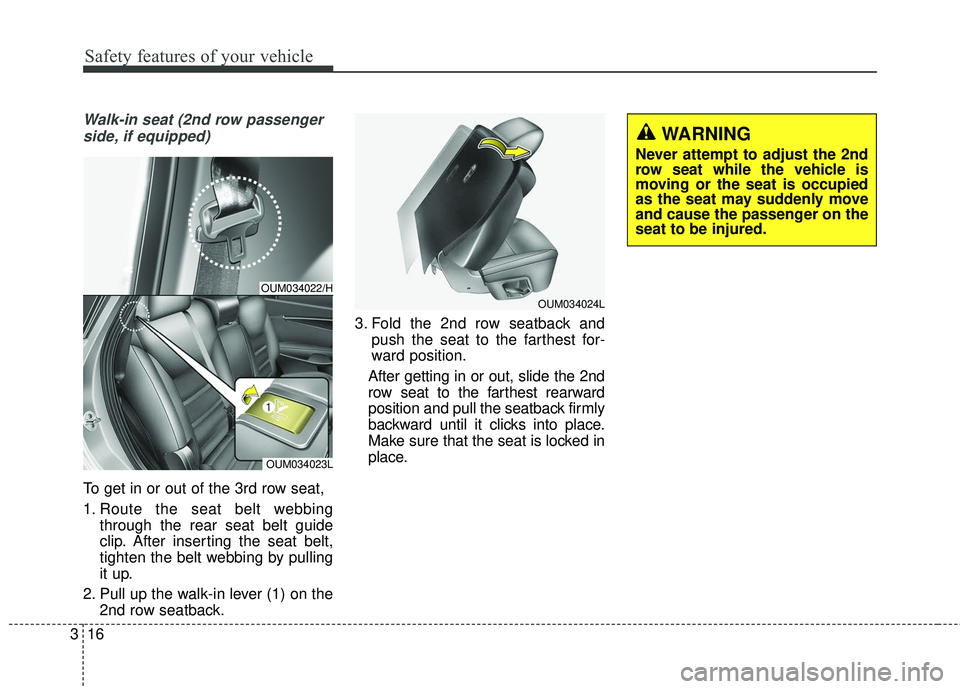

Walk-in seat (2nd row passenger
side, if equipped)
To get in or out of the 3rd row seat,
1. Route the seat belt webbing through the rear seat belt guide
clip. After inserting the seat belt,
tighten the belt webbing by pulling
it up.
2. Pull up the walk-in lever (1) on the 2nd row seatback. 3. Fold the 2nd row seatback and
push the seat to the farthest for-
ward position.
After getting in or out, slide the 2nd
row seat to the farthest rearward
position and pull the seatback firmly
backward until it clicks into place.
Make sure that the seat is locked in
place.
OUM034022/H
OUM034023L
OUM034024L
WARNING
Never attempt to adjust the 2nd
row seat while the vehicle is
moving or the seat is occupied
as the seat may suddenly move
and cause the passenger on the
seat to be injured.

317
Safety features of your vehicle

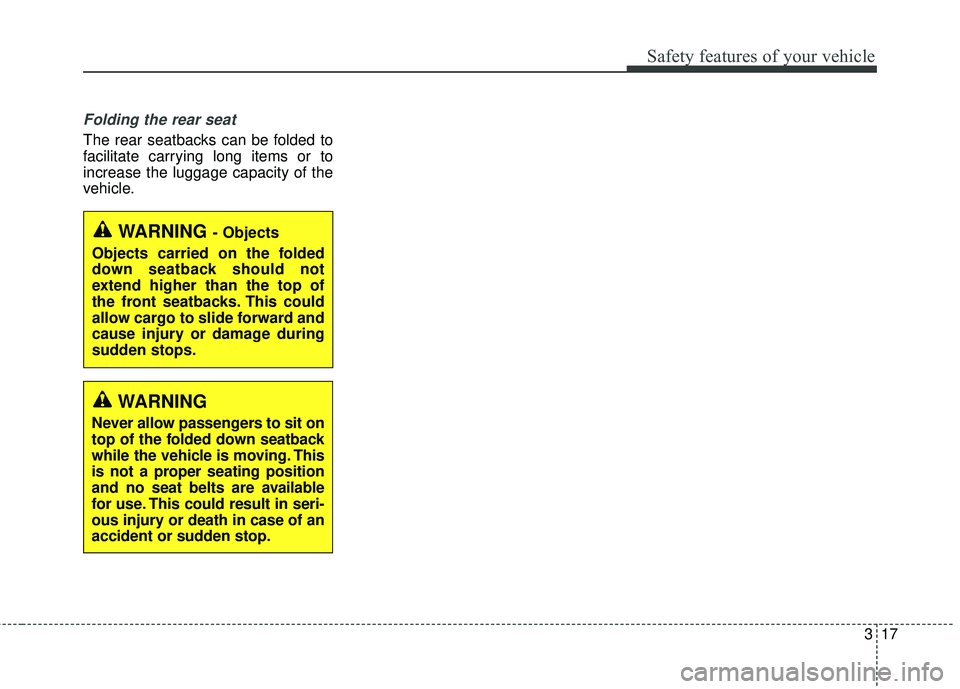

Folding the rear seat
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING - Objects
Objects carried on the folded
down seatback should not
extend higher than the top of
the front seatbacks. This could
allow cargo to slide forward and
cause injury or damage during
sudden stops.
WARNING
Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This
is not a proper seating position
and no seat belts are available
for use. This could result in seri-
ous injury or death in case of an
accident or sudden stop.

Safety features of your vehicle
18
3

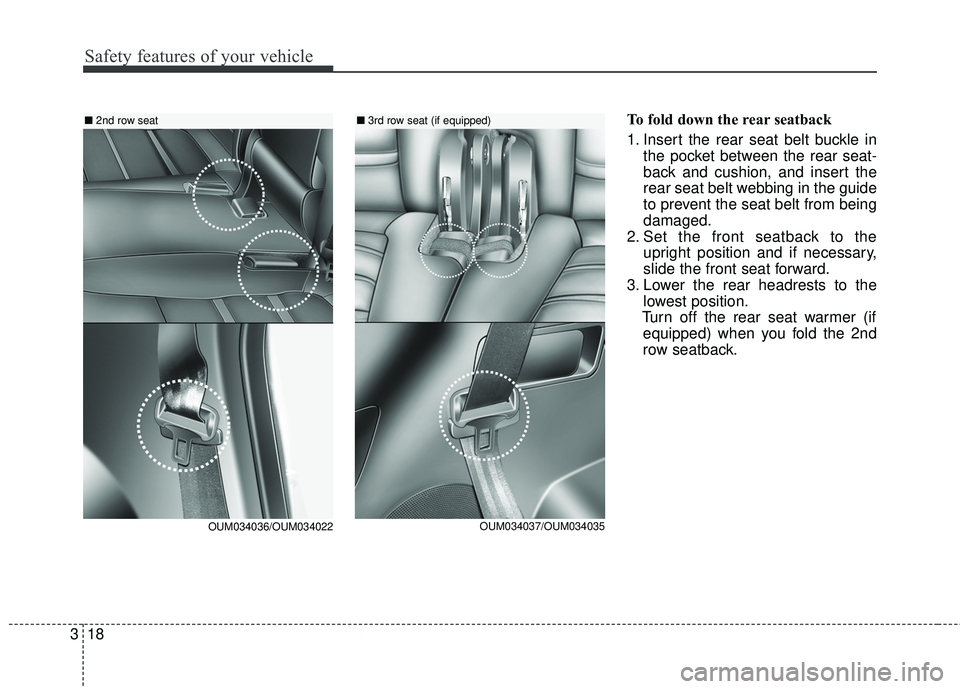

To fold down the rear seatback
1. Insert the rear seat belt buckle in
the pocket between the rear seat-
back and cushion, and insert the
rear seat belt webbing in the guide
to prevent the seat belt from being
damaged.
2. Set the front seatback to the upright position and if necessary,
slide the front seat forward.
3. Lower the rear headrests to the lowest position.
Turn off the rear seat warmer (if equipped) when you fold the 2nd
row seatback.
OUM034036/OUM034022
■ 2nd row seat
OUM034037/OUM034035
■3rd row seat (if equipped)

319
Safety features of your vehicle

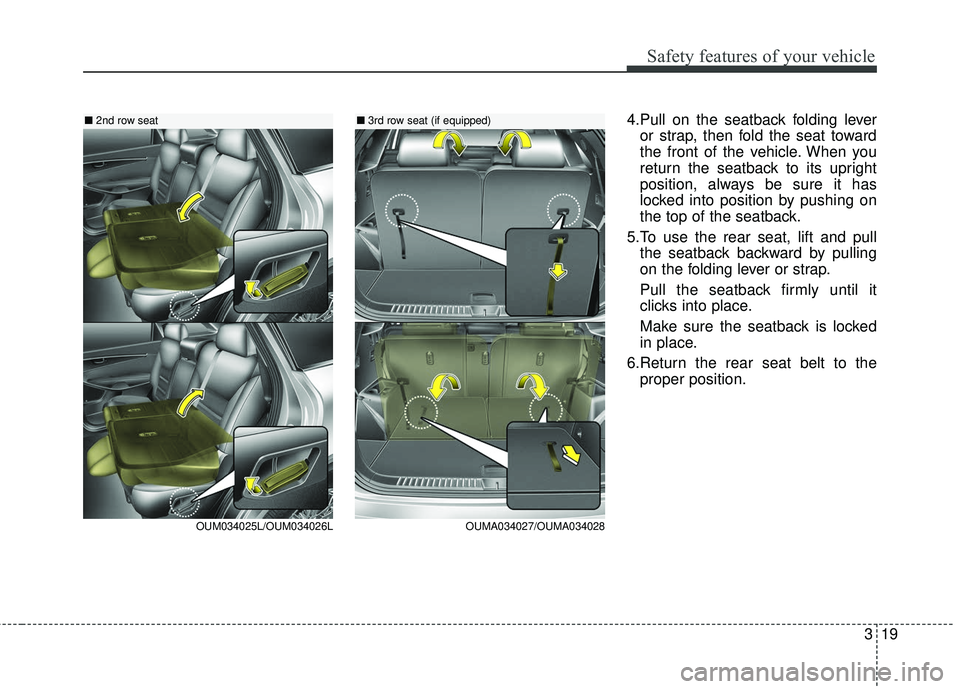

4.Pull on the seatback folding leveror strap, then fold the seat toward
the front of the vehicle. When you
return the seatback to its upright
position, always be sure it has
locked into position by pushing on
the top of the seatback.
5.To use the rear seat, lift and pull the seatback backward by pulling
on the folding lever or strap.
Pull the seatback firmly until it
clicks into place.
Make sure the seatback is locked
in place.
6.Return the rear seat belt to the proper position.
OUM034025L/OUM034026L
■ 2nd row seat■3rd row seat (if equipped)
OUMA034027/OUMA034028

Safety features of your vehicle
20
3

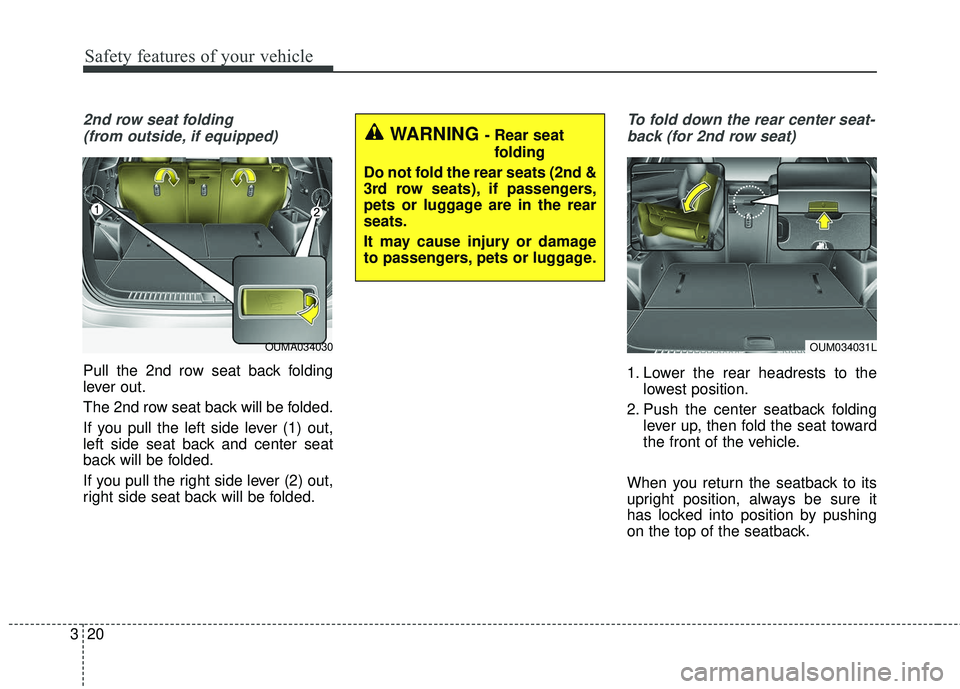

2nd row seat folding
(from outside, if equipped)
Pull the 2nd row seat back folding
lever out.
The 2nd row seat back will be folded.
If you pull the left side lever (1) out,
left side seat back and center seat
back will be folded.
If you pull the right side lever (2) out,
right side seat back will be folded.
To fold down the rear center seat-back (for 2nd row seat)
1. Lower the rear headrests to the lowest position.
2. Push the center seatback folding lever up, then fold the seat toward
the front of the vehicle.
When you return the seatback to its
upright position, always be sure it
has locked into position by pushing
on the top of the seatback.
WARNING - Rear seat folding
Do not fold the rear seats (2nd &
3rd row seats), if passengers,
pets or luggage are in the rear
seats.
It may cause injury or damage
to passengers, pets or luggage.
OUMA034030OUM034031L

321
Safety features of your vehicle

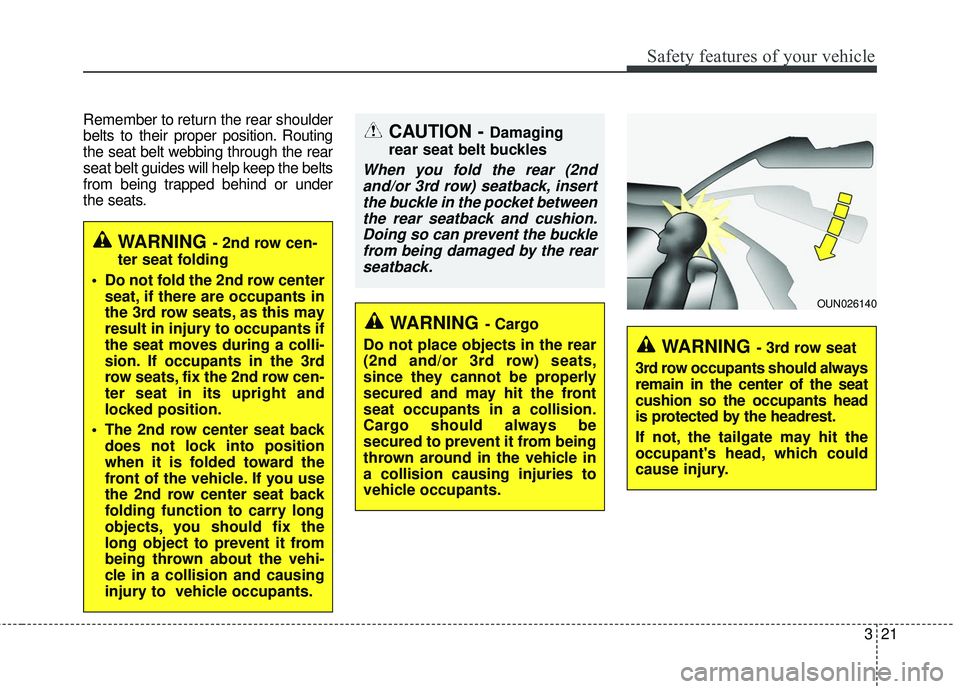

Remember to return the rear shoulder
belts to their proper position. Routing
the seat belt webbing through the rear
seat belt guides will help keep the belts
from being trapped behind or under
the seats.
WARNING - 2nd row cen-
ter seat folding
Do not fold the 2nd row center seat, if there are occupants in
the 3rd row seats, as this may
result in injury to occupants if
the seat moves during a colli-
sion. If occupants in the 3rd
row seats, fix the 2nd row cen-
ter seat in its upright and
locked position.
The 2nd row center seat back does not lock into position
when it is folded toward the
front of the vehicle. If you use
the 2nd row center seat back
folding function to carry long
objects, you should fix the
long object to prevent it from
being thrown about the vehi-
cle in a collision and causing
injury to vehicle occupants.
CAUTION - Damaging
rear seat belt buckles
When you fold the rear (2nd and/or 3rd row) seatback, insertthe buckle in the pocket betweenthe rear seatback and cushion.Doing so can prevent the bucklefrom being damaged by the rearseatback.
OUN026140
WARNING - 3rd row seat
3rd row occupants should always
remain in the center of the seat
cushion so the occupants head
is protected by the headrest.
If not, the tailgate may hit the
occupant's head, which could
cause injury.
WARNING- Cargo
Do not place objects in the rear
(2nd and/or 3rd row) seats,
since they cannot be properly
secured and may hit the front
seat occupants in a collision.
Cargo should always be
secured to prevent it from being
thrown around in the vehicle in
a collision causing injuries to
vehicle occupants.

Safety features of your vehicle
22
3

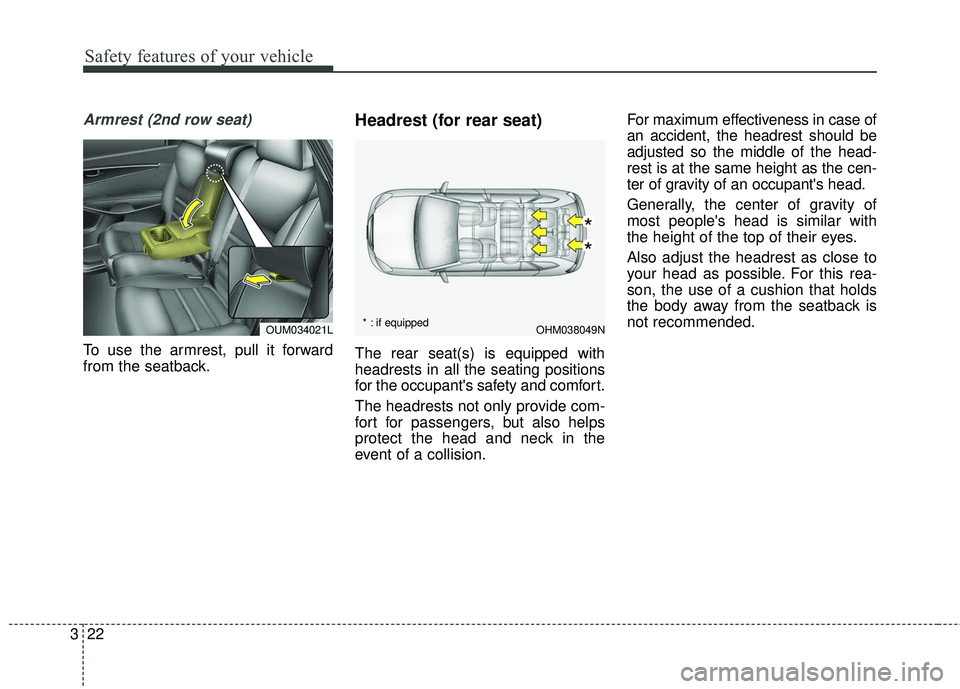

Armrest (2nd row seat)
To use the armrest, pull it forward
from the seatback.
Headrest (for rear seat)
The rear seat(s) is equipped with
headrests in all the seating positions
for the occupant's safety and comfort.
The headrests not only provide com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision. For maximum effectiveness in case of
an accident, the headrest should be
adjusted so the middle of the head-
rest is at the same height as the cen-
ter of gravity of an occupant's head.
Generally, the center of gravity of
most people's head is similar with
the height of the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
OUM034021LOHM038049N
* : if equipped
*
*

323
Safety features of your vehicle

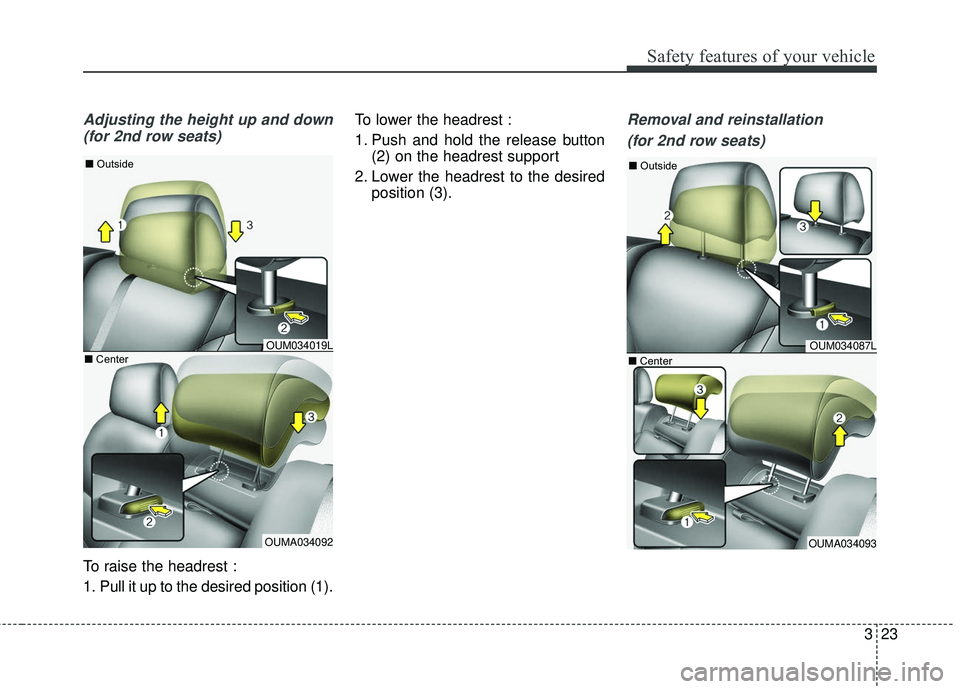

Adjusting the height up and down(for 2nd row seats)
To raise the headrest :
1. Pull it up to the desired position (1). To lower the headrest :
1. Push and hold the release button
(2) on the headrest support
2. Lower the headrest to the desired position (3).
Removal and reinstallation
(for 2nd row seats)
OUMA034092
■
Outside
■ Center
OUM034019LOUM034087L
OUMA034093
■
Outside
■ Center
