height KIA SORENTO 2020 Features and Functions Guide

SORENTO FEATURES & FUNCTIONS GUIDE36
SEATING
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER

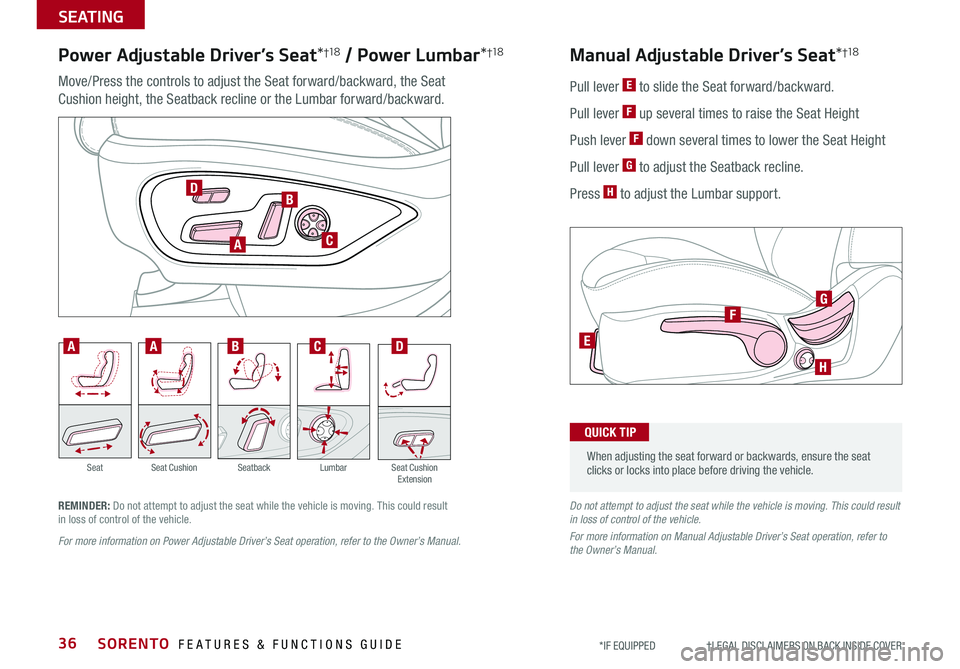

Power Adjustable Driver’s Seat*†1 8 / Power Lumbar*†1 8
Move/Press the controls to adjust the Seat forward/backward, the Seat
Cushion height, the Seatback recline or the Lumbar forward/backward.
A
B
C
D
AABCD
SeatbackLumbarSeat Cushion ExtensionSeatSeat Cushion
Pull lever E to slide the Seat forward/backward.
Pull lever F up several times to raise the Seat Height
Push lever F down several times to lower the Seat Height
Pull lever G to adjust the Seatback recline.
Press H to adjust the Lumbar support.
Manual Adjustable Driver’s Seat*†1 8
H
E
FG
When adjusting the seat forward or backwards, ensure the seat clicks or locks into place before driving the vehicle.
QUICK TIP
For more information on Power Adjustable Driver’s Seat operation, refer to the Owner’s Manual.
Do not attempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
For more information on Manual Adjustable Driver’s Seat operation, refer to the Owner’s Manual.
REMINDER: Do not attempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.

41ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
HOLD

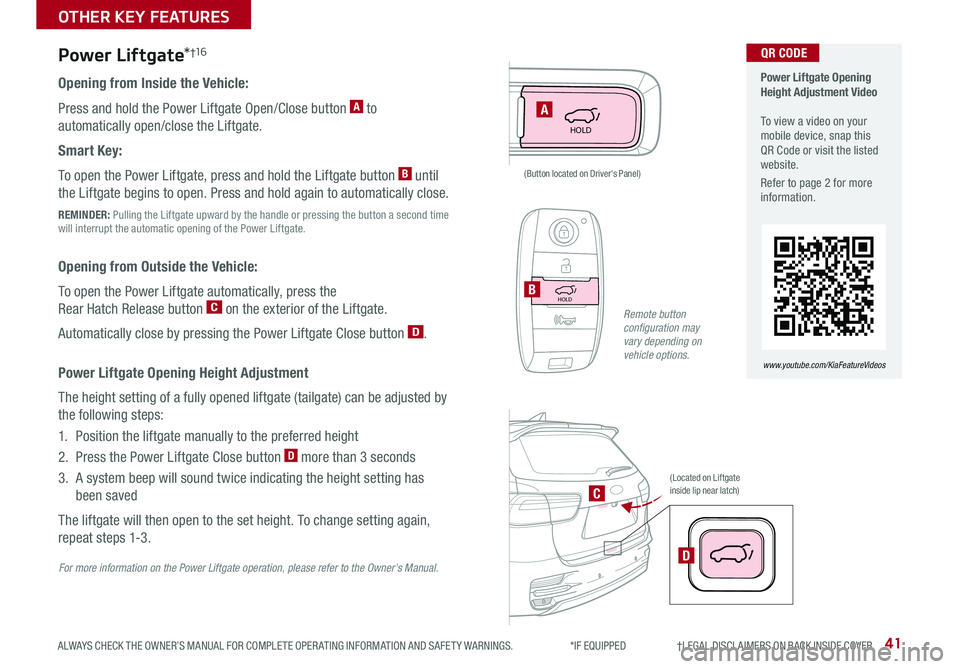

Power Liftgate*†1 6
Opening from Inside the Vehicle:
Press and hold the Power Liftgate Open/Close button A to
automatically open/close the Liftgate.
Smart Key:
To open the Power Liftgate, press and hold the Liftgate button B until
the Liftgate begins to open. Press and hold again to automatically close.
REMINDER: Pulling the Liftgate upward by the handle or pressing the button a second time will interrupt the automatic opening of the Power Liftgate.
Opening from Outside the Vehicle:
To open the Power Liftgate automatically, press the
Rear Hatch Release button C on the exterior of the Liftgate.
Automatically close by pressing the Power Liftgate Close button D.
Power Liftgate Opening Height Adjustment
The height setting of a fully opened liftgate (tailgate) can be adjusted by
the following steps:
1. Position the liftgate manually to the preferred height
2. Press the Power Liftgate Close button D more than 3 seconds
3. A system beep will sound twice indicating the height setting has
been saved
The liftgate will then open to the set height. To change setting again,
repeat steps 1-3.
A
HOLDB
D
C
(Located on Liftgate inside lip near latch)
(Button located on Driver's Panel)
For more information on the Power Liftgate operation, please refer to the Owner's Manual.
Power Liftgate Opening Height Adjustment Video To view a video on your mobile device, snap this QR Code or visit the listed website.
Refer to page 2 for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
Remote button configuration may vary depending on vehicle options.
OTHER KEY FEATURES

SORENTO FEATURES & FUNCTIONS GUIDE42*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
The Smart Power Liftgate can be operated from several controls to either open,
close or lock the Liftgate. The Smart Power Liftgate will close the Liftgate, lock
all doors and Liftgate and then arm the vehicle.
When the Smart Key fob is on your person and you are near the back of the
vehicle, within close proximity, the hazard lights will blink and a chime will
sound for about 3 seconds as an alert that the Smart Power Liftgate is about
to open. Then the alert system will blink and chime two additional times before
opening the Smart Power Liftgate.
The Smart Power Liftgate feature is off by default. To enable the Smart Power
Liftgate, go to User Settings in the LCD Instrument Cluster modes.
REMINDERS:
•All doors are closed and locked after about 15 seconds
•The Smart Power Liftgate feature will not operate when:
- The doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
- A door is not locked or closed
- The Smart Key is in the vehicle
•
Press any button on the Smart Key fob during the Detect and Alert stage to deactivate the Smart Power Liftgate function
•
When the ignition is on, the Smart Power Liftgate will only operate with the gear shift in the Park (P) position
•The Smart Key must be outside of the vehicle for the Smart Power Liftgate to operate
•Ensure obstacles and people are out of the way of the Liftgate
Smart Power Liftgate*†1 6
For more information on the Smart Power Liftgate operation, please refer to the Owner's Manual.
• During the Smart Power Liftgate alert, the Smart Power Liftgate can be deactivated with the Smart Key by pressing any button on the key fob
• The open height can be adjusted. For information on how to set the open height, see your owner's manual
QUICK TIPS
Smart Power Liftgate Video To view a video on your mobile device, snap this QR Code or visit the listed website.
Refer to page 2 for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
OTHER KEY FEATURES
