power steering KIA SORENTO 2022 Features and Functions Guide

TABLE OF CONTENTS
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . 04Tire Pressure Monitoring System (TPMS) . . . . . . 05Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05Drive Mode Integrated Control System* . . . . . . . 06
VEHICLE SETTINGSTrip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . 07LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . 07User Settings – Instrument Cluster . . . . . . . . . . . . 08Vehicle Settings* – Audio Head Unit . . . . . . . . . . . 08Vehicle Auto-Shut Off* . . . . . . . . . . . . . . . . . . . . . . . 09Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . 09
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA)* . . . . . . 10Blind-Spot Collision-Avoidance Assist (BCA)* . . . 11Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . 12Blind-Spot View Monitor (BVM)* . . . . . . . . . . . . . . . . 13Driver Attention Warning (DAW)
. . . . . . . . . . . . . . . . 14Leading Vehicle Departure Alert (LVDA) . . . . . . . . 15Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . . . 15Smart Cruise Control (SCC)* . . . . . . . . . . . . . . . . . . . 16Cruise Control (CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Navigation-based Smart Cruise Control - (NSCC)* 17Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . 18Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . 19Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . 20Surround View Monitor (SVM)* . . . . . . . . . . . . . . . . . 20Rear Cross-Traffic Collision-Avoidance Assist (RCCA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Rear Occupant Alert with Ultrasonic Sensors . . . . 22Reverse Parking Collision-Avoidance Assist . . . . . . 23Forward/Reverse Parking Distance Warning (PDW)* 2 3Intelligent Speed Limit Assist (ISL A)* . . . . . . . . . . . . 24
DRIVER’S PANELInstrument Cluster Illumination Control . . . . . . . . . 25Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 25Electronic Stability Control (ESC) . . . . . . . . . . . . . . . 25Reverse Parking Aid Function* . . . . . . . . . . . . . . . . . 26Engine Start/Stop Button* . . . . . . . . . . . . . . . . . . . . . . 26Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock . . . . . . . . . . 27Electronic Child Safety Lock System . . . . . . . . . . . . 27Rear Door Locks - Double Pull to Open . . . . . . . . . 27Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . 28Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . . 28Manual Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 28
STEERING WHEEL CONTROLSHeadlights & High Beams . . . . . . . . . . . . . . . . . . . . . . 29Daytime Running Lights (DRL) / High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . 30Windshield Wipers & Washers / Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . 30Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . 31
AUDIO SYSTEMSAudio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . 32 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 34Standard Audio System* . . . . . . . . . . . . . . . . . . . . . . . 35UVO link Activation* / UVO Assistance* . . . . . . . . . 36Kia Access with UVO link App Download . . . . . . . 37Kia Access with UVO link App Features Guide . . 37UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . 38
CENTER PANELDigital Clock / Multimedia USB Port, Power Outlets & USB Charger Port . . . . . . . . . . . 39Wireless Smartphone Charging System* . . . . . . . . 40Manual Climate Control* . . . . . . . . . . . . . . . . . . . . . . . 41Automatic Climate Control* . . . . . . . . . . . . . . . . . . . . 42Automatic Gear Shift with Sportmatic® Shifting . 43
CENTER PANEL (CONTINUED)Dual Clutch Transmission (DCT)* . . . . . . . . . . . . . . . 44AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . . . . 45Idle, Stop & Go (ISG) System . . . . . . . . . . . . . . . . . . . 45Electronic Parking Brake (EPB) / Auto Hold . . . . .46Heated Steering Wheel* . . . . . . . . . . . . . . . . . . . . . . . 47Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . 47
SEATINGFront Seat Headrest Adjustment* . . . . . . . . . . . . . .48Driver Position Memory System* . . . . . . . . . . . . . . .48Power Adjustable Driver ’s Seat* / Power Lumbar* 49Manual Adjustable Driver ’s Seat* . . . . . . . . . . . . . . .492nd-Row Folding Seat / Auto-Folding Seat . . . . . .503rd-Row Folding Seat / One-Touch Slide & Fold . . 51
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Remote Keyless Entry (Folding Key)* . . . . . . . . . . . 52Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . 52Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Smart Liftgate with Auto Open* . . . . . . . . . . . . . . . . 55Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Panoramic Sunroof with Power Sunshade* . . . . . 56HomeLink® with Auto-Dimming Rearview Mirror* 57Hood Release Lever and Latch . . . . . . . . . . . . . . . . . 58Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . 58Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . . . . .58
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . 59Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . 59Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
MAINTENANCE CHART . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
2*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE

4*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
Engine Oil Pressure Warning Light
Malfunction Indicator Light
Electric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Indicator Light*
Front Fog Light Indicator Light
High Beam Assist Indicator Light*
Parking Brake & Brake Fluid Warning Light
For ward Collision-Avoidance Assist (FCA) Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light*
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light*
Icy Road Warning Indicator Light*

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Electronic Stabilit y Control (ESC) Indicator Light
AUTO HOLD Indicator*
Cruise Control Indicator Light*
EPB
AUTO
06
CH
１ 5
2
D
4
3x１
000 rpm
E F
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
１ 7
8
2
6
3
4
5
E F CH
１60
20
１40
40
１20
60
１00
80
MPH
526mi miF°25.7MPG
x１ 000 rpm
/Cruise Control ON/SET Indicator Light*
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (t wo separate indicators on Instrument Cluster lit at same time)
Lane Keeping Assist Indicator Light
LED Headlamp Warning Indicator*
Downhill Brake Assist (DBC) Indicator*
Auto Stop Indicator Light*
SPORT Mode Indicator Light
ECO Mode Indicator Light
Conventional cluster (Type A)
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in the illustration . On the vehicle, they may appear in the LCD .
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations .
Refer to Section 4 in the Owner ’s Manual for more information .
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER

6*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
SN OW
ECO
C
O M FO RT
SPORT
SM AR T
The drive modes may be changed according to the driver ’s preferences or road conditions . To cycle through the drive modes A or deactivate a drive mode, rotate the Drive Mode knob B .
When a drive mode is selected, the drive mode indicator will illuminate in the Instrument Cluster (except for COMFORT) and illuminate next to the Drive Mode knob . The system’s default mode is COMFORT mode and when selected, the indicator will not be illuminated .
•COMFORT Mode
•SPORT Mode
•ECO Mode
•SNOW Mode* (All Wheel Drive)
•SMART Mode* – When the SMART mode is activated, the system automatically selects the drive mode best suited to the current driving style (economic, average, spirited) . The color of the SMART mode indicator (green, white, red) depends on the current driving style .
Drive Mode Integrated Control System*
REMINDERS:
•
When ECO mode is selected, the following may occur to help improve fuel economy:
-
Acceleration may be slightly reduced even when the accelerator is fully depressed
-
Air conditioner per formance may be limited
-
Shift pat tern of the automatic transmission may change
-
Engine noise may increase
-
System’s power will be limited when driving uphill
•
When SPORT mode is selected, fuel economy may decrease
•
The system is turned ON and in COMFORT mode when ignition is in the ON position
•
Steering effor t may be slightly increased in Spor t mode
•
When vehicle is shut down while in SPORT Mode, the system will default to NORMAL mode when the engine is turned off . SPORT mode would need to be selected again once the vehicle is restar ted
(Appears on LCD in Instrument Cluster)
(Located on Center Panel below Gear Shift)*
SPORT
SMARTLOCK
ECOCOMFORT
P
R
N D
SHIFT
LOCK
RELEASE
SNOW
OFF
•
•
•
•
+
•
–
P
R
N D •
•
•
•
+
•
–
OFFFor illustrative purposes only . Actual displays, but tons and/or features may var y .
See section 5 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Drive Mode Integrated Control Video
QR CODEINSTRUMENT CLUSTER
INSTRUMENT CLUSTER
B
A

11†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

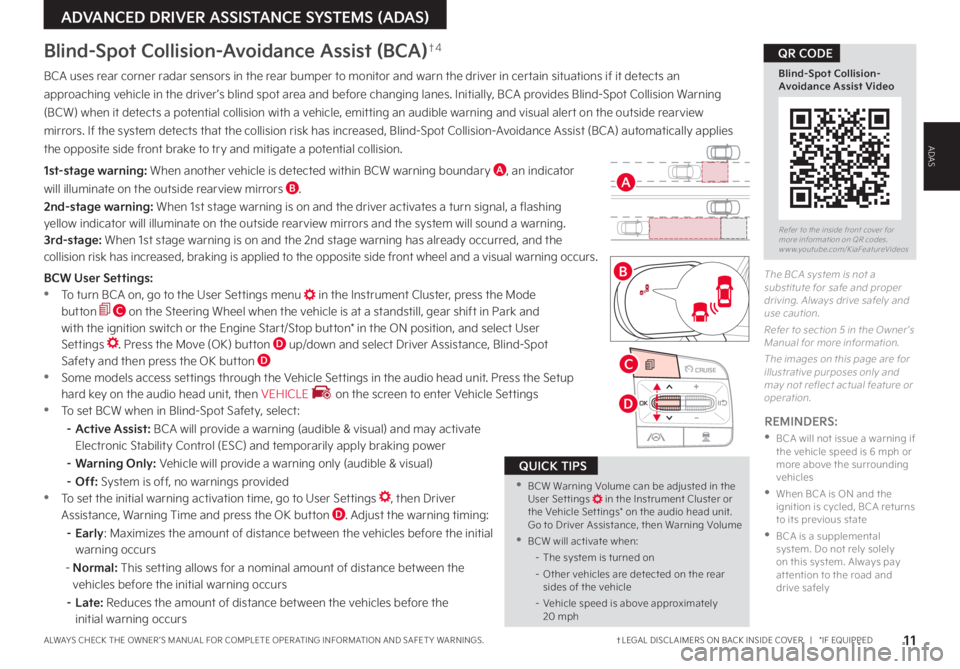

Blind-Spot Collision-Avoidance Assist (BCA)†4
REMINDERS:
•
BCA will not issue a warning if the vehicle speed is 6 mph or more above the surrounding vehicles
•
When BCA is ON and the ignition is cycled, BCA returns to its previous state
•
BCA is a supplemental system . Do not rely solely on this system . Always pay at tention to the road and drive safely
The BCA system is not a substitute for safe and proper driving . Always drive safely and use caution .
Refer to section 5 in the Owner ’s Manual for more information .
The images on this page are for illustrative purposes only and may not reflect actual feature or operation .
BCA uses rear corner radar sensors in the rear bumper to monitor and warn the driver in certain situations if it detects an
approaching vehicle in the driver ’s blind spot area and before changing lanes . Initially, BCA provides Blind-Spot Collision Warning
(BCW) when it detects a potential collision with a vehicle, emitting an audible warning and visual alert on the outside rearview
mirrors . If the system detects that the collision risk has increased, Blind-Spot Collision-Avoidance Assist (BCA) automatically applies
the opposite side front brake to try and mitigate a potential collision .
1st-stage warning: When another vehicle is detected within BCW warning boundary A, an indicator
will illuminate on the outside rearview mirrors B .
2nd-stage warning: When 1st stage warning is on and the driver activates a turn signal, a flashing
yellow indicator will illuminate on the outside rearview mirrors and the system will sound a warning .
3rd-stage: When 1st stage warning is on and the 2nd stage warning has already occurred, and the
collision risk has increased, braking is applied to the opposite side front wheel and a visual warning occurs .
BCW User Settings:
•To turn BCA on, go to the User Settings menu in the Instrument Cluster, press the Mode
button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and
with the ignition switch or the Engine Start/Stop button* in the ON position, and select User
Settings . Press the Move (OK) button D up/down and select Driver Assistance, Blind-Spot
Safety and then press the OK button D
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup
hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•
To set BCW when in Blind-Spot Safety, select:
– Active Assist: BCA will provide a warning (audible & visual) and may activate
Electronic Stability Control (ESC) and temporarily apply braking power
– Warning Only: Vehicle will provide a warning only (audible & visual)
– Off: System is off, no warnings provided
•
To set the initial warning activation time, go to User Settings , then Driver
Assistance, Warning Time and press the OK button D . Adjust the warning timing:
– Early: Maximizes the amount of distance between the vehicles before the initial
warning occurs
- Normal: This setting allows for a nominal amount of distance between the
vehicles before the initial warning occurs
– Late: Reduces the amount of distance between the vehicles before the
initial warning occurs
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Blind-Spot Collision-Avoidance Assist Video
QR CODE
•BCW Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume
•BCW will activate when:
– The system is turned on
– Other vehicles are detected on the rear sides of the vehicle
– Vehicle speed is above approximately 20 mph
QUICK TIPS
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
B
C
D
A

21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Rear Cross-Traffic Collision Avoidance Assist (RCCA)*†4
REMINDERS:
•
The RCCA feature can be turned OFF/ON in User Set tings, under Driver Assistance, Parking Safet y
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
•
RCCA is a supplemental system . It is not a substitute for safe driving, and may not detect all objects around or behind the vehicle . Do not solely rely on this system and always pay at tention to the road and its conditions
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) is designed, under certain conditions, to warn the driver and potentially activate the Electronic Stability Control (ESC) and temporarily apply braking, if it detects cross traffic approaching the vehicle, when vehicle is in reverse .
When the RCCA rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A .
RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B . If RCCA detects that the collision risk has increased, the system automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision .
RCCA is designed to operate under the following conditions:
•
When the gear shift is in Reverse
•When the vehicle is moving slower than 6 mph
RCCA User Settings:
•To go to the User Settings menu in the Instrument Cluster, press the Mode button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To turn RCCA on when in User Settings , press the Move (OK) button D up/down, select Driver Assistance, Parking Safety, Rear Cross-Traffic Safety and then press OK D
•
To set the warning timing, go to User Settings , press the Move (OK) button D up/down, then go to Driver Assistance, Warning Time and press the OK button D . There are two settings:
– Early: Maximizes the amount of distance between the vehicles before the initial warning occurs
– Normal: This setting allows for a nominal amount of distance between the vehicles before
the initial warning occurs
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•The default Warning Timing is set to Normal . If the Warning Timing is changed, the warning time of other Driver Assistance systems may also change
Refer to section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Cross-Traffic Collision Avoidance Assist (RCCA) Video
QR CODE

RCCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit . Go to Driver Assistance, then Warning Volume
QUICK TIP
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on right side of the steering wheel)
B
C
D
A
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS

38†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Sound Settings: To adjust the sound settings (Fader/Balance, Tone, Touch-Screen Beep ON/OFF and Speed-Dependent Volume Control ON/OFF) from any audio mode:
1 . Press the SETUP button on the Audio Head Unit
2 . Select the onscreen SOUND button
3 . Select the menu item to change settings
4 . Use the onscreen buttons to adjust settings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations
How to Save a Preset: Press the STAR button next to or below the Radio Station display . This saves the current station as a preset
SiriusXM® Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment . In Radio mode, choose SiriusXM®, then select any of the first six favorites . During song or program play, tap the Skip Backward icon to start from the beginning of the song or program . Tap the Play Live icon to return to the live broadcast
Custom Key H A programmable button to provide quick access to one of several available system features . To program the Custom Key, press and hold the Custom Key . Select one of the available features you would like the Custom Key to open
Map/software updates - To keep your map and software up to date, free of charge, visit the official Kia update webpage at https://update .kia .com/US/EN/Main . Note, visiting a dealer for software update may include an additional charge .
UVO link†1 with Navigation*†9 – FM/AM/SiriusXM®†1 4/Media (USB, Aux, Bluetooth® Audio)
Your vehicle’s audio system may differ from that in the illustration .
For fur ther UVO link with Navigation operations, refer to the Car Infotainment System Quick Reference Guide .
For other audio system information, see pages 31-37 .
REMINDERS:
•
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .
•
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency .• SiriusXM® mode: Change the channel .• MEDIA mode: Change the track, file or title (except for AUX) .
Press and hold to do the following (over 0.8 seconds):• FM/AM mode: Move quickly through all of the frequencies . When released, the system seeks the next available frequency .• MEDIA mode: Rewinds or fast for wards the track or file (except for AUX and Bluetooth® Audio) .
A programmable key to provide quick access to one of several available system features Press to display SETUP/Set tings mode SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSHVOLENTER
TUNE
FILE(LCD Display Screen)
Press to Power ON/OFF . Rotate to adjust Volume
Press to select FM/AM/SiriusXM® modes
Press to enter MEDIA mode
Press to display the Map screen for the current position/ Voice mode
Press to display the Navigation menu screen
Rotate to change Radio/SiriusXM® Station/Media tracks/files . Press to select
AUDIO SYSTEMS
AUDIOSYSTEMS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
UVO link with Navigation Video
QR CODE
•Volume level bet ween different audio modes:
– When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc .), the audio system saves the previous volume level you were listening to . For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume . If the volume is turned down low on your device it will remain low even if the system volume is turned up
•When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation system may also be available
•This system suppor ts Android Auto™ and Apple CarPlay® (USB connection only)
•A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge
•At any time, you can interrupt UVO link Command Feedback by pressing the TALK but ton on the steering wheel
QUICK TIPS

LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury or death. The driver’s primary responsibility is in the safe and legal operation of a vehicle. Handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law, should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.1.
UVO link: Purchase/lease of certain 2019 and newer Kia vehicles with UVO link includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year UVO link subscription expires, continued access to the full suite of UVO link available on your Kia will require a paid subscription at the then current subscription rate or your use of certain UVO link features may immediately terminate. Use of UVO is subject to agreement to the UVO Privacy Policy (available at https://owners.kia.com/us/en/privacy-policy.html.html) and Terms of Service (available at https://owners.kia.com/us/en/terms-of-service.html.html). UVO link is transferable to subsequent owner during the original UVO link service term. Only use UVO link when safe to do so. Kia Access with UVO link App is available from the Apple® App Store® or Google Play™. Kia America, Inc. reserves the right to change or discontinue UVO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Apple and App Store are registered trademarks of Apple Inc. Google and logos are trademarks of Google, LLC. UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachusetts. See UVO Terms of Service at owners.kia.com for more information.
2. Airbags: For maximum protection, always wear your seat belt.3. Android Auto™, Apple CarPlay®, Bluetooth® Wireless Technology, Google Play™ Store, iPhone, SiriusXM®, Sportmatic®, HomeLink®: Fair Use of Trademark – The commentary reference to trademarked material is for educational purposes only and not an endorsement by or of the holder of the mark. 4. Driver Assist Features – Forward Collision-Avoidance Assist (FCA), Lane Keeping Assist (LKA), Blind-Spot Collision-Avoidance Assist (BCA), Blind-Spot View Monitor (BVM), Safe Exit Assist (SEA), Leading Vehicle Departure Alert (LVDA), Intelligent Speed Limit Assist (ISLA), Cruise Control (CC), Smart Cruise Control (SCC) with Stop & Go, Navigation-based Smart Cruise Control (NSCC), Lane Following Assist (LFA), Highway Driving Assist (HDA), Rear View Monitor (RVM), Surround View Monitor (SVM), Rear Cross-Traffic Collision Avoidance Assist (RCCA), Reverse Parking Collision-Avoidance Assist (PCA), Forward/Reverse Parking Distance Warning (PDW), Rear Occupant Alert (ROA) with Ultrasonic Sensors: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.5. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.6. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.7. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.8. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.9. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.10. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model. Children age 12 and under should always be seated in the REAR seats. ODS is not a substitute for one’s attention and may not detect all occupants within the vehicle. Always check the vehicle interior when exiting the vehicle.11. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information
Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.12. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.13. Seat belts: For maximum protection, always wear your seatbelt.14. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.15. SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2021 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.16. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.17. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.18. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.19. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.20. Power Liftgate / Smart Liftgate: Driving with the liftgate open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for improved ventilation.

*IF EQUIPPED
(up to 64,000 miles)AMAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS8,00016,00024,00032,00040,00048,00056,00064,000
Rotate tiresPPPPPPPPAdd fuel additive (Ever y 8,000 miles or 12 months)CPPPPPPPPEngine Oil & FilterRRRRRRRRAir cleaner filter (Engine)IIRIIRIIBattery conditionIIIIIIIIBrake lines, hoses and connectionsIIIIIIIIBrake discs and padsIIIIIIIIVacuum hosesIIIIIIIISteering gear rack, linkage & bootsIIIIIIIISuspension ball jointsIIIIIIIIAir conditioner compressor/refrigerantIIIIIIIIExhaust systemIIIIIIIIBrake fluid (Inspect ever y 8,000 miles or 12 months; Replace ever y 48,000 miles)IIIIIRIIClimate control air filterIRIRIRIRIntercooler, in/out hose, air intake hose (Turbo GDI)IIIIDrive shafts and bootsIIIIPropeller shaft (AWD)IIIIFuel tank air filter‡DIIIIParking brake (foot t ype)IIIIFuel tank and fuel filler capIIIIFuel lines, fuel hoses and connectionsIIIIDrive beltsFIIICooling SystemIIDual Clutch Transmission (DCT) fluid (Turbo)IIRear differential oil (AWD) (Ever y 40,000 miles or 48 months)ITransfer case oil (AWD) (Ever y 40,000 miles or 48 months)EISpark plugs (Turbo GDI)R
A . See the Owner ’s Manual for complete maintenance schedule. These are approximate estimated inter vals. Refer to vehicle mileage for maintenance item scheduleB. And, if necessar y, adjust, correct, clean or replace C . If TOP TIER detergent gasoline is not available, one bot tle of fuel additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additivesD.
Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel qualit y being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficult y star ting, etc., replace the fuel filter immediately and consult an authorized Kia dealer for ser vice
E. Transfer case oil and rear axle oil should be changed any time they have been submerged in waterF. The drive belt should be replaced when cracks occur or tension is reduced excessively
See your Owner ’s Manual for more details and complete maintenance information, including severe maintenance schedule. Warrant y may be voided if maintenance schedule is not followed.
SORENTO NORMAL MAINTENANCE SCHEDULE P=Per form R=Replace I=InspectB
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO link account by logging into your Kia Access with UVO App or your account on https://owners.kia.com/ (Vehicles equipped with UVO only)
QUICK TIP
© 2021 Kia America, Inc. All rights reserved.Consumer - Roadside Assistance†16: 1-800-333-4KIA (4542)Part Number: MQ220-PS-004 ‡ If equipped†LEGAL DISCL AIMERS ON BACK INSIDE COVER
