As you get to know your new Kia, you can explore this booklet to better understand
how to operate its many features and systems. You can find the complete Table of
Contents on the next two pages, but first, be sure to review the following to better
understand some of your Kia’s most used features:
1 Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
2 Power Adjustable Driver’s Seat* / Front Seat Headrest Adjustment . . . . . . . 49
3 Seat Warmers* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4 Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-51
5 Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6 Smart Cruise Control (SCC)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7 Normal Maintenance Schedules . . . . . . . . . . . . . . . . . . . . . . Back Cover
8 User Settings – Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . 08
9 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . . . . . . . . 32-33
10 UVO link Activation* / UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . 36
11 Standard Audio System* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
12 UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13 Kia Access with UVO link App Download . . . . . . . . . . . . . . . . . . . . . . 37
14 Kia Access with UVO link App Features Guide . . . . . . . . . . . . . . . . . . . 37
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
www .kia .com Consumer Affairs – Roadside Assistance†1 1: 1-800-333-4KIA (800-333-4542)
Always check the Owner ’s Manual for complete operating information and safet y warnings .
ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED1
GETTING STARTED
Page 4 of 66

TABLE OF CONTENTS
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . 04Tire Pressure Monitoring System (TPMS) . . . . . . 05Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05Drive Mode Integrated Control System* . . . . . . . 06
VEHICLE SETTINGSTrip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . 07LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . 07User Settings – Instrument Cluster . . . . . . . . . . . . 08Vehicle Settings* – Audio Head Unit . . . . . . . . . . . 08Vehicle Auto-Shut Off* . . . . . . . . . . . . . . . . . . . . . . . 09Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . 09
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA)* . . . . . . 10Blind-Spot Collision-Avoidance Assist (BCA)* . . . 11Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . 12Blind-Spot View Monitor (BVM)* . . . . . . . . . . . . . . . . 13Driver Attention Warning (DAW)
. . . . . . . . . . . . . . . . 14Leading Vehicle Departure Alert (LVDA) . . . . . . . . 15Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . . . 15Smart Cruise Control (SCC)* . . . . . . . . . . . . . . . . . . . 16Cruise Control (CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Navigation-based Smart Cruise Control - (NSCC)* 17Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . 18Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . 19Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . 20Surround View Monitor (SVM)* . . . . . . . . . . . . . . . . . 20Rear Cross-Traffic Collision-Avoidance Assist (RCCA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Rear Occupant Alert with Ultrasonic Sensors . . . . 22Reverse Parking Collision-Avoidance Assist . . . . . . 23Forward/Reverse Parking Distance Warning (PDW)* 2 3Intelligent Speed Limit Assist (ISL A)* . . . . . . . . . . . . 24
DRIVER’S PANELInstrument Cluster Illumination Control . . . . . . . . . 25Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 25Electronic Stability Control (ESC) . . . . . . . . . . . . . . . 25Reverse Parking Aid Function* . . . . . . . . . . . . . . . . . 26Engine Start/Stop Button* . . . . . . . . . . . . . . . . . . . . . . 26Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock . . . . . . . . . . 27Electronic Child Safety Lock System . . . . . . . . . . . . 27Rear Door Locks - Double Pull to Open . . . . . . . . . 27Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . 28Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . . 28Manual Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 28
STEERING WHEEL CONTROLSHeadlights & High Beams . . . . . . . . . . . . . . . . . . . . . . 29Daytime Running Lights (DRL) / High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . 30Windshield Wipers & Washers / Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . 30Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . 31
AUDIO SYSTEMSAudio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . 32 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 34Standard Audio System* . . . . . . . . . . . . . . . . . . . . . . . 35UVO link Activation* / UVO Assistance* . . . . . . . . . 36Kia Access with UVO link App Download . . . . . . . 37Kia Access with UVO link App Features Guide . . 37UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . 38
CENTER PANELDigital Clock / Multimedia USB Port, Power Outlets & USB Charger Port . . . . . . . . . . . 39Wireless Smartphone Charging System* . . . . . . . . 40Manual Climate Control* . . . . . . . . . . . . . . . . . . . . . . . 41Automatic Climate Control* . . . . . . . . . . . . . . . . . . . . 42Automatic Gear Shift with Sportmatic® Shifting . 43
CENTER PANEL (CONTINUED)Dual Clutch Transmission (DCT)* . . . . . . . . . . . . . . . 44AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . . . . 45Idle, Stop & Go (ISG) System . . . . . . . . . . . . . . . . . . . 45Electronic Parking Brake (EPB) / Auto Hold . . . . .46Heated Steering Wheel* . . . . . . . . . . . . . . . . . . . . . . . 47Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . 47
SEATINGFront Seat Headrest Adjustment* . . . . . . . . . . . . . .48Driver Position Memory System* . . . . . . . . . . . . . . .48Power Adjustable Driver ’s Seat* / Power Lumbar* 49Manual Adjustable Driver ’s Seat* . . . . . . . . . . . . . . .492nd-Row Folding Seat / Auto-Folding Seat . . . . . .503rd-Row Folding Seat / One-Touch Slide & Fold . . 51
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Remote Keyless Entry (Folding Key)* . . . . . . . . . . . 52Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . 52Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Smart Liftgate with Auto Open* . . . . . . . . . . . . . . . . 55Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Panoramic Sunroof with Power Sunshade* . . . . . 56HomeLink® with Auto-Dimming Rearview Mirror* 57Hood Release Lever and Latch . . . . . . . . . . . . . . . . . 58Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . 58Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . . . . .58
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . 59Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . 59Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
MAINTENANCE CHART . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
2*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Page 24 of 66

22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE

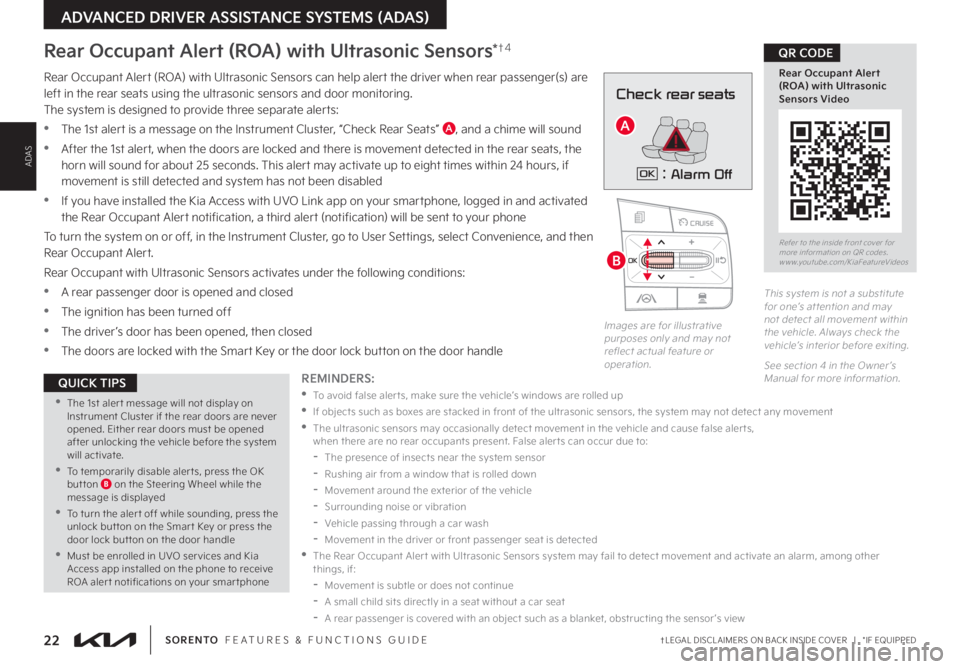

Rear Occupant Alert (ROA) with Ultrasonic Sensors*†4
Rear Occupant Alert (ROA) with Ultrasonic Sensors can help alert the driver when rear passenger(s) are left in the rear seats using the ultrasonic sensors and door monitoring
. The system is designed to provide three separate alerts:
•The 1st alert is a message on the Instrument Cluster, “Check Rear Seats” A, and a chime will sound
•After the 1st alert, when the doors are locked and there is movement detected in the rear seats, the horn will sound for about 25 seconds . This alert may activate up to eight times within 24 hours, if movement is still detected and system has not been disabled
•If you have installed the Kia Access with UVO Link app on your smartphone, logged in and activated the Rear Occupant Alert notification, a third alert (notification) will be sent to your phone
To turn the system on or off, in the Instrument Cluster, go to User Settings, select Convenience, and then Rear Occupant Alert .
Rear Occupant with Ultrasonic Sensors activates under the following conditions:
•A rear passenger door is opened and closed
•The ignition has been turned off
•The driver ’s door has been opened, then closed
•The doors are locked with the Smart Key or the door lock button on the door handle
This system is not a substitute for one’s at tention and may not detect all movement within the vehicle . Always check the vehicle’s interior before exiting .
See section 4 in the Owner ’s Manual for more information .
Check rear seats
: Alarm OffOK
REMINDERS:
•
To avoid false aler ts, make sure the vehicle’s windows are rolled up
•
If objects such as boxes are stacked in front of the ultrasonic sensors, the system may not detect any movement
•
The ultrasonic sensors may occasionally detect movement in the vehicle and cause false aler ts, when there are no rear occupants present
. False aler ts can occur due to:
-The presence of insects near the system sensor
-Rushing air from a window that is rolled down
-Movement around the exterior of the vehicle
-Surrounding noise or vibration
-Vehicle passing through a car wash
-Movement in the driver or front passenger seat is detected
•
The Rear Occupant Aler t with Ultrasonic Sensors system may fail to detect movement and activate an alarm, among other things, if:
-Movement is subtle or does not continue
-A small child sits directly in a seat without a car seat
-
A rear passenger is covered with an object such as a blanket, obstructing the sensor ’s view
Images are for illustrative purposes only and may not reflect actual feature or operation .
B
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Ultrasonic Sensors Video
QR CODE
•
The 1st aler t message will not display on Instrument Cluster if the rear doors are never opened . Either rear doors must be opened after unlocking the vehicle before the system will activate .
•
To temporarily disable aler ts, press the OK but ton B on the Steering Wheel while the message is displayed
•
To turn the aler t off while sounding, press the unlock but ton on the Smar t Key or press the door lock but ton on the door handle
•
Must be enrolled in UVO ser vices and Kia Access app installed on the phone to receive ROA aler t notifications on your smar tphone
QUICK TIPS
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 49 of 66

47†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Heated Steering Wheel*
Press Heated Steering Wheel button to turn the Steering
Wheel Heater on/off while the Engine Start/Stop button is
in the ON position . The Steering Wheel Heater will turn off
automatically in 30 minutes, or when button A is pressed
again to deactivate .
B Seat Warmers
•Press the button up once for high setting (3 LEDs lit)
•Press the button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
C Ventilated Seats
•Press the button down once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Seat Warmers*†1 4 / Ventilated Seats*
REMINDER: If the steering wheel becomes too warm, turn the system off . The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time .
REMINDER: Use extreme caution when using the seat warmers to avoid burns . Refer to the Owner ’s Manual for more information .
(Located below gear shift knob)
(But tons located on top sides of center console)
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOW
TERRAIN
COMFORT
Seat warmers / ventilation
Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 4 in the Owner ’s Manual for more information .
B
C
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Heated and Ventilated Seats Video
QR CODE
•If ignition is turned OFF, then ON again within 30 minutes of the Steering Wheel Heater being turned ON, the system will return to its previous state
•The system returns to on when ignition is cycled . To turn off system, press the Heated Steering Wheel but ton A
•With the heated steering switch in the ON position, the heating system in the steering wheel turns OFF or ON automatically depending on the steering wheel temperature
QUICK TIPS
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System is OFF by default
QUICK TIPSCENTER PANEL
CENTER PANEL
Page 51 of 66

49†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
SEATING
SEATING
Power Adjustable Driver’s Seat*†1 2 /
Power Lumbar*†1 2
Move/Press the controls to adjust the Seat forward/backward, the Seat Cushion height, the Seatback recline or the Lumbar forward/backward .
SeatbackLumbarSeat Cushion ExtensionSeatSeat Cushion
Pull lever E up to slide the Seat forward/backward .
Pull lever F up several times to raise the Seat Height
Push lever F down several times to lower the Seat Height
Pull lever G to adjust the Seatback recline .
Press H to adjust the Lumbar support .
Manual Adjustable
Driver’s Seat*†1 2
Refer to section 3 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation . Your seat controls may differ from those in the illustrations .
Do not at tempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
Refer to section 3 in the Owner ’s Manual for more information .
REMINDER: Do not at tempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
H
B
BC
C
D
D
E
G
F
A
AA
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Manual Adjustable Driver’s Seat Video
QR CODE
When adjusting the seat for ward or backwards, ensure the seat clicks or locks into place before driving the vehicle
QUICK TIP
Page 52 of 66

50†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
SEATING
SEATING
Folding 2nd-Row Seat
1 . Lower the 2nd-Row Seat Headrest to the lowest position
2 . Pull up on the Seatback folding lever A or strap* and fold the Seatback down
Unfolding 2nd-Row Seat
1 . Lift the folding Seatback lever A and move the Seatback backward to the desired position B
2nd-Row Folding Seat†1 2
LR
LR
- P D B U F E P O S F B S R V B S U F S U S J N Q B O F M T
1 S F T T C V U U P O T D to release and automatically fold 2nd-Row Seatback down .
2nd-Row Auto-Folding Seat*†1 2
For more information on 2nd-Row Auto Folding Seat operation, refer to the Owner ’s Manual .
REMINDER: The lever must return to its original position for the Seatback to lock .
Refer to section 3 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 3 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
B
D
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
2nd & 3rd Row Folding Seats Video
QR CODE
•When you return the Seatback to its original position, ensure it locks (clicks) into place
•It may be necessar y to slide the front Seat for ward and adjust the front Seatbacks to fully lower rear seats
•Lower Rear Headrests to the lowest position
QUICK TIPS
Page 53 of 66

51†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
SEATING
SEATING
3rd-Row Folding Seat*†1 2
One-Touch Slide & Fold 2nd Row Seats*†1 2
Folding 3rd-Row Seat
1 . Fully lower the headrest A
2 . Pull the Seat folding strap B located on the Seatback
3 . Fold the Seat down
To get in and out of the 3rd Row Seat, adjust the 2nd Row Seat by pressing the One-Touch Slide & Fold 2nd Row Seats (located on top C and side D of the 2nd-row seatback):
1 . Set the front seatback to the most upright position, and slide the seat forward, if needed
2 . Lower the 2nd Row Seat Headrest to the lowest position
3 . Insert the seatbelt buckle into the pocket between the
rear seatback and the cushion
4 . Press the One-Touch Slide & Fold buttons to slide the Seat forward
Refer to section 3 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 3 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
REMINDER: Do not use the One-Touch Slide & Fold but tons while the 2nd-row passenger seat is occupied .
B
CD
AA
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
2nd & 3rd Row Folding Seats Video
One-Touch Slide & Fold 2nd-Row Seats Video
QR CODE
The strap can be used in the back of the 2nd Row Seat to slide and fold the 2nd Row Seats .
QUICK TIP
Page 63 of 66

LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury or death. The driver’s primary responsibility is in the safe and legal operation of a vehicle. Handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law, should never be used during operation of the vehicle.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.1.
UVO link: Purchase/lease of certain 2019 and newer Kia vehicles with UVO link includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year UVO link subscription expires, continued access to the full suite of UVO link available on your Kia will require a paid subscription at the then current subscription rate or your use of certain UVO link features may immediately terminate. Use of UVO is subject to agreement to the UVO Privacy Policy (available at https://owners.kia.com/us/en/privacy-policy.html.html) and Terms of Service (available at https://owners.kia.com/us/en/terms-of-service.html.html). UVO link is transferable to subsequent owner during the original UVO link service term. Only use UVO link when safe to do so. Kia Access with UVO link App is available from the Apple® App Store® or Google Play™. Kia America, Inc. reserves the right to change or discontinue UVO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Apple and App Store are registered trademarks of Apple Inc. Google and logos are trademarks of Google, LLC. UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachusetts. See UVO Terms of Service at owners.kia.com for more information.
2. Airbags: For maximum protection, always wear your seat belt.3. Android Auto™, Apple CarPlay®, Bluetooth® Wireless Technology, Google Play™ Store, iPhone, SiriusXM®, Sportmatic®, HomeLink®: Fair Use of Trademark – The commentary reference to trademarked material is for educational purposes only and not an endorsement by or of the holder of the mark. 4. Driver Assist Features – Forward Collision-Avoidance Assist (FCA), Lane Keeping Assist (LKA), Blind-Spot Collision-Avoidance Assist (BCA), Blind-Spot View Monitor (BVM), Safe Exit Assist (SEA), Leading Vehicle Departure Alert (LVDA), Intelligent Speed Limit Assist (ISLA), Cruise Control (CC), Smart Cruise Control (SCC) with Stop & Go, Navigation-based Smart Cruise Control (NSCC), Lane Following Assist (LFA), Highway Driving Assist (HDA), Rear View Monitor (RVM), Surround View Monitor (SVM), Rear Cross-Traffic Collision Avoidance Assist (RCCA), Reverse Parking Collision-Avoidance Assist (PCA), Forward/Reverse Parking Distance Warning (PDW), Rear Occupant Alert (ROA) with Ultrasonic Sensors: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.5. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.6. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.7. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.8. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.9. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.10. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model. Children age 12 and under should always be seated in the REAR seats. ODS is not a substitute for one’s attention and may not detect all occupants within the vehicle. Always check the vehicle interior when exiting the vehicle.11. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information
Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.12. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.13. Seat belts: For maximum protection, always wear your seatbelt.14. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.15. SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2021 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.16. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.17. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.18. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.19. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.20. Power Liftgate / Smart Liftgate: Driving with the liftgate open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for improved ventilation.
Page 64 of 66

KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System (TPMS) – page 5 Engine Start/Stop Button* – page 26 Multimedia USB Port – page 39 Digital Clock – page 39 Seat Warmers*/ Ventilated Seats* – page 47 Sunvisor – page 52
Panoramic Sunroof with Power Sunshade* – page 56 Reverse Parking Collision-Avoidance Assist (PCA)
– page 23 Smart Key* – page 53 Rear View Monitor (RVM) – page 20 Passenger Airbag Off Indicator – page 59
Demonstrate the following with the customer:
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-upSales Consultant:
____________________________________________________________________________________
Date:
___________________________
Sales Manager:
_______________________________________________________________________________________
Date:
___________________________
Customer:
____________________________________________________________________________________________
Date:
___________________________
SORENTO
CUSTOMER DELIVERY CHECKLIST
*IF EQUIPPED
Android Auto
™ / Apple CarPlay
®
Setup* - Page 34 UVO link Activation / UVO Assistance* - Page 36 Kia Access with UVO link App Download – page 37 Kia Access with UVO link App
Features Guide – page 37
For more information, refer to the
Car Infotainment System Quick Reference Guide.
Standard Audio System - Page 35For further operational information, refer to the Car Infotainment System Quick Reference Guide.
UVO link with Navigation* - Page 38 For further operational information,
refer to the Car Infotainment System Quick Reference Guide.
Smar t Cruise Control – page 16Demonstrate operation.
Bluetooth
® Wireless Technology – page 32-33
Demonstrate operation.MEDIARADIO
TRACK
>SETUP< SEEK
POWERPUSH
VOL ENTER
TUNE
FILE
SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSH
VOL ENTER
TUNE
FILE
OK
MODE
OK CRUISE
MODE
OK
OK
OK
OK
OK
OKOK
OK
CRUISE
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISE
OK
MODE
OKCRUISE
MODE
OK
OK
OK
OK
OK
OKOK
OK
CRUISE
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISE
