phone KIA SORENTO 2023 Navigation System Quick Reference Guide

2-3
4 To set the driver's name, press Rename.
The name change screen appears.

A
To proceed with First Run Setup without changing the driver's name, press Next.
5 When the First Run Setup screen appears, press OK.
Displays the Home screen.
A
To set the detailed user information and operation environment, press Profile
Settings.
Using the phone projection function
When you connect an Android smartphone or iPhone to the vehicle with a USB cable, you can
run and control Apps on the phone through the widescreen using its user-friendly interface.
ÝWarning
Do not adjust or set up any phone settings while driving. You may lose your steering control
which could cause an accident and severe bodily injuries.

2-4
Pairing to an Android smartphone via Android Auto
When you connect an Android smartphone to the vehicle with Android Auto, you can run and
control Apps on the phone through the widescreen using its user-friendly interface.
1 To use Android Auto, first check the following.
Visit the Android Auto website at
https://www.android.com/auto to check the list of
countries, device types, and models that support Android Auto.
 Download and install the Android Auto App from Google Play Store. It is not possible
to install Android Auto in countries that do not support the feature.
2 On the All Menus screen, press
Setup >
Device Connections >
Phone
Projection Settings >
Android Auto and select the Enable Android
Auto checkbox.
A The screen may differ depending on the vehicle model and specifications.

A
Select Use Split Screen on Android Auto Screen to show split screen when using
Android Auto.
3 Connect a smartphone to the USB port on the vehicle by using the
provided USB cable.

A
When the connection is made for the first time, the system screen displays a
notification window. Check the details and then press OK.

A
To end the Android Auto and disconnect from the smartphone, remove the USB cable
from the system.

2-5
Using the Android Auto
1 On the All Menus screen, press Android Auto.
2 Perform the desired function.
To run the functions for phone, music, or navigation on the smartphone, p\
ress the
corresponding app icon.

A
When you are using your smartphone′s navigation via phone projection, sounds
from both the system′s radio/media function and the navigation will be output
through your vehicle′s speakers. When you use the Volume knob while both
sounds are being output, the navigation volume is adjusted first.
To use the Google voice recognition, press and hold the Voice Recognition button on
the steering wheel.

A
By pressing the [ MODE] button on the steering wheel, you can run the media App on
your smartphone as well as the Radio/Media mode of the system.

A
To specify which functions to run when the [MODE] button on the steering wheel is
pressed, press and hold the [ MODE] button to display the settings screen.

A
By pressing the Call button on the steering wheel, you can make a call via Bluetooth
connection.

A
When phone projection is active, you cannot change the phone projection settings. To
change the settings, remove the USB cable from your system.

A
The icons on the screen are subject to change according to the policy of Google
Corporation.

A
Apps or functions used through Android Auto are subject to change according to the
policy of Google Corporation. For supportable functions, visit the Android website at
https://www.android.com/auto .

A
To use the functions on your smartphone with the minimized system settings, update the
smartphone OS to the latest version.

A
The recognition time may differ depending on the device type, firmware, and OS version.

A
Charges may apply for any mobile data used while Android Auto is running.

A
Some functions may not work properly depending on the network signal strength.

A
Avoid interacting with the smartphone while using Android Auto.

A
You cannot use the following functions when Android Auto is in use.

USB mode

Apple CarPlay

Searches using the control panel or the steering wheel remote control

2-6

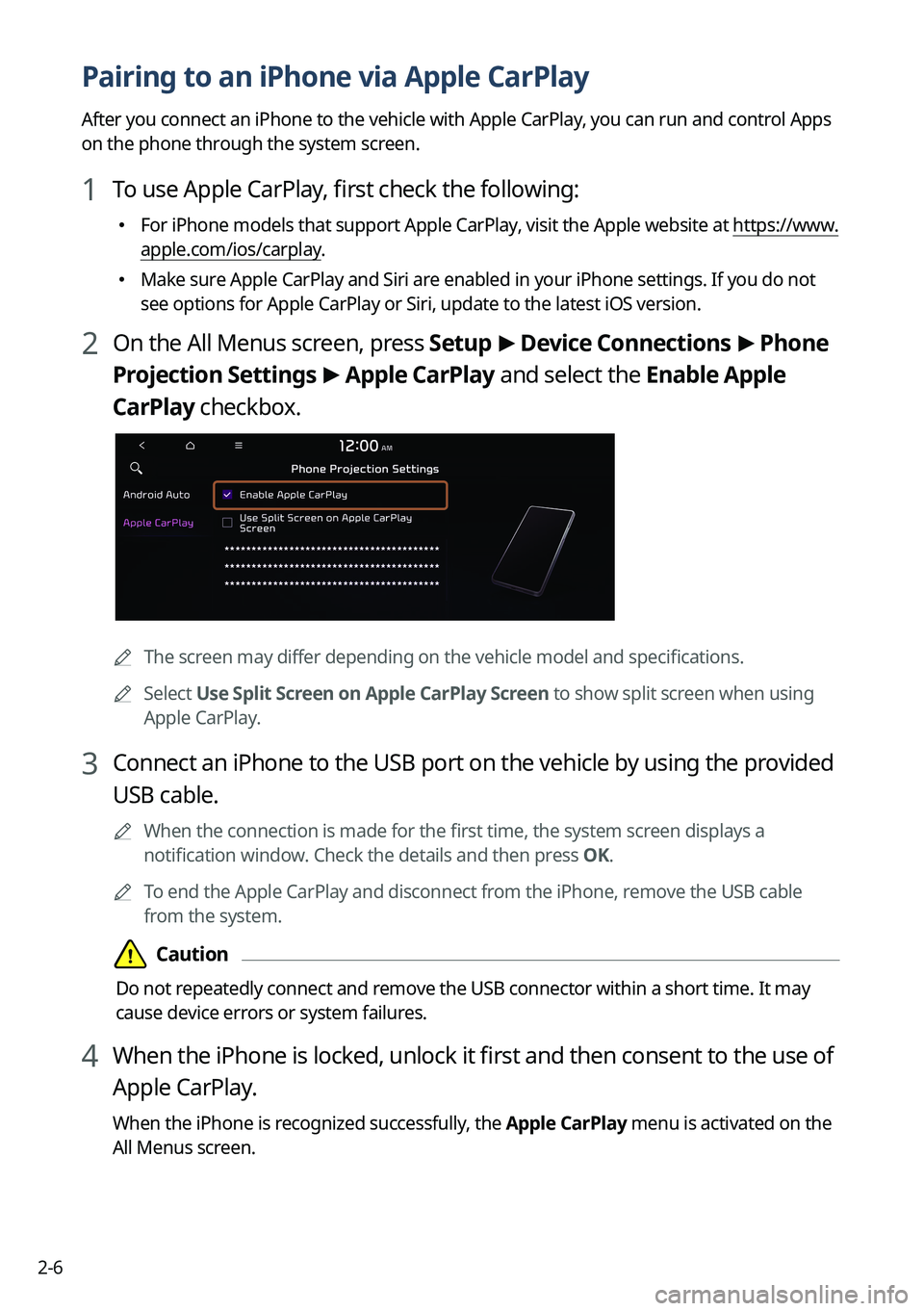

Pairing to an iPhone via Apple CarPlay
After you connect an iPhone to the vehicle with Apple CarPlay, you can run and control Apps
on the phone through the system screen.
1 To use Apple CarPlay, first check the following:
For iPhone models that support Apple CarPlay, visit the Apple website at
https://www.
apple.com/ios/carplay .
Make sure Apple CarPlay and Siri are enabled in your iPhone settings. If you do not
see options for Apple CarPlay or Siri, update to the latest iOS version.\
2 On the All Menus screen, press
Setup >
Device Connections >
Phone
Projection Settings >
Apple CarPlay and select the Enable Apple
CarPlay checkbox.
A The screen may differ depending on the vehicle model and specifications.

A
Select Use Split Screen on Apple CarPlay Screen to show split screen when using
Apple CarPlay.
3 Connect an iPhone to the USB port on the vehicle by using the provided
USB cable.

A
When the connection is made for the first time, the system screen displays a
notification window. Check the details and then press OK.

A
To end the Apple CarPlay and disconnect from the iPhone, remove the USB cable
from the system.

2-7
Using the Apple CarPlay
1 On the All Menus screen, press Apple CarPlay.
2 Perform the desired function.
To run any of functions (phone, messaging, navigation, etc.) on your iP\
hone, press the
corresponding function icon.

A
When you are using your smartphone′s navigation via phone projection, sounds
from both the system′s radio/media function and the navigation will be output
through your vehicle′s speakers. When you use the Volume knob while both
sounds are being output, the navigation volume is adjusted first.
To run the Siri voice recognition, press and hold the Voice Recognition button on the
steering wheel.

A
By pressing the [ MODE] button on the steering wheel, you can run the media App on
your smartphone as well as the Radio/Media mode of the system.

A
To specify which functions to run when the [MODE] button on the steering wheel is
pressed, press and hold the [ MODE] button to display the settings screen.

A
When you receive a call, press the Call button on the steering wheel to answer it.

A
When phone projection is active, you cannot change the phone projection settings. To
change the settings, remove the USB cable from your system.

A
Apps or functions used through Apple CarPlay are subject to change according to the
policy of Apple Corporation. For supportable functions, visit the Apple Corporation
website at http://www.apple.com/ios/carplay .

A
To use the functions on your smartphone with the minimized system settings, update the
smartphone OS to the latest version.

A
The recognition time may differ depending on the device type, firmware, and OS version.

A
Charges may apply for any mobile data used while Apple CarPlay is running.

A
Some functions may not work properly depending on the network signal strength.

A
Avoid interacting with the smartphone while using Apple CarPlay.

A
You cannot use the following functions when Apple CarPlay is in use.

Bluetooth phone

USB mode

Android Auto

Browsing using the Search knob on the control panel (if equipped)

2-18
f f The list of menu items appears.
Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button (if equipped).
 Front Climate
: Displays the front-seat climate control settings screen (if equipped).
Front Heat/Ventilation: Displays the front-seat warmer/ventilation settings
screen (if equipped).

A
Available settings may differ depending on the vehicle model and
specifications.
Climate Settings
: Configure specific climate control function settings (if equipped).
User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Using the rear-seat conversation mode
(if equipped)
When the driver's voice cannot be delivered well to the rear seat, you can use the microphone
of the driver's seat for smooth communication.
1 On the All Menus screen, press
Passenger Talk.
The passenger talk icon appears at the top right of the system screen to display its status.
2 Make conversation through the microphone of the driver's seat.

A
To end the Passenger Talk mode, press End.

A
When you move to another screen without pressing End, shortly press the End Call
button on the steering wheel to end the passenger talk function.

A
When the Passenger Talk mode is active, the Radio/Media functions are unavailable.

A
To access the online user's manual on the Passenger Talk screen, press
>
User's
Manual on Web (QR Code) and then scan the displayed QR code.

2-19
Using the rear-seat view (if equipped)
You can check the status and safety of rear-seat occupants through the rear-seat camera feed
displayed on the system screen.
ÝWarning
A car accident may occur when focusing on the vehicle display and not pa\
ying attention to
the road while driving.
On the All Menus screen, press Passenger View.
A view that shows the rear-seat status is displayed on the system screen.
ae
cbd
a a Returns to the previous step.
b b Check the status of rear-seat occupants. Zoom in or out on the screen.
c c Turn on the Passenger Talk mode.

A
If you press Talk Now, you can talk to rear-seat occupants through the microphone
of the driver's seat. To end the Passenger Talk mode, press End.

A
For more information about Passenger Talk mode.
> See "Using the rear-seat
conversation mode (if equipped)."
d d Adjust or reset the brightness or contrast of the screen.
e e The list of menu items appears.
 Display Off: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

2-28
Using the Valet mode (if equipped)
Use the Valet mode to protect your personal information and view the vehicle information.
Valet mode protects your personal information by disabling control using the screen or
buttons. Vehicle information created during valet mode can be viewed from the Kia Connect
App.
The following vehicle-related data can be viewed from the Kia Connect App.
Valet mode start time
Engine off time
Driving distance/hours and maximum vehicle speed after valet mode activa\
tion

A
To use Valet mode, make sure you install the Kia Connect App on your smartphone and
sign up for the Kia Connect Service. Use either Google Play Store or App Store (depending
on your smartphone model) to download and install the Kia Connect App and sign up for
the Kia Connect Service.
> See "Subscribing to the service."
1 On the All Menus screen, press Valet Mode.

A
To access the online user's manual on the Valet Mode screen, press >
User's
Manual on Web (QR Code) and then scan the displayed QR code.
2 Enter a password to turn on the valet mode.
Your personal information is protected, as control using the screen or buttons is disabled.

A
To turn off valet mode, enter the password you set when turning on the mode.

A
It is not possible to turn off Valet mode if you enter your password incorrectly five
times in succession. If this occurs and you want to turn off Valet mode, use the
Kia Connect App to reset your Valet mode password. Alternatively, contact the Kia
Connect Center (844-886-9411) for assistance.

4-8
Playing music via Bluetooth
To use a Bluetooth device for audio playback, connect a device that supports Bluetooth
communication such as mobile phone and MP3 player.
For more information about Bluetooth connection:
> see "Connecting a Bluetooth device."

A
The controls or display screens may differ depending on the connected Bluetooth device,
phone model, and music player App.

A
The streaming may not be supported in some music player Apps.

A
Some functions may not be available depending on the connected Bluetooth\
device or
phone model.

A
When a media device or mobile phone is connected by both the Bluetooth and USB cable
at the same time, the device or system may not work properly. To use the Bluetooth
connection, remove all cables from the device.
Bluetooth audio playback screen
The media player runs when you play a music file from a connected audio device via
Bluetooth.
aj
b
cdef
h
i
g
a a Returns to the previous step.
b b Displays the information of the current music.
c c Restart playing the current file or play the previous file.
d d Can pause or resume playback.
e e Can play the next file.

5-30
END USER LICENSE AGREEMENT
PLEASE READ THIS END USER LICENSE AGREEMENT ("EULA") CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM.
This is a license agreement between you and Hyundai Autoever, CORP. including its affiliates
("COMPANY") regarding a copy of the COMPANY navigable map database and/or Online
contents together with associated software, media and explanatory printed documentation
published by COMPANY(jointly the "Product"). The Product is provided for your personal,
internal use only and not for resale. It is protected by copyright and is subject to the following
terms which are agreed to by you, on the one hand, and COMPANY and its licensors (and
their licensors and suppliers) (collectively, "Licensors") on the other hand.
By using the Product, you accept and agree to all terms and conditions in this End User
License Agreement ("EULA"). IF YOU DO NOT AGREE TO THE TERMS OF THIS EULA, YOU
MUST PROMPTLY EXIT THE PRODUCT OPERATION PROGRAM AND DO NOT USE OR ACCESS
TO THE PRODUCT. YOU AGREE THAT YOUR RIGHTS UNDER THIS EULA MAY BE TERMINATED
AUTOMATICALLY WITHOUT NOTICE IF YOU FAIL TO COMPLY WITH ANY TERM(S) OF THIS
EULA.
Terms and Conditions
Personal Use Only. You agree to use this Product together with COMPANY’s authorized
application for the solely personal, non-commercial purposes for which you were licensed,
and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to
the restrictions set forth in the following paragraphs, you agree not to otherwise reproduce,
copy, modify, decompile, disassemble, create any derivative works of, or reverse engineer any
portion of this Data, and may not transfer or distribute it in any form, for any purpose, except
to the extent permitted by mandatory laws. You may not assign this EULA or any of the rights
or licenses granted under this EULA, except when installed in the system for which it was
created.
Restrictions. Except where you have been specifically licensed to do so by COMPANY, and
without limiting the preceding paragraph, you may not use the Product (i) with any products,
systems, or applications installed or otherwise connected to or in commu\
nication with
vehicles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet
management or similar applications or (ii) with or in communication wi\
th any positioning
devices or any mobile or wireless-connected electronic or computer devices, including
without limitation cellular phones, palmtop and handheld computers, page\
rs, and personal
digital assistants or PDAs.
