KIA SORENTO 2023 Navigation System Quick Reference Guide

9
06 Phone
Connecting a Bluetooth device 6-2
Making a call via Bluetooth 6-6
Accepting an incoming call over Bluetooth 6-15
Checking new messages over Bluetooth 6-17
07 Voice functions
Voice recognition 7-2
Using the Siri Eyes Free 7-29
Voice Memo 7-30
08 Kia Connect
Kia Connect service 8-2
Running the Kia Connect menu 8-4
Route guidance service 8-13

10
09 Settings
Configuring system settings 9-2
Configuring the vehicle settings (Type1) 9-3
Configuring the vehicle settings (Type2) 9-15
Configuring the device connections settings (Type1) 9-34
Configuring the device connections settings (Type2) 9-36
Configuring the advanced system settings (Type1) 9-41
Configuring the button settings (Type1) 9-45
Configuring the button settings (Type2) 9-47
Configuring the sound settings (Type1) 9-50
Configuring the sound settings (Type2) 9-54
Configuring the voice recognition settings (Type1) 9-60
Configuring the voice recognition settings (Type2) 9-61
Configuring the navigation settings (Type1) 9-62
Configuring the navigation settings (Type2) 9-67
Configuring the UVO settings (Type1) 9-74
Configuring the Kia Connect settings (Type2) 9-76
Configuring the data/network settings (Type2) 9-78
Configuring the user profile settings (Type1) 9-79
Configuring the user profile settings (Type2) 9-80
Configuring the general system settings (Type1) 9-81
Configuring the general system settings (Type2) 9-86
Configuring the screen layout settings (Type2) 9-92
Configuring the display settings (Type1) 9-93
Configuring the display settings (Type2) 9-98

11

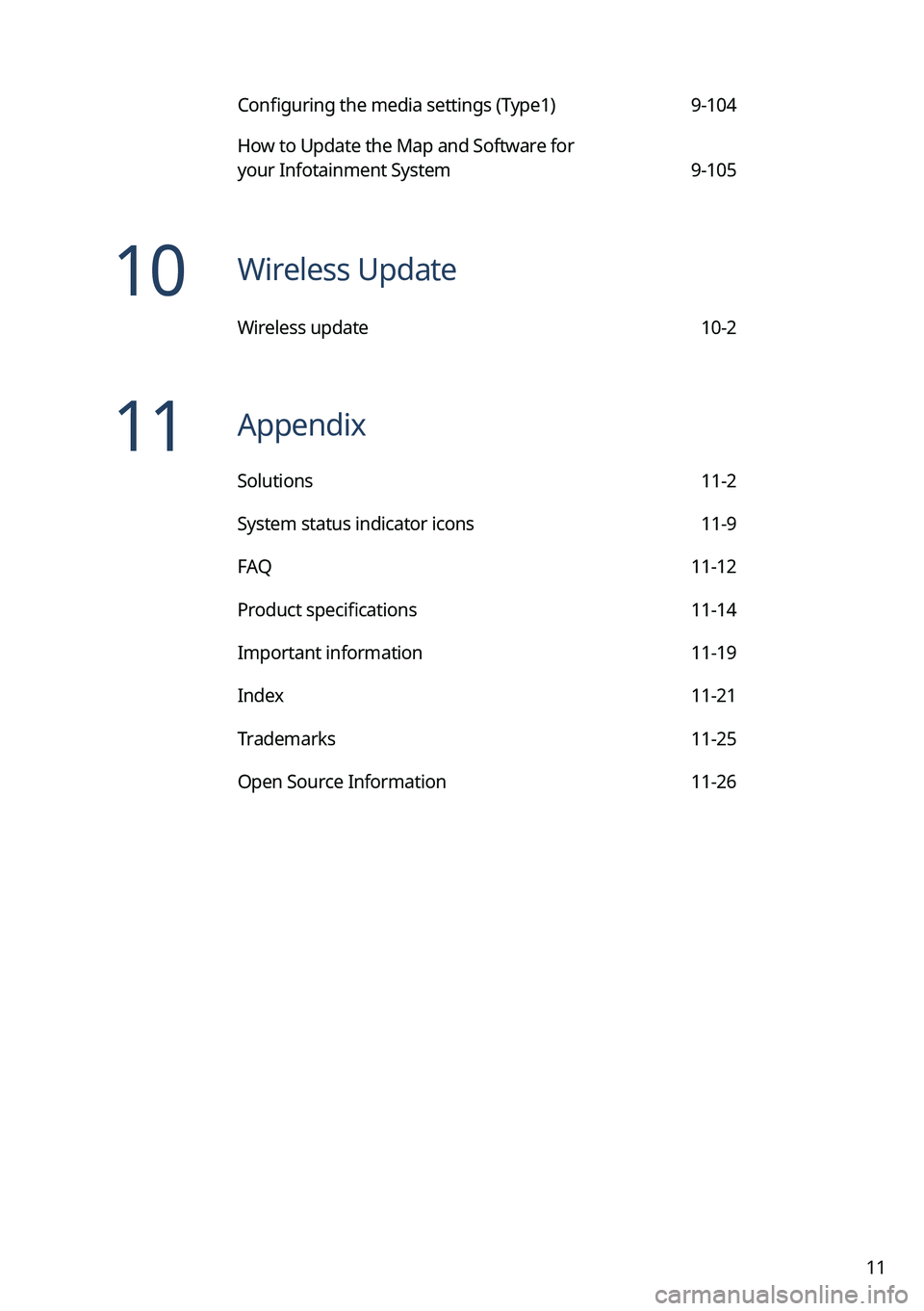

Configuring the media settings (Type1) 9-104
How to Update the Map and Software for
your Infotainment System 9-105
10 Wireless Update
Wireless update 10-2
11 Appendix
Solutions 11-2
System status indicator icons 11-9
FAQ 11-12
Product specifications 11-14
Important information 11-19
Index 11-21
Trademarks 11-25
Open Source Information 11-26

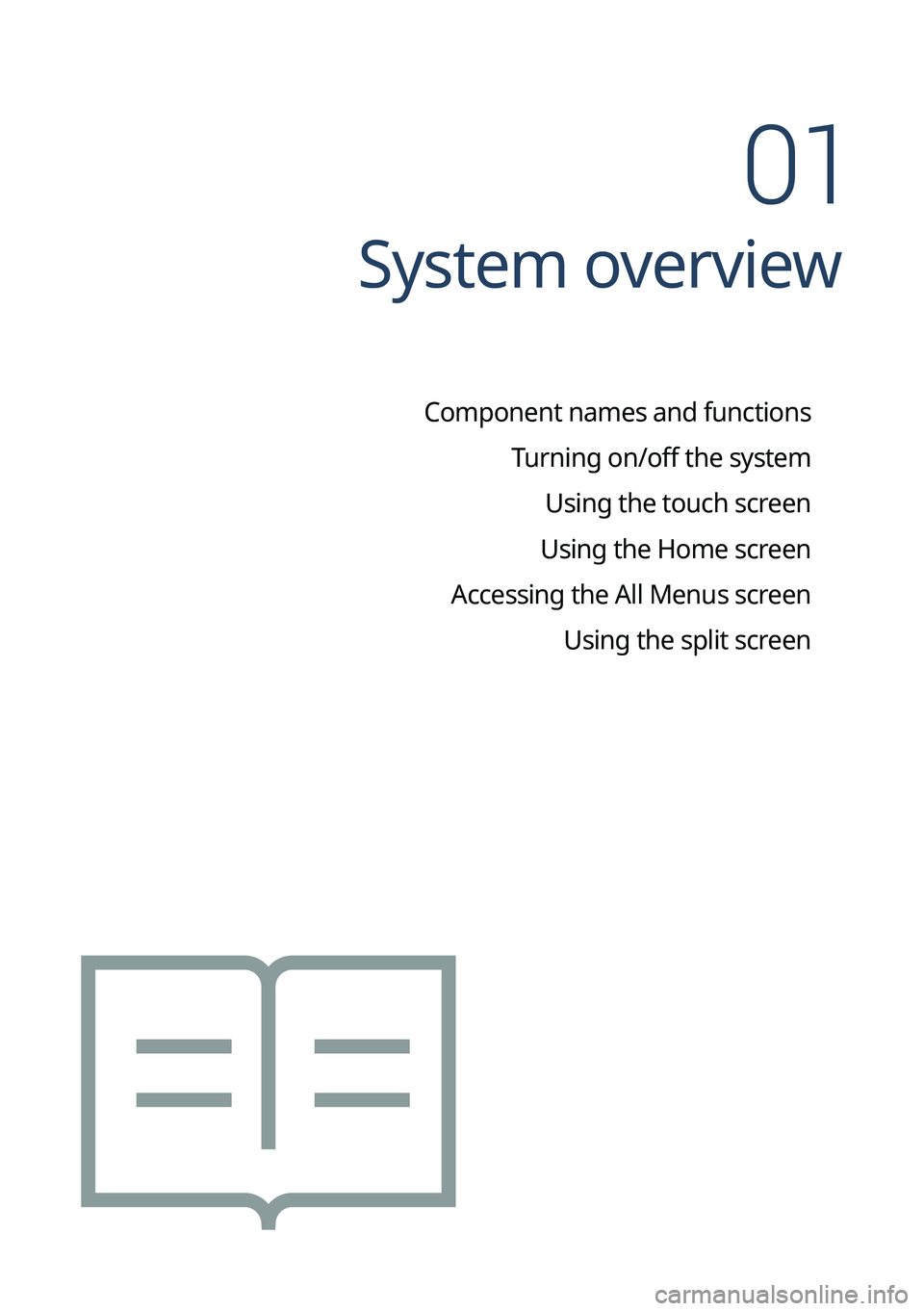

System overview
Component names and functionsTurning on/off the systemUsing the touch screen
Using the Home screen
Accessing the All Menus screen Using the split screen
01

1-2
Component names and functions
The following describes the part names and controls on the control panel and steering wheel.
Control panel

A
The shape may differ depending on the vehicle model and specifications. For more
information, see "Quick Reference Guide" that is separately provided.

A
For more information about the infotainment / climate control panel, refer to http://
webmanual.kia.com/SwitchableController/index.html.
POWER button
(POWER/PWR)/
VOLUME knob
(VOLUME/VOL)  Turn on or off the Radio/Media.
Press and hold the button to turn off the screen and
sound.
Turn the knob to adjust the system volume (except for
navigation sound).
MAP button
 Returns to the current location on the map.
While in guidance on the navigation screen, press to
repeat the voice guidance.
NAV button
 Displays the Navigation Menu screen.
Press and hold the button to display the Places screen.
> See "
Searching by keyword."
RADIO button  Turns on the radio.
When the radio is on, press the button repeatedly to
toggle between FM, AM and SiriusXM modes.
Press and hold the button to display the Radio/Media
selection window (if equipped).
MEDIA button
 Runs the connected media.
Press and hold the button to display the Radio/Media
selection window.

1-3
SEEK/
TRACK button
(if equipped)
While listening to the radio, change the station.
While playing media, change the track/file. Press and hold
to rewind or fast forward (except for the Bluetooth audio
mode).
Custom button
(
)
 Runs the user-defined function.
Press and hold the button to display the function settings
screen.
SETUP button
 Displays the Settings screen.
Press and hold the button to display the version
information screen.
Search knob
(TUNE/FILE)
(if equipped)
 While listening to the radio, adjust the frequency or
change the broadcasting channel.
While playing media, scan music or files.
During scanning, select the current channel, music or file.
On the map screen, zoom in or out on the map (if
activated).
System Reset button
 Restarts the system.

1-4
Steering wheel remote control

A
The shape may differ depending on the vehicle model and specifications. For more
information, see "Quick Reference Guide" that is separately provided.
Voice Recognition
button
(
)
 Press to start voice recognition.
Press and hold to start voice recognition of a connected
smartphone via phone projection. (The button's operation
may vary depending on smartphone specifications.)
MODE button
 Press the button repeatedly to change the system mode
(radio, media, etc.).
Press and hold the button to display the function settings
screen.
Volume lever/
button
(+/-)
 Adjust the volume.
Mute button
(
)
 Press the button to mute or unmute the volume (except
for navigation sound).
Press the button to pause or resume playback.
Move lever/
button
(
/)
 While listening to the radio, switch between the stations
on the preset list. Press and hold to search for a station.
While playing media, change the track/file. Press and hold
to rewind or fast forward (except for the Bluetooth audio
mode).
Option A
Call button
(
)
 Before connection of Bluetooth: Press to display the
Bluetooth connection window.
After connection of Bluetooth: Press to display the
recent calls list. To redial the last call number, press and
hold the button. When a call comes in, press to answer
the call.
During a Bluetooth call: Press to switch to Call Waiting.
Press and hold to switch between the system and
mobile phone.
End Call button
(
)
(if equipped)
 After connection of Bluetooth: When a call comes in,
press to reject the call.
During a Bluetooth call: Press to end a call.

1-5
Option B
Call button
(
)
Before connection of Bluetooth: Press to display the
Bluetooth connection window.
After connection of Bluetooth: Press to display the
recent calls list. To redial the last call number, press and
hold the button.
When a call comes in: Press to answer a call.
End Call button
(
)
(if equipped)
 During a Bluetooth call: Press to end a call.
When a call comes in: Press and hold to reject a call.
Custom button
(
)
(if equipped)
 Runs the user-defined function.
Press and hold the button to display the function
settings screen.

1-6

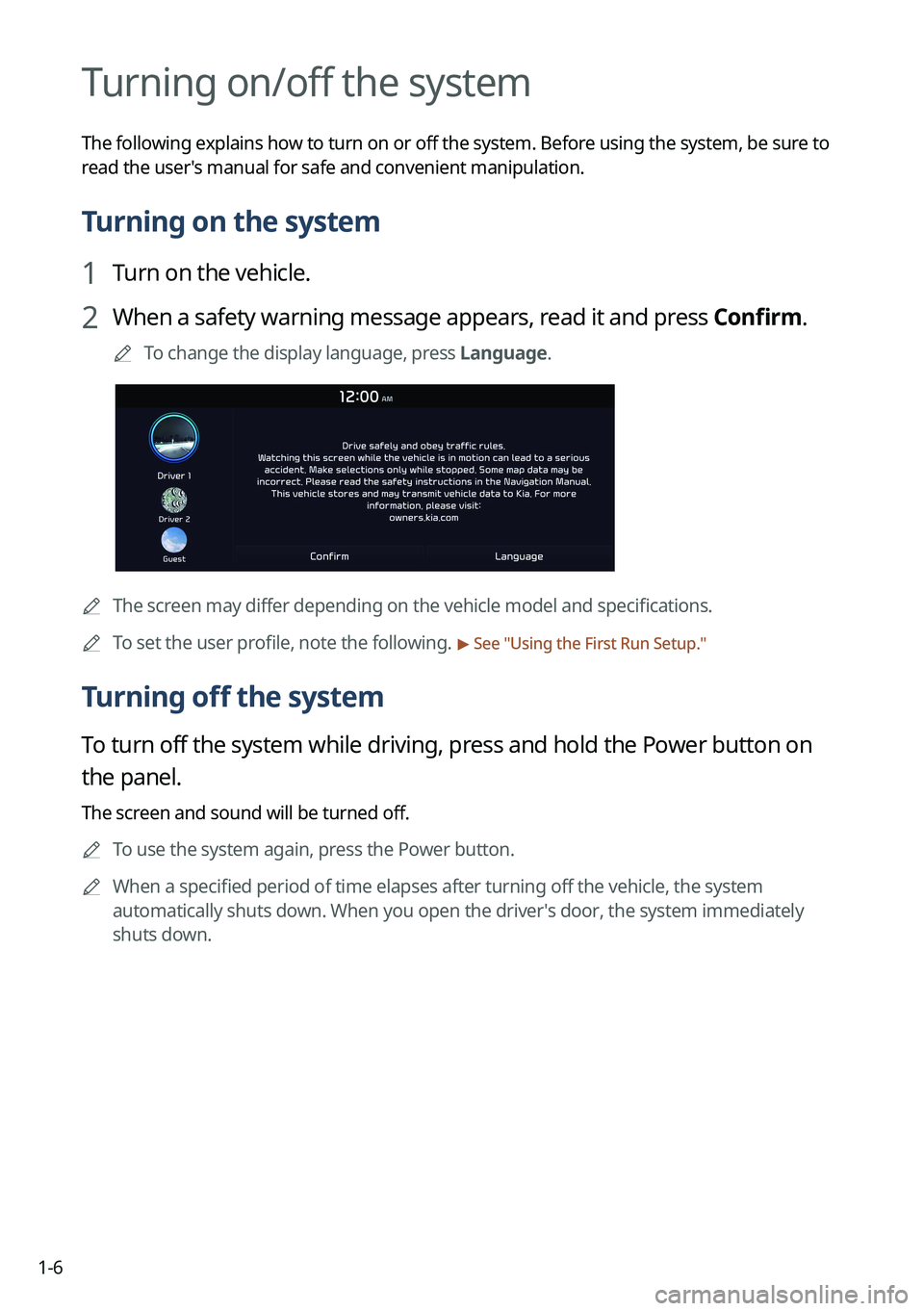

Turning on/off the system
The following explains how to turn on or off the system. Before using the system, be sure to
read the user's manual for safe and convenient manipulation.
Turning on the system
1 Turn on the vehicle.
2 When a safety warning message appears, read it and press Confirm.

A
To change the display language, press Language.
AThe screen may differ depending on the vehicle model and specifications.

A
To set the user profile, note the following.
> See "Using the First Run Setup."
Turning off the system
To turn off the system while driving, press and hold the Power button on
the panel.
The screen and sound will be turned off.

A
To use the system again, press the Power button.

A
When a specified period of time elapses after turning off the vehicle, the system
automatically shuts down. When you open the driver's door, the system immediately
shuts down.
