Automatic Climate Control (continued)
REMINDERS:
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
•When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
•Warm air may flow in through the vents if the Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y and/or cause smell/odor
•
Your Automatic Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
•For illustrative purposes only . Your actual display, but tons and/or features may var y .
Air Flow Modes
To select Air Flow Modes, press the mode button H to cycle through to the desired mode:
Auto Defogging System (ADS)
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield . The system will automatically change to defrost mode when needed .
Auto Defogging is set ON by default . To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate) . To turn Auto Defogging on
again, press the Front Defrost button for three seconds .
Face-Level
Bi-Level
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System (ADS) Video
QR CODE
•Defrost Mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator will NOT illuminate . The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
Floor-Level
Floor/Defrost-Level
CENTER PANEL
CENTERPA N EL
Page 52 of 74
50†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
REMINDERS:
•
If the driver door is opened, charging will be disabled
•
Wireless charging technology allows for a device to be charged using inductive charging . See your Owner ’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through a cable . As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance – Device position on the wireless charging system can affect charging per formance . Other factor that may affect the charging rate includes foreign objects, such as coins or pens, and phone case thickness
Charge a compatible smartphone wirelessly by placing it on the tray B at the front of the console, near the Multimedia USB ports and the charging indicator, while the ignition is on .
1 . Enable Wireless Charging in the User Settings
2 . Slide open cover A . Place the smartphone on the center of the charging pad B
3 . Indicator light C may change to amber once wireless charging begins
4 . Once charging is complete, the amber light may change to green
Wireless Smartphone Charging System*
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
3 F G F S U P T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
Wireless Charging Video
QR CODE
•
The smar tphone must be a compatible phone with QI function available
•Wireless charging must be enabled in user set tings
•
If wireless charging does not work, move the smar tphone around the pad until the charging indicator turns amber . Avoid placing other metal items in the bin while charging as to not impede the charging area
•
For wireless charging to occur, all doors (excluding the rear hatch) must be closed & the Smar t Key Fob must be detected inside the vehicle
QUICK TIPS
A
B
C
CENTER PANEL
CENTERPA N EL
Page 53 of 74
51†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

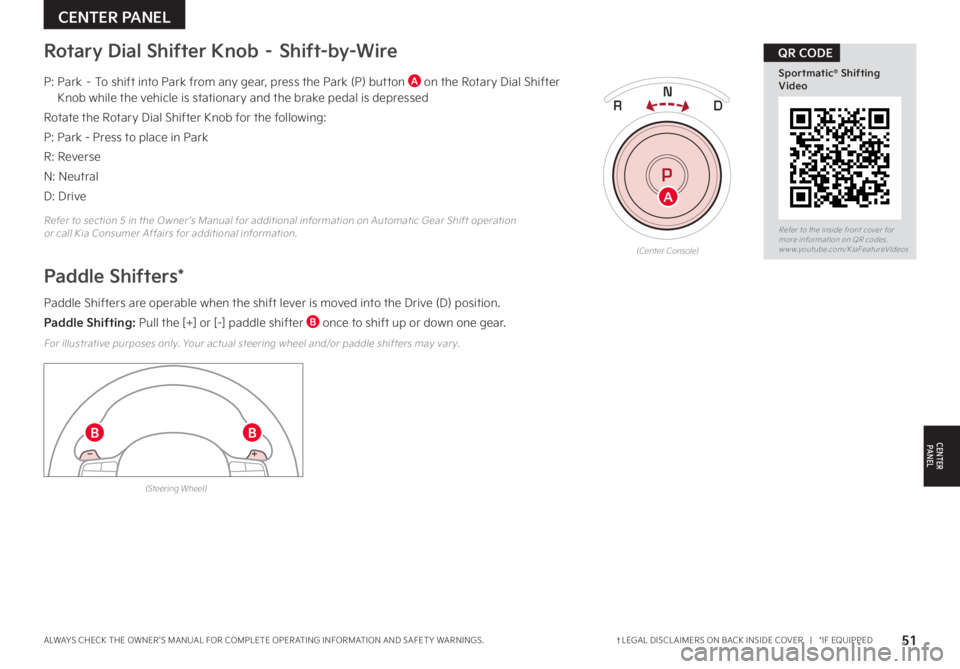

Rotary Dial Shifter Knob – Shift-by-Wire
(Center Console)
(Steering Wheel)
P: Park – To shift into Park from any gear, press the Park (P) button A on the Rotary Dial Shifter Knob while the vehicle is stationary and the brake pedal is depressed
Rotate the Rotary Dial Shifter Knob for the following:
P: Park - Press to place in Park
R: Reverse
N: Neutral
D: Drive
Paddle Shifters*
Paddle Shifters are operable when the shift lever is moved into the Drive (D) position .
Paddle Shifting: Pull the [+] or [-] paddle shifter B once to shift up or down one gear .
For illustrative purposes only . Your actual steering wheel and/or paddle shifters may var y .
Refer to section 5 in the Owner ’s Manual for additional information on Automatic Gear Shift operation or call Kia Consumer Affairs for additional information .
DRIVE
SPORT
SMART
ECO
MUD
SAND SNOW
COMFORTTERRAIN
P
R
D
N
AUTO
HOLD
A
BB
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Sportmatic® Shifting Video
QR CODE
CENTER PANEL
CENTERPA N EL
Page 54 of 74
52†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
P
R
N D
SHIFT
LOCK
RELEASE
OFF
•
•
•
•
+
•
–
P
R
N D •
•
•
•
+
•
–
OFF
SPORT
SMART
LOCK
ECO
SNOW
Idle, Stop & Go (ISG) System
The ISG system is designed to reduce fuel consumption by automatically shutting down the engine when the vehicle is at a standstill .
When the ISG system is ON and the vehicle is at a standstill, the engine will stop, and the green AUTO STOP indicator B on the instrument cluster will illuminate .
The engine will restar t when the brake pedal is released or the shift lever is moved from D (Drive) to the R (Reverse) position or to Manual Shift mode . When engine restarts, the green AUTO STOP indicator on the
instrument cluster will turn off .
To deactivate the ISG System, press the ISG OFF button C . If you press again, the system will be activated .
REMINDERS:
•
ISG is active by default at vehicle star tup . When ignition is cycled, ISG will turn ON again
•
Under cer tain conditions, the engine will restar t automatically even if the brake pedal is still depressed
•
If the AUTO STOP indicator is continuously blinking yellow and the ISG but ton LED is on, please contact an authorized Kia dealer
Images are for illustrative purposes only and may not reflect actual feature or operation .
Refer to section 5 in the Owner ’s Manual for more information .
(LCD instrument panel Type B)
(But ton on center console below gear shift)
EPB
AUTO
06
CH
１ 5
2
D
4
3x１
000 rpm
E F
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
１ 7
8
26
3 45
E
F CH
１60
20
１40
40
１20
60
１00
80
MPH
526mi miF°25.7MPG
x１ 000 rpm
SPORT
SMART
LOCK
ECO
P
R
N D
SHIFT
LOCK
RELEASE
SNOW
OFF
•
•
•
•
+
•
–
OFF
B
C
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
ISG (Idle, Stop & Go) System Video
QR CODE
•If the AUTO STOP indicator B is solid yellow, the system is functional, but just has not met all its enabling criteria to activate ISG at that time .
•
The ISG system is disabled when:
– A seat belt is unfastened
– The hood or a door is opened
– Bat ter y condition is poor
– The front or rear defroster is turned on
– Engine coolant temperature is low
– The outside ambient temperature is too low/high
– Emission control devices activate
– The vehicle is on a steep slope
QUICK TIPS
When you select AWD Lock mode by pressing the AWD LOCK button A, the AWD LOCK mode increases the drive power when driving on wet pavement, snow covered roads and/or off-road .
•This mode is used for climbing or descending sharp grades, off-road driving, driving on sandy and muddy roads, etc ., to improve traction
•This mode automatically shifts back to AWD AUTO mode at speed above 19 mph . If the vehicle decelerates to speeds below approximate 25 mph, however, the transfer
mode is shifted into AWD LOCK mode again
When the AWD LOCK mode is deactivated, a shock may be felt as the drive power is delivered entirely to the front wheels . This shock is not a mechanical failure .
AWD (All-Wheel Drive) Lock*
(But ton on center console below gear shift)
See section 5 in the Owner ’s Manual for more information .
A
CENTER PANEL
CENTERPA N EL
Page 55 of 74
53†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Image is for illustrative purposes only and may not reflect actual feature or operation .
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake .
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A . Ensure that the indicator light is illuminated on the instrument cluster .
Releasing the Parking Brake*
The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse) or shifted out of N (Neutral) to Reverse or D (Drive) .
To release EPB manually, depress the brake pedal, then press the EPB switch A, with the ignition switch in the ON position . Ensure that the indicator light is OFF .
Auto Hold temporarily maintains the vehicle at a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal . Auto Hold can be turned On/Off using the AUTO HOLD button B on the center panel below the gear shift . Before Auto Hold will operate, the driver ’s door, engine hood and liftgate must be closed, and the driver ’s seat belt must be fastened .
The Auto Hold indicator on the Instrument Cluster has four states:
White: Standby – When vehicle is in Park and at a standstill, and AUTO HOLD button B is pressed On, the indicator will illuminate white . While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white .
Green: Engaged – When coming to a complete stop by pressing the brake pedal, the Auto Hold indicator changes from white to green .
Off (not illuminated) – The indicator will turn Off when the AUTO HOLD button B is manually pressed Off or when the EPB is manually turned On .
Yellow: Malfunction – When the indicator is illuminated yellow, there may be a system malfunction . Take your vehicle to a local Kia dealer .
Electronic Parking Brake (EPB)*
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Auto Hold*
REMINDERS:
•
Auto Hold only operates when vehicle is in Drive, Neutral or Reverse
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped . Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
DRIVE
SPORT
SMART
ECO
MUD
SAND
SNOW
COMFORT
TERRAIN
P
R
D
N
AUTO
HOLD
(But ton on center console below gear shift; But ton location may var y by model)
Refer to section 5 in the Owner ’s Manual for more information . Refer to page 4 for location of Instrument Cluster indicators .
A
B
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electric Parking Brake / Auto Hold Video
QR CODE
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
•Pull up and hold EPB switch a second time to increase brake pressure if parked on a decline or incline
QUICK TIPS
CENTER PANEL
CENTERPA N EL
Page 56 of 74
54†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
CENTER PANEL
CENTERPA N EL
Heated Steering Wheel*
Press Heated Steering Wheel button A to turn the Steering Wheel Heater on/off while the Engine Start/Stop button is in the ON position . The Steering Wheel Heater will turn off automatically in 30 minutes, or when button A is pressed again to deactivate .
B Seat Warmers
•Press the button up once for high setting (3 LEDs lit)
•Press the button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
C Ventilated Seats
•Press the button down once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Seat Warmers / Ventilated Seats*†1 6
REMINDER: If the steering wheel becomes too warm, turn the system off . The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time .
REMINDER: Use extreme caution when using the seat warmers to avoid burns . Refer to the Owner ’s Manual for more information .
(Located below gear shift knob)
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOW
TERRAIN
COMFORT
Image is for illustrative purposes only and may not reflect actual feature or operation
.
Refer to section 4 in the Owner ’s Manual for more information .
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Heated and Ventilated Seats Video
QR CODE
•If ignition is turned OFF, then ON again within 30 minutes of the Steering Wheel Heater being turned ON, the system will return to its previous state
•The system returns to on when ignition is cycled . To turn off system, press the Heated Steering Wheel but ton A
•With the heated steering switch in the ON position, the heating system in the steering wheel turns OFF or ON automatically depending on the steering wheel temperature
QUICK TIPS
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System is OFF by default
QUICK TIPS
(But tons located on top sides of center console)
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
B
C
Page 57 of 74
55†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
SEATING
S E AT I N G
Front Seat Headrest Adjustment†1 0
Up/down adjustment:
•To raise the headrest, pull headrest up A to the desired position
•To lower the headrest, press the button B, then press the headrest down C
Forward/backward adjustment*:
•Pull the headrest forward/backward D to one of three positions
•When forward, to move the headrest to the furthest backward position, pull it fully forward then release
Driver Position Memory System*†1 8
The integrated system stores into memory the position of the Driver ’s Seat and the Outside Rearview Mirrors .
To store positions into memory, first place the Gear Shift into P (Park) while the Engine Start/Stop button is in the ON position . Then:
1 . Adjust the Driver ’s Seat and the Outside Mirrors
2 . Press the SET button E on the control panel . System will beep once
3 . Press one of the memory buttons F within 5 seconds . The system will beep twice when memory has been stored
SET
12
# V U U P O T M P D B U F E P O % S J W F S s T % P P S 1 B O F M
REMINDER: Do not at tempt to operate the driver position memor y system while the vehicle is moving . This could result in loss of control of the vehicle .
REMINDERS:
•
The headrest only moves up and down as described above . It does not adjust for ward or backward
•
Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head suppor t in an accident
Refer to section 3 in the Owner ’s Manual for more information .
Refer to section 3 in the Owner ’s Manual for more information .
EF
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath .
QUICK TIP
(Type A)(Type A)
B
C
AD
Page 58 of 74
56†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
SEATING
S E AT I N G

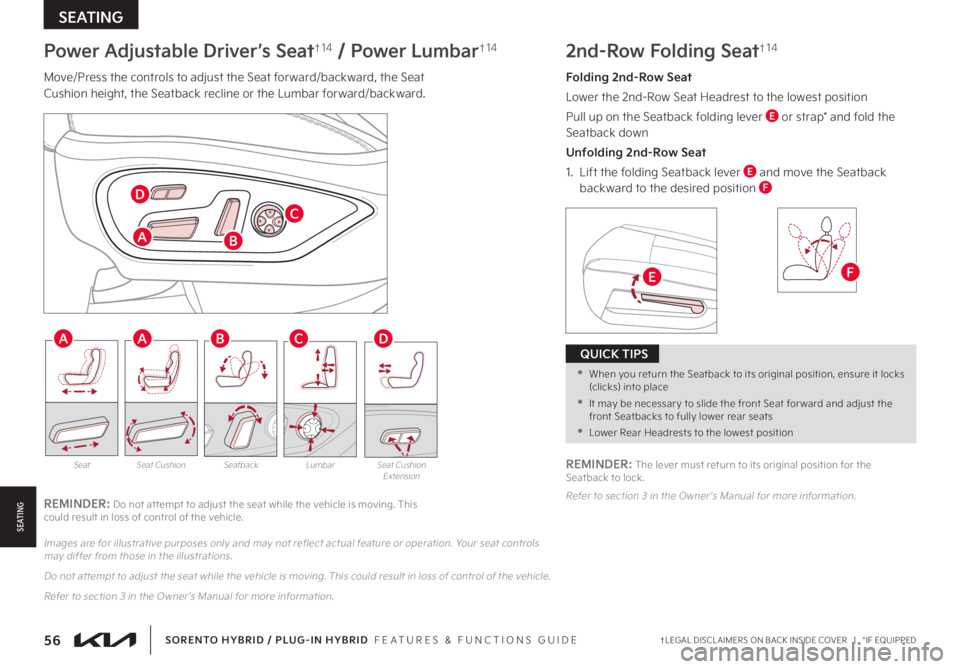

Power Adjustable Driver’s Seat†1 4 / Power Lumbar†1 4
Move/Press the controls to adjust the Seat forward/backward, the Seat Cushion height, the Seatback recline or the Lumbar forward/backward .
SeatbackLumbarSeat Cushion ExtensionSeatSeat Cushion
Images are for illustrative purposes only and may not reflect actual feature or operation . Your seat controls may differ from those in the illustrations .
Do not at tempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
Refer to section 3 in the Owner ’s Manual for more information .
REMINDER: Do not at tempt to adjust the seat while the vehicle is moving . This could result in loss of control of the vehicle .
AA
AB
B
C
C
D
D
Folding 2nd-Row Seat
Lower the 2nd-Row Seat Headrest to the lowest position
Pull up on the Seatback folding lever E or strap* and fold the Seatback down
Unfolding 2nd-Row Seat
1 . Lift the folding Seatback lever E and move the Seatback backward to the desired position F
2nd-Row Folding Seat†1 4
REMINDER: The lever must return to its original position for the Seatback to lock .
Refer to section 3 in the Owner ’s Manual for more information .
EF
•When you return the Seatback to its original position, ensure it locks (clicks) into place
•It may be necessar y to slide the front Seat for ward and adjust the front Seatbacks to fully lower rear seats
•Lower Rear Headrests to the lowest position
QUICK TIPS
Page 59 of 74
57†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
SEATING
S E AT I N GRefer to section 3 in the Owner ’s Manual for more information .

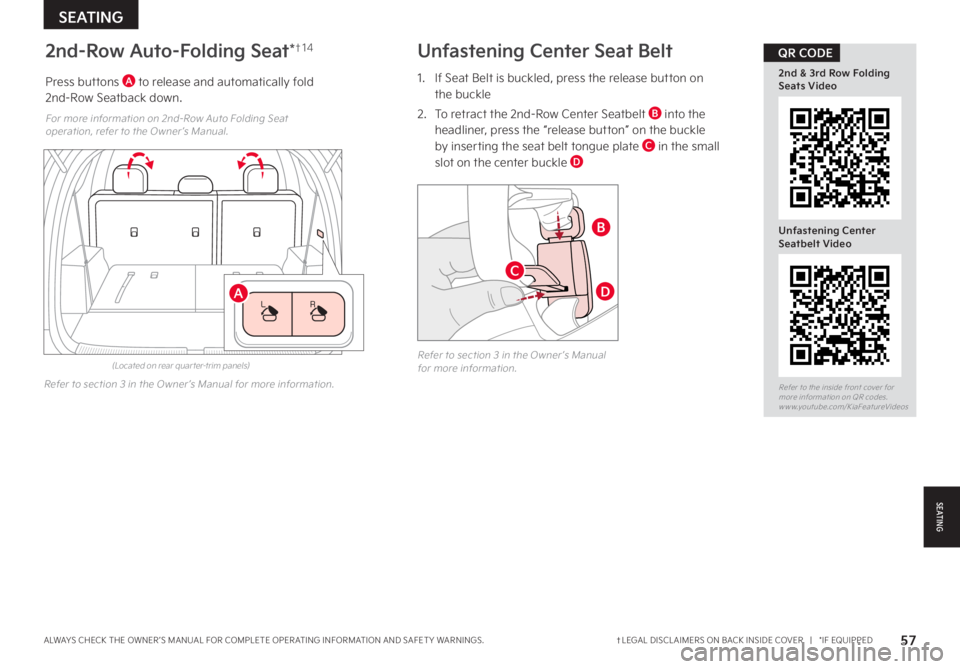

(Located on rear quar ter-trim panels)
Press buttons A to release and automatically fold 2nd-Row Seatback down .
2nd-Row Auto-Folding Seat*†1 4
For more information on 2nd-Row Auto Folding Seat operation, refer to the Owner ’s Manual .
Refer to section 3 in the Owner ’s Manual for more information . Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
2nd & 3rd Row Folding Seats Video
Unfastening Center Seatbelt Video
QR CODE
Refer to section 3 in the Owner ’s Manual for more information .
Unfastening Center Seat Belt
1 . If Seat Belt is buckled, press the release button on the buckle
2 . To retract the 2nd-Row Center Seatbelt B into the headliner, press the “release button” on the buckle by inserting the seat belt tongue plate C in the small slot on the center buckle D
B
C
D
LR
LR "
Page 60 of 74
58†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
SEATING
S E AT I N G
One-Touch Slide & Fold 2nd-Row Seats

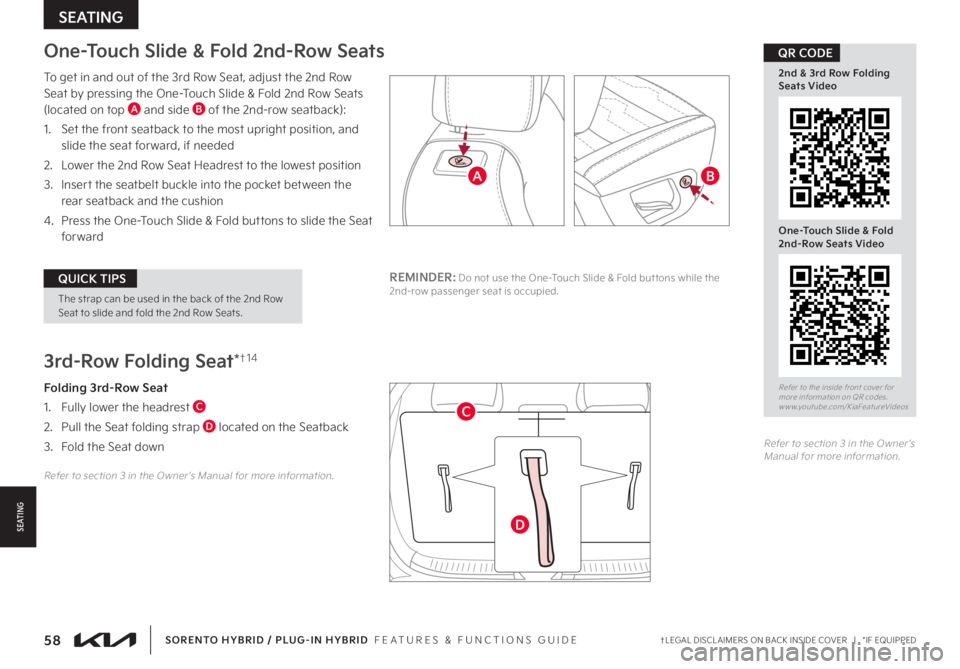

To get in and out of the 3rd Row Seat, adjust the 2nd Row Seat by pressing the One-Touch Slide & Fold 2nd Row Seats (located on top A and side B of the 2nd-row seatback):
1 . Set the front seatback to the most upright position, and slide the seat forward, if needed
2 . Lower the 2nd Row Seat Headrest to the lowest position
3 . Insert the seatbelt buckle into the pocket between the rear seatback and the cushion
4 . Press the One-Touch Slide & Fold buttons to slide the Seat forward
Refer to section 3 in the Owner ’s Manual for more information .
REMINDER: Do not use the One-Touch Slide & Fold but tons while the 2nd-row passenger seat is occupied .
3rd-Row Folding Seat*†1 4
Folding 3rd-Row Seat
1 . Fully lower the headrest C
2 . Pull the Seat folding strap D located on the Seatback
3 . Fold the Seat down
Refer to section 3 in the Owner ’s Manual for more information .
AB
C
D
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
2nd & 3rd Row Folding Seats Video
One-Touch Slide & Fold 2nd-Row Seats Video
QR CODE
The strap can be used in the back of the 2nd Row Seat to slide and fold the 2nd Row Seats .
QUICK TIPS
