KIA Soul 2013 1.G Owner's Guide
Manufacturer: KIA, Model Year: 2013, Model line: Soul, Model: KIA Soul 2013 1.GPages: 393, PDF Size: 8.76 MB
Page 21 of 393
Your vehicle at a glance
22

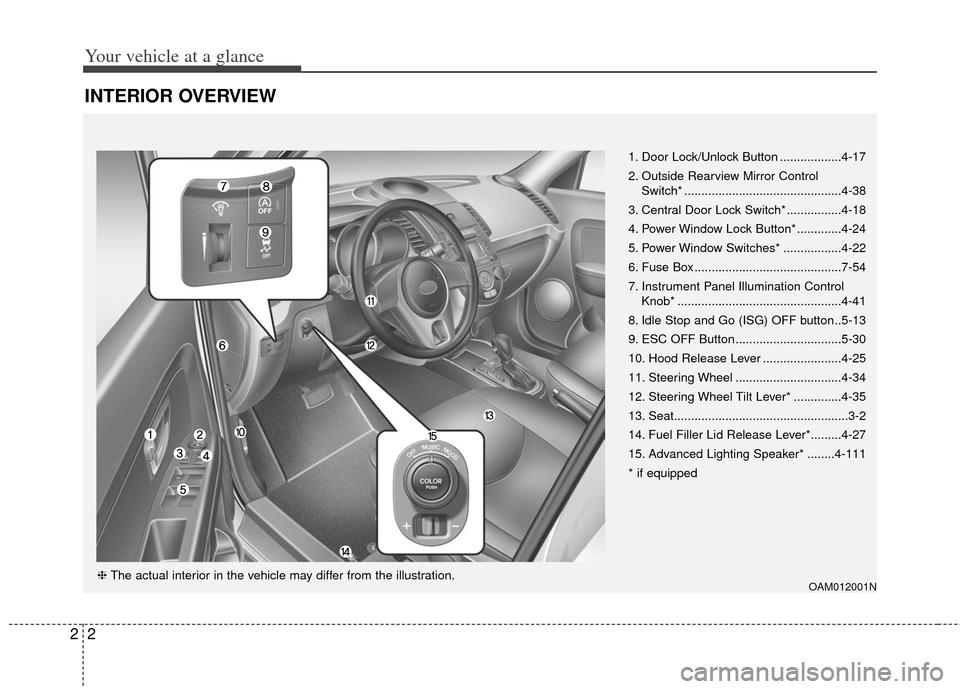

INTERIOR OVERVIEW
1. Door Lock/Unlock Button ..................4-17
2. Outside Rearview Mirror Control Switch* ..............................................4-38
3. Central Door Lock Switch* ................4-18
4. Power Window Lock Button* .............4-24
5. Power Window Switches* .................4-22
6. Fuse Box ...........................................7-54
7. Instrument Panel Illumination Control Knob* ................................................4-41
8. Idle Stop and Go (ISG) OFF button..5-13
9. ESC OFF Button ...............................5-30
10. Hood Release Lever .......................4-25
11. Steering Wheel ...............................4-34
12. Steering Wheel Tilt Lever* ..............4-35
13. Seat...................................................3-2
14. Fuel Filler Lid Release Lever*.........4-27
15. Advanced Lighting Speaker* ........4-111
* if equipped
OAM012001N❈ The actual interior in the vehicle may differ from the illustration.
Page 22 of 393
23
Your vehicle at a glance

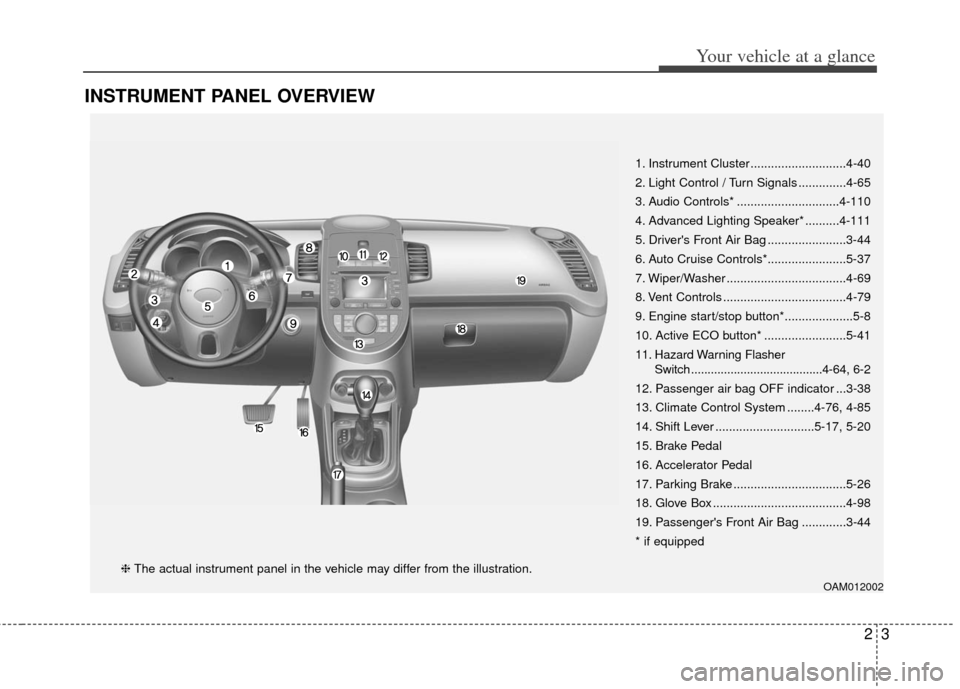

INSTRUMENT PANEL OVERVIEW
1. Instrument Cluster ............................4-40
2. Light Control / Turn Signals ..............4-65
3. Audio Controls* ..............................4-110
4. Advanced Lighting Speaker* ..........4-111
5. Driver's Front Air Bag .......................3-44
6. Auto Cruise Controls*.......................5-37
7. Wiper/Washer ...................................4-69
8. Vent Controls ....................................4-79
9. Engine start/stop button*....................5-8
10. Active ECO button* ........................5-41
11. Hazard Warning Flasher Switch ........................................4-64, 6-2
12. Passenger air bag OFF indicator ...3-38
13. Climate Control System ........4-76, 4-85
14. Shift Lever .............................5-17, 5-20
15. Brake Pedal
16. Accelerator Pedal
17. Parking Brake .................................5-26
18. Glove Box .......................................4-98
19. Passenger's Front Air Bag .............3-44
* if equipped
OAM012002
❈ The actual instrument panel in the vehicle may differ from the illustration.
Page 23 of 393
Your vehicle at a glance
42

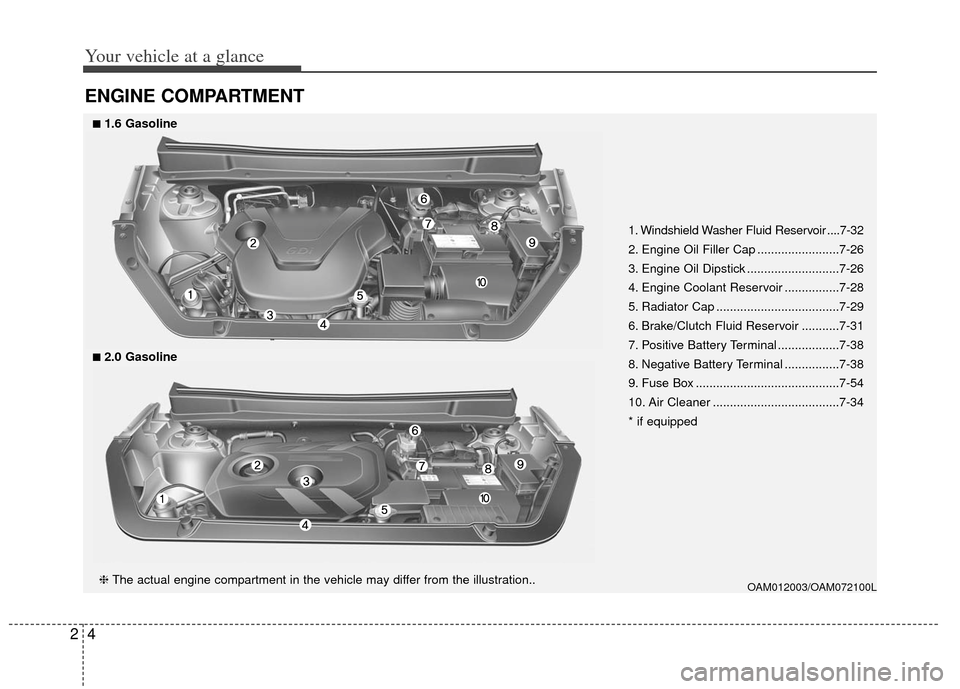

ENGINE COMPARTMENT
OAM012003/OAM072100L
1. Windshield Washer Fluid Reservoir ....7-32
2. Engine Oil Filler Cap ........................7-26
3. Engine Oil Dipstick ...........................7-26
4. Engine Coolant Reservoir ................7-28
5. Radiator Cap ....................................7-29
6. Brake/Clutch Fluid Reservoir ...........7-31
7. Positive Battery Terminal ..................7-38
8. Negative Battery Terminal ................7-38
9. Fuse Box ..........................................7-54
10. Air Cleaner .....................................7-34
* if equipped
❈The actual engine compartment in the vehicle may differ from the illustration..
■2.0 Gasoline
■1.6 Gasoline
Page 24 of 393
3
Seats / 3-2
Seat belts / 3-14
Child restraint system / 3-24
Air bag - advanced supplemental restraint system / 3-32
Safety features of your vehicle
Page 25 of 393
Safety features of your vehicle
23

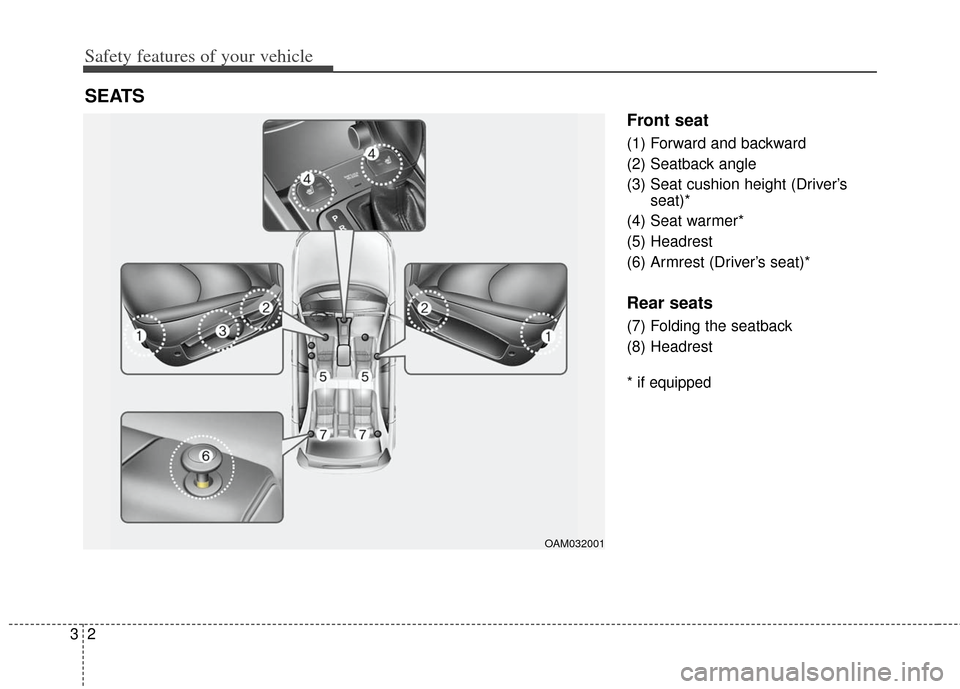

SEATS
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’sseat)*
(4) Seat warmer*
(5) Headrest
(6) Armrest (Driver’s seat)*
Rear seats
(7) Folding the seatback
(8) Headrest
* if equipped
OAM032001

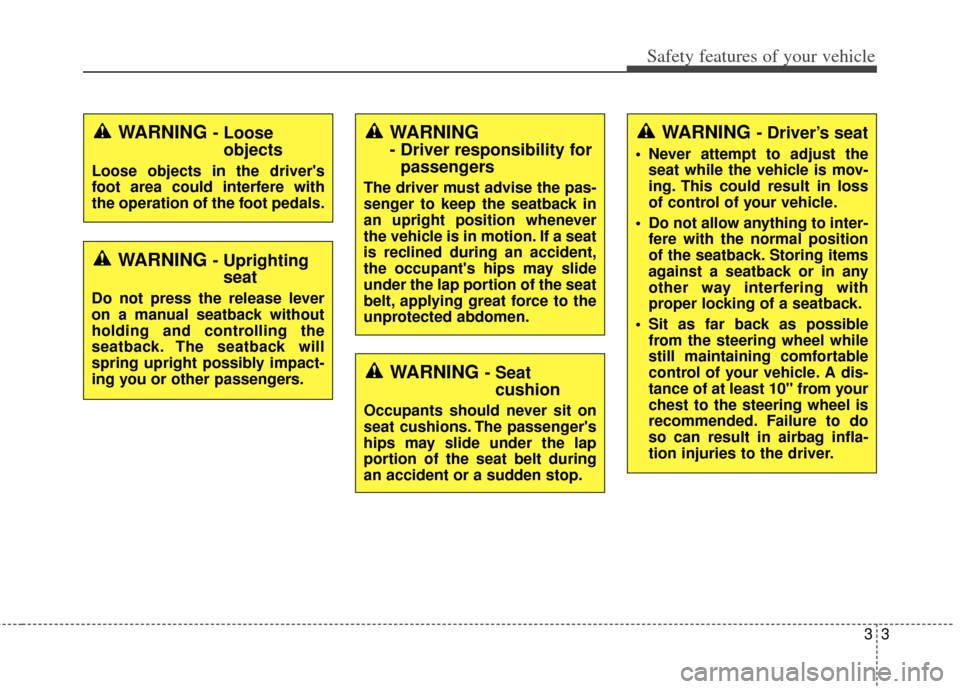

Page 26 of 393
33
Safety features of your vehicle
WARNING - Looseobjects
Loose objects in the driver's
foot area could interfere with
the operation of the foot pedals.
WARNING - Uprightingseat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING - Seat cushion
Occupants should never sit on
seat cushions. The passenger's
hips may slide under the lap
portion of the seat belt during
an accident or a sudden stop.
WARNING - Driver’s seat
Never attempt to adjust the
seat while the vehicle is mov-
ing. This could result in loss
of control of your vehicle.
Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback.
Sit as far back as possible from the steering wheel while
still maintaining comfortable
control of your vehicle. A dis-
tance of at least 10" from your
chest to the steering wheel is
recommended. Failure to do
so can result in airbag infla-
tion injuries to the driver.
WARNING
- Driver responsibility forpassengers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the occupant's hips may slide
under the lap portion of the seat
belt, applying great force to the
unprotected abdomen.
Page 27 of 393
Safety features of your vehicle
43

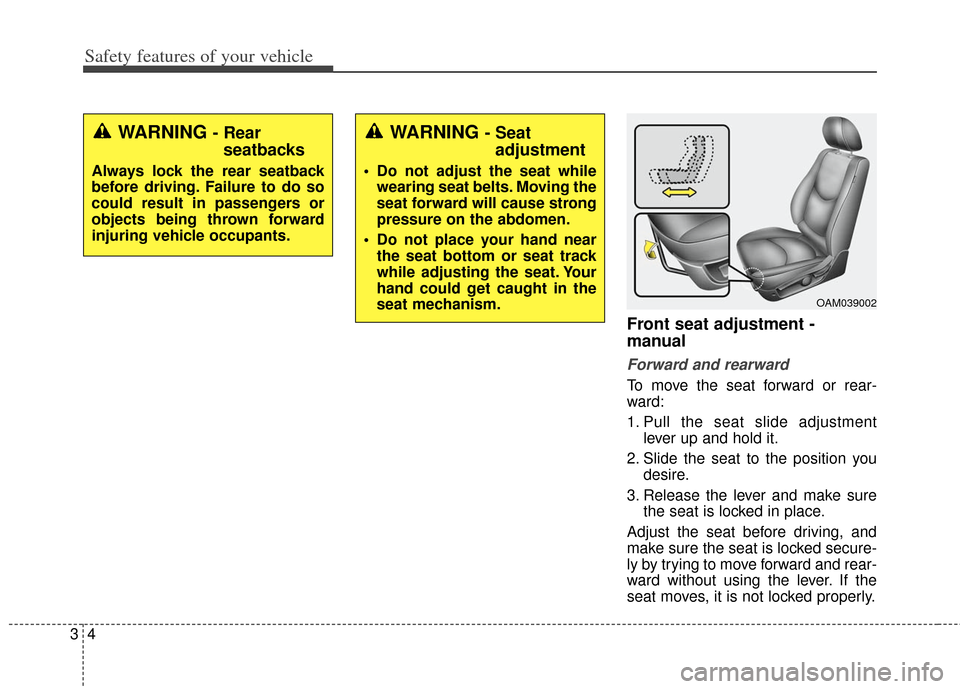

Front seat adjustment -
manual
Forward and rearward
To move the seat forward or rear-
ward:
1. Pull the seat slide adjustmentlever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and rear-
ward without using the lever. If the
seat moves, it is not locked properly.
OAM039002
WARNING - Rear seatbacks
Always lock the rear seatback
before driving. Failure to do so
could result in passengers or
objects being thrown forward
injuring vehicle occupants.
WARNING - Seat adjustment
Do not adjust the seat while
wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
Page 28 of 393
35
Safety features of your vehicle

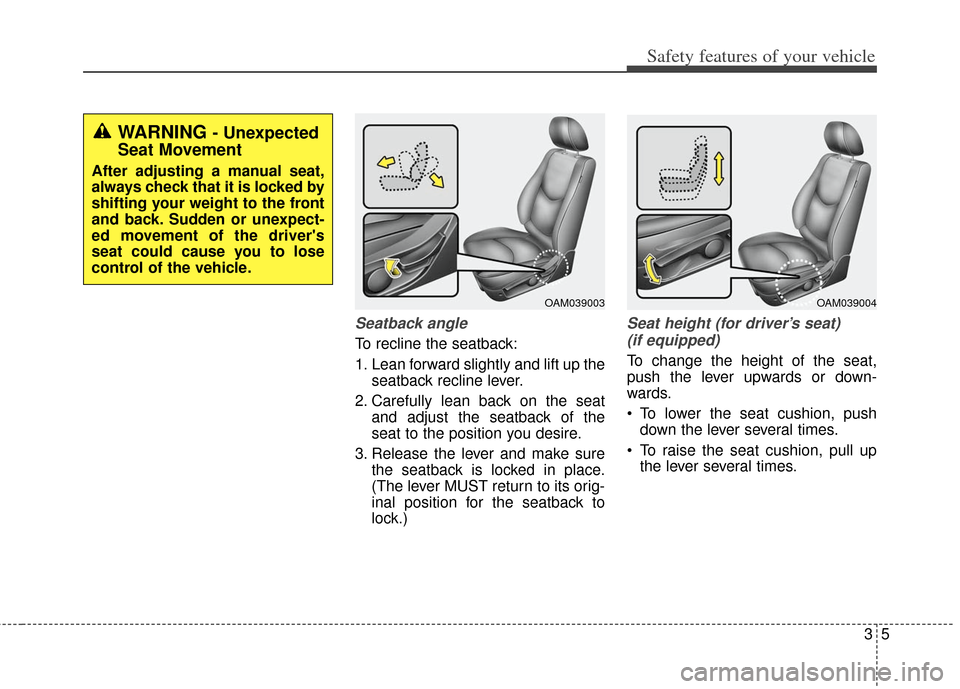

Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up theseatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
Seat height (for driver’s seat)
(if equipped)
To change the height of the seat,
push the lever upwards or down-
wards.
To lower the seat cushion, push down the lever several times.
To raise the seat cushion, pull up the lever several times.
OAM039004OAM039003
WARNING - Unexpected
Seat Movement
After adjusting a manual seat,
always check that it is locked by
shifting your weight to the front
and back. Sudden or unexpect-
ed movement of the driver's
seat could cause you to lose
control of the vehicle.
Page 29 of 393
Safety features of your vehicle
63

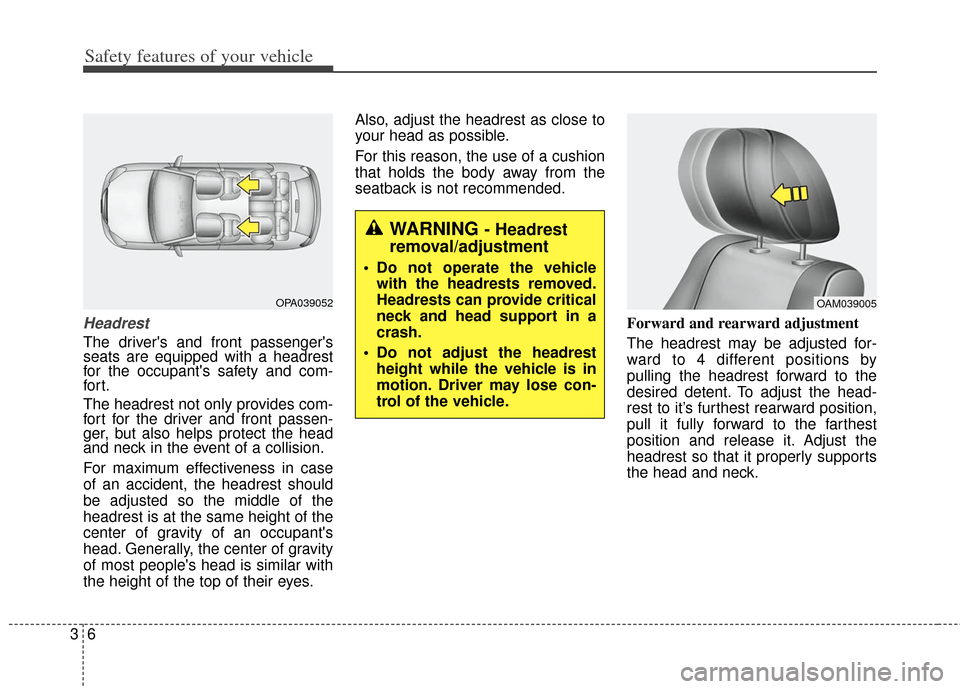

Headrest
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and com-
for t.
The headrest not only provides com-
fort for the driver and front passen-
ger, but also helps protect the head
and neck in the event of a collision.
For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.Also, adjust the headrest as close to
your head as possible.
For this reason, the use of a cushion
that holds the body away from the
seatback is not recommended.
Forward and rearward adjustment
The headrest may be adjusted for-
ward to 4 different positions by
pulling the headrest forward to the
desired detent. To adjust the head-
rest to it’s furthest rearward position,
pull it fully forward to the farthest
position and release it. Adjust the
headrest so that it properly supports
the head and neck.
OAM039005OPA039052
WARNING - Headrest
removal/adjustment
Do not operate the vehicle
with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
Page 30 of 393
37
Safety features of your vehicle

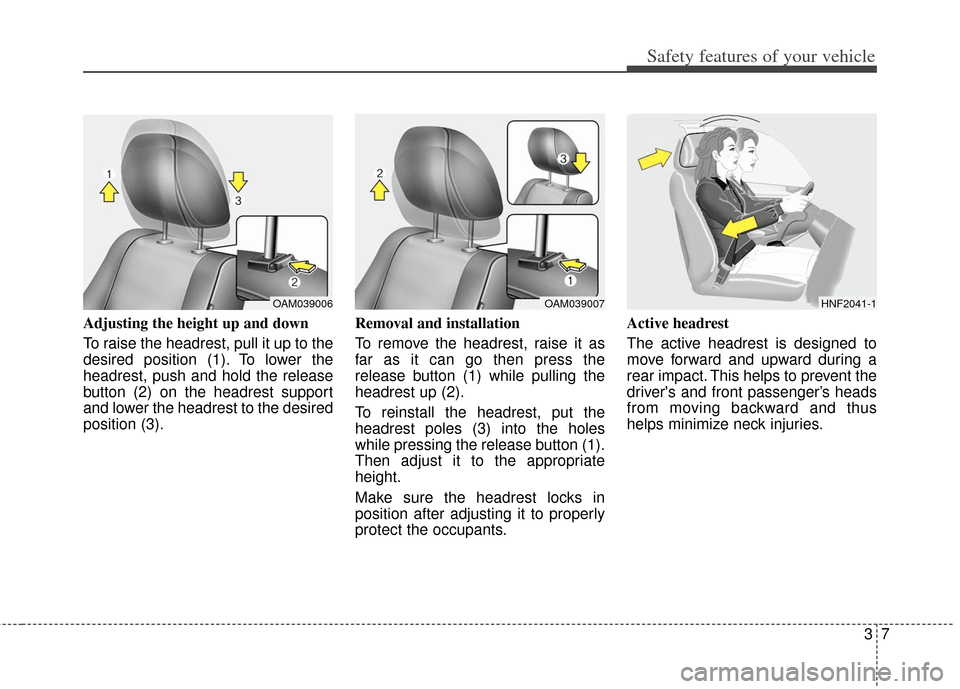

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).Removal and installation
To remove the headrest, raise it as
far as it can go then press the
release button (1) while pulling the
headrest up (2).
To reinstall the headrest, put the
headrest poles (3) into the holes
while pressing the release button (1).
Then adjust it to the appropriate
height.
Make sure the headrest locks in
position after adjusting it to properly
protect the occupants.Active headrest
The active headrest is designed to
move forward and upward during a
rear impact. This helps to prevent the
driver's and front passenger’s heads
from moving backward and thus
helps minimize neck injuries.
HNF2041-1OAM039007OAM039006
