Page 3 of 42
Air Conditioning / Climate Control . . . . .
21
Active ECO System* . . . . . . . . . . . . . .
06
Audio System – Standard* . . . . . . . . . .
16
Audio System - UVO System* . . . . . . . . .
18
Audio System - Navigation System* . . . . .
19
Aux/USB/iPod® Port & Power Outlets . . . .
22
Bluetooth® Wireless Technology* . . . . . .
14
Cruise Control* . . . . . . . . . . . . . . . . .
13
Digital Clock* . . . . . . . . . . . . . . . . . .
20
Folding Rear Seatback. . . . . . . . . . . . .
28
ISG (Idle, Stop, Go) System* . . . . . . . . .
07
Manual Gear Shift* . . . . . . . . . . . . . . .
25
PASSENGER AIRBAG OFF Indicator . . . .
35
Tire Mobility Kit . . . . . . . . . . . . . . . . .
33
Tire Pressure Monitoring System (TPMS) . .
03
Windshield/Rear Wipers & Washers* . . . .
11
SOUL
FEATURES & FUNCTIONS GUIDE
ESSENTIAL FEATURES
VIDEOS & QR CODES
. . . . . . . . . . .
02
INSTRUMENT CLUSTER
Instrument Cluster Overview
. . . . . . . .
03
Tire Pressure Monitoring System (TPMS)
. .
03
Indicators & Warning Lights
. . . . . . . . .
04
Trip Computer / Tripmeter*
. . . . . . . . .
05
LCD Display Controls and Modes*
. . . . .
05
Active ECO System*
. . . . . . . . . . . . .
06
Fuel Efficiency
. . . . . . . . . . . . . . . . .
06
DRIVER’S PANEL
Instrument Panel Dimmer*
. . . . . . . . . .
07
Electronic Stability Control (ESC)
. . . . . .
07
ISG (Idle, Stop, Go) System*
. . . . . . . . .
07
Hill-Start Assist Control
. . . . . . . . . . .
07
Power Windows, Window Lock
& Central Door Lock
. . . . . . . . . . . . .
08
Automatic Door Lock/Unlock
. . . . . . . .
08
Power/Heated Outside Mirrors
. . . . . . .
08
Power Folding Mirrors*
. . . . . . . . . . . .
08
Hood Release Lever and Latch
. . . . . . .
09
Fuel Door Release Lever
. . . . . . . . . . .
09
Engine Start/Stop Button*
. . . . . . . . . .
09
STEERING WHEEL CONTROLS
Headlights & High Beams
. . . . . . . . . .
10
Turn Signals & Fog Lights*
. . . . . . . . . .
10
Windshield Wipers & Washers
. . . . . . . .
11
Rear Wiper & Washer*
. . . . . . . . . . . .
11
Tilt/Telescopic Steering Wheel
. . . . . . .
12
Heated Steering Wheel Button*
. . . . . . .
12
FlexSteer™ Steering Wheel Mode
. . . . . .
12
Audio Controls
. . . . . . . . . . . . . . . .
13
Cruise Control*
. . . . . . . . . . . . . . . .
13
Bluetooth® Wireless Technology
. . . . . .
14
AUDIO SYSTEM
Standard Audio System*
. . . . . . . . . . .
16
UVO System*
. . . . . . . . . . . . . . . . .
18
Navigation System*
. . . . . . . . . . . . . . . . . . . .
19
Advanced (Mood) Lighting Speaker*
. . . .
20
CENTER PANEL
Digital Clock*
. . . . . . . . . . . . . . . . .
20
Aux/USB/iPod® Port*
. . . . . . . . . . . . .
20
Power Outlets*
. . . . . . . . . . . . . . . .
20
Automatic Climate Control*
. . . . . . . . .
21
Manual Climate Control*
. . . . . . . . . . .
23
Automatic Gear Shift
with Sportmatic® Shifting*
. . . . . . . . . .
24
Manual Gear Shift*
. . . . . . . . . . . . . .
25
SEATING
Seat Warmers / Ventilated Seats*
. . . . . .
26
6-Way Manual Adjustable Driver’s Seat
. . .
26
Power Adjustable Driver’s Seat*
. . . . . . .
27
Front Seat Headrest Adjustment
. . . . . .
27
Fold & Unfold Rear Seatback
. . . . . . . .
28
OTHER KEY FEATURES
Smart Key*
. . . . . . . . . . . . . . . . . . .
29
Remote Keyless Entry* (Folding Key)
. . . .
30
Double-Turn Lock/Unlock All*
. . . . . . . .
30
Fuel Cap / Malfunction Indicator
. . . . . .
30
Map/Room Lamps
. . . . . . . . . . . . . .
31
Sunvisor
. . . . . . . . . . . . . . . . . . . .
31
Panoramic Sunroof Operation*
. . . . . . .
32
Rear-Camera Display*
. . . . . . . . . . . .
32
Tire Mobility Kit
. . . . . . . . . . . . . . . .
33
Rear Hatch Release Button
. . . . . . . . . .
34
Child Safety Locks
. . . . . . . . . . . . . .
34
SAFETY
Occupant Detection System (ODS) /
PASSENGER AIRBAG OFF Indicator
. . . .
35
Safety Belts
. . . . . . . . . . . . . . . . . .
36
Safety Belt Retractor Inertial Locks
. . . . .
36
LEGAL DISCLAIMERS
(See Back Inside Cover Page)
MAINTENANCE
(See Back Cover)
*IF EQUIPPED
Driving while drowsy or distracted is dangerous and
should be avoided. Drivers should remain attentive
to driving and exercise caution when using vehicle
systems while driving.
Page 7 of 42
5
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED Trip Computer / Tripmeter*The Trip Computer is a driver
information system that
displays information related to
driving — such as Odometer,
Tripmeter, Range, Average
Fuel Consumption and Driving
Time — on the display when
the ignition switch is in the ON
position.
To cycle through the LCD Display
modes, press the Mode/Select
button
A.
When in the Trip Computer
mode , press the Move/Reset
button B to cycle through the
screens. When displaying Trip A
or Trip B screens, press and hold
the Move/Reset button
B to
reset the Tripmeter to zero.
REMINDER: Appearance of Tripmeter
display may differ as equipped.
REMINDER: All stored driving
information (except Odometer and
Range) is reset if the battery is
disconnected.
LCD Display Controls and Modes* (Type B cluster only)To cycle through the LCD modes, press the Mode/Select
button
A
A
B
(LCD Display Control buttons located on Steering Wheel)Trip Computer Mode: Displays driving information for
tripmeter, fuel economy, etc.
Tu r n - by -Tu r n M o d e* : Displays the state of the
Navigation system
Master Warning / Service Modes: Informs on upcoming
service intervals , and warning messages related to
TPMS and others
User Settings Mode: Change settings of the doors,
lamps and other featuresA/V Mode*: Displays the state of the A/V System
.
Range
.
Average MPG
.
Instant MPG.
Trip A
.
Average MPH
.
Elapsed Time (E/T ).
Trip B
.
Average MPH
.
Elapsed Time (E/T )Trip Computer First Screen:
RANGE
256
mi.30
20 10
Avg.0
27.4
MPG
(Buttons located on
Steering Wheel)(Type B cluster)
A
INSTRUMENT CLUSTER
Page 12 of 42
SOUL
FEATURES & FUNCTIONS GUIDE
10
*IF EQUIPPED
Headlights & High BeamsREMINDER: Headlights must be ON for Fog Light operation.Turn Signals & Fog Lights*AUTO Light* function — When the light switch is in the AUTO light
position, the tail lights and headlights will turn ON/OFF automatically
depending on the amount of light outside the vehicle.
One-Touch Lane Change Signal is activated by moving
the Turn Signal Lever slightly for less than 1 second and
then releasing. The lane change signal will blink 3 times.
To change how many times the Lane Change Signal
blinks (3/5/7), go to User Settings Mode in the LCD
Display (Type B cluster).
For more information on the User Settings Mode, please
refer to your Owner’s Manual.
Move lever Up/Down for Right/Left Turn Signal. Push lever to turn High Beams ON. Pull lever to flash
Headlights/High Beams.
Rotate lever to change the Headlight function:
AUTO*
Automatic Headlights positionHeadlight positionParking light position
OFF
OFF position
One-Touch
Lane
Change
Signal
Rotate lever ring to turn Fog Lights ON/OFF.
STEERING WHEEL CONTROLS
Page 13 of 42
11
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED

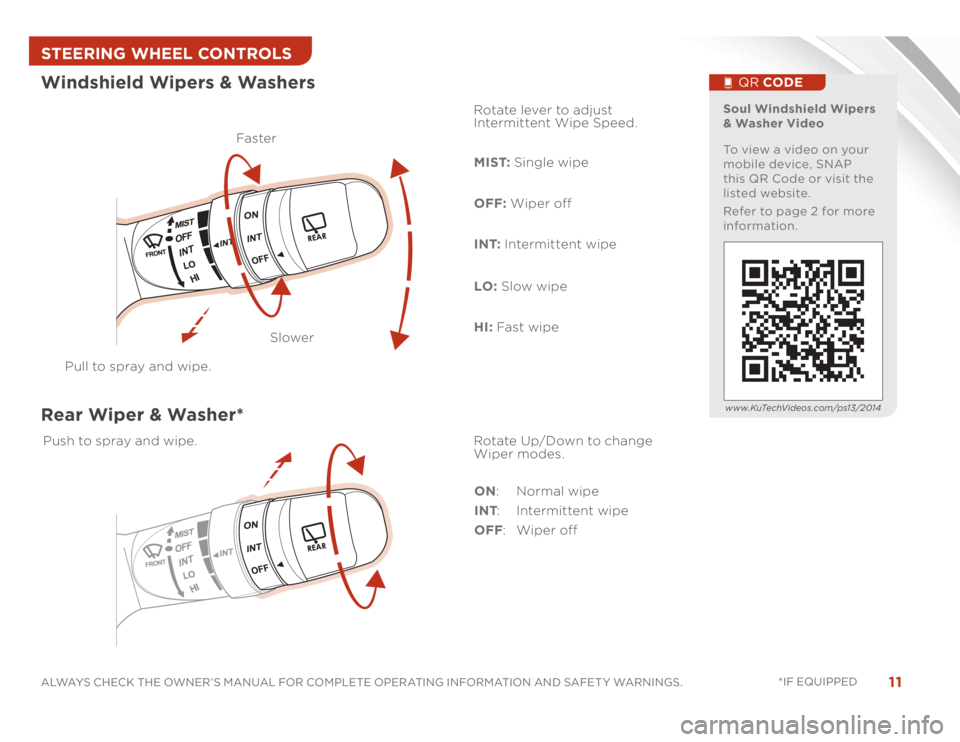

Pull to spray and wipe.Faste rRotate lever to adjust
Intermittent Wipe Speed.
MIST: Single wipe
INT: Intermittent wipe
LO: Slow wipe
HI: Fast wipe OFF: Wiper off
Windshield Wipers & Washers
Rear Wiper & Washer*Push to spray and wipe. Rotate Up/Down to change
Wiper modes.
ON: Normal wipe
INT: Intermittent wipe
OFF: Wiper off
Soul Windshield Wipers
& Washer Video
To view a video on your
mobile device, SNAP
this QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/ps13/2014
Slower
STEERING WHEEL CONTROLS
Page 14 of 42
SOUL
FEATURES & FUNCTIONS GUIDE
12
*IF EQUIPPED
To adjust the Steering
Wheel, push down the
lock-release lever
B and
adjust to desired angle
C
and distance
D.
When finished, pull up
the lock-release lever
B
to lock Steering Wheel
in place.
Tilt/Telescopic Steering Wheel
Heated Steering Wheel Button*Press button
A to turn
ON/OFF steering wheel
heater, while the Engine
Start/Stop Button is in
the ON position. Steering
wheel heater will turn
off automatically in 30
minutes, or when button
is pressed again to
deactivate.
If ignition is turned OFF, then ON again, within 30 minutes
of steering wheel heater being turned on, system will
automatically be set ON again.
QUICK TIPS
AOFF
A
FlexSteer™ Steering
Wheel ModeSelect the desired steering
mode by toggling through the
steering modes.
OPress FlexSteer™ Steering
Wheel Mode button
E to
display the steering mode on
the LCD display*.
OThen press the button E
again within 4 seconds to
switch modes.
6 W H H U L Q J 0 R G H 6 W H H U L Q J 0 R G H 6 W H H U L Q J 0 R G H 1 2 5 0 $ /
6 3 2 5 7
& 2 0 ) 2 5 7
MODE
MODE
E
REMINDER: Your vehicle’s steering wheel
buttons may differ from those in the
illustrations. See your Owner’s Manual for
more details.
FlexSteer™ Steering
Wheel Mode Video
To view a video on your
mobile device, SNAP
this QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODEwww.KuTechVideos.com/ps13/2014
D
BC
STEERING WHEEL CONTROLS
Page 15 of 42
13
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
SET
CRUISE
RES
CANCEL
MODE
VOL
VOL
Cruise Control* Audio ControlsOCruise Control is designed to function above 25 mph.
OThe Cruise Control system will not activate until the brake
pedal has been depressed at least once after ignition ON
or engine starting
QUICK TIPS
Pressing the Audio Mode button for more than 1 second will
turn Audio Mode ON/OFF.
QUICK TIPS
C
A
B
E
G
D
F
A Audio Mode: Press to cycle through FM/AM/SiriusXM®
Media (USB, iPod®, Aux, BT Audio, My Music)B
Seek/Preset button
Radio Mode: Press to advance through Preset Stations.
Press and hold to AUTO SEEK
USB/iPod® Mode: Press to move track up/down. Press &
hold to FF/REWC Vo l u m e b u t to n: Press up/down to raise/lower volume
D Cruise Control ON/OFF button: Press to turn the
Cruise Control ON/OFFE Resume Cruising Speed button: Resume or increase
Cruising SpeedF Set Cruising Speed button: Press to set or decrease
Cruising SpeedG Cruise Control Cancel button: To cancel Cruise
Control setting, do one of the following:
O O . ! / /O 0 $ !O . ' !O , ! (
O O . ! / /O 0 $ !O O 1 0 0 + *O
G
For further audio system operations, refer to pages 14-19. REMINDER: Your vehicle’s steering wheel buttons may differ from those
in the illustrations. See your Owner’s Manual for more details.
REMINDER: Driving while distracted is dangerous and should be
avoided. Drivers should remain attentive to driving and always exercise
caution when using the steering-wheel-mounted controls while driving.STEERING WHEEL CONTROLS
Page 16 of 42
SOUL
FEATURES & FUNCTIONS GUIDE
14
*IF EQUIPPED
SET
CRUISE
RES
CANCEL
MODE
VOL
VOL
MODE
A
Vo l u m e b u t to n : Press up/down to raise/lower
speaker volumeB
Ta l k b u t t o n : Press to activate voice recognition / bring
up menus / place calls with minimal voice command
prompts from the systemC
Receive/Place Call button: Press to receive/transfer
calls. Press to place a call using vocal command prompts
from the system, or to answer an incoming callD
End Call button: Press to end a call or cancel
a function
O
O
Phonebook transfer upload time
varies by phone model and with
number of phonebook entries
OBecause of differences in phone
quality, service providers and
Bluetooth
® Wireless Technology
chip programming, functionality
may differ from one phone to
another
Bluetooth
® Wireless Technology
B
C
D
For more information, refer to the Digital Navigation Systems User’s Guide
or the UVO System User’s Manual.
For Bluetooth
® Wireless Technology FAQs, go to www.kia.com,
Owners section.
Refer to your Owner’s Manual for more specific Bluetooth
® Wireless
Technology phone pairing and operation instructions.
A
When using the voice command feature, wait for the system
BEEP before speaking the command.
REMINDER: Your vehicle’s steering wheel buttons may differ from those
in the illustrations. See your Owner’s Manual for more details.
REMINDER: Microphone is located in the overhead console.
QUICK TIPS
QUICK TIPS
REMINDER: Driving while distracted is dangerous and should be avoided.
Drivers should remain attentive to driving and always exercise caution
when using the steering-wheel-mounted controls while driving.
STEERING WHEEL CONTROLS
Page 17 of 42
15
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
Voice Recognition and Phone
Contact Tips
The Kia Voice Recognition System
may have difficulty understanding
some accents or uncommon names.
When using Voice Recognition to
place a call, speak in a moderate
tone, with clear pronunciation.
Help your Bluetooth® Wireless
Technology Voice Recognition
performance by making a few
simple changes to your phone
contacts:
OUse full names vs. short or single
syllable names (“John Smith”
vs. “Dad”, “Smith Residence” vs.
“Home”)
OAvoid using special characters or
hyphens (@, &, #, /, -, *, +, etc.)
OAvoid using acronyms (“In Case
Emergency” vs. “ICE”)
OSpell words completely, no abbreviations (“Doctor
Goodman” vs. “Dr. Goodman”) Contacts Sync Tips
OIf Contact Sync is set to ON, contacts store in your phone will
download each time your phone is connected. There may be a delay
before the system is available to place a call
OIf Contact Sync is set to OFF, your phone contacts will download only
at the initial pairing. This allows you to make calls without waiting for
your phone contact list to download
QUICK TIPS
Bluetooth
® Wireless Technology
Pairing a Phone
For instructions on how to pair a phone, refer to the audio
system’s user’s guide or your vehicle’s Quick Start Guide.
During the pairing process, be sure to accept the
connection requests on the phone for phonebook
download and to allow acceptance of all future
Bluetooth
® connection requests.
QUICK TIPS
Voice Recognition
Tips Video
To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/ps13/2014
How to Place a Call
When using the voice command feature, wait for the
system BEEP before speaking the command.
There are two options for placing a call:
Standard Audio System
OOption 1: Press the Receive/Place Call button
C
(system will prompt you through call process)
OOption 2: Press the Talk button
B (system will BEEP
to indicate it is ready for call placement). Then say
the command “Call {name}” or “Dial {number}”
UVO System
OOption 1: Press the Receive/Place Call button
C
(displays the phone screen with number keypad)
OOption 2: Press the Talk button
B. Then say the
command “Call {name}” or “Dial {number}”
Navigation System
OOption 1: Press the Receive/Place Call button
C
(displays the phone screen with number keypad)
OOption 2: Press the Talk button
B. Then say the
command “Call {name}” or “Dial {number}”
STEERING WHEEL CONTROLS
Page 22 of 42
SOUL
FEATURES & FUNCTIONS GUIDE
20
*IF EQUIPPED
The Advanced (Mood) Lighting Speaker that lights
around the front speaker is controlled by turning the
knob and pressing the buttons (located to the left of the
steering wheel).
MOOD : Light intensity and color
changes automatically at regular
intervals.
MUSIC: Speaker light pulses and
changes intensity according to the
audio sound (audio must be on for
this feature to work).
OFF: Speaker light turns OFF.
+/– : When light is ON, press illumination buttons to adjust
light intensity.
12V
120W
12V
180W
AUX USB
Aux/USB/iPod® Port* &
Power Outlets*
Digital Clock*
The power outlets are inactive
when ignition is in the OFF
position
QUICK TIPS
O
ODoor must be closed for this feature to work.
OProlonged use of lighting speaker in ACC mode may drain
the vehicle’s battery.
QUICK TIPS
Standard Audio System Clock Setup:
1. Press the SETUP button
2. Rotate knob to select Clock mode, then press to enter
3. Rotate knob to adjust Hour, then press to enter
4. Rotate knob to adjust Minute, then press to enterAdvanced (Mood) Lighting Speaker*
OFF MOODMUSIC
REMINDER: For the Tire Mobility Kit,
only use the 12V/15A/180W Power
Outlet, located on the right side of the
outlet/aux. port area.
www.KuTechVideos.com/ps13/2014
Kia USB Port Video
To view a video on your
mobile device, SNAP this
QR code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/ps13/2014
UVO System Clock Setup:
Press the CLOCK button to display the Clock setting screen.
Then use the on-screen buttons to navigate through setup.
Navigation System Clock Setup:
Press the SETUP key, then the CLOCK button to display the
Clock setting screen. Then use the on-screen buttons to
navigate through setup.
AUDIO SYSTEM / CENTER PANEL
Page 39 of 42
LEGAL DISCLAIMERSUVO eServices: Warning - Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibility
is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe
operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.
TPMS: Even with the Tire-Pressure Monitoring System (TPMS), always check your tire pressure on a regular basis.
The Rear-Camera Display is not a substitute for proper and safe backing-up procedures. The Rear-Camera Display may not display every object behind the vehicle. Always drive safely
and use caution when backing up.
The Blind Spot Detection System is not a substitute for proper and safe lane changing procedures. Always drive safely and use caution when changing lanes. The Blind Spot Detection
System may not detect every object alongside the vehicle.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls
while driving.
Seatbelts: For maximum protection, always wear your seatbelt.
Navigation: GPS maps and directions are for information purposes only, and Kia does not make any warranties about the accuracy of that information. Kia is not responsible for loss or
delay resulting from the use of the navigation system. Caution: Do not enter information into the navigation system while the vehicle is moving. Failure to pay attention to travel condi-
tions and vehicle operation while the vehicle is in motion could result in loss of vehicle control. Operate the system only when it is safe to do so.
At launch, the Apple iPhone® will be the only UVO eServices compatible device. iPhone® is a registered trademark of Apple Inc. Apple iOS 6 compatibility expected early 2013. Additional
compatible devices expected late 2013.
iPod® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are
those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.
SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your
service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer
Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiv-
ing all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or
on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual fea-
tures and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link
Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes.
SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is
available throughout our satellite service area and in AK and HI. © 2013 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.
Microsoft
® is a registered trademark of Microsoft Corporation in the United States and/or other countries.
HD Radio™ and the HD Radio logo are proprietary trademarks of iBiquity Digital Corporation.
HomeLink® is a registered trademark of Johnson Controls, Inc.
