KIA SOUL 2022 Features and Functions Guide
Manufacturer: KIA, Model Year: 2022, Model line: SOUL, Model: KIA SOUL 2022Pages: 58, PDF Size: 3.84 MB
Page 51 of 58
SAFETY FEATURES
49†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Seat Belts†2 , 1 4
To properly fasten your seat belts:
1 .
Insert the belt tongue plate A into the buckle B until it clicks
2 .
Position the lap portion of the belt across your lap as LOW ON THE HIPS as possible D . Adjust the belt to a SNUG FIT by pulling up on the shoulder portion C
Seat Belt Retractor Locks
Retractor locks allow lap/shoulder seat belts to remain unlocked during normal vehicle operation for freedom of movement and increased comfort .
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat belt retractors will automatically lock the belts to reduce the risk of injury .
REMINDER: For maximum protection, always wear your seat belt .
Refer to section 3 in the Owner ’s Manual for more information .
The Seat Belt warning chime operates for driver ’s seat only, unless the passenger seat is also occupied (or heavy cargo also placed in passenger seat)
QUICK TIP
B
C
D
A
Page 52 of 58
‡ If equipped .A . See the Owner ’s Manual for complete maintenance schedule . These are approximate estimated inter vals . Refer to vehicle mileage for maintenance item schedule . B . And, if necessar y, adjust, correct, clean or replace .C . If TOP TIER detergent gasoline is not available, one bot tle of fuel additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .D . Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel qualit y being used . However, periodic inspection is recommended . If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficult y star ting, etc ., replace the fuel filter immediately and consult an authorized Kia dealer for ser vice .E . Inspect for excessive tappet noise and/or engine vibration and adjust if necessar y .F . The drive belt should be replaced when cracks occur or tension is reduced excessively .
50SOUL FEATURES & FUNCTIONS GUIDE
P=Per form R=Replace I=Inspect**SOUL NORMAL MAINTENANCE SCHEDULE 1.6T-GDI TURBO
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO link account by logging into your Kia Access with UVO App or your account on ht tps://owners .Kia .com (Vehicles equipped with UVO link only – See page 30 for setup information)
QUICK TIPS
See your Owner ’s Manual for more details and complete maintenance information, including severe maintenance schedule . Warrant y may be voided if maintenance schedule is not followed .
(up to 60,000 miles)A For Non-Turbo maintenance, see back coverMAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS - TURBO6,00012,00018,00024,00030,00036,00042,00048,00054,00060,000
Add fuel additiveCPPPPPPPPPPRotate tiresPPPPPPPPPPEngine Oil & FilterRRRRRRRRRRAir cleaner filterIIIRIIIRIIBattery conditionIIIIIIIIIIBrake lines, hoses and connectionsIIIIIIIIIIDisc brakes and padsIIIIIIIIIIVacuum hoseIIIIIIIIIISteering gear rack, linkage & bootsIIIIIIIIIIDrive shafts and bootsIIIIIIIIIISuspension ball joints and mounting boltsIIIIIIIIIIAir conditioner compressor/refrigerantIIIIIIIIIIExhaust systemIIIIIIIIIIIntercooler, in/out hose, air intake hoseIIIIIIIIIICooling SystemIIIIIIIIIIFuel lines, hoses and connectionsIIIIIIIIIIBrake fluidIIIIIIIRIIParking brakeIIIIIIIIIIClimate control air filterRRRRRVapor hose, fuel filler cap and fuel tankIIIIIFuel tank air filter ‡ DIIIIIManual/DCT Transmission Fluid (ever y 37,500 miles)ISpark PlugsRValve clearanceEIDrive belts (First 60,000 miles, then ever y 15,000 miles)FI
Page 53 of 58
51ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

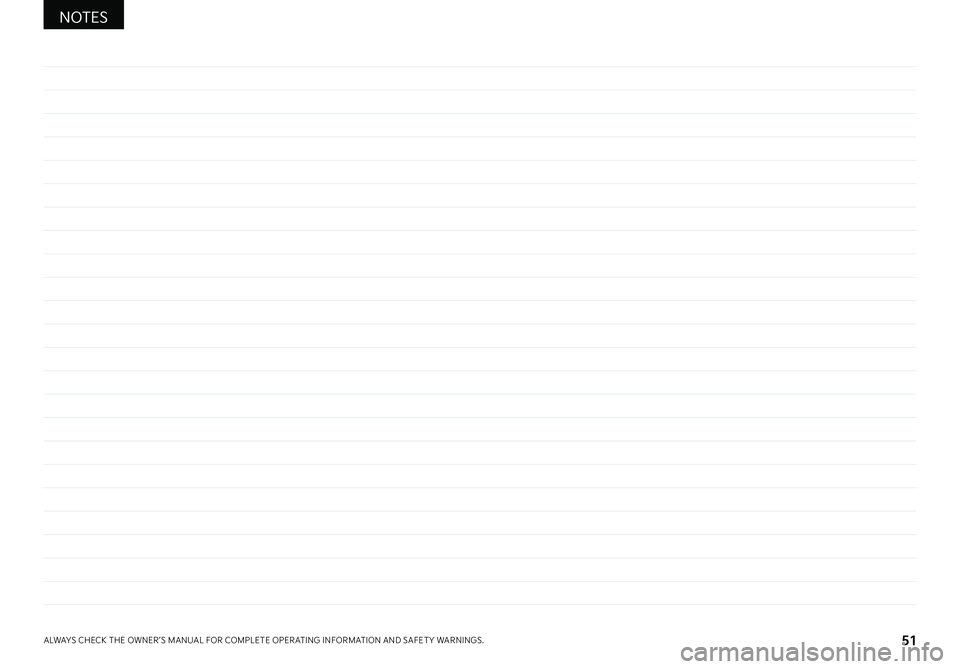

NOTES
Page 54 of 58
52SOUL FEATURES & FUNCTIONS GUIDE
NOTES
Page 55 of 58
Sales Consultant:
____________________________________________________________
Date:
____________________
Sales Manager:
_______________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury or death. The driver’s primary responsibility is in the safe and legal operation of a vehicle. Handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law, should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.
1.
UVO link: Purchase/lease of certain 2019 and newer Kia vehicles with UVO link includes a complimentary 1-year subscription starting from new vehicle retail sale/lease date as recorded by the dealer. After your complimentary 1-year UVO link subscription expires, continued access to the full suite of UVO link available on your Kia will require a paid subscription at the then current subscription rate or your use of certain UVO link features may immediately terminate. Use of UVO is subject to agreement to the UVO Privacy Policy (available at https://owners.kia.com/us/en/privacy-policy.html.html) and Terms of Service (available at https://owners.kia.com/us/en/terms-of-service.html.html). UVO link is transferable to subsequent owner during the original UVO link service term. Only use UVO link when safe to do so. Kia Access with UVO link App is available from the Apple® App Store® or Google Play™. Kia America, Inc. reserves the right to change or discontinue UVO link at any time without prior notification or incurring any future obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO link features may vary by model, model year, and trim level. Features, specifications, and fees are subject to change. For more on details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Apple and App Store are registered trademarks of Apple Inc. Google and logos are trademarks of Google, LLC.
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachusetts. See UVO Terms of Service at owners.kia.com for more information.
2. Airbags: For maximum protection, always wear your seat belt.
3. Android Auto™, Apple CarPlay®, Bluetooth® Wireless Technology, Google Play™ Store, iPhone, SiriusXM®, Sportmatic®: Fair Use of Trademark – The commentary reference to trademarked material is for educational purposes only and not an endorsement by or of the holder of the mark.
4. Driver Assist Features – Blind-Spot Collision Warning, Lane Keeping Assist, Rear View Monitor, Forward Collision-Avoidance Assist, Smart Cruise Control, Rear Cross-Traffic Collision-Avoidance Assist: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.
5. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect all instances of driver fatigue or inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
6. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.
7. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.
8. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
9. Head-Up Display (HUD): Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
10. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
11. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model. Children age 12 and under should always be seated in the REAR seats.
12. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.
13. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.
14. Seat belts: For maximum protection, always wear your seatbelt.
15. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.
16. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.
17. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.
18. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
19. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.
Page 56 of 58
Multimedia USB Port, Power Outlets
& USB Charger Ports – page 33 Digital Clock – page 33 Engine Start/Stop Button* – page 21 Folding Rear Seats – page 42 Sunroof Operation with Sunshade* – page 46
Passenger Airbag Off Indicator – page 48 Rear View Monitor (RVM)* – page 17 Seat Warmers* – page 40 Smart Key* – page 44 Tire Pressure Monitoring System (TPMS) – page 05
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up
Standard Audio System*
–
page 29
For more information, refer to the
Car Multimedia System User ’s Manual.
Sales Consultant:
____________________________________________________________
Date:
____________________
Sales Manager:
_______________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Cruise Control*
– pages 15-17
Demonstrate operation
Bluetooth
® Wireless Technology
–
pages 26-27Demonstrate operation
UVO link with
Navigation*
– page 32
For more information, refer to the
Car Multimedia System User ’s Manual.
KEY FEATURE WALKTHROUGHDURING DELIVERY
Demonstrate UVO link features and functions with the customer.
RADIO
SEEK
TRACK
N AV
MAP MEDIASETUP
RADIO
MEDIA
TRACK SEEK
HOME
PHONE
SETUP
UVO link Activation* / UVO Assistance*
– page 30
Android Auto
™ / Apple
CarPlay
® Setup
– page 28
Kia Access with UVO link App
Download - page 31 Kia Access with UVO link App
Features Guide - page 31
For fur ther UVO link operations, refer to the Car Multimedia System User ’s Manual.
SOUL
CUSTOMER DELIVERY CHECKLIST
*IF EQUIPPED
Page 57 of 58
Air Conditioning / Climate Control –
pages 22-23
Demonstrate Air Flow Modes, Defog and Defrosting Windshield.
Windshield/Rear Wipers & Washers –
page 29
Automatic*
Manual*
Manual Gear Shift* –
page 25
Demonstrate lifting ring for reverse gear
To operate:• Move lever Up/Down to change Wiper modes• Rotate INT switch to adjust Intermit tent Wipe Speed• Pull to spray and wipe
M I S T:
Single wipe
I N T: Intermit tent wipeLO: Slow wipeHI: Fast wipeOFF:
Wiper off
To operate: • Rotate Rear Wiper switch to change Wiper modes• Push to spray and wipeON: Normal wipeINT: Intermit tent wipeOFF
: Wiper Off
*IF EQUIPPED
Owner’s Name:
______________________________________
VIN:
_____________________________
Mileage:
___________________
Dealership Name:
____________________________________
Sales Consultant:
_____________
Date:
______________________
BEFORE DELIVERY Test and confirm “Good Battery” using a Kia battery tester and affix Results Label Verify all tire pressures are to spec (see driver’s door label) LF
LR
RF
RR
Verify proper operation of Remote Keyless Entry and Smart Key lock/unlock Ensure floor mats are snapped into place (if applicable) Verify vehicle is clean (interior and exterior), in good condition and free of chips and scratches Ensure all key documents are in the vehicle (Owner’s Manual, Warranty and Consumer Information booklet,
Tire Warranty booklet and Features & Functions Guide and any Audio System User’s Manual)
KEY FEATURE WALK-THROUGH
68ºF 68ºF
SYNC
AC
A/C
01
2
3
4
REAR
HI
LO
OFF
I N T
HI
LO
OFF
I N T
SOUL
CUSTOMER DELIVERY CHECKLIST
Page 58 of 58
*IF EQUIPPED
(up to 60,000 miles)A For Turbo maintenance, see page 44MAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS7, 5 0 015,00022,50030,0003 7, 5 0 045,00052,50060,000
Rotate tires, check tire pressure and tread wear (Ever y 7,500 miles)PPPPPPPP
Add fuel additiveCPPPPPPPP
Engine Oil & Engine Oil FilterRRRRRRRR
Air cleaner filterIIIRIIIR
Brake fluid‡IIIIIIIR
Brake lines, hoses and connectionsIIIIIIII
Brake discs and padsIIIIIIII
Suspension ball joints and mounting boltsIIIIIIII
Steering gear rack, linkage and bootsIIIIIIII
Drive shafts and bootsIIIIIIII
Air conditioning compressor‡IIIIIIII
Exhaust systemIIIIIIII
Parking brakeIIIIIIII
Fuel lines, fuel hoses and connectionsIIIIIIII
Vacuum hoseIIIIIIII
Battery ConditionIIIIIIII
Cooling systemDIIIIIIII
Climate control air filter‡RRRR
Vapor hose and fuel filler capIIII
Fuel tank air filterEIIII
Manual transmission fluid‡FII
Drive belts (First 60,000 miles, then ever y 15,000 miles)GI
A . See the Owner ’s Manual for complete maintenance schedule. These are approximate estimated inter vals. Refer to vehicle mileage for maintenance item schedule.B. And, if necessar y, adjust, correct, clean or replace.C . If TOP TIER detergent gasoline is not available, one bot tle of fuel additive is recommended. Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.D. Inspect water pump when replacing the drive belt.E. Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel qualit y being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction, power surging, loss of power, difficult y star ting, etc., replace the fuel filter immediately and consult an authorized Kia dealer for ser vice.F. Manual transmission fluid should be changed any time it has been submerged in water.G. The drive belt should be replaced when cracks occur or tension is reduced excessively.See your Owner ’s Manual for more details and complete maintenance information, including severe maintenance schedule. Warrant y may be voided if maintenance schedule is not followed.
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO link account by logging into your Kia Access with UVO App or your account on ht tps://owners.Kia.com (Vehicles equipped with UVO link only – See page 30 for setup information)
QUICK TIPS
P=Per form R=Replace I=Inspect**SOUL NORMAL MAINTENANCE SCHEDULE 2.0 GDI NON-TURBO
‡ If equipped.†LEGAL DISCL AIMERS ON BACK INSIDE COVER
© 2021 Kia America, Inc. All rights reserved. Consumer - Roadside Assistance†15: 1-800-333-4KIA (4542)
Part Number: UG220-PS-004
