radio KIA SOUL 2023 Quick Reference Guide

1-13
a a Displays the specified user profile image. To display the user profile settings screen, press
the user image or name.
b b Displays the date and time.
c c Displays weather, and other information.
d d Displays Radio/Media information.
e e If you press the vehicle image, the Electric Vehicle screen appears.

A
The screen may differ depending on the vehicle model and specifications.

A
To display the map screen, press the map area.
Editing the widgets on the Home screen (Type1)
You can edit the types and positions of the widgets to display on the Home screen.
1 At the upper left of the Home screen, press Menu >
Edit Home
Widgets.
2 Perform any of the following methods:
 To change the widget type, press and hold the desired widget on List of widgets
and then drag it to Widget area.
To change the listed order for widgets, press and hold a widget on Widget area and
then drag it to the desired position.
ab
a a List of widgets
b b Widget area

A
The screen may differ depending on the vehicle model and specifications.

A
To initialize the types and positions of widgets, press Reset.

1-15
Accessing the All Menus screen
You can see All Menus on the Home screen.
Press and gently swipe the Home screen to the left as shown below.
The All Menus screen appears. You can see the list of all functions of the system.
AThe screen may differ depending on the vehicle model and specifications.
Using the split screen (if equipped)
You can set to display various information such as map, Radio/Media info, driving info, and
clock on the split system screen.
Opening the split screen
Press the split screen button.
The split screen appears on the right.

Useful functions
Using the First Run Setup
Using the phone projection function
Viewing the driving assistance screen Using the climate control function
Using the rear-seat climate control function Using the rear-seat conversation mode Using the rear-seat view
Using the rear-seat quiet mode Using the sound mood lamp Playing Sounds of Nature
Using the HD Radio™ Data
Viewing the driving information Viewing notifications
Using the Valet mode
02

2-6
Using the Android Auto
1 On the All Menus screen, press Android Auto.
2 Perform the desired function.
To run the functions for phone, music, or navigation on the smartphone, press the
corresponding app icon.

A
When you are using your smartphone′s navigation via phone projection, sounds
from both the system′s radio/media function and the navigation will be output
through your vehicle′s speakers. When you use the Volume knob while both
sounds are being output, the navigation volume is adjusted first.
To use the Google voice recognition, press and hold the Voice Recognition button on
the steering wheel.

A
By pressing the [ MODE] button on the steering wheel, you can run the media App on
your smartphone as well as the Radio/Media mode of the system.

A
To specify which functions to run when the [ MODE] button on the steering wheel is
pressed, press and hold the [ MODE] button to display the settings screen.

A
By pressing the Call button on the steering wheel, you can make a call via Bl\
uetooth
connection.

A
When phone projection is active, you cannot change the phone projection settings. To
change the settings, remove the USB cable from your system.

A
The icons on the screen are subject to change according to the policy of Google
Corporation.

A
Apps or functions used through Android Auto are subject to change according to the
policy of Google Corporation. For supportable functions, visit the Android website at
https://www.android.com/auto.

A
To use the functions on your smartphone with the minimized system settings, update the
smartphone OS to the latest version.

A
The recognition time may differ depending on the device type, firmware, and OS version.

A
Charges may apply for any mobile data used while Android Auto is running.

A
Some functions may not work properly depending on the network signal strength.

A
Avoid interacting with the smartphone while using Android Auto.

A
You cannot use the following functions when Android Auto is in use.

USB mode

Apple CarPlay

Searches using the control panel or the steering wheel remote control

2-8
Using the Apple CarPlay
1 On the All Menus screen, press Apple CarPlay.
2 Perform the desired function.
To run any of functions (phone, messaging, navigation, etc.) on your iPhone, press the
corresponding function icon.

A
When you are using your smartphone′s navigation via phone projection, sounds
from both the system′s radio/media function and the navigation will be output
through your vehicle′s speakers. When you use the Volume knob while both
sounds are being output, the navigation volume is adjusted first.
To run the Siri voice recognition, press and hold the Voice Recognition button on the
steering wheel.

A
By pressing the [ MODE] button on the steering wheel, you can run the media App on
your smartphone as well as the Radio/Media mode of the system.

A
To specify which functions to run when the [ MODE] button on the steering wheel is
pressed, press and hold the [ MODE] button to display the settings screen.

A
When you receive a call, press the Call button on the steering wheel to answer it.

A
When phone projection is active, you cannot change the phone projection settings. To
change the settings, remove the USB cable from your system.

A
Apps or functions used through Apple CarPlay are subject to change according to the
policy of Apple Corporation. For supportable functions, visit the Apple Corporation
website at http://www.apple.com/ios/carplay .

A
To use the functions on your smartphone with the minimized system settings, update the
smartphone OS to the latest version.

A
The recognition time may differ depending on the device type, firmware, and OS version.

A
Charges may apply for any mobile data used while Apple CarPlay is running.

A
Some functions may not work properly depending on the network signal strength.

A
Avoid interacting with the smartphone while using Apple CarPlay.

A
You cannot use the following functions when Apple CarPlay is in use.

Bluetooth phone

USB mode

Android Auto

Browsing using the Search knob on the control panel (if equipped)

2-19
f f The list of menu items appears.
Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button (if equipped).
 Front Climate
: Displays the front-seat climate control settings screen (if equipped).
Front Heat/Ventilation: Displays the front-seat warmer/ventilation settings
screen (if equipped).

A
Available settings may differ depending on the vehicle model and
specifications.
Climate Settings
: Configure specific climate control function settings (if equipped).
User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Using the rear-seat conversation mode
(if equipped)
When the driver's voice cannot be delivered well to the rear seat, you can use the microphone
of the driver's seat for smooth communication.
1 On the All Menus screen, press Passenger Talk.
The passenger talk icon appears at the top right of the system screen to display its status.
2 Make conversation through the microphone of the driver's seat.

A
To end the Passenger Talk mode, press End.

A
When you move to another screen without pressing End, shortly press the End Call
button on the steering wheel to end the passenger talk function.

A
When the Passenger Talk mode is active, the Radio/Media functions are unavailable.

A
To access the online user's manual on the Passenger Talk screen, press
>
User's
Manual on Web (QR Code) and then scan the displayed QR code.

2-23
Playing Sounds of Nature
Listen to the calming sound of rain, waves, and more to relax while driving by turning on a
Sounds of Nature.
1 On the All Menus screen, press Media >
Sounds of Nature.
2 Select from the Sounds of Nature list to play.
cde
ha
b
f
g
a a Returns to the previous step.
b b Select and play Sounds of Nature.
c c Play the previous sound.
d d Stop or play playback.
e e Play the next sound.
f f You can check the playback status of Sound of Nature.
g g Select and play Sounds of Nature.
h h The list of menu items appears.
 Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
 Media Sources: Open the Radio/Media selection window.
Sound Settings: Displays the system sound settings screen.
User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
Playing Sounds of Nature will mute or pause other sound effects and music that may be
active at the moment.

A
Incoming or outgoing calls will pause Sounds of Nature playback.

A
The sound effect settings button may appear on the screen depending on the amp
specifications.

2-24
Using the HD Radio™ Data
You can access an array of information with HD Radio data such as HD Radio™.
A
HD Radio data are available only in metropolitan areas.
1 On the All Menus screen, press HD Radio Data.
2 Perform any of the following methods:
a
bcd
e
a a Returns to the previous step.
b b Can see traffic information by using HD Radio data. > See "Viewing traffic information
using HD Radio™ data."
c c Can see weather information from the Doppler Radar. > See "Viewing weather
information using Doppler weather radar ."
d d Can see fuel price information by using HD Radio data (if equipped). > See "Viewing
fuel price information using HD Radio™ data (if equipped) ."
e e The list of menu items appears.
Display Off
: Turns off the screen. To switch the screen back on, press the screen or
briefly press the power button.
 User's Manual on Web (QR Code): Displays the QR code that provides access to
the online user manual for the system.
Split Screen: Can turn on or off the split screen mode.

A
The screen may differ depending on the vehicle model and specifications.

2-25

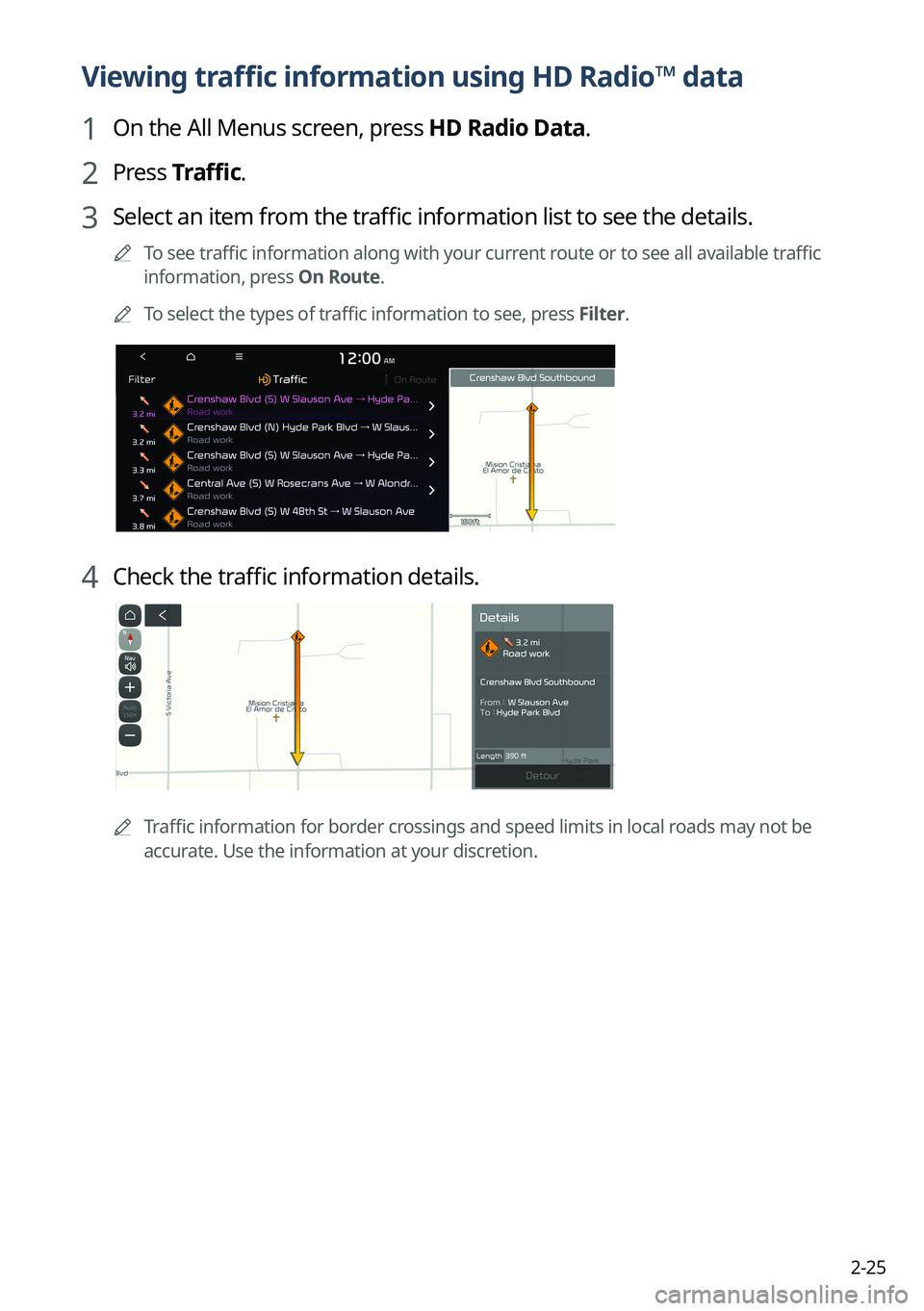

Viewing traffic information using HD Radio™ data
1 On the All Menus screen, press HD Radio Data.
2 Press Traffic.
3 Select an item from the traffic information list to see the details.

A
To see traffic information along with your current route or to see all available traffic
information, press On Route.

A
To select the types of traffic information to see, press Filter.
4 Check the traffic information details.

A
Traffic information for border crossings and speed limits in local roads may not be
accurate. Use the information at your discretion.

2-26
Viewing weather information using Doppler weather
radar
1 On the All Menus screen, press HD Radio Data.
2 Press Doppler Radar.
3 See the weather condition details in the HD Radio coverage area.
Viewing fuel price information using HD Radio™ data
(if equipped)
1 On the All Menus screen, press HD Radio Data.
2 Press Fuel Prices.
3 Search nearby gas stations, and check the current fuel prices.

A
To change the sorting order, press on the drop-down list and then select the
sorting criteria.

A
To see the latest information, press
.
