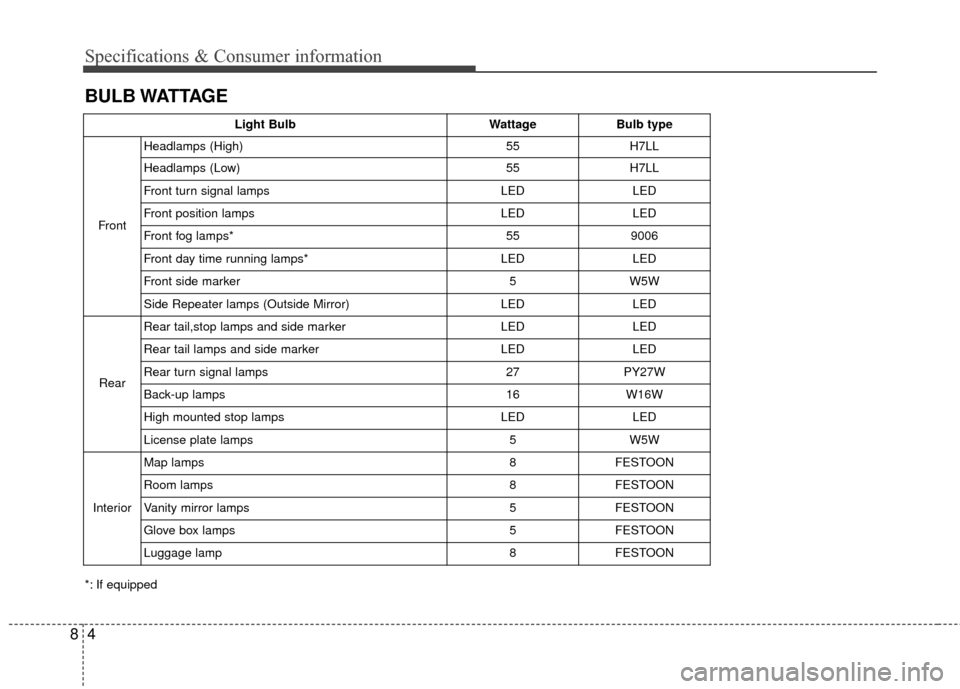

BULB WATTAGE
Light BulbWattageBulb type
Front Headlamps (High)
55H7LL
Headlamps (Low) 55H7LL
Front turn signal lamps LEDLED
Front position lamps LEDLED
Front fog lamps* 559006
Front day time running lamps*LEDLED
Front side marker 5W5W
Side Repeater lamps (Outside Mirror) LEDLED
Rear Rear tail,stop lamps and side marker
LEDLED
Rear tail lamps and side marker LEDLED
Rear turn signal lamps 27PY27W
Back-up lamps 16W16W
High mounted stop lamps LEDLED
License plate lamps 5W5W
Interior Map lamps
8FESTOON
Room lamps 8FESTOON
Vanity mirror lamps 5FESTOON
Glove box lamps 5FESTOON
Luggage lamp 8FESTOON
*: If equipped

85
Specifications & Consumer information

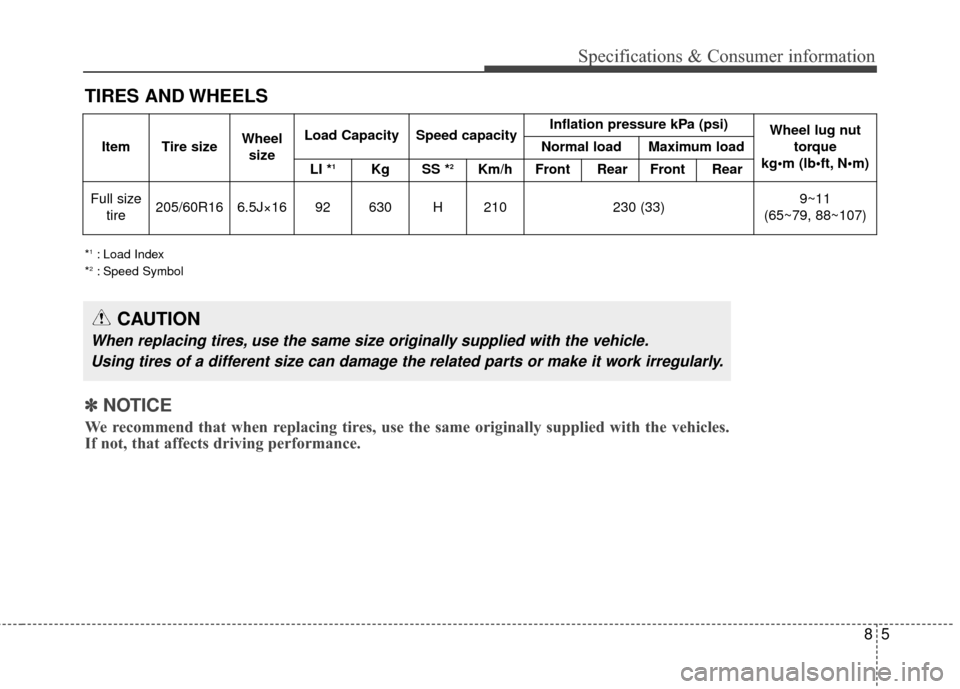

TIRES AND WHEELS
*1: Load Index
*2: Speed Symbol
ItemTire sizeWheel sizeLoad CapacitySpeed capacityInflation pressure kPa (psi)Wheel lug nut torque
kg•m (lb N
Normal loadMaximum load
LI *1KgSS *2Km/hFrontRear FrontRear
Full size tire205/60R166.5J×1692630H210230 (33)9~11
(65~79, 88~107)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
✽
✽ NOTICE
We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.

Specifications & Consumer information
68

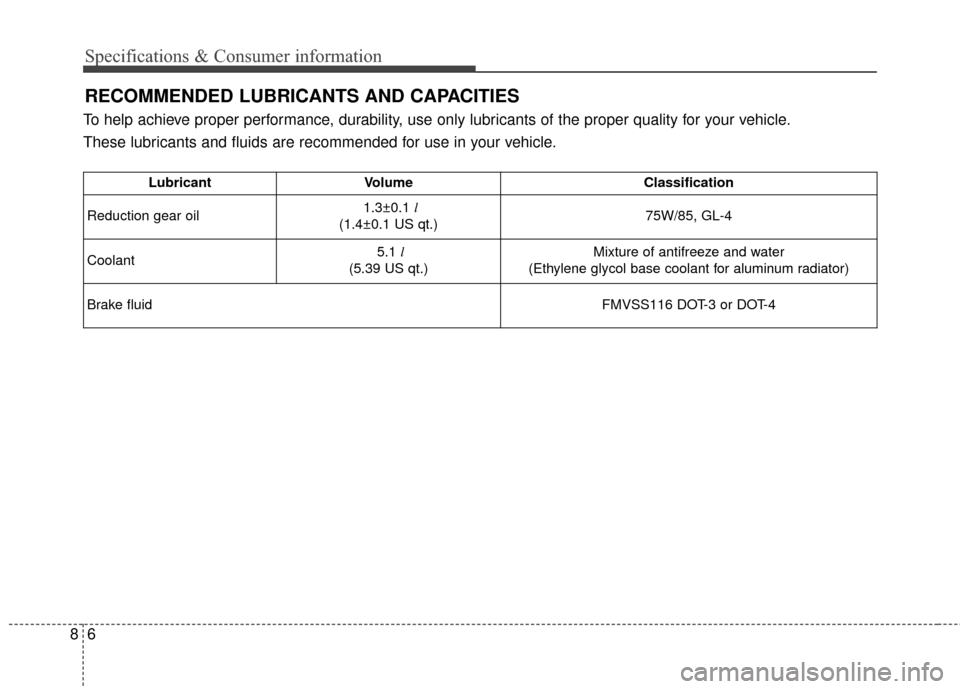

LubricantVolume Classification
Reduction gear oil 1.3±0.1
l
(1.4±0.1 US qt.) 75W/85, GL-4
Coolant 5.1
l
(5.39 US qt.) Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid FMVSS116 DOT-3 or DOT-4
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper performance, durability, use only lubricants of the proper quality for your vehicle.
These lubricants and fluids are recommended for use in your vehicle.

VEHICLE IDENTIFICATION NUMBER (VIN)

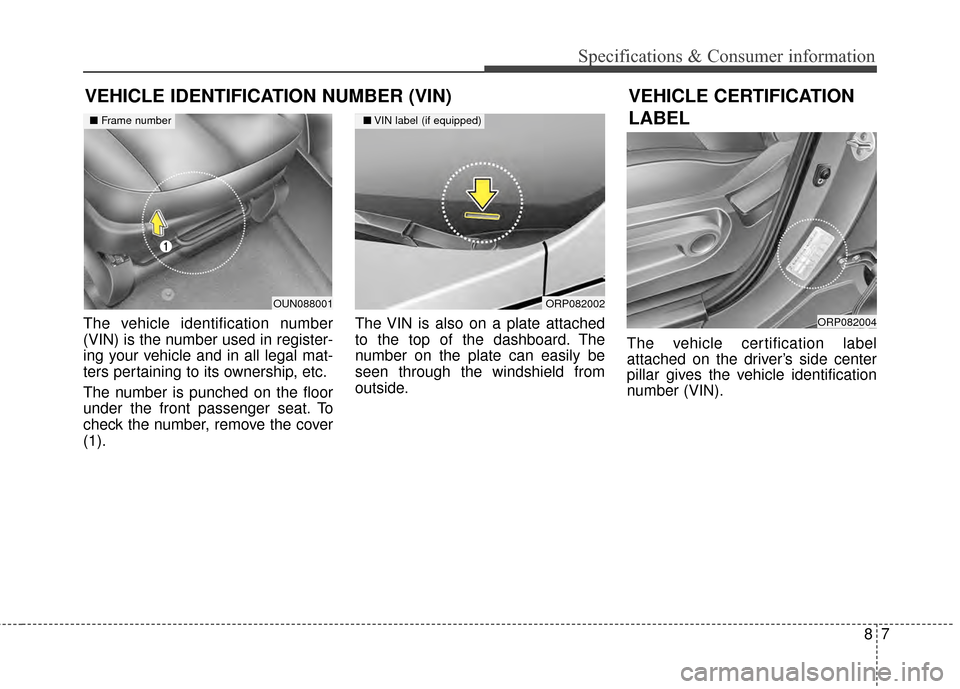

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger seat. To
check the number, remove the cover
(1).The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OUN088001
■
Frame number
VEHICLE CERTIFICATION
LABEL
ORP082002
■VIN label (if equipped)
ORP082004
87
Specifications & Consumer information

Specifications & Consumer information
88

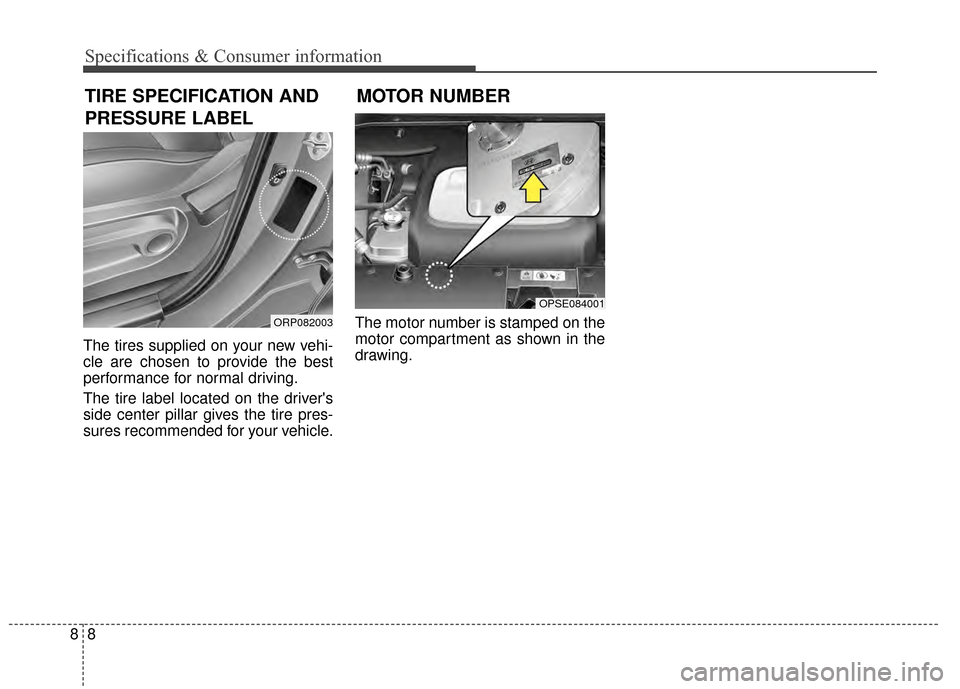

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The motor number is stamped on the
motor compartment as shown in the
drawing.
TIRE SPECIFICATION AND
PRESSURE LABEL
ORP082003
OPSE084001
MOTOR NUMBER

Electric Vehicle Guide

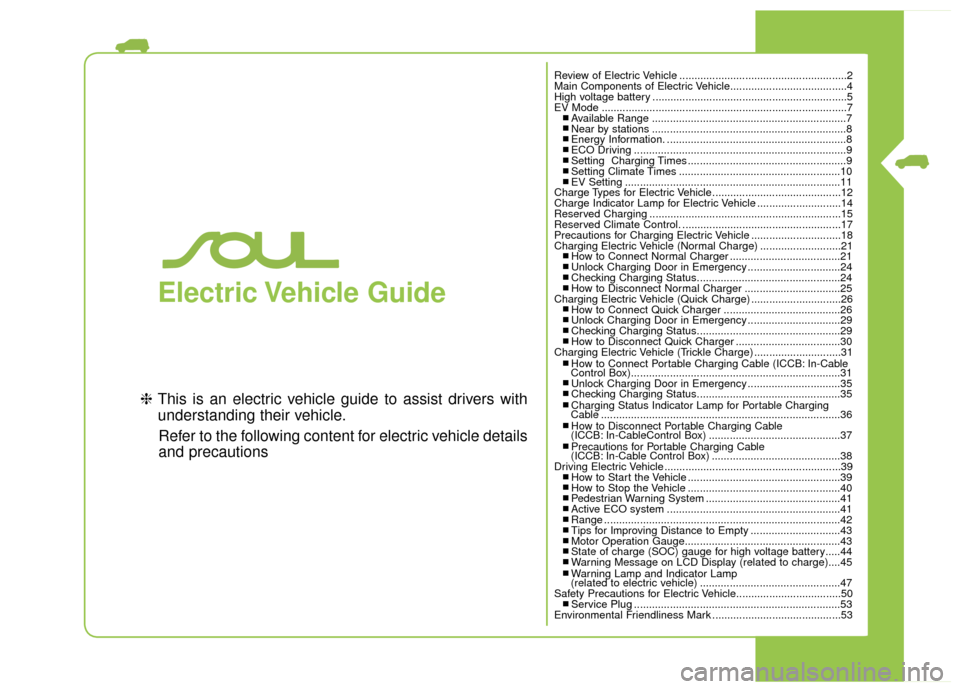

❈This is an electric vehicle guide to assist drivers with
understanding their vehicle.
Refer to the following content for electric vehicle details
and precautions
Review of Electric Vehicle ........................................................2
Main Components of Electric Vehicle.......................................4
High voltage battery .................................................................5
EV Mode ........................................................................\
..........7
■ Available Range .................................................................7■ Near by stations .................................................................8■ Energy Information. ............................................................8■ ECO Driving .......................................................................9\
■ Setting Charging Times .....................................................9■ Setting Climate Times ......................................................10■ EV Setting ........................................................................\
11
Charge Types for Electric Vehicle...........................................12
Charge Indicator Lamp for Electric Vehicle ............................14
Reserved Charging ................................................................15
Reserved Climate Control. .....................................................17
Precautions for Charging Electric Vehicle ..............................18
Charging Electric Vehicle (Normal Charge) ...........................21
■ How to Connect Normal Charger .....................................21■ Unlock Charging Door in Emergency ...............................24■ Checking Charging Status................................................24■ How to Disconnect Normal Charger ................................25
Charging Electric Vehicle (Quick Charge) ..............................26
■ How to Connect Quick Charger .......................................26■ Unlock Charging Door in Emergency ...............................29■ Checking Charging Status................................................29■ How to Disconnect Quick Charger ...................................30
Charging Electric Vehicle (Trickle Charge) .............................31
■ How to Connect Portable Charging Cable (ICCB: In-Cable
Control Box)......................................................................31\
■ Unlock Charging Door in Emergency ...............................35■ Checking Charging Status................................................35■ Charging Status Indicator Lamp for Portable Charging
Cable ........................................................................\
........36
■ How to Disconnect Portable Charging Cable
(ICCB: In-CableControl Box) ............................................37
■ Precautions for Portable Charging Cable
(ICCB: In-Cable Control Box) ...........................................38
Driving Electric Vehicle ...........................................................39
■ How to Start the Vehicle ...................................................39■ How to Stop the Vehicle ...................................................40■ Pedestrian Warning System .............................................41■ Active ECO system ..........................................................41■ Range ........................................................................\
.......42■ Tips for Improving Distance to Empty ..............................43■ Motor Operation Gauge....................................................43■ State of charge (SOC) gauge for high voltage battery.....44■ Warning Message on LCD Display (related to charge)....45■ Warning Lamp and Indicator Lamp
(related to electric vehicle) ...............................................47
Safety Precautions for Electric Vehicle...................................50
■ Service Plug .....................................................................53
Environmental Friendliness Mark ...........................................53

2

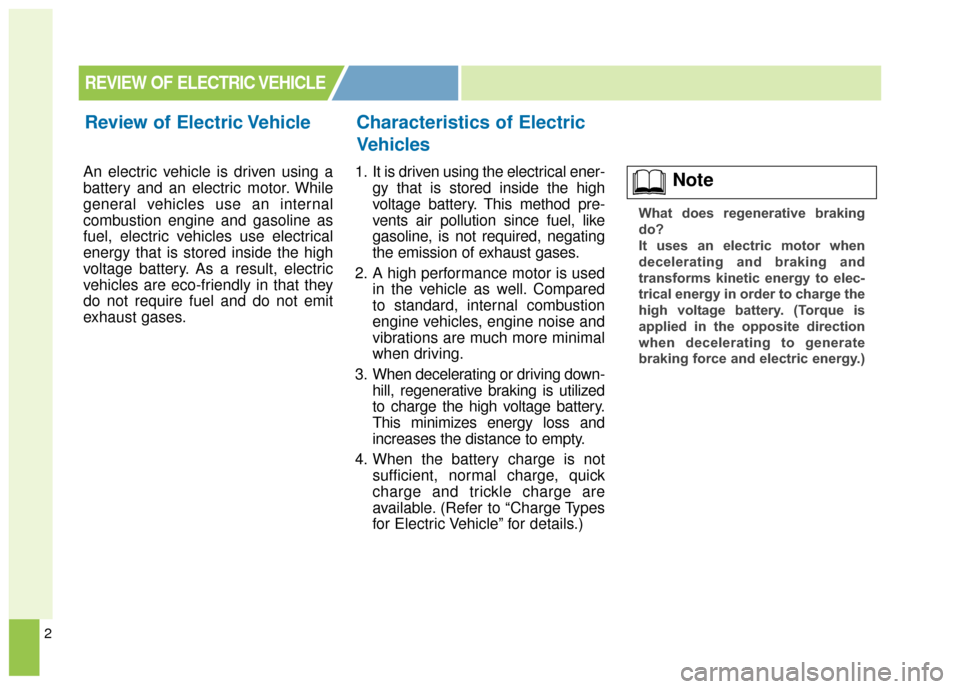

An electric vehicle is driven using a
battery and an electric motor. While
general vehicles use an internal
combustion engine and gasoline as
fuel, electric vehicles use electrical
energy that is stored inside the high
voltage battery. As a result, electric
vehicles are eco-friendly in that they
do not require fuel and do not emit
exhaust gases.1. It is driven using the electrical ener-
gy that is stored inside the high
voltage battery. This method pre-
vents air pollution since fuel, like
gasoline, is not required, negating
the emission of exhaust gases.
2. A high performance motor is used in the vehicle as well. Compared
to standard, internal combustion
engine vehicles, engine noise and
vibrations are much more minimal
when driving.
3. When decelerating or driving down- hill, regenerative braking is utilized
to charge the high voltage battery.
This minimizes energy loss and
increases the distance to empty.
4. When the battery charge is not sufficient, normal charge, quick
charge and trickle charge are
available. (Refer to “Charge Types
for Electric Vehicle” for details.)
REVIEW OF ELECTRIC VEHICLE
Review of Electric Vehicle Characteristics of Electric
Vehicles
What does regenerative braking
do?
It uses an electric motor when
decelerating and braking and
transforms kinetic energy to elec-
trical energy in order to charge the
high voltage battery. (Torque is
applied in the opposite direction
when decelerating to generate
braking force and electric energy.)
Note

3

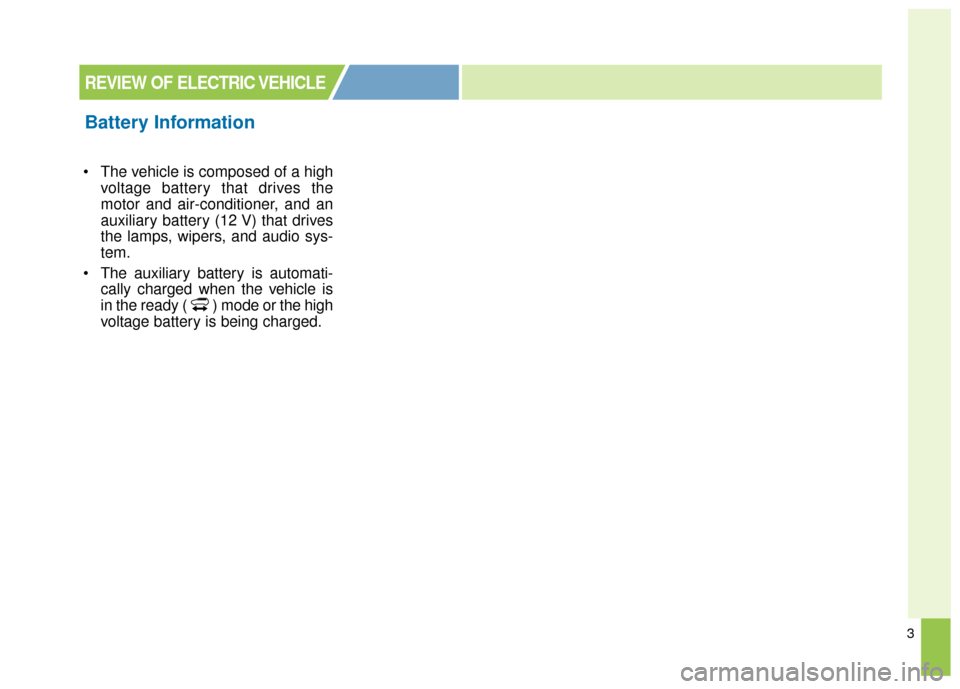

The vehicle is composed of a highvoltage battery that drives the
motor and air-conditioner, and an
auxiliary battery (12 V) that drives
the lamps, wipers, and audio sys-
tem.
The auxiliary battery is automati- cally charged when the vehicle is
in the ready ( ) mode or the high
voltage battery is being charged.
REVIEW OF ELECTRIC VEHICLE
Battery Information

4

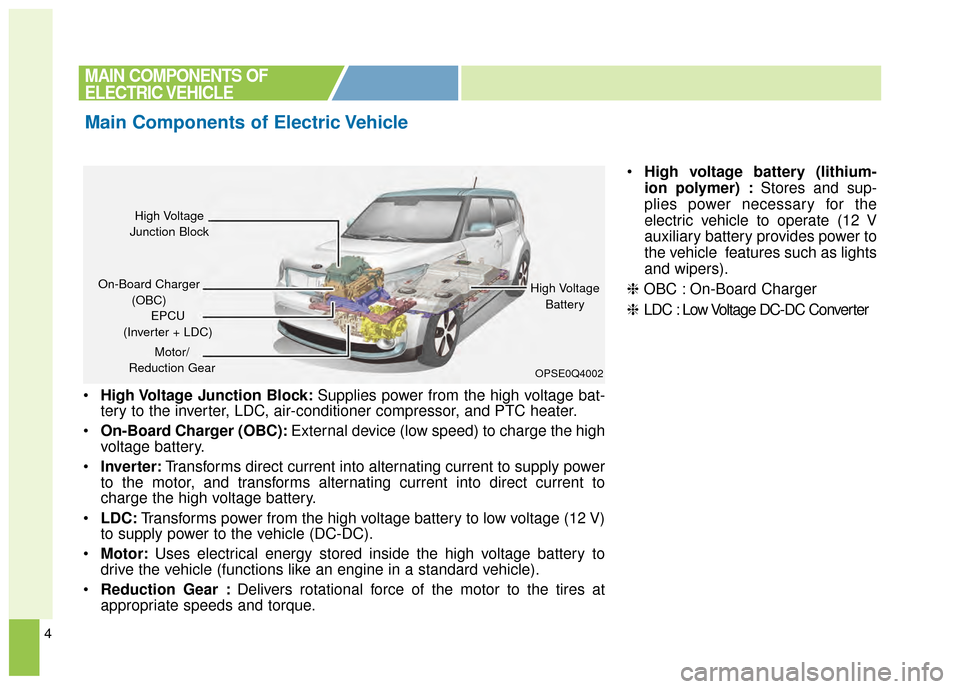

High Voltage Junction Block: Supplies power from the high voltage bat-
tery to the inverter, LDC, air-conditioner compressor, and PTC heater.
On-Board Charger (OBC): External device (low speed) to charge the high
voltage battery.
Inverter: Transforms direct current into alternating current to supply power
to the motor, and transforms alternating current into direct current to
charge the high voltage battery.
LDC: Transforms power from the high voltage battery to low voltage (12 V)
to supply power to the vehicle (DC-DC).
Motor: Uses electrical energy stored inside the high voltage battery to
drive the vehicle (functions like an engine in a standard vehicle).
Reduction Gear : Delivers rotational force of the motor to the tires at
appropriate speeds and torque.
High voltage battery (lithium-
ion polymer) : Stores and sup-
plies power necessary for the
electric vehicle to operate (12 V
auxiliary battery provides power to
the vehicle features such as lights
and wipers).
❈ OBC : On-Board Charger
❈ LDC : Low Voltage DC-DC Converter
MAIN COMPONENTS OF
ELECTRIC VEHICLE
Main Components of Electric Vehicle
OPSE0Q4002
High Voltage
Junction Block
On-Board Charger (OBC) High Voltage
Battery
EPCU
(Inverter + LDC)
Motor/
Reduction Gear

5

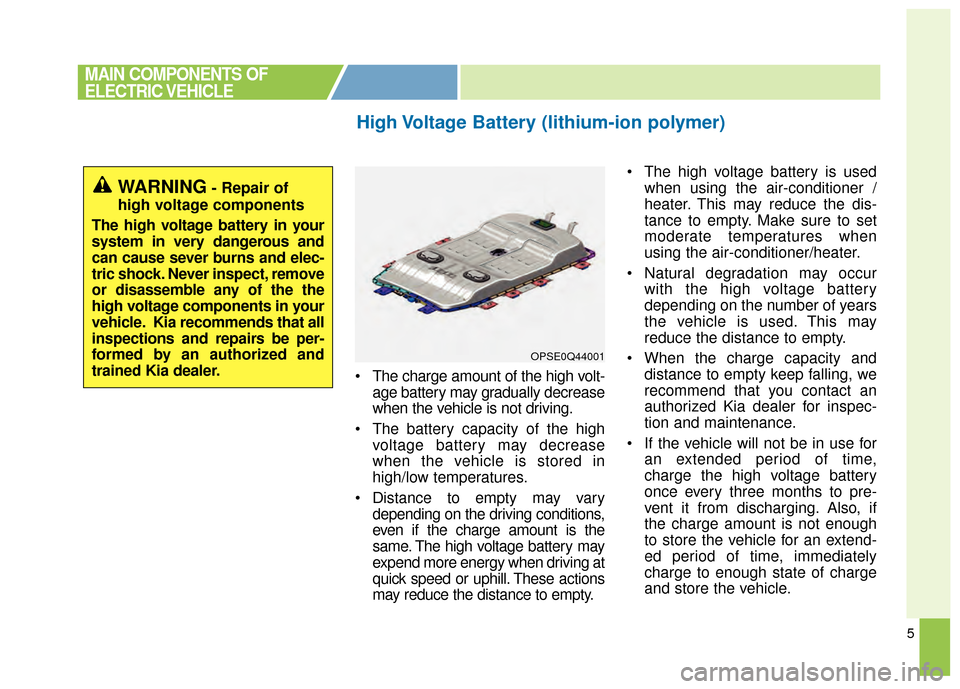

The charge amount of the high volt-age battery may gradually decrease
when the vehicle is not driving.
The battery capacity of the high voltage battery may decrease
when the vehicle is stored in
high/low temperatures.
Distance to empty may vary depending on the driving conditions,
even if the charge amount is the
same. The high voltage battery may
expend more energy when driving at
quick speed or uphill. These actions
may reduce the distance to empty. The high voltage battery is used
when using the air-conditioner /
heater. This may reduce the dis-
tance to empty. Make sure to set
moderate temperatures when
using the air-conditioner/heater.
Natural degradation may occur with the high voltage battery
depending on the number of years
the vehicle is used. This may
reduce the distance to empty.
When the charge capacity and distance to empty keep falling, we
recommend that you contact an
authorized Kia dealer for inspec-
tion and maintenance.
If the vehicle will not be in use for an extended period of time,
charge the high voltage battery
once every three months to pre-
vent it from discharging. Also, if
the charge amount is not enough
to store the vehicle for an extend-
ed period of time, immediately
charge to enough state of charge
and store the vehicle.
High Voltage Battery (lithium-ion polymer)
MAIN COMPONENTS OF
ELECTRIC VEHICLE
OPSE0Q44001
WARNING- Repair of
high voltage components
The high voltage battery in your
system in very dangerous and
can cause sever burns and elec-
tric shock. Never inspect, remove
or disassemble any of the the
high voltage components in your
vehicle. Kia recommends that all
inspections and repairs be per-
formed by an authorized and
trained Kia dealer.
